MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node > Class Template Reference
MueLuTransferClasses

Prolongator factory performing geometric coarsening. More...

#include <MueLu_BlackBoxPFactory_decl.hpp>

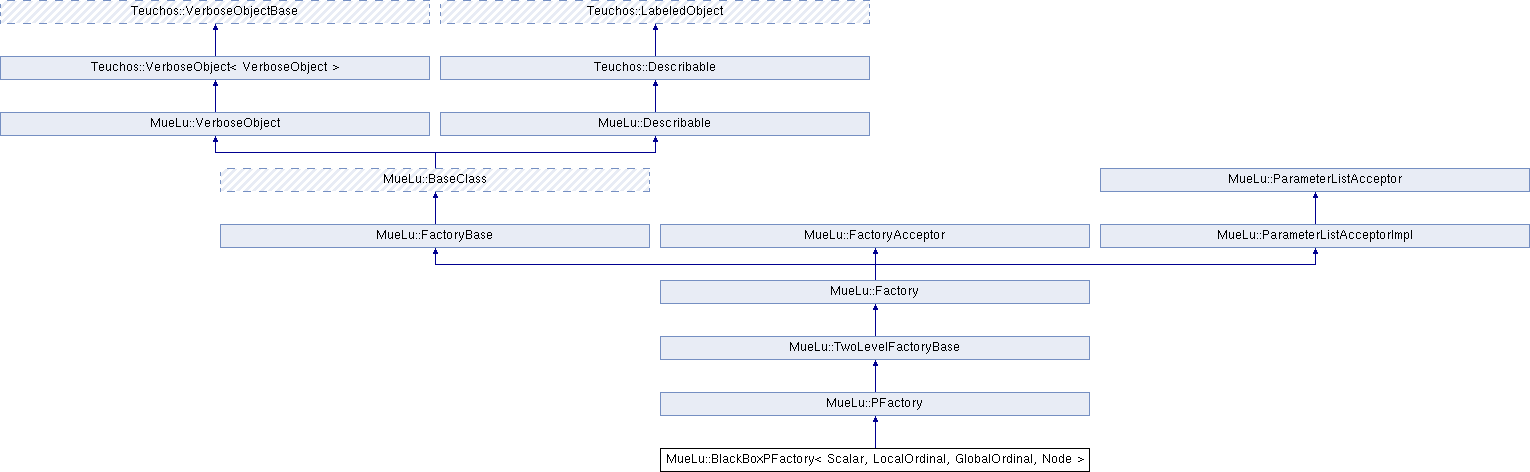

Inheritance diagram for MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >:
MueLu::PFactory MueLu::TwoLevelFactoryBase MueLu::Factory MueLu::FactoryBase MueLu::FactoryAcceptor MueLu::ParameterListAcceptorImpl MueLu::BaseClass MueLu::ParameterListAcceptor MueLu::VerboseObject MueLu::Describable Teuchos::VerboseObject< VerboseObject > Teuchos::Describable Teuchos::VerboseObjectBase Teuchos::LabeledObject

Classes

struct  NodeID

struct  NodesIDs


Public Member Functions

RCP< const ParameterList > GetValidParameterList () const
 Return a const parameter list of valid parameters that setParameterList() will accept. More...

- Public Member Functions inherited from MueLu::PFactory
 PFactory ()
 Constructor. More...

virtual ~PFactory ()
 Destructor. More...

void setRestrictionMode (bool bRestrictionMode=false)

bool isRestrictionModeSet ()
 returns restrictionMode flag More...

- Public Member Functions inherited from MueLu::TwoLevelFactoryBase
 TwoLevelFactoryBase ()
 Constructor. More...

virtual ~TwoLevelFactoryBase ()
 Destructor. More...

virtual void CallDeclareInput (Level &requestedLevel) const

virtual void CallBuild (Level &requestedLevel) const

- Public Member Functions inherited from MueLu::Factory
void EnableMultipleCallCheck () const
 Constructor. More...

void DisableMultipleCallCheck () const

void ResetDebugData () const

- Public Member Functions inherited from MueLu::FactoryBase
 FactoryBase ()
 Constructor. More...

virtual ~FactoryBase ()
 Destructor. More...

int GetID () const
 return unique factory id More...

- Public Member Functions inherited from MueLu::BaseClass
virtual ~BaseClass ()
 Destructor. More...

- Public Member Functions inherited from MueLu::VerboseObject
VerbLevel GetVerbLevel () const
 Get the verbosity level. More...

void SetVerbLevel (const VerbLevel verbLevel)
 Set the verbosity level of this object. More...

int GetProcRankVerbose () const
 Get proc rank used for printing. Do not use this information for any other purpose. More...

int SetProcRankVerbose (int procRank) const
 Set proc rank used for printing. More...

bool IsPrint (MsgType type, int thisProcRankOnly=-1) const
 Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStream & GetOStream (MsgType type, int thisProcRankOnly=0) const
 Get an output stream for outputting the input message type. More...

Teuchos::FancyOStream & GetBlackHole () const

 VerboseObject ()

virtual ~VerboseObject ()
 Destructor. More...

- Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObject & setVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObject & setOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList > 		getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void 		setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void 		readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBase & setOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBase & setOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBase & setLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStream > getOStream () const

virtual RCP< FancyOStream > getOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const

- Public Member Functions inherited from MueLu::Describable
virtual ~Describable ()
 Destructor. More...

virtual std::string ShortClassName () const
 Return the class name of the object, without template parameters and without namespace. More...

virtual void describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

virtual std::string description () const
 Return a simple one-line description of this object. More...

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with some verbosity level to an FancyOStream object. More...

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from MueLu::FactoryAcceptor
virtual ~FactoryAcceptor ()

virtual void SetFactory (const std::string &varName, const RCP< const FactoryBase > &factory)=0
 Configuration. More...

virtual const RCP< const
FactoryBase > 		GetFactory (const std::string &varName) const =0

- Public Member Functions inherited from MueLu::ParameterListAcceptorImpl
 ParameterListAcceptorImpl ()

virtual ~ParameterListAcceptorImpl ()=default

virtual void SetParameterList (const Teuchos::ParameterList &paramList)
 Set parameters from a parameter list and return with default values. More...

virtual const
Teuchos::ParameterList & 		GetParameterList () const

void SetParameter (const std::string &name, const ParameterEntry &entry)
 Set a parameter directly as a ParameterEntry. More...

const ParameterEntry & GetParameter (const std::string &name) const
 Retrieves a const entry with the name name. More...

virtual void GetDocumentation (std::ostream &os) const

- Public Member Functions inherited from MueLu::ParameterListAcceptor
 ParameterListAcceptor ()

virtual ~ParameterListAcceptor ()=default


Private Member Functions

void GetGeometricData (RCP< Xpetra::MultiVector< typename Teuchos::ScalarTraits< Scalar >::magnitudeType, LO, GO, NO > > &coordinates, const Array< LO > coarseRate, const Array< GO > gFineNodesPerDir, const Array< LO > lFineNodesPerDir, const LO BlkSize, Array< GO > &gIndices, Array< LO > &myOffset, Array< bool > &ghostInterface, Array< LO > &endRate, Array< GO > &gCoarseNodesPerDir, Array< LO > &lCoarseNodesPerDir, Array< LO > &glCoarseNodesPerDir, Array< GO > &ghostGIDs, Array< GO > &coarseNodesGIDs, Array< GO > &colGIDs, GO &gNumCoarseNodes, LO &lNumCoarseNodes, ArrayRCP< Array< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > > coarseNodes, Array< int > &boundaryFlags, RCP< NodesIDs > ghostedCoarseNodes) const

void ComputeLocalEntries (const RCP< const Matrix > &Aghost, const Array< LO > coarseRate, const Array< LO > endRate, const LO BlkSize, const Array< LO > elemInds, const Array< LO > lCoarseElementsPerDir, const LO numDimensions, const Array< LO > lFineNodesPerDir, const Array< GO > gFineNodesPerDir, const Array< GO > gIndices, const Array< LO > lCoarseNodesPerDir, const Array< bool > ghostInterface, const Array< int > elementFlags, const std::string stencilType, const std::string blockStrategy, const Array< LO > elementNodesPerDir, const LO numNodesInElement, const Array< GO > colGIDs, Teuchos::SerialDenseMatrix< LO, SC > &Pi, Teuchos::SerialDenseMatrix< LO, SC > &Pf, Teuchos::SerialDenseMatrix< LO, SC > &Pe, Array< LO > &dofType, Array< LO > &lDofInd) const

void CollapseStencil (const int type, const int orientation, const int collapseFlags[3], Array< SC > &stencil) const

void FormatStencil (const LO BlkSize, const Array< bool > ghostInterface, const LO ie, const LO je, const LO ke, const ArrayView< const SC > rowValues, const Array< LO > elementNodesPerDir, const int collapseFlags[3], const std::string stencilType, Array< SC > &stencil) const

void GetNodeInfo (const LO ie, const LO je, const LO ke, const Array< LO > elementNodesPerDir, int *type, LO &ind, int *orientation) const

void sh_sort_permute (const typename Teuchos::Array< LocalOrdinal >::iterator &first1, const typename Teuchos::Array< LocalOrdinal >::iterator &last1, const typename Teuchos::Array< LocalOrdinal >::iterator &first2, const typename Teuchos::Array< LocalOrdinal >::iterator &last2) const


Friends

class MueLuTests::BlackBoxPFactoryTester< Scalar, LocalOrdinal, GlobalOrdinal, Node >


Constructors/Destructors.

 BlackBoxPFactory ()
 Constructor. More...

virtual ~BlackBoxPFactory ()
 Destructor. More...

void DeclareInput (Level &fineLevel, Level &coarseLevel) const
 Input. More...


Build methods.

void Build (Level &fineLevel, Level &coarseLevel) const
 Build an object with this factory. More...

void BuildP (Level &fineLevel, Level &coarseLevel) const
 Abstract Build method. More...


Additional Inherited Members

- Static Public Member Functions inherited from MueLu::Factory
static void EnableMultipleCheckGlobally ()

static void DisableMultipleCheckGlobally ()

- Static Public Member Functions inherited from MueLu::VerboseObject
static void SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static Teuchos::RCP
< Teuchos::FancyOStream > 		GetMueLuOStream ()

static void SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
 Set the default (global) verbosity level. More...

static VerbLevel GetDefaultVerbLevel ()
 Get the default (global) verbosity level. More...

- Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStream > getDefaultOStream ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const

- Protected Attributes inherited from MueLu::PFactory
bool restrictionMode_


Detailed Description

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
class MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Prolongator factory performing geometric coarsening.

The geometric algorithm assumes the underlying mesh is reasonably structured. Any rate of coarsening can be applied, and the rate is automatically decrease along an edge if the number of element is not divisible by the coarsening rate. The coarsening rate is allowed to be different in all direction which means that semi-coarsening can be achieved within this algorithm in 1 or 2 directions. The main difficulty is to obtain the number of elements/nodes in each directions to identify coarse nodes and fine nodes.

Input/output of BlackBoxPFactory

User parameters of SemiCoarsenPFactory

Parameter type default master.xml validated requested description
Coarsen string -1 A string that specify the coarsening rate, if it is a single character, it will
indicate a unique coarsening rate in each direction, if it is longer, it will be
processed as a vector with 3 entries, one for each spatial direction
A Factory null * * Generating factory of the matrix A used during the prolongator smoothing process
Nullspace Factory null * * Generating factory of the nullspace. The GeneralGeometricPFactory provides
a coarse version of the given Nullspace.
Coordinates Factory NoFactory * * Generating factory for coorindates. The coordinates are expected to be provided
on the finest level using the NoFactory mechanism. The coordinates are used to
compute the coarsening stencil and coarse coordinates are generated for the next
level.

The * in the master.xml column denotes that the parameter is defined in the master.xml file.
The * in the validated column means that the parameter is declared in the list of valid input parameters (see BlackBoxPFactory::GetValidParameters).
The * in the requested column states that the data is requested as input with all dependencies (see BlackBoxPFactory::DeclareInput).

Variables provided by BlackBoxPFactory

After BlackBoxPFactory::Build the following data is available (if requested)

Parameter generated by description
P BlackBoxPFactory Prolongator
Nullspace BlackBoxPFactory Coarse nullspace (the fine level nullspace information is coarsened using P to generate a coarse version
of the nullspace. No scaling is applied.
coarseCoordinates BlackBoxPFactory coarseCoordinates are to be picked up on the coarse level by the coordinates transfer factory and renamed
coordinates so that on coarser levels coordinates are available in case another factory needs them.

Definition at line 117 of file MueLu_BlackBoxPFactory_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BlackBoxPFactory ( )
inline

Constructor.

Definition at line 129 of file MueLu_BlackBoxPFactory_decl.hpp.

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
virtual MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~BlackBoxPFactory ( )
inlinevirtual

Destructor.

Definition at line 132 of file MueLu_BlackBoxPFactory_decl.hpp.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
RCP< const ParameterList > MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetValidParameterList ( ) const
virtual

Return a const parameter list of valid parameters that setParameterList() will accept.

Also define the default values of parameters according to the input parameter list.

Implements MueLu::ParameterListAcceptor.

Definition at line 77 of file MueLu_BlackBoxPFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DeclareInput ( Level &  fineLevel,
Level &  coarseLevel
) const
virtual

Input.

Implements MueLu::TwoLevelFactoryBase.

Definition at line 98 of file MueLu_BlackBoxPFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Build ( Level &  fineLevel,
Level &  coarseLevel
) const
virtual

Build an object with this factory.

Implements MueLu::TwoLevelFactoryBase.

Definition at line 132 of file MueLu_BlackBoxPFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::BuildP ( Level &  fineLevel,
Level &  coarseLevel
) const
virtual

Abstract Build method.

Implements MueLu::PFactory.

Definition at line 139 of file MueLu_BlackBoxPFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetGeometricData ( RCP< Xpetra::MultiVector< typename Teuchos::ScalarTraits< Scalar >::magnitudeType, LO, GO, NO > > &  coordinates,
const Array< LO >  coarseRate,
const Array< GO >  gFineNodesPerDir,
const Array< LO >  lFineNodesPerDir,
const LO  BlkSize,
Array< GO > &  gIndices,
Array< LO > &  myOffset,
Array< bool > &  ghostInterface,
Array< LO > &  endRate,
Array< GO > &  gCoarseNodesPerDir,
Array< LO > &  lCoarseNodesPerDir,
Array< LO > &  glCoarseNodesPerDir,
Array< GO > &  ghostGIDs,
Array< GO > &  coarseNodesGIDs,
Array< GO > &  colGIDs,
GO &  gNumCoarseNodes,
LO &  lNumCoarseNodes,
ArrayRCP< Array< typename Teuchos::ScalarTraits< Scalar >::magnitudeType > >  coarseNodes,
Array< int > &  boundaryFlags,
RCP< NodesIDs >  ghostedCoarseNodes
) const
private

Definition at line 759 of file MueLu_BlackBoxPFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::ComputeLocalEntries ( const RCP< const Matrix > &  Aghost,
const Array< LO >  coarseRate,
const Array< LO >  endRate,
const LO  BlkSize,
const Array< LO >  elemInds,
const Array< LO >  lCoarseElementsPerDir,
const LO  numDimensions,
const Array< LO >  lFineNodesPerDir,
const Array< GO >  gFineNodesPerDir,
const Array< GO >  gIndices,
const Array< LO >  lCoarseNodesPerDir,
const Array< bool >  ghostInterface,
const Array< int >  elementFlags,
const std::string  stencilType,
const std::string  blockStrategy,
const Array< LO >  elementNodesPerDir,
const LO  numNodesInElement,
const Array< GO >  colGIDs,
Teuchos::SerialDenseMatrix< LO, SC > &  Pi,
Teuchos::SerialDenseMatrix< LO, SC > &  Pf,
Teuchos::SerialDenseMatrix< LO, SC > &  Pe,
Array< LO > &  dofType,
Array< LO > &  lDofInd
) const
private

Definition at line 1360 of file MueLu_BlackBoxPFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::CollapseStencil ( const int  type,
const int  orientation,
const int  collapseFlags[3],
Array< SC > &  stencil
) const
private

Definition at line 1673 of file MueLu_BlackBoxPFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::FormatStencil ( const LO  BlkSize,
const Array< bool >  ghostInterface,
const LO  ie,
const LO  je,
const LO  ke,
const ArrayView< const SC >  rowValues,
const Array< LO >  elementNodesPerDir,
const int  collapseFlags[3],
const std::string  stencilType,
Array< SC > &  stencil
) const
private

Definition at line 1753 of file MueLu_BlackBoxPFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetNodeInfo ( const LO  ie,
const LO  je,
const LO  ke,
const Array< LO >  elementNodesPerDir,
int *  type,
LO &  ind,
int *  orientation
) const
private

Definition at line 1867 of file MueLu_BlackBoxPFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >
void MueLu::BlackBoxPFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::sh_sort_permute ( const typename Teuchos::Array< LocalOrdinal >::iterator &  first1,
const typename Teuchos::Array< LocalOrdinal >::iterator &  last1,
const typename Teuchos::Array< LocalOrdinal >::iterator &  first2,
const typename Teuchos::Array< LocalOrdinal >::iterator &  last2
) const
private

Definition at line 1944 of file MueLu_BlackBoxPFactory_def.hpp.

Friends And Related Function Documentation

template<class Scalar = double, class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
friend class MueLuTests::BlackBoxPFactoryTester< Scalar, LocalOrdinal, GlobalOrdinal, Node >
friend

Definition at line 123 of file MueLu_BlackBoxPFactory_decl.hpp.

The documentation for this class was generated from the following files:
