MueLu::AmesosSmoother< Node > Class Template Reference

Class that encapsulates Amesos direct solvers. More...

#include <MueLu_AmesosSmoother.hpp>

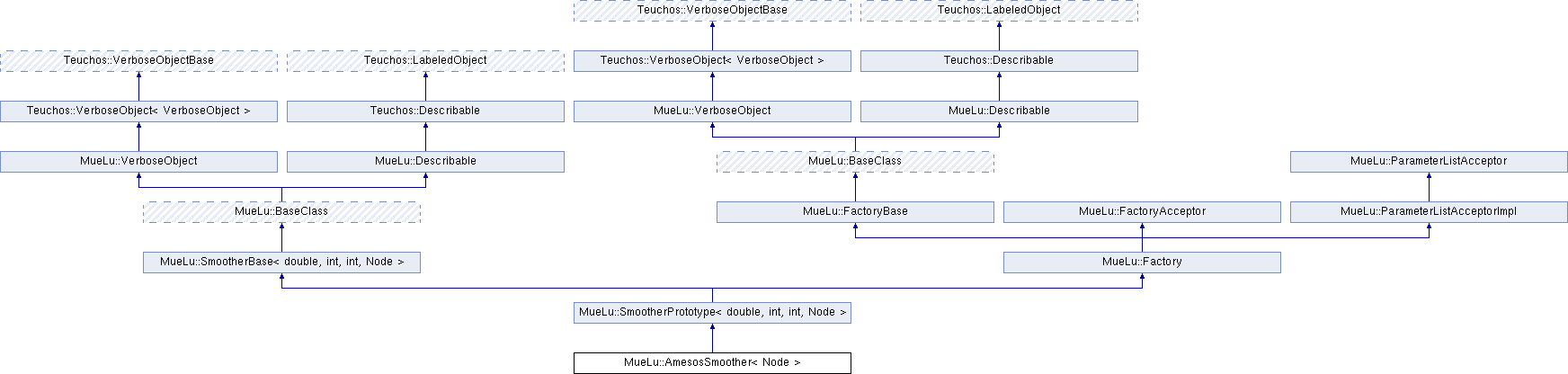

Inheritance diagram for MueLu::AmesosSmoother< Node >:
MueLu::SmootherPrototype< double, int, int, Node > MueLu::SmootherBase< Scalar, LocalOrdinal, GlobalOrdinal, Node > MueLu::Factory MueLu::BaseClass MueLu::FactoryBase MueLu::FactoryAcceptor MueLu::ParameterListAcceptorImpl MueLu::VerboseObject MueLu::Describable MueLu::BaseClass MueLu::ParameterListAcceptor Teuchos::VerboseObject< VerboseObject > Teuchos::Describable MueLu::VerboseObject MueLu::Describable Teuchos::VerboseObjectBase Teuchos::LabeledObject Teuchos::VerboseObject< VerboseObject > Teuchos::Describable Teuchos::VerboseObjectBase Teuchos::LabeledObject

Public Member Functions

RCP< SmootherPrototypeCopy () const

- Public Member Functions inherited from MueLu::SmootherPrototype< double, int, int, Node >
 SmootherPrototype ()
 /Destructors. More...

virtual ~SmootherPrototype ()

bool IsSetup () const
 Get the state of a smoother prototype. More...

void IsSetup (bool const &ToF)
 Set the state of a smoother prototype. More...

virtual void CallBuild (Level &) const

virtual void CallDeclareInput (Level &requestedLevel) const

- Public Member Functions inherited from MueLu::SmootherBase< Scalar, LocalOrdinal, GlobalOrdinal, Node >
 SmootherBase ()

virtual ~SmootherBase ()

- Public Member Functions inherited from MueLu::BaseClass
virtual ~BaseClass ()
 Destructor. More...

- Public Member Functions inherited from MueLu::VerboseObject
VerbLevel GetVerbLevel () const
 Get the verbosity level. More...

void SetVerbLevel (const VerbLevel verbLevel)
 Set the verbosity level of this object. More...

int GetProcRankVerbose () const
 Get proc rank used for printing. Do not use this information for any other purpose. More...

int SetProcRankVerbose (int procRank) const
 Set proc rank used for printing. More...

bool IsPrint (MsgType type, int thisProcRankOnly=-1) const
 Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStreamGetOStream (MsgType type, int thisProcRankOnly=0) const
 Get an output stream for outputting the input message type. More...

Teuchos::FancyOStreamGetBlackHole () const

 VerboseObject ()

virtual ~VerboseObject ()
 Destructor. More...

- Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
 VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectsetVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObjectsetOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
RCP< const ParameterList
getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT
void
readVerboseObjectSublist (ParameterList *paramList, RCP< FancyOStream > *oStream, EVerbosityLevel *verbLevel)

void readVerboseObjectSublist (ParameterList *paramList, VerboseObject< ObjectType > *verboseObject)

- Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual ~VerboseObjectBase ()

 VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBasesetOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBasesetOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBasesetLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStreamgetOStream () const

virtual RCP< FancyOStreamgetOverridingOStream () const

virtual std::string getLinePrefix () const

virtual OSTab getOSTab (const int tabs=1, const std::string &linePrefix="") const

- Public Member Functions inherited from MueLu::Describable
virtual ~Describable ()
 Destructor. More...

virtual std::string ShortClassName () const
 Return the class name of the object, without template parameters and without namespace. More...

virtual void describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
 Print the object with some verbosity level to an FancyOStream object. More...

- Public Member Functions inherited from Teuchos::Describable
void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

- Public Member Functions inherited from MueLu::Factory
void EnableMultipleCallCheck () const
 Constructor. More...

void DisableMultipleCallCheck () const

void ResetDebugData () const

- Public Member Functions inherited from MueLu::FactoryBase
 FactoryBase ()
 Constructor. More...

virtual ~FactoryBase ()
 Destructor. More...

int GetID () const
 return unique factory id More...

- Public Member Functions inherited from MueLu::FactoryAcceptor
virtual ~FactoryAcceptor ()

virtual void SetFactory (const std::string &varName, const RCP< const FactoryBase > &factory)=0
 Configuration. More...

virtual const RCP< const
FactoryBase
GetFactory (const std::string &varName) const =0

- Public Member Functions inherited from MueLu::ParameterListAcceptorImpl
 ParameterListAcceptorImpl ()

virtual ~ParameterListAcceptorImpl ()=default

virtual void SetParameterList (const Teuchos::ParameterList &paramList)
 Set parameters from a parameter list and return with default values. More...

virtual const
Teuchos::ParameterList
GetParameterList () const

void SetParameter (const std::string &name, const ParameterEntry &entry)
 Set a parameter directly as a ParameterEntry. More...

const ParameterEntryGetParameter (const std::string &name) const
 Retrieves a const entry with the name name. More...

virtual void GetDocumentation (std::ostream &os) const

- Public Member Functions inherited from MueLu::ParameterListAcceptor
 ParameterListAcceptor ()

virtual ~ParameterListAcceptor ()=default

virtual Teuchos::RCP< const
Teuchos::ParameterList
GetValidParameterList () const =0
 Return a const parameter list of valid parameters that setParameterList() will accept. More...


Private Types

typedef double Scalar

typedef int LocalOrdinal

typedef int GlobalOrdinal


Private Attributes

std::string type_
 amesos-specific key phrase that denote smoother type More...

RCP< Matrix > A_
 Matrix. Not used directly, but held inside of linearProblem_. So we have to keep an RCP pointer to it! More...

RCP< Epetra_LinearProblemlinearProblem_
 Problem that Amesos uses internally. More...

RCP< Amesos_BaseSolverprec_
 pointer to Amesos solver object More...


Constructors / destructors

 AmesosSmoother (const std::string &type="", const Teuchos::ParameterList &paramList=Teuchos::ParameterList())
 Constructor. More...

virtual ~AmesosSmoother ()
 Destructor. More...

void DeclareInput (Level &currentLevel) const
 Input. More...


Setup and Apply methods.

void Setup (Level &currentLevel)
 Set up the direct solver. This creates the underlying Amesos solver object according to the parameter list options passed into the AmesosSmoother constructor. This includes doing a numeric factorization of the matrix. More...

void Apply (MultiVector &X, const MultiVector &B, bool=false) const
 Apply the direct solver. More...


Overridden from Teuchos::Describable

std::string description () const
 Return a simple one-line description of this object. More...

void print (Teuchos::FancyOStream &out, const VerbLevel verbLevel=Default) const
 Print the object with some verbosity level to an FancyOStream object. More...

size_t getNodeSmootherComplexity () const
 Get a rough estimate of cost per iteration. More...


Additional Inherited Members

- Public Types inherited from MueLu::SmootherPrototype< double, int, int, Node >
typedef double scalar_type

typedef int local_ordinal_type

typedef int global_ordinal_type

typedef Node node_type

- Public Types inherited from MueLu::SmootherBase< Scalar, LocalOrdinal, GlobalOrdinal, Node >
typedef Scalar scalar_type

typedef LocalOrdinal local_ordinal_type

typedef GlobalOrdinal global_ordinal_type

typedef Node node_type

- Static Public Member Functions inherited from MueLu::VerboseObject
static void SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static Teuchos::RCP
< Teuchos::FancyOStream
GetMueLuOStream ()

static void SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
 Set the default (global) verbosity level. More...

static VerbLevel GetDefaultVerbLevel ()
 Get the default (global) verbosity level. More...

- Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel getDefaultVerbLevel ()

- Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStreamgetDefaultOStream ()

- Static Public Member Functions inherited from MueLu::Factory
static void EnableMultipleCheckGlobally ()

static void DisableMultipleCheckGlobally ()

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default

- Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

- Protected Member Functions inherited from Teuchos::VerboseObjectBase
void initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void informUpdatedVerbosityState () const


Detailed Description

template<class Node = typename SmootherPrototype<double,int,int>::node_type>
class MueLu::AmesosSmoother< Node >

Class that encapsulates Amesos direct solvers.

This class creates an Amesos preconditioner factory. The factory is capable of generating direct solvers based on the type and ParameterList passed into the constructor. See the constructor for more information.

Definition at line 76 of file MueLu_AmesosSmoother.hpp.

Member Typedef Documentation

template<class Node = typename SmootherPrototype<double,int,int>::node_type>
typedef double MueLu::AmesosSmoother< Node >::Scalar
private

Definition at line 78 of file MueLu_AmesosSmoother.hpp.

template<class Node = typename SmootherPrototype<double,int,int>::node_type>
typedef int MueLu::AmesosSmoother< Node >::LocalOrdinal
private

Definition at line 79 of file MueLu_AmesosSmoother.hpp.

template<class Node = typename SmootherPrototype<double,int,int>::node_type>
typedef int MueLu::AmesosSmoother< Node >::GlobalOrdinal
private

Definition at line 80 of file MueLu_AmesosSmoother.hpp.

Constructor & Destructor Documentation

template<class Node >
MueLu::AmesosSmoother< Node >::AmesosSmoother ( const std::string &  type = "",
const Teuchos::ParameterList paramList = Teuchos::ParameterList()
)

Constructor.

Creates a MueLu interface to the direct solvers in the Amesos package. The options are those specified in the Amesos user's manual.

Parameters
typesolver type
listoptions for the particular solver type

Here is how to select the more commonly used direct solvers:

  • KLU (serial sparse direct solver)
    • type = Amesos-KLU
    • parameter list options
      • none required
  • SuperLU (serial sparse super-nodal direct solver)
    • type = Amesos-SuperLU
    • parameter list options
      • none required

If you are using type=="", then either SuperLU or KLU are used by default.

See also Amesos_Klu and Amesos_Superlu.

Definition at line 67 of file MueLu_AmesosSmoother.cpp.

template<class Node = typename SmootherPrototype<double,int,int>::node_type>
virtual MueLu::AmesosSmoother< Node >::~AmesosSmoother ( )
inlinevirtual

Destructor.

Definition at line 119 of file MueLu_AmesosSmoother.hpp.

Member Function Documentation

template<class Node >
void MueLu::AmesosSmoother< Node >::DeclareInput ( Level currentLevel) const
virtual
template<class Node >
void MueLu::AmesosSmoother< Node >::Setup ( Level currentLevel)
virtual

Set up the direct solver. This creates the underlying Amesos solver object according to the parameter list options passed into the AmesosSmoother constructor. This includes doing a numeric factorization of the matrix.

Implements MueLu::SmootherPrototype< double, int, int, Node >.

Definition at line 113 of file MueLu_AmesosSmoother.cpp.

template<class Node >
void MueLu::AmesosSmoother< Node >::Apply ( MultiVector &  X,
const MultiVector &  B,
bool  InitialGuessIsZero = false
) const
virtual

Apply the direct solver.

Solves the linear system AX=B using the constructed solver.

Parameters
Xinitial guess
Bright-hand side
InitialGuessIsZeroThis option has no effect with this smoother

Implements MueLu::SmootherBase< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 149 of file MueLu_AmesosSmoother.cpp.

template<class Node >
RCP< MueLu::SmootherPrototype< double, int, int, Node > > MueLu::AmesosSmoother< Node >::Copy ( ) const
virtual
template<class Node >
std::string MueLu::AmesosSmoother< Node >::description ( ) const
virtual

Return a simple one-line description of this object.

Reimplemented from MueLu::Describable.

Definition at line 174 of file MueLu_AmesosSmoother.cpp.

template<class Node >
void MueLu::AmesosSmoother< Node >::print ( Teuchos::FancyOStream out,
const VerbLevel  verbLevel = Default
) const

Print the object with some verbosity level to an FancyOStream object.

Definition at line 183 of file MueLu_AmesosSmoother.cpp.

template<class Node >
size_t MueLu::AmesosSmoother< Node >::getNodeSmootherComplexity ( ) const
virtual

Get a rough estimate of cost per iteration.

Implements MueLu::SmootherBase< Scalar, LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 211 of file MueLu_AmesosSmoother.cpp.

Member Data Documentation

template<class Node = typename SmootherPrototype<double,int,int>::node_type>
std::string MueLu::AmesosSmoother< Node >::type_
private

amesos-specific key phrase that denote smoother type

Definition at line 180 of file MueLu_AmesosSmoother.hpp.

template<class Node = typename SmootherPrototype<double,int,int>::node_type>
RCP<Matrix> MueLu::AmesosSmoother< Node >::A_
private

Matrix. Not used directly, but held inside of linearProblem_. So we have to keep an RCP pointer to it!

Definition at line 183 of file MueLu_AmesosSmoother.hpp.

template<class Node = typename SmootherPrototype<double,int,int>::node_type>
RCP<Epetra_LinearProblem> MueLu::AmesosSmoother< Node >::linearProblem_
private

Problem that Amesos uses internally.

Definition at line 186 of file MueLu_AmesosSmoother.hpp.

template<class Node = typename SmootherPrototype<double,int,int>::node_type>
RCP<Amesos_BaseSolver> MueLu::AmesosSmoother< Node >::prec_
private

pointer to Amesos solver object

Definition at line 189 of file MueLu_AmesosSmoother.hpp.


The documentation for this class was generated from the following files:
