Algorithm for coarsening a graph with uncoupled aggregation. More...

#include <MueLu_AggregationPhase1Algorithm_decl.hpp>

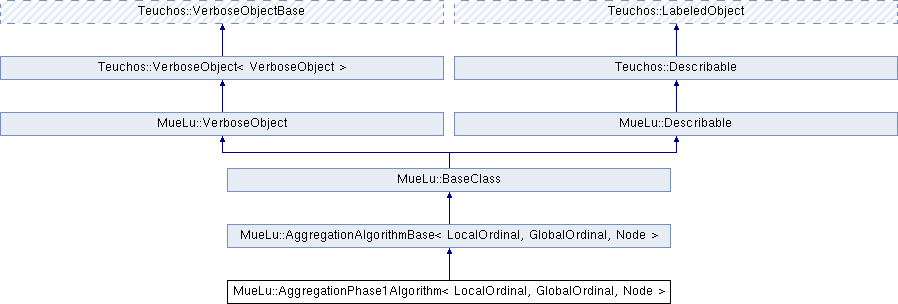

Inheritance diagram for MueLu::AggregationPhase1Algorithm< LocalOrdinal, GlobalOrdinal, Node >:

Public Member Functions
std::string	description () const
	Return a simple one-line description of this object. More...

Public Member Functions inherited from MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >
virtual	~AggregationAlgorithmBase ()
	Destructor. More...

Public Member Functions inherited from MueLu::BaseClass
virtual	~BaseClass ()
	Destructor. More...

Public Member Functions inherited from MueLu::VerboseObject
VerbLevel	GetVerbLevel () const
	Get the verbosity level. More...

void	SetVerbLevel (const VerbLevel verbLevel)
	Set the verbosity level of this object. More...

int	GetProcRankVerbose () const
	Get proc rank used for printing. Do not use this information for any other purpose. More...

int	SetProcRankVerbose (int procRank) const
	Set proc rank used for printing. More...

bool	IsPrint (MsgType type, int thisProcRankOnly=-1) const
	Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStream &	GetOStream (MsgType type, int thisProcRankOnly=0) const
	Get an output stream for outputting the input message type. More...

Teuchos::FancyOStream &	GetBlackHole () const

	VerboseObject ()

virtual	~VerboseObject ()
	Destructor. More...

Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
	VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObject &	setVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObject &	setOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel	getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT RCP< const ParameterList >	getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	readVerboseObjectSublist (ParameterList paramList, RCP< FancyOStream > oStream, EVerbosityLevel *verbLevel)

void	readVerboseObjectSublist (ParameterList paramList, VerboseObject< ObjectType > verboseObject)

Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual	~VerboseObjectBase ()

	VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBase &	setOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBase &	setOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBase &	setLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStream >	getOStream () const

virtual RCP< FancyOStream >	getOverridingOStream () const

virtual std::string	getLinePrefix () const

virtual OSTab	getOSTab (const int tabs=1, const std::string &linePrefix="") const

Public Member Functions inherited from MueLu::Describable
virtual	~Describable ()
	Destructor. More...

virtual std::string	ShortClassName () const
	Return the class name of the object, without template parameters and without namespace. More...

virtual void	describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Private Member Functions
void	RandomReorder (ArrayRCP< LO > list) const
	Utility to take a list of integers and reorder them randomly (by using a local permutation). More...

int	RandomOrdinal (int min, int max) const
	Generate a random number in the range [min, max]. More...

Constructors/Destructors.
	AggregationPhase1Algorithm (const RCP< const FactoryBase > &=Teuchos::null)
	Constructor. More...

virtual	~AggregationPhase1Algorithm ()
	Destructor. More...

Aggregation methods.
void	BuildAggregates (const ParameterList &params, const GraphBase &graph, Aggregates &aggregates, std::vector< unsigned > &aggStat, LO &numNonAggregatedNodes) const
	Local aggregation. More...

Additional Inherited Members
Static Public Member Functions inherited from MueLu::VerboseObject
static void	SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static Teuchos::RCP < Teuchos::FancyOStream >	GetMueLuOStream ()

static void	SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
	Set the default (global) verbosity level. More...

static VerbLevel	GetDefaultVerbLevel ()
	Get the default (global) verbosity level. More...

Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void	setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel	getDefaultVerbLevel ()

Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void	setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStream >	getDefaultOStream ()

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void	initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

Protected Member Functions inherited from Teuchos::VerboseObjectBase
void	initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void	informUpdatedVerbosityState () const

Detailed Description

template<class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>
class MueLu::AggregationPhase1Algorithm< LocalOrdinal, GlobalOrdinal, Node >

Algorithm for coarsening a graph with uncoupled aggregation.

Idea

Phase 1 tries to build new aggregates which fulfill the user chosen aggregation criteria (i.e. minimum and maximum size of aggregates). Especially the chosen ordering for the input nodes may have some influence on the final aggregates. Phase 1 is the most important aggregation routine for building new aggregates.

Parameters

Parameter	Meaning
aggregation: ordering	Ordering of graph nodes in which the nodes are processed for aggregation. The options are natural, random and graph.
aggregation: max selected neighbors	Maximum number of neighbor nodes which have already been added to aggregates.
aggregation: min agg size	minimum number of nodes which have to be in an aggregate.
aggregation: max agg size	maximum allowed number of nodes in an aggregate

Comments

Only nodes with state READY are changed to AGGREGATED. Nodes with other states are not touched.

Definition at line 85 of file MueLu_AggregationPhase1Algorithm_decl.hpp.

Constructor & Destructor Documentation

template<class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

MueLu::AggregationPhase1Algorithm< LocalOrdinal, GlobalOrdinal, Node >::AggregationPhase1Algorithm ( const RCP< const FactoryBase > & = Teuchos::null )

inline

Constructor.

Definition at line 95 of file MueLu_AggregationPhase1Algorithm_decl.hpp.

template<class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

virtual MueLu::AggregationPhase1Algorithm< LocalOrdinal, GlobalOrdinal, Node >::~AggregationPhase1Algorithm ( )

inlinevirtual

Destructor.

Definition at line 98 of file MueLu_AggregationPhase1Algorithm_decl.hpp.

Member Function Documentation

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::AggregationPhase1Algorithm< LocalOrdinal, GlobalOrdinal, Node >::BuildAggregates	(	const ParameterList &	params,
		const GraphBase &	graph,
		Aggregates &	aggregates,
		std::vector< unsigned > &	aggStat,
		LO &	numNonAggregatedNodes
	)		const

virtual

Local aggregation.

Implements MueLu::AggregationAlgorithmBase< LocalOrdinal, GlobalOrdinal, Node >.

Definition at line 67 of file MueLu_AggregationPhase1Algorithm_def.hpp.

template<class LocalOrdinal = int, class GlobalOrdinal = LocalOrdinal, class Node = KokkosClassic::DefaultNode::DefaultNodeType>

std::string MueLu::AggregationPhase1Algorithm< LocalOrdinal, GlobalOrdinal, Node >::description ( ) const

inlinevirtual

Return a simple one-line description of this object.

Reimplemented from MueLu::Describable.

Definition at line 111 of file MueLu_AggregationPhase1Algorithm_decl.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::AggregationPhase1Algorithm< LocalOrdinal, GlobalOrdinal, Node >::RandomReorder ( ArrayRCP< LO > list ) const

private

Utility to take a list of integers and reorder them randomly (by using a local permutation).

Parameters

list	On input, a bunch of integers. On output, the same integers in a different order that is determined randomly.

Definition at line 232 of file MueLu_AggregationPhase1Algorithm_def.hpp.

template<class LocalOrdinal , class GlobalOrdinal , class Node >

int MueLu::AggregationPhase1Algorithm< LocalOrdinal, GlobalOrdinal, Node >::RandomOrdinal	(	int	min,
		int	max
	)		const

private

Generate a random number in the range [min, max].

Definition at line 240 of file MueLu_AggregationPhase1Algorithm_def.hpp.
