ml_MultiLevelPreconditioner.h File Reference
#include "ml_include.h"
#include "Epetra_SerialDenseMatrix.h"
#include "Epetra_SerialDenseVector.h"
#include "Epetra_SerialDenseSolver.h"
#include "Epetra_Operator.h"
#include "Epetra_RowMatrix.h"
#include "Epetra_MultiVector.h"
#include "Epetra_MsrMatrix.h"
#include "Teuchos_ParameterList.hpp"
#include "EpetraExt_SolverMap_CrsMatrix.h"
#include "ml_epetra_utils.h"

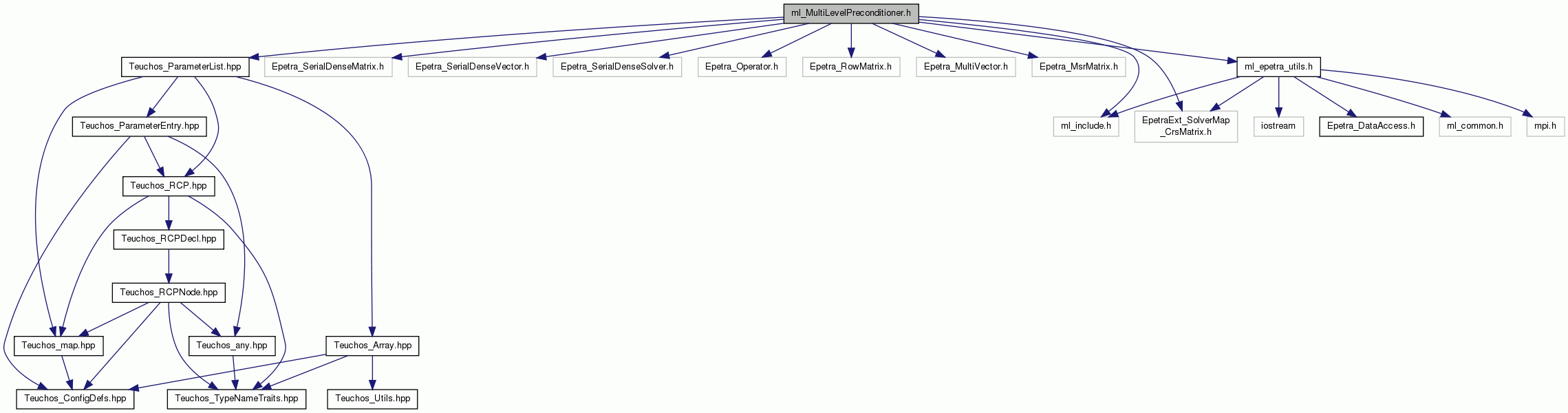

Include dependency graph for ml_MultiLevelPreconditioner.h:

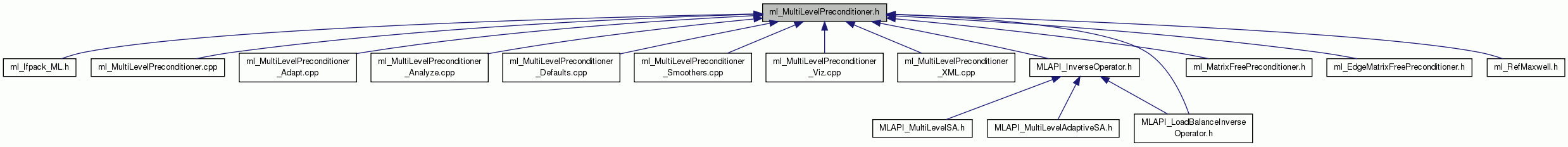

This graph shows which files directly or indirectly include this file:

Classes

class  ML_Epetra::MultiLevelPreconditioner
 MultiLevelPreconditioner: a class to define black-box multilevel preconditioners using aggregation methods. More...

class  MLVec< T >

struct  wrappedCommStruct


Namespaces

 ML_Epetra
 ML_Epetra: default namespace for all Epetra interfaces.


Macros

#define ML_MEM_SIZE   20

#define ML_MEM_INITIAL   0

#define ML_MEM_FINAL   1

#define ML_MEM_SMOOTHER   2

#define ML_MEM_COARSE   3

#define ML_MEM_HIERARCHY   4

#define ML_MEM_PREC_FIRST   5

#define ML_MEM_PREC_OTHER   6

#define ML_MEM_TOT1   7

#define ML_MEM_TOT2   8

#define ML_MEM_INITIAL_MALLOC   10

#define ML_MEM_FINAL_MALLOC   11

#define ML_MEM_SMOOTHER_MALLOC   12

#define ML_MEM_COARSE_MALLOC   13

#define ML_MEM_HIERARCHY_MALLOC   14

#define ML_MEM_PREC_FIRST_MALLOC   15

#define ML_MEM_PREC_OTHER_MALLOC   16

#define ML_MEM_TOT1_MALLOC   17

#define ML_MEM_TOT2_MALLOC   18


Enumerations

enum  ML_Epetra::AMGType { ML_SA_FAMILY, ML_MAXWELL, ML_COMPOSITE }
 Enumerated type indicating the type of AMG solver to be used.

enum  free_s { useFree, useDelete, neither }

enum  epetraOrMLOrMueLu { epetraType, mlType, mueluType }


Functions

int ML_Epetra::SetDefaults (std::string ProblemType, Teuchos::ParameterList &List, int *options=0, double *params=0, const bool OverWrite=true)
 Sets default parameters for aggregation-based preconditioners. More...

int ML_Epetra::SetDefaultsDD (Teuchos::ParameterList &List, Teuchos::RCP< std::vector< int > > &options, Teuchos::RCP< std::vector< double > > &params, bool Overwrite=true)
 Sets default parameters for aggregation-based 2-level domain decomposition preconditioners. More...

int ML_Epetra::SetDefaultsDD_LU (Teuchos::ParameterList &List, Teuchos::RCP< std::vector< int > > &options, Teuchos::RCP< std::vector< double > > &params, bool Overwrite=true)
 Sets default parameters for aggregation-based 2-level domain decomposition preconditioners, using LU on each subdomain. More...

int ML_Epetra::SetDefaultsDD_3Levels (Teuchos::ParameterList &List, Teuchos::RCP< std::vector< int > > &options, Teuchos::RCP< std::vector< double > > &params, bool Overwrite=true)
 Sets default parameters for aggregation-based 3-level domain decomposition preconditioners. More...

int ML_Epetra::SetDefaultsDD_3Levels_LU (Teuchos::ParameterList &List, Teuchos::RCP< std::vector< int > > &options, Teuchos::RCP< std::vector< double > > &params, bool Overwrite=true)
 Sets default parameters for aggregation-based 3-level domain decomposition preconditioners with LU. More...

int ML_Epetra::SetDefaultsMaxwell (Teuchos::ParameterList &List, Teuchos::RCP< std::vector< int > > &options, Teuchos::RCP< std::vector< double > > &params, bool Overwrite=true)
 Sets default parameters for the eddy current equations equations. More...

int ML_Epetra::SetDefaultsSA (Teuchos::ParameterList &List, Teuchos::RCP< std::vector< int > > &options, Teuchos::RCP< std::vector< double > > &params, bool Overwrite=true)
 Sets default parameters for classical smoothed aggregation. More...

int ML_Epetra::SetDefaultsNSSA (Teuchos::ParameterList &List, Teuchos::RCP< std::vector< int > > &options, Teuchos::RCP< std::vector< double > > &params, bool Overwrite=true)
 Sets defaults for energy minimization preconditioning for nonsymmetric problems. More...

int ML_Epetra::ReadXML (const std::string &FileName, Teuchos::ParameterList &List, const Epetra_Comm &Comm)
 Reads in parameter list options from file.

template<class T >
int nodalComm (MLVec< T > &vector, MLVec< int > &myLocalNodeIds, struct wrappedCommStruct &framework)

template<class T >
int dofComm (MLVec< T > &vector, struct wrappedCommStruct &framework)

int dofCommUsingMlNodalMatrix (double *data, void *widget)

int MLsortCols (const MLVec< int > &ARowPtr, MLVec< int > &ACols, MLVec< double > &AVals)

int MLnMyGhost (struct wrappedCommStruct &framework)

int MLfillNodalMaps (MLVec< int > &amalgRowMap, MLVec< int > &amalgColMap, MLVec< int > &myLocalNodeIds, int nLocalDofs, struct wrappedCommStruct &framework, int nLocalNodes, int nLocalPlusGhostNodes)

int MLcolGlobalIds (struct wrappedCommStruct &framework, MLVec< int > &myGids)

int MLassignGhostLocalNodeIds (MLVec< int > &myLocalNodeIds, int nLocalDofs, int nLocalPlusGhostDofs, struct wrappedCommStruct &framework, int &nLocalNodes, int &nLocalPlusGhostNodes)

int MLextractDiag (const MLVec< int > &rowPtr, const MLVec< int > &cols, const MLVec< double > &, MLVec< double > &diagonal, struct wrappedCommStruct &framework)

int MLfindDirichlets (const MLVec< int > &rowPtr, const MLVec< int > &cols, const MLVec< double > &vals, const MLVec< double > &diagonal, double tol, MLVec< bool > &dirOrNot, struct wrappedCommStruct &framework)

int MLrmDirichletCols (MLVec< int > &rowPtr, MLVec< int > &cols, MLVec< double > &vals, const MLVec< double > &diagonal, bool squeeze, MLVec< double > &solution, MLVec< double > &rhs, const MLVec< bool > &dirOrNot, struct wrappedCommStruct &framework)

int MLsqueezeOutNnzs (MLVec< int > &rowPtr, MLVec< int > &cols, MLVec< double > &vals, const MLVec< bool > &keep)

int MLbuildMap (const MLVec< bool > &dofPresent, MLVec< int > &map, int NDof)

int MLvariableDofAmalg (int nCols, const MLVec< int > &rowPtr, const MLVec< int > &cols, const MLVec< double > &vals, int nNodes, int maxDofPerNode, const MLVec< int > &map, const MLVec< double > &diag, double tol, MLVec< int > &amalgRowPtr, MLVec< int > &amalgCols, struct wrappedCommStruct &framework, MLVec< int > &myLocalNodeIds)

int MLrmDifferentDofsCrossings (const MLVec< bool > &dofPresent, int maxDofPerNode, MLVec< int > &rowPtr, MLVec< int > &cols, int nCols, struct wrappedCommStruct &framework, MLVec< int > &myLocalNodeIds)

int MLbuildLaplacian (const MLVec< int > &rowPtr, const MLVec< int > &cols, MLVec< double > &vals, const MLVec< double > &x, const MLVec< double > &y, const MLVec< double > &z)

int MLunamalgP (const MLVec< int > &amalgRowPtr, const MLVec< int > &amalgCols, const MLVec< double > &amalgVals, int maxDofPerNode, const MLVec< char > &status, bool fineIsPadded, MLVec< int > &rowPtr, MLVec< int > &cols, MLVec< double > &vals)
 Unamalgamate prolongator so that it is suitable for PDE systems. More...

int MLfindEmptyRows (const MLVec< int > &rowPtr, const MLVec< int > &cols, const MLVec< double > &vals, MLVec< bool > &rowEmpty)

int MLreplaceEmptyByDirichlet (MLVec< int > &rowPtr, MLVec< int > &cols, MLVec< double > &vals, const MLVec< bool > &colEmpty)

int MLfineStatus (const MLVec< bool > &dofPresent, const MLVec< int > &map, const MLVec< bool > &dirOrNot, MLVec< char > &status)

int MLcoarseStatus (const MLVec< bool > &rowEmpty, const MLVec< bool > &dirOrNot, MLVec< char > &status)

int MLShove (ML_Operator *Mat, MLVec< int > &rowPtr, MLVec< int > &cols, MLVec< double > &vals, int invec_leng, int(*commfunc)(double *vec, void *data), struct wrappedCommStruct &framework, int nGhost)
 Take Crs std::vec's, make arrays and shove them into an ML Operator. More...

int ZeroDist (MLVec< double > &xxx, MLVec< double > &yyy, MLVec< double > &zzz, MLVec< int > &rowPtr, MLVec< int > &cols, MLVec< double > &vals, MLVec< double > &diagonal, double tol, MLVec< int > &rowZeros, MLVec< int > &colZeros, double disttol)

int MergeShared (MLVec< int > &cols, MLVec< int > &rowZeros, MLVec< int > &colZeros, MLVec< int > &groupHead, MLVec< int > &groupNext)

int BuildNonSharedMap (MLVec< int > &newMap, MLVec< int > &groupHead, MLVec< int > &groupNext)

int buildCompressedA (MLVec< int > &inputRowPtr, MLVec< int > &inputCols, MLVec< double > &inputVals, MLVec< double > &diagonal, MLVec< int > &groupHead, MLVec< int > &groupNext, MLVec< int > &outputRowptr, MLVec< int > &outputCols, MLVec< int > &map, int newN, double tol)


Function Documentation

int MLShove ( ML_Operator *  Mat,
MLVec< int > &  rowPtr,
MLVec< int > &  cols,
MLVec< double > &  vals,
int  invec_leng,
int(*)(double *vec, void *data)  commfunc,
struct wrappedCommStruct &  framework,
int  nGhost
)

Take Crs std::vec's, make arrays and shove them into an ML Operator.

This includes allocating double arrays and a widget to point to them and calling all the appropriate ML functions to clean out what used to be in the operator before inserting the new matrix.

Parameters
[in]rowPtr,cols,valsCrs matrix std:vectors
MatOn input, a populated ML Operator. On output, old ML Operator is cleaned and a new Crs matrix is filled into the operator

References ML_Operator_Struct::N_nonzeros.

Referenced by ML_Epetra::MultiLevelPreconditioner::MultiLevelPreconditioner().

int MLunamalgP ( const MLVec< int > &  amalgRowPtr,
const MLVec< int > &  amalgCols,
const MLVec< double > &  amalgVals,
int  maxDofPerNode,
const MLVec< char > &  status,
bool  fineIsPadded,
MLVec< int > &  rowPtr,
MLVec< int > &  cols,
MLVec< double > &  vals
)

Unamalgamate prolongator so that it is suitable for PDE systems.

Unamalgamate Pmat (represented as a CRS matrix via amalgRowPtr, amalgCols, amalgVals for two different situations: Case 1: Fine level matrix is padded In this case, we basically replicate the unamalgamated operator, except that padded dofs and Dirichlet points use injection. Thus, PUnAmalg is equivalent to something like ( Pmat 0 0 ) ( 0 Pmat 0 ) ( 0 0 Pmat ) where entries associated with fine level padded dofs or Dir. BCs are replaced by rows with a single nonzero (whose value equals one) and the entire matrix is instead ordered so that dofs associated with nodes are consecutive.

Case 2: Fine level matrix is not padded. Thus, PUnAmalg is equivalent to ( Pmat 0 0 ) ( 0 Pmat 0 ) ( 0 0 Pmat ) where rows associated with dofs not present on finest level (e.g., an air pressure dof within water region) are removed and rows associated with Dir. BCs are replaced by rows with a single nonzero (whose value equals one) and the entire matrix is instead ordered so dofs associated with nodes are consecutive.

In both of the above cases, the coarse level discretization matrix is assumed to be padded.

amalgNRows local number of rows for amalgamted prolongator amalgRowPtr CRS local row pointer for amalgamted prolongator amalgCols CRS local cols for amalgamted prolongator amalgVals CRS vals for amalgamted prolongator maxDofPerNode maximum number of degrees-of-freedom at any mesh node status status[i*maxDofPerNode+j] refers to the jth dof at the ith node. status()==s ==> standard element: present in fine operator and not a Dirichlet BC. status()==d ==> element corresponds to Dirichlet BC. status()==p ==> element not present or is padded dof. fineIsPadded Indicates whether fine grid matrix includes padded dofs for those not really present in the PDE system rowPtr CRS local row pointer for resulting unamalgamated prolongator cols CRS local cols for resulting unamalgamated prolongator vals CRS vals for resulting unamalgamated prolongator

Referenced by ML_Epetra::MultiLevelPreconditioner::MultiLevelPreconditioner().
