MLAPI::LoadBalanceOperator Class Reference

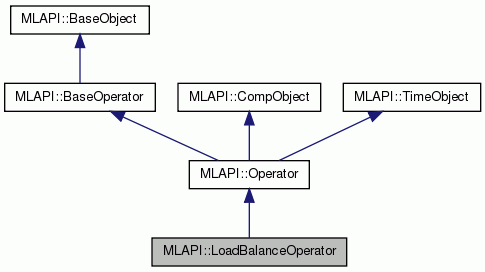

Inheritance diagram for MLAPI::LoadBalanceOperator:

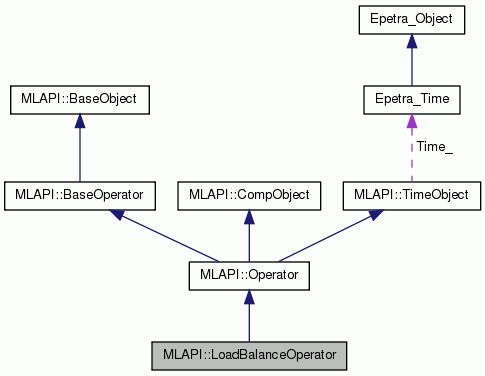

Collaboration diagram for MLAPI::LoadBalanceOperator:

Public Member Functions
	LoadBalanceOperator ()
	Default constructor.
	LoadBalanceOperator (const Space &DomainSpace, const Space &RangeSpace, ML_Operator *Op, bool Ownership=true, Teuchos::RefCountPtr< ML_Operator_Box > AuxOp=Teuchos::null)
	Constructor with given already computed ML_Operator pointer.
	LoadBalanceOperator (const Space &DomainSpace, const Space &RangeSpace, Epetra_RowMatrix *Matrix, bool Ownership=true, Teuchos::RefCountPtr< ML_Operator_Box > AuxOp=Teuchos::null)
	Constructor with given already FillComplete()'d object.
	LoadBalanceOperator (const LoadBalanceOperator &RHS)
	Copy constructor.
	~LoadBalanceOperator ()
	Destructor.
void	Reshape ()
	Resets this object.
void	Reshape (const Space &DomainSpace, const Space &RangeSpace, ML_Operator *Op, bool Ownership=true, Teuchos::RefCountPtr< ML_Operator_Box > AuxOp=Teuchos::null)
	Reshape with given already computed ML_Operator pointer.
void	Reshape (const Space &DomainSpace, const Space &RangeSpace, Epetra_RowMatrix *Matrix, bool Ownership=true, Teuchos::RCP< ML_Operator_Box > AuxOp=Teuchos::null)
	Reshape with given already FillComplete()'d object.
LoadBalanceOperator &	operator= (const LoadBalanceOperator &RHS)
	Makes this object equivalent to RHS.
Operator &	operator= (const std::string &Label)
	Sets the label of this object.
virtual bool	GetParticipation () const
	Returns a bool indicating whether this proc participates in the operator application.
const Space	GetOperatorDomainSpace () const
	Returns a reference to the internally stored domain space.
const Space	GetOperatorRangeSpace () const
	Returns a reference to the internally stored range space.
const Space	GetDomainSpace () const
	Returns a reference to the internally stored domain space.
const Space	GetRangeSpace () const
	Returns a reference to the internally stored range space.
const Space	GetColumnSpace () const
	Returns a reference to the internally stored column space.
int	GetNumGlobalRows () const
	Returns the number of global rows.
int	GetNumMyRows () const
	Returns the number of local rows.
int	GetNumGlobalCols () const
	Returns the number of global columns.
int	GetNumMyCols () const
	Returns the number of local columns.
int	GetNumGlobalNonzeros () const
	Returns the global number of nonzeros.
int	GetNumMyNonzeros () const
	Returns the local number of nonzeros.
const Epetra_RowMatrix *	GetRowMatrix () const
	Returns the RefCountPtr of OperatorBox_.
ML_Operator *	GetML_Operator () const
	Returns the RefCountPtr of OperatorBox_.
const Teuchos::RCP < ML_Operator_Box > &	GetRCPOperatorBox () const
	Returns the RefCountPtr of OperatorBox_.
const Teuchos::RCP < ML_Operator_Box > &	GetRCPAuxOperatorBox () const
	Returns the RefCountPtr of AuxOperatorBox_.
const Teuchos::RCP < Epetra_RowMatrix > &	GetRCPRowMatrix () const
	Returns the RefCountPtr of RowMatrix_.
int	GetGRID (const int LRID) const
	Returns the global ID of local row ID LRID.
int	GetGCID (const int LCID) const
	Returns the global ID of local column ID LCID.
int	Apply (const MultiVector &X, MultiVector &Y) const
	Applies this operator to LHS, returns the result in RHS.
std::ostream &	Print (std::ostream &os, const bool verbose=true) const
	Prints basic information about this object.
void	BuildColumnSpace ()
	Build the column space, by computing the GID of all local columns.
Public Member Functions inherited from MLAPI::Operator
	Operator ()
	Default constructor.
	Operator (const Space &DomainSpace, const Space &RangeSpace, ML_Operator *Op, bool Ownership=true, Teuchos::RefCountPtr< ML_Operator_Box > AuxOp=Teuchos::null)
	Constructor with given already computed ML_Operator pointer.
	Operator (const Space &DomainSpace, const Space &RangeSpace, Epetra_RowMatrix *Matrix, bool Ownership=true, Teuchos::RefCountPtr< ML_Operator_Box > AuxOp=Teuchos::null)
	Constructor with given already FillComplete()'d object.
	Operator (const Operator &RHS)
	Copy constructor.
	~Operator ()
	Destructor.
void	Reshape ()
	Resets this object.
void	Reshape (const Space &DomainSpace, const Space &RangeSpace, ML_Operator *Op, bool Ownership=true, Teuchos::RefCountPtr< ML_Operator_Box > AuxOp=Teuchos::null)
	Reshape with given already computed ML_Operator pointer.
void	Reshape (const Space &DomainSpace, const Space &RangeSpace, Epetra_RowMatrix *Matrix, bool Ownership=true, Teuchos::RefCountPtr< ML_Operator_Box > AuxOp=Teuchos::null)
	Reshape with given already FillComplete()'d object.
Operator &	operator= (const Operator &RHS)
	Makes this object equivalent to RHS.
Operator &	operator= (const std::string &Label)
	Sets the label of this object.
const Space	GetOperatorDomainSpace () const
	Returns a reference to the internally stored domain space.
const Space	GetOperatorRangeSpace () const
	Returns a reference to the internally stored range space.
const Space	GetDomainSpace () const
	Returns a reference to the internally stored domain space.
const Space	GetRangeSpace () const
	Returns a reference to the internally stored range space.
const Space	GetColumnSpace () const
	Returns a reference to the internally stored column space.
int	GetNumGlobalRows () const
	Returns the number of global rows.
int	GetNumMyRows () const
	Returns the number of local rows.
int	GetNumGlobalCols () const
	Returns the number of global columns.
int	GetNumMyCols () const
	Returns the number of local columns.
int	GetNumGlobalNonzeros () const
	Returns the global number of nonzeros.
int	GetNumMyNonzeros () const
	Returns the local number of nonzeros.
const Epetra_RowMatrix *	GetRowMatrix () const
	Returns the RefCountPtr of OperatorBox_.
ML_Operator *	GetML_Operator () const
	Returns the RefCountPtr of OperatorBox_.
const Teuchos::RefCountPtr < ML_Operator_Box > &	GetRCPOperatorBox () const
	Returns the RefCountPtr of OperatorBox_.
const Teuchos::RefCountPtr < ML_Operator_Box > &	GetRCPAuxOperatorBox () const
	Returns the RefCountPtr of AuxOperatorBox_.
const Teuchos::RefCountPtr < Epetra_RowMatrix > &	GetRCPRowMatrix () const
	Returns the RefCountPtr of RowMatrix_.
int	GetGRID (const int LRID) const
	Returns the global ID of local row ID LRID.
int	GetGCID (const int LCID) const
	Returns the global ID of local column ID LCID.
int	Apply (const MultiVector &X, MultiVector &Y) const
	Applies this operator to LHS, returns the result in RHS.
std::ostream &	Print (std::ostream &os, const bool verbose=true) const
	Prints basic information about this object.
void	BuildColumnSpace ()
	Build the column space, by computing the GID of all local columns.
Public Member Functions inherited from MLAPI::BaseOperator
virtual	~BaseOperator ()
	Virtual destructor.
Public Member Functions inherited from MLAPI::BaseObject
	BaseObject ()
	Constructor with empty label.
	BaseObject (const std::string &Label)
	Constructor with given Label.
virtual	~BaseObject ()
	Destructor.
void	SetLabel (const std::string &Label)
	Sets the Label of this object to Label.
const std::string &	GetLabel () const
	Returns the Label of this object.
Public Member Functions inherited from MLAPI::CompObject
	CompObject ()
	Constructor, set counter to 0.0.
	~CompObject ()
	Destructor.
double	GetFlops () const
	Returns the internal counter of flops.
void	SetFlops (double Flops) const
	Sets internal counter to Flops.
void	UpdateFlops (double Flops) const
	Updates internal counter by summing Flops.
Public Member Functions inherited from MLAPI::TimeObject
	TimeObject ()
	Constructor, set counter to 0.0.
	~TimeObject ()
	Destructor.
void	ResetTimer () const
	Resets the internal timer.
void	UpdateTime () const
	Updates the internal timer with the time spent since the last call to ResetTimer().
void	UpdateTime (double t) const
	Updates the internal timer with input value t.
double	GetTime () const
	Returns the internally stored counter.

Additional Inherited Members
Protected Attributes inherited from MLAPI::TimeObject
Epetra_Time	Time_
	Object used to track time.
double	TotalTime_
	Internal counter.

---

The documentation for this class was generated from the following file:

• MLAPI_LoadBalanceOperator.h
