Interface (abstract base class) for computing a new partitioning/coloring/ ordering and exploiting their results. More...

#include <Isorropia_Operator.hpp>

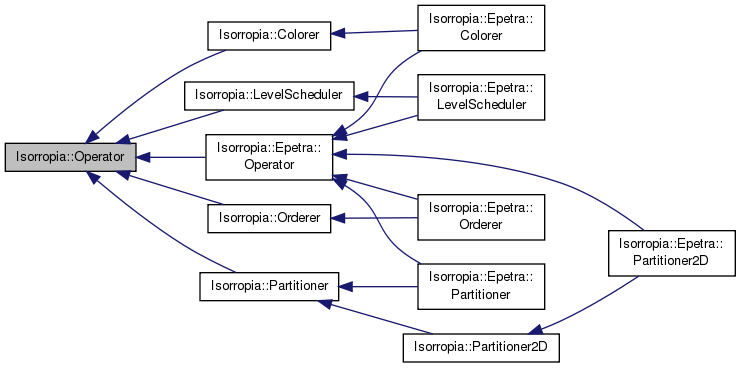

Inheritance diagram for Isorropia::Operator:

[legend]

Public Member Functions
virtual	~Operator ()
	Destructor. More...

virtual void	setParameters (const Teuchos::ParameterList &paramlist)=0
	Set parameters for the Operator instance. More...

virtual void	compute (bool forceRecomputing=false)=0
	Method which does the work of computing a new partitioning/coloring/ordering, depending on the child class used. More...


virtual bool	alreadyComputed () const =0
	Query whether the computation has already been called. More...

virtual int	numProperties () const =0
	Return the number of different values used for "properties". More...

virtual int	numLocalProperties () const =0
	Return the number of different values used for "properties" for this process only. More...

virtual const int &	operator[] (int myElem) const =0
	Return the "property" for a given element that resided locally. More...

virtual int	numElemsWithProperty (int property) const =0
	Return the number of LOCAL elements with the given property. More...

virtual void	elemsWithProperty (int property, int *elementList, int len) const =0
	Fill user-allocated list (of length len) with the local element ids of the LOCAL elements with the given property. More...

virtual int	extractPropertiesView (int &size, const int *&array) const =0
	Give access of the property array that is owned by the current processor. More...

virtual int	extractPropertiesCopy (int len, int &size, int *array) const =0
	Copy a part of the property array. More...

Detailed Description

Interface (abstract base class) for computing a new partitioning/coloring/ ordering and exploiting their results.

If the accessor methods are called before the computation of the result (by a method like compute()) has been called, behavior is not well defined. Implementations will either return empty/erroneous data, or throw an exception. In most cases, implementations will probably call compute_partitioning() internally in a constructor or factory method, so this won't usually be an issue.

Constructor & Destructor Documentation

virtual Isorropia::Operator::~Operator ( )

inlinevirtual

Destructor.

Reimplemented in Isorropia::Epetra::Operator.

Member Function Documentation

virtual void Isorropia::Operator::setParameters ( const Teuchos::ParameterList & paramlist )

pure virtual

Set parameters for the Operator instance.

The contents of the input paramlist object are copied into an internal ParameterList attribute. Instances of this interface should not retain a reference to the input ParameterList after this method returns.

Parameters

[in] paramlist List of parameters that the user wants to use.

Implemented in Isorropia::Epetra::Operator.

virtual void Isorropia::Operator::compute ( bool forceRecomputing = false )

pure virtual

Method which does the work of computing a new partitioning/coloring/ordering, depending on the child class used.

Parameters

forceRecomputing Optional argument defaults to false. Depending on the implementation, compute() should only perform a computation the first time it is called, and subsequent repeated calls are no-ops. If the user's intent is to re-compute the results (e.g., if parameters or other inputs have been changed), then setting this flag to true will force a new result to be computed.

Implemented in Isorropia::Epetra::Operator, Isorropia::Epetra::Partitioner, Isorropia::Epetra::Colorer, Isorropia::Epetra::Partitioner2D, Isorropia::Epetra::Orderer, and Isorropia::Epetra::LevelScheduler.

virtual bool Isorropia::Operator::alreadyComputed ( ) const

pure virtual

Query whether the computation has already been called.

Returns: True if the computation has already been done, False otherwise.

Implemented in Isorropia::Epetra::Operator.

virtual int Isorropia::Operator::numProperties ( ) const

pure virtual

Return the number of different values used for "properties".

For example, the number of colors or the number of parts used for the overall graph/matrix.

Returns: Global number of values for properties

Remarks: Infact, it returns the upper bound of the interval of taken values. For example, for the colors "1,2,4" , it will return "4"

Implemented in Isorropia::Epetra::Operator.

virtual int Isorropia::Operator::numLocalProperties ( ) const

pure virtual

Return the number of different values used for "properties" for this process only.

Returns: Local number of values for properties

Implemented in Isorropia::Epetra::Operator.

virtual const int& Isorropia::Operator::operator[] ( int myElem ) const

pure virtual

Return the "property" for a given element that resided locally.

Parameters

[in] myElem the local ID of the element we want to know the property.

Returns: property associated to the local element.

Implemented in Isorropia::Epetra::Operator.

virtual int Isorropia::Operator::numElemsWithProperty ( int property ) const

pure virtual

Return the number of LOCAL elements with the given property.

Parameters

[in] property Value of the property to consider.

Returns: Number of local elems which have this property.

Implemented in Isorropia::Epetra::Operator.

virtual void Isorropia::Operator::elemsWithProperty	(	int	property,
		int *	elementList,
		int	len
	)		const

pure virtual

Fill user-allocated list (of length len) with the local element ids of the LOCAL elements with the given property.

Parameters

[in]	property	Value of the property to consider.
[out]	elementList	User allocated array (of size at least `len`) of local ID that have the asked property.
[in]	len	Maximum lenght for the array. If `len` is greater than the result of numElemsWithProperty() for `property`, only the first and relevant elements are filled.

Remarks: Memory space which is not useful in the array is not initialized or used in this method.

Implemented in Isorropia::Epetra::Operator.

virtual int Isorropia::Operator::extractPropertiesView	(	int &	size,
		const int *&	array
	)		const

pure virtual

Give access of the property array that is owned by the current processor.

Parameters

[out]	size	Number of elements in the array.
[out]	array	Pointer to the the properties array inside the object.

Remarks: This pointer is only significant if the object still exists. Otherwise, you must use

See Also: Isorropia::Operator::extractPropertiesCopy().; Isorropia::Operator::extractPropertiesCopy()

Implemented in Isorropia::Epetra::Operator.

virtual int Isorropia::Operator::extractPropertiesCopy	(	int	len,
		int &	size,
		int *	array
	)		const

pure virtual

Copy a part of the property array.

Parameters

[in]	len	of the array given by the user.
[out]	size	Number of elements in the array.
[out]	array	Array of properties. Allocated by the user with a size of at least `len` elements.

Remarks: Memory space which is not useful in the array is not initialized or used in this method.

See Also: Isorropia::Operator::extractPropertiesView()

Implemented in Isorropia::Epetra::Operator.

The documentation for this class was generated from the following file:

Isorropia_Operator.hpp
