GlobiPack::GoldenQuadInterpBracket< Scalar > Class Template Reference

Simple concrete class that implements a 1D algorithm to bracket the minimum of a 1D merit function. More...

#include <GlobiPack_GoldenQuadInterpBracket_decl.hpp>

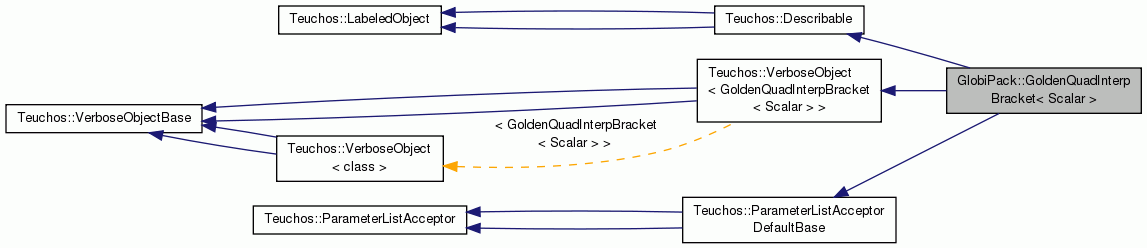

Inheritance diagram for GlobiPack::GoldenQuadInterpBracket< Scalar >:

Related Functions
(Note that these are not member functions.)
template<typename Scalar >
const RCP < GoldenQuadInterpBracket < Scalar > >	goldenQuadInterpBracket ()
	Nonmember constructor. More...

Constructor/Initializers/Accessors
	GoldenQuadInterpBracket ()
	Construct with default parameters. More...

Overridden from ParameterListAcceptor
void	setParameterList (RCP< ParameterList > const &paramList)
RCP< const ParameterList >	getValidParameters () const

Bracket.
bool	bracketMinimum (const MeritFunc1DBase< Scalar > &phi, const Ptr< PointEval1D< Scalar > > &pointLower, const Ptr< PointEval1D< Scalar > > &pointMiddle, const Ptr< PointEval1D< Scalar > > &pointUpper, const Ptr< int > &numIters=Teuchos::null) const
	Bracket the minimum of a 1D function. More...

Detailed Description

template<typename Scalar>
class GlobiPack::GoldenQuadInterpBracket< Scalar >

Simple concrete class that implements a 1D algorithm to bracket the minimum of a 1D merit function.

ToDo: Finish Documentation!

Definition at line 63 of file GlobiPack_GoldenQuadInterpBracket_decl.hpp.

Constructor & Destructor Documentation

template<typename Scalar >

GlobiPack::GoldenQuadInterpBracket< Scalar >::GoldenQuadInterpBracket

(

)

Construct with default parameters.

Definition at line 59 of file GlobiPack_GoldenQuadInterpBracket_def.hpp.

Member Function Documentation

template<typename Scalar >

void GlobiPack::GoldenQuadInterpBracket< Scalar >::setParameterList ( RCP< ParameterList > const &  paramList )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 67 of file GlobiPack_GoldenQuadInterpBracket_def.hpp.

template<typename Scalar >

RCP< const ParameterList > GlobiPack::GoldenQuadInterpBracket< Scalar >::getValidParameters ( ) const

virtual

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 77 of file GlobiPack_GoldenQuadInterpBracket_def.hpp.

template<typename Scalar >

bool GlobiPack::GoldenQuadInterpBracket< Scalar >::bracketMinimum	(	const MeritFunc1DBase< Scalar > &	phi,
		const Ptr< PointEval1D< Scalar > > &	pointLower,
		const Ptr< PointEval1D< Scalar > > &	pointMiddle,
		const Ptr< PointEval1D< Scalar > > &	pointUpper,
		const Ptr< int > &	numIters = Teuchos::null
	)		const

Bracket the minimum of a 1D function.

Parameters

phi	[in] The evaluator object for the merit function which evaluates phi(alpha)).
pointLower	[in/out] In input, *pointLower give the initial guess for the lower bound for the point. This lower bound will be respected and will never be violated. On output, *pointLower gives the lower bound for the bracket of the minimum. The derivative field pointLower->Dphi is not accessed.
pointMiddle	[in/out] In input, *pointMiddle give the initial guess for the point. On output, *pointMiddle gives the bracketed minimum. The derivative field pointUpper->Dphi is not accessed.
pointUpper	[out] On output, *pointUpper gives the upper bound for the bracket of the minimum. The derivative field pointUpper->Dphi is not accessed.
numIters	[out] If not null, on output, numIters gives the number of iterations used.

Returns

Returns true if a bracket has been found, false otherwise.

Preconditions:

• pointLower->alpha < pointMiddle->alpha

Postconditions:

• [returnVal==true] pointLower->alpha < pointMiddle->alpha && pointMiddle->alpha < pointUpper->alpha

• [returnVal==true] pointLower->phi > pointMiddle->phi && pointMiddle->phi < pointUpper->phi

Definition at line 94 of file GlobiPack_GoldenQuadInterpBracket_def.hpp.

Friends And Related Function Documentation

template<typename Scalar >

const RCP< GoldenQuadInterpBracket< Scalar > > goldenQuadInterpBracket ( )

related

Nonmember constructor.

Definition at line 157 of file GlobiPack_GoldenQuadInterpBracket_decl.hpp.

---

The documentation for this class was generated from the following files:

• GlobiPack_GoldenQuadInterpBracket_decl.hpp
• GlobiPack_GoldenQuadInterpBracket_def.hpp
