Belos::StatusTestUserOutput< ScalarType, MV, OP > Class Template Reference

A special StatusTest for printing other status tests in a simple format. More...

#include <BelosStatusTestUserOutput.hpp>

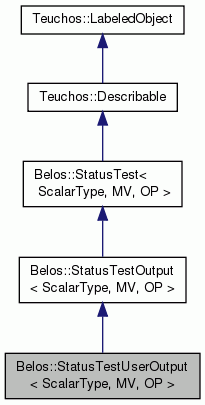

Inheritance diagram for Belos::StatusTestUserOutput< ScalarType, MV, OP >:
Inheritance graph
[legend]

Public Member Functions

Constructors/destructors
 StatusTestUserOutput (const Teuchos::RCP< OutputManager< ScalarType > > &printer, Teuchos::RCP< StatusTest< ScalarType, MV, OP > > test, Teuchos::RCP< std::map< std::string, Teuchos::RCP< StatusTest< ScalarType, MV, OP > > > > taggedTests, int mod=1, int printStates=Passed)
 Constructor. More...

virtual ~StatusTestUserOutput ()
 Destructor. More...

Status methods
StatusType checkStatus (Iteration< ScalarType, MV, OP > *solver)

StatusType getStatus () const
 Return the result of the most recent checkStatus call, or undefined if it has not been run. More...

Accessor methods
void setOutputManager (const Teuchos::RCP< OutputManager< ScalarType > > &printer)
 Set the output manager. More...

void setOutputFrequency (int mod)
 Set how often the child test is printed. More...

void setChild (Teuchos::RCP< StatusTest< ScalarType, MV, OP > > test)
 Set child test, which must be a combination of a Belos::StatusTestMaxIters AND a combination of Belos::StatusTestResNorms and user-specified tests. More...

Teuchos::RCP< StatusTest
< ScalarType, MV, OP > >
getChild () const
 Get child test. More...

void setSolverDesc (const std::string &solverDesc)
 Set a short solver description for output clarity. More...

void setPrecondDesc (const std::string &precondDesc)
 Set a short preconditioner description for output clarity. More...

Reset methods
void reset ()
 Informs the status test that it should reset its internal configuration to the uninitialized state. More...

void resetNumCalls ()
 Informs the outputting status test that it should reset the number of calls to zero. More...

Print methods
void print (std::ostream &os, int indent=0) const
 Output formatted description of stopping test to output stream. More...

- Public Member Functions inherited from Belos::StatusTestOutput< ScalarType, MV, OP >
 StatusTestOutput ()
 Default constructor. More...

 StatusTestOutput (const Teuchos::RCP< OutputManager< ScalarType > > &printer, Teuchos::RCP< StatusTest< ScalarType, MV, OP > > test, int mod=1, int printStates=Passed)
 Constructor. More...

virtual ~StatusTestOutput ()
 Destructor. More...

- Public Member Functions inherited from Belos::StatusTest< ScalarType, MV, OP >
 StatusTest ()
 Constructor. More...

virtual ~StatusTest ()
 Destructor. More...

virtual void printStatus (std::ostream &os, StatusType type) const
 Output the result of the most recent CheckStatus call. More...

- Public Member Functions inherited from Teuchos::Describable
virtual std::string description () const

virtual void describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)


Additional Inherited Members

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default


Detailed Description

template<class ScalarType, class MV, class OP>
class Belos::StatusTestUserOutput< ScalarType, MV, OP >

A special StatusTest for printing other status tests in a simple format.

Definition at line 70 of file BelosStatusTestUserOutput.hpp.

Constructor & Destructor Documentation

template<class ScalarType , class MV , class OP >
Belos::StatusTestUserOutput< ScalarType, MV, OP >::StatusTestUserOutput ( const Teuchos::RCP< OutputManager< ScalarType > > &  printer,
Teuchos::RCP< StatusTest< ScalarType, MV, OP > >  test,
Teuchos::RCP< std::map< std::string, Teuchos::RCP< StatusTest< ScalarType, MV, OP > > > >  taggedTests,
int  mod = 1,
int  printStates = Passed
)
inline

Constructor.

The StatusTestUserOutput requires an OutputManager for printing the underlying StatusTest on calls to checkStatus(), as well as an underlying StatusTest.

The last two parameters, described below, in addition to the verbosity level of the OutputManager, control when printing is called. When both the mod criterion and the printStates criterion are satisfied, the status test will be printed to the OutputManager with MsgType of StatusTestDetails.

Parameters
[in]testA reference-counted pointer to an object that combines Belos::StatusTestMaxIters and a set of Belos::StatusTestResNorm
[in]modA positive number describes how often the output should be printed. On every call to checkStatus(), an internal counter is incremented. Printing may only occur when this counter is congruent to zero modulo mod. Default: 1 (attempt to print on every call to checkStatus())
[in]printStatesA combination of StatusType values for which the output may be printed. Default: Passed (attempt to print whenever checkStatus() will return Passed)

Definition at line 96 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >
virtual Belos::StatusTestUserOutput< ScalarType, MV, OP >::~StatusTestUserOutput ( )
inlinevirtual

Destructor.

Definition at line 120 of file BelosStatusTestUserOutput.hpp.

Member Function Documentation

template<class ScalarType , class MV , class OP >
StatusType Belos::StatusTestUserOutput< ScalarType, MV, OP >::checkStatus ( Iteration< ScalarType, MV, OP > *  solver)
inlinevirtual

Check and return status of underlying StatusTest.

This method calls checkStatus() on the StatusTest object passed in the constructor. If appropriate, the method will follow this call with a call to print() on the underlying object, using the OutputManager passed via the constructor with verbosity level StatusTestDetails.

The internal counter will be incremented during this call, but only after performing the tests to decide whether or not to print the underlying StatusTest. This way, the very first call to checkStatus() following initialization or reset() will enable the underlying StatusTest to be printed, regardless of the mod parameter, as the current number of calls will be zero.

If the specified Teuchos::RCP for the child class is Teuchos::null, then calling checkStatus() will result in a StatusTestError std::exception being thrown.

Returns
StatusType indicating whether the underlying test passed or failed.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 142 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >
StatusType Belos::StatusTestUserOutput< ScalarType, MV, OP >::getStatus ( ) const
inlinevirtual

Return the result of the most recent checkStatus call, or undefined if it has not been run.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 176 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >
void Belos::StatusTestUserOutput< ScalarType, MV, OP >::setOutputManager ( const Teuchos::RCP< OutputManager< ScalarType > > &  printer)
inlinevirtual

Set the output manager.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 187 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >
void Belos::StatusTestUserOutput< ScalarType, MV, OP >::setOutputFrequency ( int  mod)
inlinevirtual

Set how often the child test is printed.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 191 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >
void Belos::StatusTestUserOutput< ScalarType, MV, OP >::setChild ( Teuchos::RCP< StatusTest< ScalarType, MV, OP > >  test)
inlinevirtual

Set child test, which must be a combination of a Belos::StatusTestMaxIters AND a combination of Belos::StatusTestResNorms and user-specified tests.

Note
This also resets the test status to Undefined.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 197 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTest<ScalarType,MV,OP> > Belos::StatusTestUserOutput< ScalarType, MV, OP >::getChild ( ) const
inlinevirtual

Get child test.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 270 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >
void Belos::StatusTestUserOutput< ScalarType, MV, OP >::setSolverDesc ( const std::string &  solverDesc)
inlinevirtual

Set a short solver description for output clarity.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 276 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >
void Belos::StatusTestUserOutput< ScalarType, MV, OP >::setPrecondDesc ( const std::string &  precondDesc)
inlinevirtual

Set a short preconditioner description for output clarity.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 280 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >
void Belos::StatusTestUserOutput< ScalarType, MV, OP >::reset ( )
inlinevirtual

Informs the status test that it should reset its internal configuration to the uninitialized state.

This resets the cached state to an Undefined state and calls reset() on the underlying test. It also resets the counter for the number of calls to checkStatus().

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 291 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >
void Belos::StatusTestUserOutput< ScalarType, MV, OP >::resetNumCalls ( )
inlinevirtual

Informs the outputting status test that it should reset the number of calls to zero.

Note
This outputting status test relies on the number of iterations performed, not number of times the status test has been called, so this method has no effect.

Implements Belos::StatusTestOutput< ScalarType, MV, OP >.

Definition at line 302 of file BelosStatusTestUserOutput.hpp.

template<class ScalarType , class MV , class OP >
void Belos::StatusTestUserOutput< ScalarType, MV, OP >::print ( std::ostream &  os,
int  indent = 0
) const
inlinevirtual

Output formatted description of stopping test to output stream.

Implements Belos::StatusTest< ScalarType, MV, OP >.

Definition at line 310 of file BelosStatusTestUserOutput.hpp.


The documentation for this class was generated from the following file:
