Interface to standard and "pseudoblock" GMRES. More...

#include <BelosPseudoBlockGmresSolMgr.hpp>

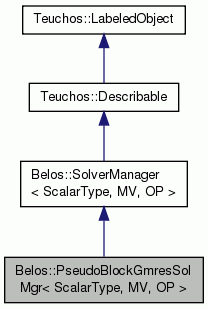

Inheritance diagram for Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >:

Public Member Functions
Constructors and destructor
	PseudoBlockGmresSolMgr ()
	Empty constructor. More...

	PseudoBlockGmresSolMgr (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem, const Teuchos::RCP< Teuchos::ParameterList > &pl)
	Constructor that takes the problem to solve, and a list of solver options. More...

virtual	~PseudoBlockGmresSolMgr ()
	Destructor. More...

Teuchos::RCP< SolverManager < ScalarType, MV, OP > >	clone () const override
	clone for Inverted Injection (DII) More...

Accessor methods
const LinearProblem < ScalarType, MV, OP > &	getProblem () const override
	Return a reference to the linear problem being solved by this solver manager. More...

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const override
	A list of valid default parameters for this solver. More...

Teuchos::RCP< const Teuchos::ParameterList >	getCurrentParameters () const override
	The current parameters for this solver. More...

Teuchos::Array< Teuchos::RCP < Teuchos::Time > >	getTimers () const
	Return the timers for this object. More...

MagnitudeType	achievedTol () const override
	Tolerance achieved by the last `solve()` invocation. More...

int	getNumIters () const override
	Iteration count for the most recent call to `solve()`. More...

bool	isLOADetected () const override
	Whether a "loss of accuracy" was detected during the last solve(). More...

Set methods
void	setProblem (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem) override
	Set the linear problem to solve. More...

void	setParameters (const Teuchos::RCP< Teuchos::ParameterList > &params) override
	Set the parameters the solver manager should use to solve the linear problem. More...

virtual void	setUserConvStatusTest (const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &userConvStatusTest, const typename StatusTestCombo< ScalarType, MV, OP >::ComboType &comboType=StatusTestCombo< ScalarType, MV, OP >::SEQ) override
	Set a custom status test. More...

void	setDebugStatusTest (const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &debugStatusTest) override
	Set a debug status test that will be checked at the same time as the top-level status test. More...

Reset methods
void	reset (const ResetType type) override
	Performs a reset of the solver manager specified by the `ResetType`. This informs the solver manager that the solver should prepare for the next call to solve by resetting certain elements of the iterative solver strategy. More...

Solver application methods
ReturnType	solve () override
	This method performs possibly repeated calls to the underlying linear solver's iterate() routine until the problem has been solved (as decided by the solver manager) or the solver manager decides to quit. More...

Overridden from Teuchos::Describable
void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const override
	Print the object with the given verbosity level to a FancyOStream. More...

std::string	description () const override
	Return a one-line description of this object. More...

Public Member Functions inherited from Belos::SolverManager< ScalarType, MV, OP >
	SolverManager ()
	Empty constructor. More...

virtual	~SolverManager ()
	Destructor. More...

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Additional Inherited Members
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

template<class ScalarType, class MV, class OP>
class Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >

Interface to standard and "pseudoblock" GMRES.

Author: Heidi Thornquist, Chris Baker, and Teri Barth

This class provides an interface to the following iterative solvers:

GMRES, for linear systems with one right-hand side
The "pseudoblock" variant of GMRES, for linear systems with multiple right-hand sides

If you are a new Belos user and just want standard GMRES, use this class. If you want Flexible GMRES, use BlockGmresSolMgr with the appropriate option set.

"Pseudoblock" GMRES is a way to improve performance when solving systems with multiple right-hand sides, without changing the convergence characteristics. It is equivalent in terms of convergence to running a separate instance of (standard) GMRES for each right-hand side, but should often be faster. When solving for multiple right-hand sides, "Block GMRES" (as implemented by BlockGmresSolMgr) is a different algorithm with different convergence characteristics than Pseudoblock GMRES.

Examples:: BlockGmres/PseudoBlockGmresEpetraExFile.cpp, and BlockGmres/PseudoBlockPrecGmresEpetraExFile.cpp.

Definition at line 126 of file BelosPseudoBlockGmresSolMgr.hpp.

Constructor & Destructor Documentation

template<class ScalarType , class MV , class OP >

Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::PseudoBlockGmresSolMgr ( )

Empty constructor.

This constructor takes no arguments. It sets default solver parameters, which you may change by calling setParameters(). Before you may call solve(), you must first give the solver a linear problem to solve, by calling setProblem().

Definition at line 530 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::PseudoBlockGmresSolMgr	(	const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &	problem,
		const Teuchos::RCP< Teuchos::ParameterList > &	pl
	)

Constructor that takes the problem to solve, and a list of solver options.

Parameters

problem	[in/out] The linear problem to be solved.
pl	[in/out] A list of solver options.

Belos' solvers accept many different options. You may accept their default values, or set any of them yourself. We will explain the options by category.

The following options govern the number of iterations and restarts:

"Num Blocks" (int): The restart length. The number of vectors (or blocks, in the case of multiple right-hand sides) allocated for the Krylov basis. Its default value is 300.
"Maximum Iterations" (int): The maximum number of iterations the solver is allowed to perform. This does not include computing the initial residual, but it does include iterations before and after any restarts. Its default value is 1000.
"Maximum Restarts" (int): The maximum number of restarts. This does not include the first "Num Blocks" iterations (before the first restart). Its default value is 20.

We do not currently perform any sanity checks for these options. This may affect you if you set some of them but let others keep their default values. For example, if you set "Num Blocks" to 2 and "Maximum Iterations" to 100, but don't set "Maximum Restarts", you will only get 40 = 20*2 total iterations, rather than 100. Thus, if you set one of these parameters, you should always set them all.

When solving with multiple right-hand sides, the "Block Size" (int) parameter controls the number of right-hand sides for which the solver solves at once. This setting controls both performance and total memory use. Doubling it (approximately) doubles the total amount of memory used by the solver, but might make the solves faster by reducing synchronization overhead and improving memory bandwidth utilization. The gain from increasing this tends to level off quickly. Making this setting too large may actually hurt performance.

These options govern convergence and the numerical algorithm:

"Convergence Tolerance" (MagnitudeType): The level that residual norms must reach in order for the solver to stop iterating.
"Implicit Residual Scaling" (std::string): How to scale the implicit residual norm. The default is the norm of the preconditioned initial residual.
"Explicit Residual Scaling" (std::string): How to scale the explicit residual norm. The default is the norm of the (unpreconditioned) initial residual.
"Deflation Quorum" (int): When solving with multiple right-hand sides: the number of right-hand sides that must have converged to the given tolerance, before the solver will consider all the systems converged. If -1, then the solver will require that all the right-hand sides have converged before declaring all the systems converged. This must be no bigger than the "Block Size" parameter.
"Orthogonalization" (std::string): The desired orthogonalization method. Currently accepted values are "DGKS", "ICGS", "IMGS", and optionally "TSQR" (depending on build settings). Please refer to Belos' documentation for more details.

For an explanation of "implicit" vs. "explicit" residuals, please see the documentation of isLOADetected(). The difference matters if using left preconditioning. Otherwise, it is not so important to most users.

The residual scaling parameters ("Implicit Residual Scaling" and "Explicit Residual Scaling") accept the following values:

"Norm of Initial Residual"
"Norm of Preconditioned Initial Residual"
"Norm of RHS" (RHS stands for "right-hand side")
"None" (no scaling factor)

GMRES always uses the 2 norm (square root of sum of squares of magnitudes of entries) to measure convergence.

Belos' solvers let users control intermediate "status" output. This output tells you the current iteration and the values of current convergence criteria. The following parameters control output. The default values are fine for users who only care about the final result and don't want to see status output.

"Verbosity": a sum of MsgType enum values specifying the verbosity. Default: Belos::Errors.
"Output Frequency" (int): How often (in terms of number of iterations) to print intermediate status output. The default (-1) means not to print intermediate status output at all.
"Output Style" (OutputType): The style of output. Accepted values are General and Brief. Default: General.
"Output Stream" (Teuchos::RCP<std::ostream>): A pointer to an output stream to which the solver will write status output. The default is a pointer to std::cout. Currently, if Trilinos was built with MPI support, only the MPI process with rank 0 in MPI_COMM_WORLD will print to this output stream.
"Show Maximum Residual Norm Only": When solving for multiple right-hand sides, this controls whether output shows residual norms for all the right-hand sides, or just the current maximum residual norm over all right-hand sides.
Parameters

pl [in] ParameterList with construction information

Definition at line 560 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

virtual Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::~PseudoBlockGmresSolMgr ( )

inlinevirtual

Destructor.

Definition at line 263 of file BelosPseudoBlockGmresSolMgr.hpp.

Member Function Documentation

template<class ScalarType , class MV , class OP >

Teuchos::RCP<SolverManager<ScalarType, MV, OP> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::clone ( ) const

inlineoverridevirtual

clone for Inverted Injection (DII)

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 266 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

const LinearProblem<ScalarType,MV,OP>& Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::getProblem ( ) const

inlineoverridevirtual

Return a reference to the linear problem being solved by this solver manager.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 274 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

Teuchos::RCP< const Teuchos::ParameterList > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::getValidParameters ( ) const

overridevirtual

A list of valid default parameters for this solver.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 1092 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

Teuchos::RCP<const Teuchos::ParameterList> Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::getCurrentParameters ( ) const

inlineoverridevirtual

The current parameters for this solver.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 282 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

Teuchos::Array<Teuchos::RCP<Teuchos::Time> > Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::getTimers ( ) const

inline

Return the timers for this object.

The timers are ordered as follows:

time spent in solve() routine

Definition at line 289 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

MagnitudeType Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::achievedTol ( ) const

inlineoverridevirtual

Tolerance achieved by the last solve() invocation.

This is the maximum over all right-hand sides' achieved convergence tolerances, and is set whether or not the solve actually managed to achieve the desired convergence tolerance.

Warning: This result may not be meaningful if there was a loss of accuracy during the solve. You should first call isLOADetected() to check for a loss of accuracy during the last solve.

Reimplemented from Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 303 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

int Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::getNumIters ( ) const

inlineoverridevirtual

Iteration count for the most recent call to solve().

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 308 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

bool Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::isLOADetected ( ) const

inlineoverridevirtual

Whether a "loss of accuracy" was detected during the last solve().

This solver uses two different residual norms to predict convergence: "implicit" (also called "native") and "explicit" (also called "exact," not to be confused with "exact arithmetic"). The "implicit" residuals are computed by the solver via a recurrence relation (the Arnoldi relation, in the case of GMRES). The "explicit" residuals are computed directly as $B - A X_k$. Implicit residuals are much cheaper to compute, since they are available almost "for free" from the recurrence relation. In contrast, computing exact residuals requires computing the current approximate solution $X_k$ , applying the global operator $A$ to $X_k$ , and then computing the norm of the resulting vector(s) via a global reduction. Thus, GMRES favors using the cheaper implicit residuals to predict convergence. Users typically want convergence with respect to explicit residuals, though.

Implicit and explicit residuals may differ due to rounding error. However, the difference between implicit and explicit residuals matters most when using a left (or split) preconditioner. In that case, the implicit residuals are those of the left-preconditioned problem $M_L^{-1} A X = M_L^{-1} B$ instead of the original problem $A X = B$ . The implicit residual norms may thus differ significantly from the explicit residual norms, even if one could compute without rounding error.

When using a left preconditioner, this solver tries to detect if the implicit residuals have converged but the explicit residuals have not. In that case, it will reduce the convergence tolerance and iterate a little while longer to attempt to reduce the explicit residual norm. However, if that doesn't work, it declares a "loss of accuracy" for the affected right-hand side(s), and stops iterating on them. (Not all right-hand sides may have experienced a loss of accuracy.) Thus, the affected right-hand sides may or may not have converged to the desired residual norm tolerance. Calling this method tells you whether a "loss of accuracy" (LOA) occurred during the last solve() invocation.

When not using a left preconditioner, this solver will iterate until both the implicit and explicit residuals converge. (It does not start testing the explicit residuals until the implicit residuals have converged. This avoids whenever possible the cost of computing explicit residuals.) Implicit and explicit residuals may differ due to rounding error, even though they are identical when no rounding error occurs. In this case, the algorithm does not report a "loss of accuracy," since it continues iterating until the explicit residuals converge.

Note: Calling solve() again resets the flag that reports whether a loss of accuracy was detected. Thus, you should call this method immediately after calling solve().

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 367 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

void Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::setProblem ( const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > & problem )

inlineoverridevirtual

Set the linear problem to solve.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 375 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

void Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::setParameters ( const Teuchos::RCP< Teuchos::ParameterList > & params )

overridevirtual

Set the parameters the solver manager should use to solve the linear problem.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 600 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

void Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::setUserConvStatusTest	(	const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &	userConvStatusTest,
		const typename StatusTestCombo< ScalarType, MV, OP >::ComboType &	comboType = `StatusTestCombo<ScalarType,MV,OP>::SEQ`
	)

overridevirtual

Set a custom status test.

A custom status test is not required. If you decide to set one, the current implementation will apply it sequentially (short-circuiting OR, like the || operator in C++) after Pseudoblock GMRES' standard convergence test.

Reimplemented from Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 1070 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

void Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::setDebugStatusTest ( const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > & debugStatusTest )

overridevirtual

Set a debug status test that will be checked at the same time as the top-level status test.

Reimplemented from Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 1081 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

void Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::reset ( const ResetType type )

inlineoverridevirtual

Performs a reset of the solver manager specified by the ResetType. This informs the solver manager that the solver should prepare for the next call to solve by resetting certain elements of the iterative solver strategy.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 405 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

ReturnType Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::solve ( )

overridevirtual

This method performs possibly repeated calls to the underlying linear solver's iterate() routine until the problem has been solved (as decided by the solver manager) or the solver manager decides to quit.

This method calls PseudoBlockGmresIter::iterate(), which will return either because a specially constructed status test evaluates to Passed or an std::exception is thrown.

A return from PseudoBlockGmresIter::iterate() signifies one of the following scenarios:

the maximum number of restarts has been exceeded. In this scenario, the current solutions to the linear system will be placed in the linear problem and return Unconverged.
global convergence has been met. In this case, the current solutions to the linear system will be placed in the linear problem and the solver manager will return Converged

Returns

ReturnType specifying:

Converged: the linear problem was solved to the specification required by the solver manager.
Unconverged: the linear problem was not solved to the specification desired by the solver manager.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 1253 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

void Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::describe	(	Teuchos::FancyOStream &	out,
		const Teuchos::EVerbosityLevel	verbLevel = `Teuchos::Describable::verbLevel_default`
	)		const

overridevirtual

Print the object with the given verbosity level to a FancyOStream.

Parameters

out	[out] Output stream to which to print.
verbLevel	[in] Verbosity level. The default verbosity (verbLevel=Teuchos::VERB_DEFAULT) is Teuchos::VERB_LOW.

Reimplemented from Teuchos::Describable.

Definition at line 1678 of file BelosPseudoBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >

std::string Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >::description ( ) const

overridevirtual

Return a one-line description of this object.

Reimplemented from Teuchos::Describable.

Definition at line 1658 of file BelosPseudoBlockGmresSolMgr.hpp.

The documentation for this class was generated from the following file:

BelosPseudoBlockGmresSolMgr.hpp

Public Member Functions

Additional Inherited Members

Detailed Description

template<class ScalarType, class MV, class OP> class Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >

Constructor & Destructor Documentation

Member Function Documentation

template<class ScalarType, class MV, class OP>
class Belos::PseudoBlockGmresSolMgr< ScalarType, MV, OP >
