Belos::OrthoManager< ScalarType, MV > Class Template Referenceabstract

Belos's templated virtual class for providing routines for orthogonalization and orthonormzalition of multivectors. More...

#include <BelosOrthoManager.hpp>

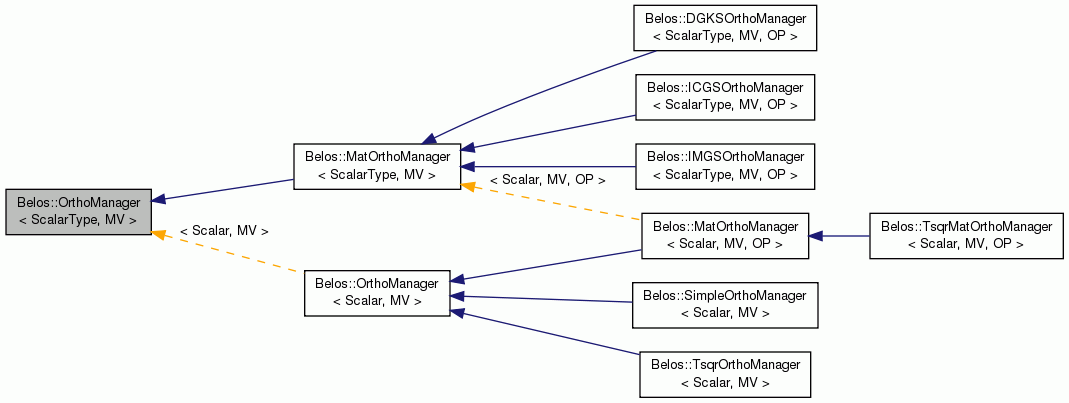

Inheritance diagram for Belos::OrthoManager< ScalarType, MV >:
Inheritance graph
[legend]

Constructor/Destructor

 OrthoManager ()
 Default constructor. More...

virtual ~OrthoManager ()
 Destructor. More...


Orthogonalization methods

virtual void innerProd (const MV &X, const MV &Y, Teuchos::SerialDenseMatrix< int, ScalarType > &Z) const =0
 Provides the inner product defining the orthogonality concepts. More...

virtual void norm (const MV &X, std::vector< typename Teuchos::ScalarTraits< ScalarType >::magnitudeType > &normvec) const =0
 Compute the norm(s) of the column(s) of X. More...

virtual void project (MV &X, Teuchos::Array< Teuchos::RCP< Teuchos::SerialDenseMatrix< int, ScalarType > > > C, Teuchos::ArrayView< Teuchos::RCP< const MV > > Q) const =0
 Project X against the (orthogonal) entries of Q. More...

virtual int normalize (MV &X, Teuchos::RCP< Teuchos::SerialDenseMatrix< int, ScalarType > > B) const =0
 This method takes a multivector X and attempts to compute an orthonormal basis for $colspan(X)$, with respect to innerProd(). More...

int projectAndNormalize (MV &X, Teuchos::Array< Teuchos::RCP< Teuchos::SerialDenseMatrix< int, ScalarType > > > C, Teuchos::RCP< Teuchos::SerialDenseMatrix< int, ScalarType > > B, Teuchos::ArrayView< Teuchos::RCP< const MV > > Q) const
 Project X against the Q[i] and normalize X. More...

virtual int projectAndNormalizeImpl (MV &X, Teuchos::Array< Teuchos::RCP< Teuchos::SerialDenseMatrix< int, ScalarType > > > C, Teuchos::RCP< Teuchos::SerialDenseMatrix< int, ScalarType > > B, Teuchos::ArrayView< Teuchos::RCP< const MV > > Q) const =0


Error methods

virtual Teuchos::ScalarTraits
< ScalarType >::magnitudeType
orthonormError (const MV &X) const =0
 This method computes the error in orthonormality of a multivector. More...

virtual Teuchos::ScalarTraits
< ScalarType >::magnitudeType
orthogError (const MV &X1, const MV &X2) const =0
 This method computes the error in orthogonality of two multivectors. More...


Label methods

virtual void setLabel (const std::string &label)=0
 This method sets the label used by the timers in the orthogonalization manager. More...

virtual const std::string & getLabel () const =0
 This method returns the label being used by the timers in the orthogonalization manager. More...


Detailed Description

template<class ScalarType, class MV>
class Belos::OrthoManager< ScalarType, MV >

Belos's templated virtual class for providing routines for orthogonalization and orthonormzalition of multivectors.

This class defines concepts of orthogonality through the definition of an inner product. It also provides computational routines for orthogonalization.

A concrete implementation of this class is necessary. The user can create their own implementation if those supplied are not suitable for their needs.

Author
Chris Baker, Teri Barth, and Heidi Thornquist

Definition at line 85 of file BelosOrthoManager.hpp.

Constructor & Destructor Documentation

template<class ScalarType, class MV>
Belos::OrthoManager< ScalarType, MV >::OrthoManager ( )
inline

Default constructor.

Definition at line 90 of file BelosOrthoManager.hpp.

template<class ScalarType, class MV>
virtual Belos::OrthoManager< ScalarType, MV >::~OrthoManager ( )
inlinevirtual

Destructor.

Definition at line 93 of file BelosOrthoManager.hpp.

Member Function Documentation

template<class ScalarType, class MV>
virtual void Belos::OrthoManager< ScalarType, MV >::innerProd ( const MV &  X,
const MV &  Y,
Teuchos::SerialDenseMatrix< int, ScalarType > &  Z
) const
pure virtual

Provides the inner product defining the orthogonality concepts.

All concepts of orthogonality discussed in this class are with respect to this inner product.

Note
This can be different than the MvTransMv method from the multivector class. For example, if there is a mass matrix M, then this might be the M inner product ( $x^HMx$).

Implemented in Belos::SimpleOrthoManager< Scalar, MV >, Belos::TsqrOrthoManager< Scalar, MV >, and Belos::MatOrthoManager< ScalarType, MV, OP >.

template<class ScalarType, class MV>
virtual void Belos::OrthoManager< ScalarType, MV >::norm ( const MV &  X,
std::vector< typename Teuchos::ScalarTraits< ScalarType >::magnitudeType > &  normvec
) const
pure virtual

Compute the norm(s) of the column(s) of X.

The norm computed is the norm induced by the inner product defined by innerProd().

Parameters
X[in] The multivector whose columns this method will compute norms.
normvec[out] On output, normvec[j] is the norm of column j of X. This method reserves the right to resize normvec if it does not have enough entries, but it may not necessarily resize normvec if it has too many entries.

Implemented in Belos::MatOrthoManager< ScalarType, MV, OP >.

template<class ScalarType, class MV>
virtual void Belos::OrthoManager< ScalarType, MV >::project ( MV &  X,
Teuchos::Array< Teuchos::RCP< Teuchos::SerialDenseMatrix< int, ScalarType > > >  C,
Teuchos::ArrayView< Teuchos::RCP< const MV > >  Q
) const
pure virtual

Project X against the (orthogonal) entries of Q.

Given a list of (mutually and internally) orthonormal bases Q, this method takes a multivector X and projects it onto the space orthogonal to the individual Q[i], optionally returning the coefficients of X for the individual Q[i]. All of this is done with respect to the inner product innerProd().

After calling this routine, X will be orthogonal to each of the Q[i].

Parameters
X[in/out] The multivector to be modified. On output, X will be orthogonal to Q[i] with respect to innerProd().
C[out] The coefficients of X in the *Q[i], with respect to innerProd(). If C[i] is a non-null pointer and *C[i] matches the dimensions of X and *Q[i], then the coefficients computed during the orthogonalization routine will be stored in the matrix *C[i]. If C[i] is a nnon-null pointer whose size does not match the dimensions of X and *Q[i], then a std::invalid_argument std::exception will be thrown. Otherwise, if C.size() < i or C[i] is a null pointer, then the orthogonalization manager will declare storage for the coefficients and the user will not have access to them.
Q[in] A list of multivector bases specifying the subspaces to be orthogonalized against. Each Q[i] is assumed to have orthonormal columns, and the Q[i] are assumed to be mutually orthogonal.

Implemented in Belos::ICGSOrthoManager< ScalarType, MV, OP >, Belos::IMGSOrthoManager< ScalarType, MV, OP >, Belos::DGKSOrthoManager< ScalarType, MV, OP >, and Belos::MatOrthoManager< ScalarType, MV, OP >.

template<class ScalarType, class MV>
virtual int Belos::OrthoManager< ScalarType, MV >::normalize ( MV &  X,
Teuchos::RCP< Teuchos::SerialDenseMatrix< int, ScalarType > >  B
) const
pure virtual

This method takes a multivector X and attempts to compute an orthonormal basis for $colspan(X)$, with respect to innerProd().

This routine returns an integer rank stating the rank of the computed basis. If X does not have full rank and the normalize() routine does not attempt to augment the subspace, then rank may be smaller than the number of columns in X. In this case, only the first rank columns of output X and first rank rows of B will be valid.

Parameters
X[in/out] The multivector to the modified. On output, X will have some number of orthonormal columns (with respect to innerProd()).
B[out] The coefficients of the original X with respect to the computed basis. This matrix is not necessarily triangular; see the documentation for specific orthogonalization managers.
Returns
Rank of the basis computed by this method.

Implemented in Belos::ICGSOrthoManager< ScalarType, MV, OP >, Belos::IMGSOrthoManager< ScalarType, MV, OP >, Belos::DGKSOrthoManager< ScalarType, MV, OP >, and Belos::MatOrthoManager< ScalarType, MV, OP >.

template<class ScalarType, class MV>
virtual int Belos::OrthoManager< ScalarType, MV >::projectAndNormalizeImpl ( MV &  X,
Teuchos::Array< Teuchos::RCP< Teuchos::SerialDenseMatrix< int, ScalarType > > >  C,
Teuchos::RCP< Teuchos::SerialDenseMatrix< int, ScalarType > >  B,
Teuchos::ArrayView< Teuchos::RCP< const MV > >  Q
) const
protectedpure virtual
template<class ScalarType, class MV>
int Belos::OrthoManager< ScalarType, MV >::projectAndNormalize ( MV &  X,
Teuchos::Array< Teuchos::RCP< Teuchos::SerialDenseMatrix< int, ScalarType > > >  C,
Teuchos::RCP< Teuchos::SerialDenseMatrix< int, ScalarType > >  B,
Teuchos::ArrayView< Teuchos::RCP< const MV > >  Q
) const
inline

Project X against the Q[i] and normalize X.

Given a set of bases Q[i] and a multivector X, this method computes an orthonormal basis for $colspan(X) - \sum_i colspan(Q[i])$.

This routine returns an integer rank stating the rank of the computed basis. If the subspace $colspan(X) - \sum_i colspan(Q[i])$ does not have dimension as large as the number of columns of X and the orthogonalization manager doe not attempt to augment the subspace, then rank may be smaller than the number of columns of X. In this case, only the first rank columns of output X and first rank rows of B will be valid.

Note
This routine guarantees both the orthgonality constraints against the Q[i] as well as the orthonormality constraints. Therefore, this method is not necessarily equivalent to calling project() followed by a call to normalize(). See the documentation for specific orthogonalization managers.
Parameters
X[in/out] The multivector to the modified. On output, the relevant rows of X will be orthogonal to the Q[i] and will have orthonormal columns (with respect to innerProd()).
C[out] The coefficients of the original X in the *Q[i], with respect to innerProd(). If C[i] is a non-null pointer and *C[i] matches the dimensions of X and *Q[i], then the coefficients computed during the orthogonalization routine will be stored in the matrix *C[i]. If C[i] is a non-null pointer whose size does not match the dimensions of X and *Q[i], then a std::invalid_argument std::exception will be thrown. Otherwise, if C.size() < i or C[i] is a null pointer, then the orthogonalization manager will declare storage for the coefficients and the user will not have access to them.
B[out] The coefficients of the original X with respect to the computed basis. This matrix is not necessarily upper triangular (as it would be for textbook Gram-Schmidt orthogonalization of a full-rank matrix, for example). See the documentation for specific orthogonalization managers.
Q[in] A list of multivector bases specifying the subspaces to be orthogonalized against. Each Q[i] is assumed to have orthonormal columns, and the Q[i] are assumed to be mutually orthogonal.
Returns
Rank of the basis computed by this method.

Definition at line 243 of file BelosOrthoManager.hpp.

template<class ScalarType, class MV>
virtual Teuchos::ScalarTraits< ScalarType >::magnitudeType Belos::OrthoManager< ScalarType, MV >::orthonormError ( const MV &  X) const
pure virtual
template<class ScalarType, class MV>
virtual Teuchos::ScalarTraits<ScalarType>::magnitudeType Belos::OrthoManager< ScalarType, MV >::orthogError ( const MV &  X1,
const MV &  X2
) const
pure virtual
template<class ScalarType, class MV>
virtual void Belos::OrthoManager< ScalarType, MV >::setLabel ( const std::string &  label)
pure virtual
template<class ScalarType, class MV>
virtual const std::string& Belos::OrthoManager< ScalarType, MV >::getLabel ( ) const
pure virtual

The documentation for this class was generated from the following file:
