Belos::GmresPolySolMgr< ScalarType, MV, OP > Class Template Reference

Hybrid block GMRES iterative linear solver. More...

#include <BelosGmresPolySolMgr.hpp>

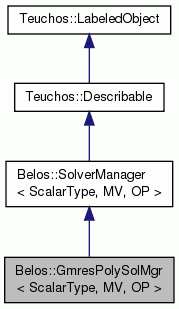

Inheritance diagram for Belos::GmresPolySolMgr< ScalarType, MV, OP >:
Inheritance graph
[legend]

Private Types

typedef MultiVecTraits
< ScalarType, MV > 		MVT

typedef Teuchos::ScalarTraits
< ScalarType > 		STS

typedef Teuchos::ScalarTraits
< ScalarType >::magnitudeType 		MagnitudeType

typedef Belos::GmresPolyOp
< ScalarType, MV, OP > 		gmres_poly_t

typedef Belos::GmresPolyMv
< ScalarType, MV > 		gmres_poly_mv_t


Private Attributes

Teuchos::RCP< LinearProblem
< ScalarType, MV, OP > > 		problem_

Teuchos::RCP< std::ostream > outputStream_

Teuchos::RCP
< Teuchos::ParameterList > 		params_

Teuchos::RCP
< Teuchos::ParameterList > 		outerParams_

MagnitudeType polyTol_

int maxDegree_

int numIters_

int verbosity_

bool hasOuterSolver_

bool randomRHS_

std::string polyType_

std::string outerSolverType_

std::string orthoType_

int poly_dim_

Teuchos::RCP< gmres_poly_t > poly_Op_

std::string label_

Teuchos::RCP< Teuchos::Time > timerPoly_

bool isSet_

bool loaDetected_

Teuchos::RCP< const
Teuchos::ParameterList > 		validPL_
 Cached default (valid) parameters. More...


Static Private Attributes

static constexpr int maxDegree_default_ = 25

static constexpr int verbosity_default_ = Belos::Errors

static constexpr const char * label_default_ = "Belos"

static constexpr const char * outerSolverType_default_ = ""

static constexpr const char * polyType_default_ = "Arnoldi"

static constexpr const char * orthoType_default_ = "DGKS"

static constexpr std::ostream * outputStream_default_ = &std::cout


Constructors/Destructor

 GmresPolySolMgr ()
 Empty constructor for GmresPolySolMgr. This constructor takes no arguments and sets the default values for the solver. The linear problem must be passed in using setProblem() before solve() is called on this object. The solver values can be changed using setParameters(). More...

 GmresPolySolMgr (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem, const Teuchos::RCP< Teuchos::ParameterList > &pl)
 Basic constructor for GmresPolySolMgr. More...

virtual ~GmresPolySolMgr ()
 Destructor. More...

Teuchos::RCP< SolverManager
< ScalarType, MV, OP > > 		clone () const override
 clone for Inverted Injection (DII) More...


Accessor methods

const LinearProblem
< ScalarType, MV, OP > & 		getProblem () const override
 Get current linear problem being solved for in this object. More...

Teuchos::RCP< const
Teuchos::ParameterList > 		getValidParameters () const override
 Get a parameter list containing the valid parameters for this object. More...

Teuchos::RCP< const
Teuchos::ParameterList > 		getCurrentParameters () const override
 Get a parameter list containing the current parameters for this object. More...

Teuchos::Array< Teuchos::RCP
< Teuchos::Time > > 		getTimers () const
 Return the timers for this object. More...

int getNumIters () const override
 Get the iteration count for the most recent call to solve(). More...

bool isLOADetected () const override
 Return whether a loss of accuracy was detected by this solver during the most current solve. More...


Set methods

void setProblem (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem) override
 Set the linear problem that needs to be solved. More...

void setParameters (const Teuchos::RCP< Teuchos::ParameterList > &params) override
 Set the parameters the solver manager should use to solve the linear problem. More...


Reset methods

void reset (const ResetType type) override
 Reset the solver. More...


Solver application methods

ReturnType solve () override
 This method performs possibly repeated calls to the underlying linear solver's iterate() routine until the problem has been solved (as decided by the solver manager) or the solver manager decides to quit. More...


Overridden from Teuchos::Describable

std::string description () const override
 Method to return description of the hybrid block GMRES solver manager. More...


Additional Inherited Members

- Public Member Functions inherited from Belos::SolverManager< ScalarType, MV, OP >
 SolverManager ()
 Empty constructor. More...

virtual ~SolverManager ()
 Destructor. More...

virtual Teuchos::ScalarTraits
< ScalarType >::magnitudeType 		achievedTol () const
 Tolerance achieved by the last solve() invocation. More...

virtual void setUserConvStatusTest (const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &, const typename StatusTestCombo< ScalarType, MV, OP >::ComboType &=StatusTestCombo< ScalarType, MV, OP >::SEQ)
 Set user-defined convergence status test. More...

virtual void setDebugStatusTest (const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &)
 Set user-defined debug status test. More...

- Public Member Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

virtual void describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default


Detailed Description

template<class ScalarType, class MV, class OP>
class Belos::GmresPolySolMgr< ScalarType, MV, OP >

Hybrid block GMRES iterative linear solver.

Author
Heidi Thornquist and Jennifer Loe

Definition at line 134 of file BelosGmresPolySolMgr.hpp.

Member Typedef Documentation

template<class ScalarType , class MV , class OP >
typedef MultiVecTraits<ScalarType,MV> Belos::GmresPolySolMgr< ScalarType, MV, OP >::MVT
private

Definition at line 137 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
typedef Teuchos::ScalarTraits<ScalarType> Belos::GmresPolySolMgr< ScalarType, MV, OP >::STS
private

Definition at line 138 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
typedef Teuchos::ScalarTraits<ScalarType>::magnitudeType Belos::GmresPolySolMgr< ScalarType, MV, OP >::MagnitudeType
private

Definition at line 139 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
typedef Belos::GmresPolyOp<ScalarType,MV,OP> Belos::GmresPolySolMgr< ScalarType, MV, OP >::gmres_poly_t
private

Definition at line 140 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
typedef Belos::GmresPolyMv<ScalarType,MV> Belos::GmresPolySolMgr< ScalarType, MV, OP >::gmres_poly_mv_t
private

Definition at line 141 of file BelosGmresPolySolMgr.hpp.

Constructor & Destructor Documentation

template<class ScalarType , class MV , class OP >
Belos::GmresPolySolMgr< ScalarType, MV, OP >::GmresPolySolMgr ( )

Empty constructor for GmresPolySolMgr. This constructor takes no arguments and sets the default values for the solver. The linear problem must be passed in using setProblem() before solve() is called on this object. The solver values can be changed using setParameters().

Definition at line 325 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
Belos::GmresPolySolMgr< ScalarType, MV, OP >::GmresPolySolMgr ( const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &  problem,
const Teuchos::RCP< Teuchos::ParameterList > &  pl
)

Basic constructor for GmresPolySolMgr.

This constructor accepts the LinearProblem to be solved in addition to a parameter list of options for the solver manager. These options include the following:

  • "Maximum Degree" - a int specifying the maximum degree of the polynomial. Default: 25
  • "Orthogonalization" - a std::string specifying the desired orthogonalization: DGKS, ICGS, and IMGS. Default: "DGKS"
  • "Verbosity" - a sum of MsgType specifying the verbosity. Default: Belos::Errors
  • "Polynomial Tolerance" - a MagnitudeType specifying the polynomial tolerance (sometimes) used to generate polynomial.

Definition at line 345 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
virtual Belos::GmresPolySolMgr< ScalarType, MV, OP >::~GmresPolySolMgr ( )
inlinevirtual

Destructor.

Definition at line 168 of file BelosGmresPolySolMgr.hpp.

Member Function Documentation

template<class ScalarType , class MV , class OP >
Teuchos::RCP<SolverManager<ScalarType, MV, OP> > Belos::GmresPolySolMgr< ScalarType, MV, OP >::clone ( ) const
inlineoverridevirtual

clone for Inverted Injection (DII)

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 171 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
const LinearProblem<ScalarType,MV,OP>& Belos::GmresPolySolMgr< ScalarType, MV, OP >::getProblem ( ) const
inlineoverridevirtual

Get current linear problem being solved for in this object.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 181 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP< const Teuchos::ParameterList > Belos::GmresPolySolMgr< ScalarType, MV, OP >::getValidParameters ( ) const
overridevirtual

Get a parameter list containing the valid parameters for this object.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 379 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<const Teuchos::ParameterList> Belos::GmresPolySolMgr< ScalarType, MV, OP >::getCurrentParameters ( ) const
inlineoverridevirtual

Get a parameter list containing the current parameters for this object.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 191 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::Array<Teuchos::RCP<Teuchos::Time> > Belos::GmresPolySolMgr< ScalarType, MV, OP >::getTimers ( ) const
inline

Return the timers for this object.

The timers are ordered as follows:

Definition at line 198 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::GmresPolySolMgr< ScalarType, MV, OP >::getNumIters ( ) const
inlineoverridevirtual

Get the iteration count for the most recent call to solve().

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 203 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::GmresPolySolMgr< ScalarType, MV, OP >::isLOADetected ( ) const
inlineoverridevirtual

Return whether a loss of accuracy was detected by this solver during the most current solve.

Note
This flag will be reset the next time solve() is called.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 210 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::GmresPolySolMgr< ScalarType, MV, OP >::setProblem ( const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &  problem)
inlineoverridevirtual

Set the linear problem that needs to be solved.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 218 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::GmresPolySolMgr< ScalarType, MV, OP >::setParameters ( const Teuchos::RCP< Teuchos::ParameterList > &  params)
overridevirtual

Set the parameters the solver manager should use to solve the linear problem.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 412 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::GmresPolySolMgr< ScalarType, MV, OP >::reset ( const ResetType  type)
inlineoverridevirtual

Reset the solver.

Parameters
type[in] How to reset the solver.

If type includes Belos::Problem, then reset the solver's state. This clears out the stored coefficients, so that the next call to solve() actually computes a full block GMRES solve, instead of just reusing the coefficients from the first solve.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 235 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
ReturnType Belos::GmresPolySolMgr< ScalarType, MV, OP >::solve ( )
overridevirtual

This method performs possibly repeated calls to the underlying linear solver's iterate() routine until the problem has been solved (as decided by the solver manager) or the solver manager decides to quit.

This method calls BlockGmresIter::iterate(), which will return either because a specially constructed status test evaluates to Passed or an std::exception is thrown.

A return from BlockGmresIter::iterate() signifies one of the following scenarios:

  • the maximum number of restarts has been exceeded. In this scenario, the current solutions to the linear system will be placed in the linear problem and return Unconverged.
  • global convergence has been met. In this case, the current solutions to the linear system will be placed in the linear problem and the solver manager will return Converged
Returns
ReturnType specifying:
  • Converged: the linear problem was solved to the specification required by the solver manager.
  • Unconverged: the linear problem was not solved to the specification desired by the solver manager.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 543 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::GmresPolySolMgr< ScalarType, MV, OP >::description ( ) const
overridevirtual

Method to return description of the hybrid block GMRES solver manager.

Reimplemented from Teuchos::Describable.

Definition at line 650 of file BelosGmresPolySolMgr.hpp.

Member Data Documentation

template<class ScalarType , class MV , class OP >
Teuchos::RCP<LinearProblem<ScalarType,MV,OP> > Belos::GmresPolySolMgr< ScalarType, MV, OP >::problem_
private

Definition at line 279 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<std::ostream> Belos::GmresPolySolMgr< ScalarType, MV, OP >::outputStream_
private

Definition at line 282 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<Teuchos::ParameterList> Belos::GmresPolySolMgr< ScalarType, MV, OP >::params_
private

Definition at line 285 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<Teuchos::ParameterList> Belos::GmresPolySolMgr< ScalarType, MV, OP >::outerParams_
private

Definition at line 286 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::GmresPolySolMgr< ScalarType, MV, OP >::maxDegree_default_ = 25
staticprivate

Definition at line 289 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::GmresPolySolMgr< ScalarType, MV, OP >::verbosity_default_ = Belos::Errors
staticprivate

Definition at line 290 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr const char* Belos::GmresPolySolMgr< ScalarType, MV, OP >::label_default_ = "Belos"
staticprivate

Definition at line 291 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr const char* Belos::GmresPolySolMgr< ScalarType, MV, OP >::outerSolverType_default_ = ""
staticprivate

Definition at line 292 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr const char* Belos::GmresPolySolMgr< ScalarType, MV, OP >::polyType_default_ = "Arnoldi"
staticprivate

Definition at line 293 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr const char* Belos::GmresPolySolMgr< ScalarType, MV, OP >::orthoType_default_ = "DGKS"
staticprivate

Definition at line 294 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr std::ostream* Belos::GmresPolySolMgr< ScalarType, MV, OP >::outputStream_default_ = &std::cout
staticprivate

Definition at line 295 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::GmresPolySolMgr< ScalarType, MV, OP >::polyTol_
private

Definition at line 298 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::GmresPolySolMgr< ScalarType, MV, OP >::maxDegree_
private

Definition at line 299 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::GmresPolySolMgr< ScalarType, MV, OP >::numIters_
private

Definition at line 299 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::GmresPolySolMgr< ScalarType, MV, OP >::verbosity_
private

Definition at line 300 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::GmresPolySolMgr< ScalarType, MV, OP >::hasOuterSolver_
private

Definition at line 301 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::GmresPolySolMgr< ScalarType, MV, OP >::randomRHS_
private

Definition at line 302 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::GmresPolySolMgr< ScalarType, MV, OP >::polyType_
private

Definition at line 303 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::GmresPolySolMgr< ScalarType, MV, OP >::outerSolverType_
private

Definition at line 304 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::GmresPolySolMgr< ScalarType, MV, OP >::orthoType_
private

Definition at line 305 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::GmresPolySolMgr< ScalarType, MV, OP >::poly_dim_
private

Definition at line 308 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<gmres_poly_t> Belos::GmresPolySolMgr< ScalarType, MV, OP >::poly_Op_
private

Definition at line 309 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::GmresPolySolMgr< ScalarType, MV, OP >::label_
private

Definition at line 312 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<Teuchos::Time> Belos::GmresPolySolMgr< ScalarType, MV, OP >::timerPoly_
private

Definition at line 313 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::GmresPolySolMgr< ScalarType, MV, OP >::isSet_
private

Definition at line 316 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::GmresPolySolMgr< ScalarType, MV, OP >::loaDetected_
private

Definition at line 317 of file BelosGmresPolySolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<const Teuchos::ParameterList> Belos::GmresPolySolMgr< ScalarType, MV, OP >::validPL_
mutableprivate

Cached default (valid) parameters.

Definition at line 320 of file BelosGmresPolySolMgr.hpp.

The documentation for this class was generated from the following file:
Generated by   doxygen 1.8.5
