Belos::BlockGmresSolMgr< ScalarType, MV, OP > Class Template Reference

Interface to Block GMRES and Flexible GMRES. More...

#include <BelosBlockGmresSolMgr.hpp>

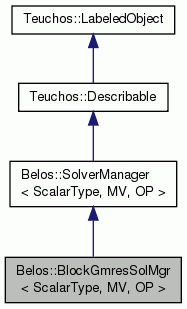

Inheritance diagram for Belos::BlockGmresSolMgr< ScalarType, MV, OP >:
Inheritance graph
[legend]

Private Types

typedef MultiVecTraits
< ScalarType, MV >
MVT

typedef OperatorTraits
< ScalarType, MV, OP >
OPT

typedef Teuchos::ScalarTraits
< ScalarType >
SCT

typedef Teuchos::ScalarTraits
< ScalarType >::magnitudeType
MagnitudeType

typedef Teuchos::ScalarTraits
< MagnitudeType
MT


Private Attributes

Teuchos::RCP< LinearProblem
< ScalarType, MV, OP > >
problem_

Teuchos::RCP< OutputManager
< ScalarType > >
printer_

Teuchos::RCP< std::ostream > outputStream_

Teuchos::RCP< StatusTest
< ScalarType, MV, OP > >
debugStatusTest_

Teuchos::RCP< StatusTest
< ScalarType, MV, OP > >
sTest_

Teuchos::RCP
< StatusTestMaxIters
< ScalarType, MV, OP > >
maxIterTest_

Teuchos::RCP< StatusTest
< ScalarType, MV, OP > >
convTest_

Teuchos::RCP
< StatusTestResNorm
< ScalarType, MV, OP > >
expConvTest_

Teuchos::RCP
< StatusTestResNorm
< ScalarType, MV, OP > >
impConvTest_

Teuchos::RCP< StatusTestOutput
< ScalarType, MV, OP > >
outputTest_

Teuchos::RCP< MatOrthoManager
< ScalarType, MV, OP > >
ortho_

Teuchos::RCP
< Teuchos::ParameterList
params_

MagnitudeType convtol_

MagnitudeType orthoKappa_

MagnitudeType achievedTol_

int maxRestarts_

int maxIters_

int numIters_

int blockSize_

int numBlocks_

int verbosity_

int outputStyle_

int outputFreq_

bool adaptiveBlockSize_

bool showMaxResNormOnly_

bool isFlexible_

bool expResTest_

std::string orthoType_

std::string impResScale_

std::string expResScale_

std::string label_

Teuchos::RCP< Teuchos::TimetimerSolve_

bool isSet_

bool isSTSet_

bool loaDetected_


Static Private Attributes

static constexpr int maxRestarts_default_ = 20

static constexpr int maxIters_default_ = 1000

static constexpr bool adaptiveBlockSize_default_ = true

static constexpr bool showMaxResNormOnly_default_ = false

static constexpr bool flexibleGmres_default_ = false

static constexpr bool expResTest_default_ = false

static constexpr int blockSize_default_ = 1

static constexpr int numBlocks_default_ = 300

static constexpr int verbosity_default_ = Belos::Errors

static constexpr int outputStyle_default_ = Belos::General

static constexpr int outputFreq_default_ = -1

static constexpr const char * impResScale_default_ = "Norm of Preconditioned Initial Residual"

static constexpr const char * expResScale_default_ = "Norm of Initial Residual"

static constexpr const char * label_default_ = "Belos"

static constexpr const char * orthoType_default_ = "DGKS"

static constexpr std::ostream * outputStream_default_ = &std::cout


BlockGmresSolMgr Exceptions

bool checkStatusTest ()


Constructors/Destructor

 BlockGmresSolMgr ()
 Empty constructor for BlockGmresSolMgr. This constructor takes no arguments and sets the default values for the solver. The linear problem must be passed in using setProblem() before solve() is called on this object. The solver values can be changed using setParameters(). More...

 BlockGmresSolMgr (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem, const Teuchos::RCP< Teuchos::ParameterList > &pl)
 Basic constructor for BlockGmresSolMgr. More...

virtual ~BlockGmresSolMgr ()
 Destructor. More...

Teuchos::RCP< SolverManager
< ScalarType, MV, OP > >
clone () const override
 clone for Inverted Injection (DII) More...


Accessor methods

const LinearProblem
< ScalarType, MV, OP > &
getProblem () const override
 Get current linear problem being solved for in this object. More...

Teuchos::RCP< const
Teuchos::ParameterList
getValidParameters () const override
 Get a parameter list containing the valid parameters for this object. More...

Teuchos::RCP< const
Teuchos::ParameterList
getCurrentParameters () const override
 Get a parameter list containing the current parameters for this object. More...

Teuchos::Array< Teuchos::RCP
< Teuchos::Time > >
getTimers () const
 Return the timers for this object. More...

MagnitudeType achievedTol () const override
 Tolerance achieved by the last solve() invocation. More...

int getNumIters () const override
 Get the iteration count for the most recent call to solve(). More...

bool isLOADetected () const override
 Return whether a loss of accuracy was detected by this solver during the most current solve. More...


Set methods

void setProblem (const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &problem) override
 Set the linear problem that needs to be solved. More...

void setParameters (const Teuchos::RCP< Teuchos::ParameterList > &params) override
 Set the parameters the solver manager should use to solve the linear problem. More...

void setDebugStatusTest (const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &debugStatusTest) override
 Set a debug status test that will be checked at the same time as the top-level status test. More...


Reset methods

void reset (const ResetType type) override
 Performs a reset of the solver manager specified by the ResetType. This informs the solver manager that the solver should prepare for the next call to solve by resetting certain elements of the iterative solver strategy. More...


Solver application methods

ReturnType solve () override
 This method performs possibly repeated calls to the underlying linear solver's iterate() routine until the problem has been solved (as decided by the solver manager) or the solver manager decides to quit. More...


Overridden from Teuchos::Describable

void describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const override
 Print the object with the given verbosity level to a FancyOStream. More...

std::string description () const override
 Return a one-line description of this object. More...


Additional Inherited Members

- Public Member Functions inherited from Belos::SolverManager< ScalarType, MV, OP >
 SolverManager ()
 Empty constructor. More...

virtual ~SolverManager ()
 Destructor. More...

virtual void setUserConvStatusTest (const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &, const typename StatusTestCombo< ScalarType, MV, OP >::ComboType &=StatusTestCombo< ScalarType, MV, OP >::SEQ)
 Set user-defined convergence status test. More...

- Public Member Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream & operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

void describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual ~Describable ()

 LabeledObject ()

virtual ~LabeledObject ()

virtual void setObjectLabel (const std::string &objectLabel)

virtual std::string getObjectLabel () const

- Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel verbLevel_default


Detailed Description

template<class ScalarType, class MV, class OP>
class Belos::BlockGmresSolMgr< ScalarType, MV, OP >

Interface to Block GMRES and Flexible GMRES.

Author
Heidi Thornquist, Chris Baker, and Teri Barth

This class provides an interface to Block GMRES, for solving linear systems with one or more right-hand sides. Our Block GMRES implementation also has an option (the Boolean "Flexible Gmres" parameter) to use the Flexible variant of GMRES. Flexible GMRES allows the preconditioner (which must be a right preconditioner) to change from iteration to iteration.

If you are a new Belos user and just want standard GMRES, use PseudoBlockGmresSolMgr. If you want Flexible GMRES, use this class with the "Flexible Gmres" parameter set to true.

Definition at line 125 of file BelosBlockGmresSolMgr.hpp.

Member Typedef Documentation

template<class ScalarType , class MV , class OP >
typedef MultiVecTraits<ScalarType,MV> Belos::BlockGmresSolMgr< ScalarType, MV, OP >::MVT
private

Definition at line 128 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
typedef OperatorTraits<ScalarType,MV,OP> Belos::BlockGmresSolMgr< ScalarType, MV, OP >::OPT
private

Definition at line 129 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
typedef Teuchos::ScalarTraits<ScalarType> Belos::BlockGmresSolMgr< ScalarType, MV, OP >::SCT
private

Definition at line 130 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
typedef Teuchos::ScalarTraits<ScalarType>::magnitudeType Belos::BlockGmresSolMgr< ScalarType, MV, OP >::MagnitudeType
private

Definition at line 131 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
typedef Teuchos::ScalarTraits<MagnitudeType> Belos::BlockGmresSolMgr< ScalarType, MV, OP >::MT
private

Definition at line 132 of file BelosBlockGmresSolMgr.hpp.

Constructor & Destructor Documentation

template<class ScalarType , class MV , class OP >
Belos::BlockGmresSolMgr< ScalarType, MV, OP >::BlockGmresSolMgr ( )

Empty constructor for BlockGmresSolMgr. This constructor takes no arguments and sets the default values for the solver. The linear problem must be passed in using setProblem() before solve() is called on this object. The solver values can be changed using setParameters().

Definition at line 360 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Belos::BlockGmresSolMgr< ScalarType, MV, OP >::BlockGmresSolMgr ( const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &  problem,
const Teuchos::RCP< Teuchos::ParameterList > &  pl
)

Basic constructor for BlockGmresSolMgr.

This constructor accepts the LinearProblem to be solved in addition to a parameter list of options for the solver manager. These options include the following:

  • "Block Size" - a int specifying the block size to be used by the underlying block GMRES solver. Default: 1
  • "Adaptive Block Size" - a bool specifying whether the block size can be modified throughout the solve. Default: true
  • "Num Blocks" - a int specifying the number of blocks allocated for the Krylov basis. Default: 300
  • "Maximum Iterations" - a int specifying the maximum number of iterations the underlying solver is allowed to perform. Default: 1000
  • "Maximum Restarts" - a int specifying the maximum number of restarts the underlying solver is allowed to perform. Default: 20
  • "Orthogonalization" - a std::string specifying the desired orthogonalization: DGKS, ICGS, and IMGS. Default: "DGKS"
  • "Verbosity" - a sum of MsgType specifying the verbosity. Default: Belos::Errors
  • "Output Style" - a OutputType specifying the style of output. Default: Belos::General
  • "Convergence Tolerance" - a MagnitudeType specifying the level that residual norms must reach to decide convergence. Default: 1e-8
    Parameters
    pl[in] ParameterList with construction information

Definition at line 390 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
virtual Belos::BlockGmresSolMgr< ScalarType, MV, OP >::~BlockGmresSolMgr ( )
inlinevirtual

Destructor.

Definition at line 170 of file BelosBlockGmresSolMgr.hpp.

Member Function Documentation

template<class ScalarType , class MV , class OP >
Teuchos::RCP<SolverManager<ScalarType, MV, OP> > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::clone ( ) const
inlineoverridevirtual

clone for Inverted Injection (DII)

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 173 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
const LinearProblem<ScalarType,MV,OP>& Belos::BlockGmresSolMgr< ScalarType, MV, OP >::getProblem ( ) const
inlineoverridevirtual

Get current linear problem being solved for in this object.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 183 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP< const Teuchos::ParameterList > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::getValidParameters ( ) const
overridevirtual

Get a parameter list containing the valid parameters for this object.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 430 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<const Teuchos::ParameterList> Belos::BlockGmresSolMgr< ScalarType, MV, OP >::getCurrentParameters ( ) const
inlineoverridevirtual

Get a parameter list containing the current parameters for this object.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 193 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::Array<Teuchos::RCP<Teuchos::Time> > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::getTimers ( ) const
inline

Return the timers for this object.

The timers are ordered as follows:

Definition at line 200 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::BlockGmresSolMgr< ScalarType, MV, OP >::achievedTol ( ) const
inlineoverridevirtual

Tolerance achieved by the last solve() invocation.

This is the maximum over all right-hand sides' achieved convergence tolerances, and is set whether or not the solve actually managed to achieve the desired convergence tolerance.

Warning
This result may not be meaningful if there was a loss of accuracy during the solve. You should first call isLOADetected() to check for a loss of accuracy during the last solve.

Reimplemented from Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 214 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::getNumIters ( ) const
inlineoverridevirtual

Get the iteration count for the most recent call to solve().

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 219 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::isLOADetected ( ) const
inlineoverridevirtual

Return whether a loss of accuracy was detected by this solver during the most current solve.

Note
This flag will be reset the next time solve() is called.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 226 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::BlockGmresSolMgr< ScalarType, MV, OP >::setProblem ( const Teuchos::RCP< LinearProblem< ScalarType, MV, OP > > &  problem)
inlineoverridevirtual

Set the linear problem that needs to be solved.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 234 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::BlockGmresSolMgr< ScalarType, MV, OP >::setParameters ( const Teuchos::RCP< Teuchos::ParameterList > &  params)
overridevirtual

Set the parameters the solver manager should use to solve the linear problem.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 494 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::BlockGmresSolMgr< ScalarType, MV, OP >::setDebugStatusTest ( const Teuchos::RCP< StatusTest< ScalarType, MV, OP > > &  debugStatusTest)
overridevirtual

Set a debug status test that will be checked at the same time as the top-level status test.

Reimplemented from Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 906 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::BlockGmresSolMgr< ScalarType, MV, OP >::reset ( const ResetType  type)
inlineoverridevirtual

Performs a reset of the solver manager specified by the ResetType. This informs the solver manager that the solver should prepare for the next call to solve by resetting certain elements of the iterative solver strategy.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 250 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
ReturnType Belos::BlockGmresSolMgr< ScalarType, MV, OP >::solve ( )
overridevirtual

This method performs possibly repeated calls to the underlying linear solver's iterate() routine until the problem has been solved (as decided by the solver manager) or the solver manager decides to quit.

This method calls BlockGmresIter::iterate(), which will return either because a specially constructed status test evaluates to Passed or an std::exception is thrown.

A return from BlockGmresIter::iterate() signifies one of the following scenarios:

  • the maximum number of restarts has been exceeded. In this scenario, the current solutions to the linear system will be placed in the linear problem and return Unconverged.
  • global convergence has been met. In this case, the current solutions to the linear system will be placed in the linear problem and the solver manager will return Converged
Returns
ReturnType specifying:
  • Converged: the linear problem was solved to the specification required by the solver manager.
  • Unconverged: the linear problem was not solved to the specification desired by the solver manager.

Implements Belos::SolverManager< ScalarType, MV, OP >.

Definition at line 916 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
void Belos::BlockGmresSolMgr< ScalarType, MV, OP >::describe ( Teuchos::FancyOStream out,
const Teuchos::EVerbosityLevel  verbLevel = Teuchos::Describable::verbLevel_default
) const
overridevirtual

Print the object with the given verbosity level to a FancyOStream.

Parameters
out[out] Output stream to which to print.
verbLevel[in] Verbosity level. The default verbosity (verbLevel=Teuchos::VERB_DEFAULT) is Teuchos::VERB_LOW.

Reimplemented from Teuchos::Describable.

Definition at line 1327 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::BlockGmresSolMgr< ScalarType, MV, OP >::description ( ) const
overridevirtual

Return a one-line description of this object.

Reimplemented from Teuchos::Describable.

Definition at line 1307 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::checkStatusTest ( )
private

Definition at line 807 of file BelosBlockGmresSolMgr.hpp.

Member Data Documentation

template<class ScalarType , class MV , class OP >
Teuchos::RCP<LinearProblem<ScalarType,MV,OP> > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::problem_
private

Definition at line 302 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<OutputManager<ScalarType> > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::printer_
private

Definition at line 305 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<std::ostream> Belos::BlockGmresSolMgr< ScalarType, MV, OP >::outputStream_
private

Definition at line 306 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTest<ScalarType,MV,OP> > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::debugStatusTest_
private

Definition at line 309 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTest<ScalarType,MV,OP> > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::sTest_
private

Definition at line 310 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTestMaxIters<ScalarType,MV,OP> > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::maxIterTest_
private

Definition at line 311 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTest<ScalarType,MV,OP> > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::convTest_
private

Definition at line 312 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTestResNorm<ScalarType,MV,OP> > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::expConvTest_
private

Definition at line 313 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTestResNorm<ScalarType,MV,OP> > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::impConvTest_
private

Definition at line 313 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<StatusTestOutput<ScalarType,MV,OP> > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::outputTest_
private

Definition at line 314 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<MatOrthoManager<ScalarType,MV,OP> > Belos::BlockGmresSolMgr< ScalarType, MV, OP >::ortho_
private

Definition at line 317 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<Teuchos::ParameterList> Belos::BlockGmresSolMgr< ScalarType, MV, OP >::params_
private

Definition at line 320 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::maxRestarts_default_ = 20
staticprivate

Definition at line 323 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::maxIters_default_ = 1000
staticprivate

Definition at line 324 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::adaptiveBlockSize_default_ = true
staticprivate

Definition at line 325 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::showMaxResNormOnly_default_ = false
staticprivate

Definition at line 326 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::flexibleGmres_default_ = false
staticprivate

Definition at line 327 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::expResTest_default_ = false
staticprivate

Definition at line 328 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::blockSize_default_ = 1
staticprivate

Definition at line 329 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::numBlocks_default_ = 300
staticprivate

Definition at line 330 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::verbosity_default_ = Belos::Errors
staticprivate

Definition at line 331 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::outputStyle_default_ = Belos::General
staticprivate

Definition at line 332 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::outputFreq_default_ = -1
staticprivate

Definition at line 333 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr const char* Belos::BlockGmresSolMgr< ScalarType, MV, OP >::impResScale_default_ = "Norm of Preconditioned Initial Residual"
staticprivate

Definition at line 334 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr const char* Belos::BlockGmresSolMgr< ScalarType, MV, OP >::expResScale_default_ = "Norm of Initial Residual"
staticprivate

Definition at line 335 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr const char* Belos::BlockGmresSolMgr< ScalarType, MV, OP >::label_default_ = "Belos"
staticprivate

Definition at line 336 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr const char* Belos::BlockGmresSolMgr< ScalarType, MV, OP >::orthoType_default_ = "DGKS"
staticprivate

Definition at line 337 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
constexpr std::ostream* Belos::BlockGmresSolMgr< ScalarType, MV, OP >::outputStream_default_ = &std::cout
staticprivate

Definition at line 338 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::BlockGmresSolMgr< ScalarType, MV, OP >::convtol_
private

Definition at line 341 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::BlockGmresSolMgr< ScalarType, MV, OP >::orthoKappa_
private

Definition at line 341 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
MagnitudeType Belos::BlockGmresSolMgr< ScalarType, MV, OP >::achievedTol_
private

Definition at line 341 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::maxRestarts_
private

Definition at line 342 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::maxIters_
private

Definition at line 342 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::numIters_
private

Definition at line 342 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::blockSize_
private

Definition at line 343 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::numBlocks_
private

Definition at line 343 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::verbosity_
private

Definition at line 343 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::outputStyle_
private

Definition at line 343 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
int Belos::BlockGmresSolMgr< ScalarType, MV, OP >::outputFreq_
private

Definition at line 343 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::adaptiveBlockSize_
private

Definition at line 344 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::showMaxResNormOnly_
private

Definition at line 344 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::isFlexible_
private

Definition at line 344 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::expResTest_
private

Definition at line 344 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::BlockGmresSolMgr< ScalarType, MV, OP >::orthoType_
private

Definition at line 345 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::BlockGmresSolMgr< ScalarType, MV, OP >::impResScale_
private

Definition at line 346 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::BlockGmresSolMgr< ScalarType, MV, OP >::expResScale_
private

Definition at line 346 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
std::string Belos::BlockGmresSolMgr< ScalarType, MV, OP >::label_
private

Definition at line 349 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
Teuchos::RCP<Teuchos::Time> Belos::BlockGmresSolMgr< ScalarType, MV, OP >::timerSolve_
private

Definition at line 350 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::isSet_
private

Definition at line 353 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::isSTSet_
private

Definition at line 353 of file BelosBlockGmresSolMgr.hpp.

template<class ScalarType , class MV , class OP >
bool Belos::BlockGmresSolMgr< ScalarType, MV, OP >::loaDetected_
private

Definition at line 354 of file BelosBlockGmresSolMgr.hpp.


The documentation for this class was generated from the following file:
