Specialization of IMEX ME for "combined" FSA method. More...

#include <Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp>

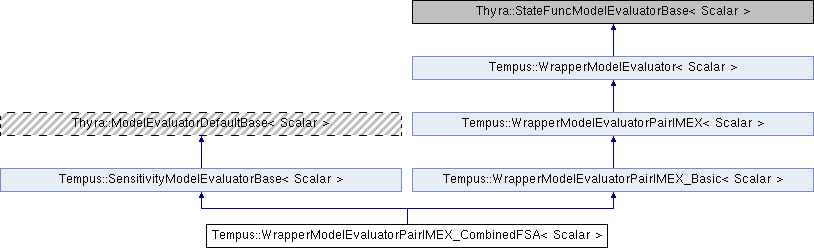

Inheritance diagram for Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >:

Public Member Functions
	WrapperModelEvaluatorPairIMEX_CombinedFSA (const Teuchos::RCP< const WrapperModelEvaluatorPairIMEX_Basic< Scalar > > &forwardModel, const Teuchos::RCP< const Teuchos::ParameterList > &pList=Teuchos::null)
	Constructor. More...

virtual	~WrapperModelEvaluatorPairIMEX_CombinedFSA ()
	Destructor. More...

Overridden from Tempus::SensitivityModelEvaluatorBase
virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getForwardModel () const
	Get the underlying forward model. More...

Public Member Functions inherited from Tempus::SensitivityModelEvaluatorBase< Scalar >
	SensitivityModelEvaluatorBase ()
	Constructor. More...

virtual	~SensitivityModelEvaluatorBase ()
	Destructor. More...

virtual void	setForwardSolutionHistory (const Teuchos::RCP< const Tempus::SolutionHistory< Scalar > > &)
	Set solution history from forward state evaluation (for interpolation) More...

virtual void	setForwardSolutionState (const Teuchos::RCP< const Tempus::SolutionState< Scalar > > &)
	Set solution state from forward state evaluation (for frozen state) More...

virtual void	setSolver (const Teuchos::RCP< Thyra::NonlinearSolverBase< Scalar > > &, const bool)
	Set the solver of the underlying model if you want to reuse it. More...

Public Member Functions inherited from Tempus::WrapperModelEvaluatorPairIMEX_Basic< Scalar >
	WrapperModelEvaluatorPairIMEX_Basic (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &explicitModel, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &implicitModel)
	Constructor. More...

virtual	~WrapperModelEvaluatorPairIMEX_Basic ()
	Destructor. More...

virtual void	initialize ()
	Initialize after setting member data. More...

virtual void	setAppModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &me)
	Set the underlying application ModelEvaluator. More...

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getAppModel () const
	Get the underlying application ModelEvaluator. More...

virtual void	setInArgs (Thyra::ModelEvaluatorBase::InArgs< Scalar > inArgs)
	Set InArgs the wrapper ModelEvalutor. More...

virtual Thyra::ModelEvaluatorBase::InArgs < Scalar >	getInArgs ()
	Get InArgs the wrapper ModelEvalutor. More...

virtual void	setOutArgs (Thyra::ModelEvaluatorBase::OutArgs< Scalar > outArgs)
	Set OutArgs the wrapper ModelEvalutor. More...

virtual Thyra::ModelEvaluatorBase::OutArgs < Scalar >	getOutArgs ()
	Get OutArgs the wrapper ModelEvalutor. More...

virtual void	setForSolve (Teuchos::RCP< TimeDerivative< Scalar > > timeDer, Thyra::ModelEvaluatorBase::InArgs< Scalar > inArgs, Thyra::ModelEvaluatorBase::OutArgs< Scalar > outArgs, EVALUATION_TYPE=SOLVE_FOR_X)
	Set parameters for application implicit ModelEvaluator solve. More...

virtual Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > >	get_x_space () const
	Get the x-solution space. More...

virtual Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > >	get_g_space (int i) const
	Get the g space. More...

virtual Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > >	get_p_space (int i) const
	Get the p space. More...

virtual void	setExplicitModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model)

virtual void	setImplicitModel (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &model)

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getExplicitModel () const

virtual Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	getImplicitModel () const

virtual Teuchos::RCP < Thyra::LinearOpBase< Scalar > >	create_W_op () const

Teuchos::RCP< const Thyra::LinearOpWithSolveFactoryBase < Scalar > >	get_W_factory () const

virtual Teuchos::RCP< const Thyra::VectorSpaceBase< Scalar > >	get_f_space () const

virtual Thyra::ModelEvaluatorBase::InArgs < Scalar >	getNominalValues () const

virtual Thyra::ModelEvaluatorBase::InArgs < Scalar >	createInArgs () const

virtual Thyra::ModelEvaluatorBase::OutArgs < Scalar >	createOutArgsImpl () const

virtual void	evalModelImpl (const Thyra::ModelEvaluatorBase::InArgs< Scalar > &in, const Thyra::ModelEvaluatorBase::OutArgs< Scalar > &out) const

Vector Methods.
Overridden from Thyra::StateFuncModelEvaluatorBase
Vector Methods.

Protected Types
typedef WrapperModelEvaluatorPairIMEX_Basic < Scalar >	Base

typedef CombinedForwardSensitivityModelEvaluator < Scalar >	FSAME

Protected Attributes
Teuchos::RCP< const WrapperModelEvaluatorPairIMEX_Basic < Scalar > >	forwardModel_

Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	appExplicitModel_

Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	appImplicitModel_

Teuchos::RCP< FSAME >	fsaExplicitModel_

Teuchos::RCP< FSAME >	fsaImplicitModel_

Protected Attributes inherited from Tempus::WrapperModelEvaluatorPairIMEX_Basic< Scalar >
Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	explicitModel_

Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > >	implicitModel_

Teuchos::RCP< TimeDerivative < Scalar > >	timeDer_

Thyra::ModelEvaluatorBase::InArgs < Scalar >	wrapperImplicitInArgs_

Thyra::ModelEvaluatorBase::OutArgs < Scalar >	wrapperImplicitOutArgs_

Private Member Functions
	WrapperModelEvaluatorPairIMEX_CombinedFSA ()
	Default constructor - not allowed. More...

Additional Inherited Members
Protected Member Functions inherited from Tempus::WrapperModelEvaluatorPairIMEX_Basic< Scalar >
	WrapperModelEvaluatorPairIMEX_Basic ()
	Default constructor – only allowed for derived classes. More...

void	setup (const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &explicitModel, const Teuchos::RCP< const Thyra::ModelEvaluator< Scalar > > &implicitModel)
	Setup ME when using default constructor – for derived classes. More...

Detailed Description

template<typename Scalar>
class Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >

Specialization of IMEX ME for "combined" FSA method.

For the combined forward sensitivitymethod, the implementation found in WrapperModelEvaluatorPairIMEX_Basic works just fine. We go ahead and create a specialized class to follow the pattern of other methods and also handle the wrapping of the underlying MEs.

Definition at line 26 of file Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp.

Member Typedef Documentation

template<typename Scalar >

typedef WrapperModelEvaluatorPairIMEX_Basic<Scalar> Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >::Base

protected

Definition at line 67 of file Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp.

template<typename Scalar >

typedef CombinedForwardSensitivityModelEvaluator<Scalar> Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >::FSAME

protected

Definition at line 68 of file Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp.

Constructor & Destructor Documentation

template<typename Scalar >

Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >::WrapperModelEvaluatorPairIMEX_CombinedFSA	(	const Teuchos::RCP< const WrapperModelEvaluatorPairIMEX_Basic< Scalar > > &	forwardModel,
		const Teuchos::RCP< const Teuchos::ParameterList > &	pList = `Teuchos::null`
	)

inline

Constructor.

Definition at line 33 of file Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp.

template<typename Scalar >

virtual Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >::~WrapperModelEvaluatorPairIMEX_CombinedFSA ( )

inlinevirtual

Destructor.

Definition at line 46 of file Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp.

template<typename Scalar >

Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >::WrapperModelEvaluatorPairIMEX_CombinedFSA ( )

inlineprivate

Default constructor - not allowed.

Definition at line 63 of file Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp.

Member Function Documentation

template<typename Scalar >

virtual Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >::getForwardModel ( ) const

inlinevirtual

Get the underlying forward model.

Reimplemented from Tempus::SensitivityModelEvaluatorBase< Scalar >.

Definition at line 53 of file Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp.

Member Data Documentation

template<typename Scalar >

Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >::appExplicitModel_

protected

Definition at line 71 of file Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp.

template<typename Scalar >

Teuchos::RCP<const Thyra::ModelEvaluator<Scalar> > Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >::appImplicitModel_

protected

Definition at line 72 of file Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp.

template<typename Scalar >

Teuchos::RCP<const WrapperModelEvaluatorPairIMEX_Basic<Scalar> > Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >::forwardModel_

protected

Definition at line 70 of file Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp.

template<typename Scalar >

Teuchos::RCP<FSAME> Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >::fsaExplicitModel_

protected

Definition at line 73 of file Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp.

template<typename Scalar >

Teuchos::RCP<FSAME> Tempus::WrapperModelEvaluatorPairIMEX_CombinedFSA< Scalar >::fsaImplicitModel_

protected

Definition at line 74 of file Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp.

The documentation for this class was generated from the following file:

http://docs.trilinos.org/r13.0/packages/tempus/src/Tempus_WrapperModelEvaluatorPairIMEX_CombinedFSA.hpp
