Tempus::PhysicsState< Scalar > Class Template Reference

PhysicsState is a simple class to hold information about the physics. More...

#include <Tempus_PhysicsState_decl.hpp>

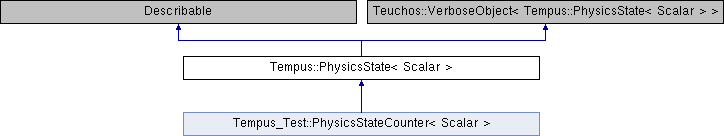

Inheritance diagram for Tempus::PhysicsState< Scalar >:

Public Member Functions
	PhysicsState (std::string pN="Tempus::PhysicsState")
	Constructor. More...
virtual	~PhysicsState ()
	Destructor. More...
virtual Teuchos::RCP < PhysicsState< Scalar > >	clone () const
	Clone constructor. More...
virtual void	copy (const Teuchos::RCP< const PhysicsState< Scalar > > &pS)
	This is a deep copy. More...
virtual std::string	getName () const
	Return name of PhysicsState. More...
virtual void	setName (std::string pN)
	Set name of PhysicsState. More...
Overridden from Teuchos::Describable
virtual std::string	description () const
virtual void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel) const

Protected Attributes
std::string	physicsName_
	Name of the creating Physics. More...

Detailed Description

template<class Scalar>
class Tempus::PhysicsState< Scalar >

PhysicsState is a simple class to hold information about the physics.

Design Considerations

• The purpose of PhysicsState is to provide a means to store any physics information that is required to restart from a checkpoint.
• The PhysicsState should be held by the SolutionState so that it has all the information needed to restart the solution.
• Many Physics will simply need this base class, because they do not have any other additional state information.
• PhysicsState can be inherited to expand the state information.
• Examples of other information that could be included in derived PhysicsStates:
  • Specialized data structures (e.g., particle lists)
• The base class currently has a name so the Physics can be checked to see if PhysicsState matches the current physics.

Definition at line 36 of file Tempus_PhysicsState_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar >

Tempus::PhysicsState< Scalar >::PhysicsState

(

std::string

pN = "Tempus::PhysicsState< Scalar >"

)

Constructor.

Definition at line 20 of file Tempus_PhysicsState_impl.hpp.

template<class Scalar >

virtual Tempus::PhysicsState< Scalar >::~PhysicsState ( )

inlinevirtual

Destructor.

Definition at line 46 of file Tempus_PhysicsState_decl.hpp.

Member Function Documentation

template<class Scalar >

Teuchos::RCP< PhysicsState< Scalar > > Tempus::PhysicsState< Scalar >::clone ( ) const

virtual

Clone constructor.

Reimplemented in Tempus_Test::PhysicsStateCounter< Scalar >.

Definition at line 26 of file Tempus_PhysicsState_impl.hpp.

template<class Scalar >

void Tempus::PhysicsState< Scalar >::copy ( const Teuchos::RCP< const PhysicsState< Scalar > > &  pS )

virtual

This is a deep copy.

Reimplemented in Tempus_Test::PhysicsStateCounter< Scalar >.

Definition at line 37 of file Tempus_PhysicsState_impl.hpp.

template<class Scalar >

void Tempus::PhysicsState< Scalar >::describe ( Teuchos::FancyOStream &  out, const Teuchos::EVerbosityLevel  verbLevel  ) const

virtual

Reimplemented in Tempus_Test::PhysicsStateCounter< Scalar >.

Definition at line 62 of file Tempus_PhysicsState_impl.hpp.

template<class Scalar >

std::string Tempus::PhysicsState< Scalar >::description ( ) const

virtual

Definition at line 56 of file Tempus_PhysicsState_impl.hpp.

template<class Scalar >

std::string Tempus::PhysicsState< Scalar >::getName ( ) const

virtual

Return name of PhysicsState.

Definition at line 44 of file Tempus_PhysicsState_impl.hpp.

template<class Scalar >

void Tempus::PhysicsState< Scalar >::setName ( std::string  pN )

virtual

Set name of PhysicsState.

Definition at line 50 of file Tempus_PhysicsState_impl.hpp.

Member Data Documentation

template<class Scalar >

std::string Tempus::PhysicsState< Scalar >::physicsName_

protected

Name of the creating Physics.

Definition at line 70 of file Tempus_PhysicsState_decl.hpp.

---

The documentation for this class was generated from the following files:

• http://docs.trilinos.org/r13.0/packages/tempus/src/Tempus_PhysicsState_decl.hpp
• http://docs.trilinos.org/r13.0/packages/tempus/src/Tempus_PhysicsState_impl.hpp
