An abstract base class that defines interface for bases that are tensor products of simpler bases. More...
#include <Intrepid_TensorBasis.hpp>

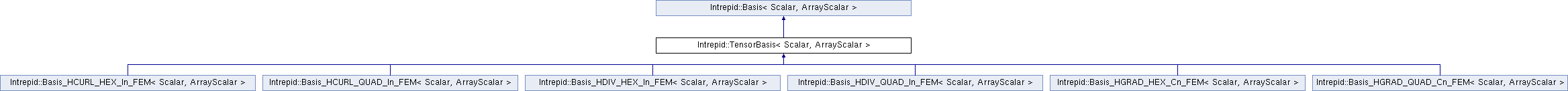

Inheritance diagram for Intrepid::TensorBasis< Scalar, ArrayScalar >:
Public Member Functions | |
|
Array< Array< RCP< Basis < Scalar, ArrayScalar > > > > & | getBases () |
| virtual | ~TensorBasis () |
| Destructor. | |
 Public Member Functions inherited from Intrepid::Basis< Scalar, ArrayScalar > | |
| virtual | ~Basis () |
| Destructor. | |
| virtual void | getValues (ArrayScalar &outputValues, const ArrayScalar &inputPoints, const EOperator operatorType) const =0 |
| Evaluation of a FEM basis on a reference cell. More... | |
| virtual void | getValues (ArrayScalar &outputValues, const ArrayScalar &inputPoints, const ArrayScalar &cellVertices, const EOperator operatorType=OPERATOR_VALUE) const =0 |
| Evaluation of an FVD basis evaluation on a physical cell. More... | |
| virtual int | getCardinality () const |
| Returns cardinality of the basis. More... | |
| virtual int | getDegree () const |
| Returns the degree of the basis. More... | |
| virtual const shards::CellTopology | getBaseCellTopology () const |
| Returns the base cell topology for which the basis is defined. See Shards documentation http://trilinos.sandia.gov/packages/shards for definition of base cell topology. More... | |
| virtual EBasis | getBasisType () const |
| Returns the basis type. More... | |
| virtual ECoordinates | getCoordinateSystem () const |
| Returns the type of coordinate system for which the basis is defined. More... | |
| virtual int | getDofOrdinal (const int subcDim, const int subcOrd, const int subcDofOrd) |
| DoF tag to ordinal lookup. More... | |
|
virtual const std::vector < std::vector< std::vector < int > > > & | getDofOrdinalData () |
| DoF tag to ordinal data structure. | |
| virtual const std::vector< int > & | getDofTag (const int dofOrd) |
| DoF ordinal to DoF tag lookup. More... | |
| virtual const std::vector < std::vector< int > > & | getAllDofTags () |
| Retrieves all DoF tags. More... | |
Protected Member Functions | |
| void | setBases (Array< Array< RCP< Basis< Scalar, ArrayScalar > > > > &bases) |
Protected Attributes | |
|
Array< Array< RCP< Basis < Scalar, ArrayScalar > > > > | bases_ |
| Protected Attributes inherited from Intrepid::Basis< Scalar, ArrayScalar > | |
| int | basisCardinality_ |
| Cardinality of the basis, i.e., the number of basis functions/degrees-of-freedom. | |
| int | basisDegree_ |
| Degree of the largest complete polynomial space that can be represented by the basis. | |
| shards::CellTopology | basisCellTopology_ |
| Base topology of the cells for which the basis is defined. See the Shards package http://trilinos.sandia.gov/packages/shards for definition of base cell topology. | |
| EBasis | basisType_ |
| Type of the basis. | |
| ECoordinates | basisCoordinates_ |
| The coordinate system for which the basis is defined. | |
| bool | basisTagsAreSet_ |
| "true" if tagToOrdinal_ and ordinalToTag_ have been initialized | |
| std::vector< std::vector< int > > | ordinalToTag_ |
| DoF ordinal to tag lookup table. More... | |
| std::vector< std::vector < std::vector< int > > > | tagToOrdinal_ |
| DoF tag to ordinal lookup table. More... | |
Detailed Description
template<class Scalar, class ArrayScalar>
class Intrepid::TensorBasis< Scalar, ArrayScalar >
An abstract base class that defines interface for bases that are tensor products of simpler bases.
Definition at line 67 of file Intrepid_TensorBasis.hpp.
The documentation for this class was generated from the following file:
- http://docs.trilinos.org/r13.0/packages/intrepid/src/Discretization/Basis/Intrepid_TensorBasis.hpp
