Defines tensor-product cubature (integration) rules in Intrepid. More...

#include <Intrepid_CubatureTensorPyr.hpp>

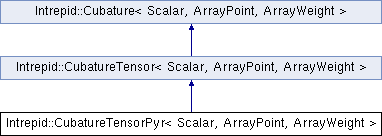

Inheritance diagram for Intrepid::CubatureTensorPyr< Scalar, ArrayPoint, ArrayWeight >:

Public Member Functions
	CubatureTensorPyr (std::vector< Teuchos::RCP< Cubature< Scalar, ArrayPoint, ArrayWeight > > > cubatures)
	Constructor. More...

	CubatureTensorPyr (Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > > cubature1, Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > > cubature2)
	Constructor. More...

	CubatureTensorPyr (Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > > cubature1, Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > > cubature2, Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > > cubature3)
	Constructor. More...

	CubatureTensorPyr (Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > > cubature, int n)
	Constructor. More...

void	getCubature (ArrayPoint &cubPoints, ArrayWeight &cubWeights) const
	Returns cubature points and weights (return arrays must be pre-sized/pre-allocated). More...

void	getCubature (ArrayPoint &cubPoints, ArrayWeight &cubWeights, ArrayPoint &cellCoords) const
	Returns cubature points and weights. Method for physical space cubature, throws an exception. More...

virtual int	getNumPoints () const
	Returns the number of cubature points.

virtual int	getDimension () const
	Returns dimension of integration domain.

virtual void	getAccuracy (std::vector< int > &degree) const
	Returns max. degree of polynomials that are integrated exactly. The return vector has the size of the degree_ vector.

Public Member Functions inherited from Intrepid::CubatureTensor< Scalar, ArrayPoint, ArrayWeight >
	CubatureTensor (std::vector< Teuchos::RCP< Cubature< Scalar, ArrayPoint, ArrayWeight > > > cubatures)
	Constructor. More...

	CubatureTensor (Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > > cubature1, Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > > cubature2)
	Constructor. More...

	CubatureTensor (Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > > cubature1, Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > > cubature2, Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > > cubature3)
	Constructor. More...

	CubatureTensor (Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > > cubature, int n)
	Constructor. More...

Detailed Description

template<class Scalar, class ArrayPoint = FieldContainer<Scalar>, class ArrayWeight = ArrayPoint>
class Intrepid::CubatureTensorPyr< Scalar, ArrayPoint, ArrayWeight >

Defines tensor-product cubature (integration) rules in Intrepid.

Definition at line 60 of file Intrepid_CubatureTensorPyr.hpp.

Constructor & Destructor Documentation

template<class Scalar , class ArrayPoint , class ArrayWeight >

Intrepid::CubatureTensorPyr< Scalar, ArrayPoint, ArrayWeight >::CubatureTensorPyr ( std::vector< Teuchos::RCP< Cubature< Scalar, ArrayPoint, ArrayWeight > > > cubatures )

Constructor.

Parameters

cubatures [in] - Array of cubatures that represent the building blocks of the tensor product.

Definition at line 52 of file Intrepid_CubatureTensorPyrDef.hpp.

template<class Scalar , class ArrayPoint , class ArrayWeight >

Intrepid::CubatureTensorPyr< Scalar, ArrayPoint, ArrayWeight >::CubatureTensorPyr	(	Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > >	cubature1,
		Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > >	cubature2
	)

Constructor.

Parameters

cubature1	[in] - First direct cubature rule.
cubature2	[in] - Second direct cubature rule.

Definition at line 57 of file Intrepid_CubatureTensorPyrDef.hpp.

template<class Scalar , class ArrayPoint , class ArrayWeight >

Intrepid::CubatureTensorPyr< Scalar, ArrayPoint, ArrayWeight >::CubatureTensorPyr	(	Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > >	cubature1,
		Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > >	cubature2,
		Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > >	cubature3
	)

Constructor.

Parameters

cubature1	[in] - First direct cubature rule.
cubature2	[in] - Second direct cubature rule.
cubature3	[in] - Third direct cubature rule.

Definition at line 63 of file Intrepid_CubatureTensorPyrDef.hpp.

template<class Scalar , class ArrayPoint , class ArrayWeight >

Intrepid::CubatureTensorPyr< Scalar, ArrayPoint, ArrayWeight >::CubatureTensorPyr	(	Teuchos::RCP< CubatureDirect< Scalar, ArrayPoint, ArrayWeight > >	cubature,
		int	n
	)

Constructor.

Parameters

cubature	[in] - Direct cubature rule.
n	[in] - Number of copies of the cubature rule in the tensor product.

Definition at line 70 of file Intrepid_CubatureTensorPyrDef.hpp.

Member Function Documentation

template<class Scalar , class ArrayPoint , class ArrayWeight >

void Intrepid::CubatureTensorPyr< Scalar, ArrayPoint, ArrayWeight >::getCubature	(	ArrayPoint &	cubPoints,
		ArrayWeight &	cubWeights
	)		const

virtual

Returns cubature points and weights (return arrays must be pre-sized/pre-allocated).

Parameters

cubPoints	[out] - Vector containing the cubature points.
cubWeights	[out] - Vector of corresponding cubature weights.

Reimplemented from Intrepid::CubatureTensor< Scalar, ArrayPoint, ArrayWeight >.

Definition at line 75 of file Intrepid_CubatureTensorPyrDef.hpp.

References Intrepid::CubatureTensor< Scalar, ArrayPoint, ArrayWeight >::getCubature().

template<class Scalar , class ArrayPoint , class ArrayWeight >

void Intrepid::CubatureTensorPyr< Scalar, ArrayPoint, ArrayWeight >::getCubature	(	ArrayPoint &	cubPoints,
		ArrayWeight &	cubWeights,
		ArrayPoint &	cellCoords
	)		const

virtual

Returns cubature points and weights. Method for physical space cubature, throws an exception.

Parameters

cubPoints	[out] - Array containing the cubature points.
cubWeights	[out] - Array of corresponding cubature weights.
cellCoords	[in] - Array of cell coordinates

Reimplemented from Intrepid::CubatureTensor< Scalar, ArrayPoint, ArrayWeight >.

Definition at line 93 of file Intrepid_CubatureTensorPyrDef.hpp.

The documentation for this class was generated from the following files:

http://docs.trilinos.org/r13.0/packages/intrepid/src/Discretization/Integration/Intrepid_CubatureTensorPyr.hpp
http://docs.trilinos.org/r13.0/packages/intrepid/src/Discretization/Integration/Intrepid_CubatureTensorPyrDef.hpp
