Strategy interface for extracting an Epetra_Operator view out of a Thyra::LinearOpBase<double> object. More...

#include <Thyra_EpetraOperatorViewExtractorBase.hpp>

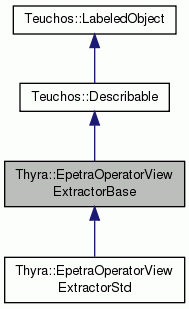

Inheritance diagram for Thyra::EpetraOperatorViewExtractorBase:

Pure virtual functions that must be overridden in subclasses.
virtual bool	isCompatible (const LinearOpBase< double > &fwdOp) const =0
	Check that a `LinearOpBase` object is compatible with `*this` factory object. More...

virtual void	getNonconstEpetraOpView (const RCP< LinearOpBase< double > > &fwdOp, const Ptr< RCP< Epetra_Operator > > &epetraOp, const Ptr< EOpTransp > &epetraOpTransp, const Ptr< EApplyEpetraOpAs > &epetraOpApplyAs, const Ptr< EAdjointEpetraOp > &epetraOpAdjointSupport, const Ptr< double > &epetraOpScalar) const =0
	Gat a smart pointer to a non-`const` `Epetra_Operator` view of a `Thyra::LinearOpBase` object and how the object is applied to implement the forward linear operator. More...

virtual void	getEpetraOpView (const RCP< const LinearOpBase< double > > &fwdOp, const Ptr< RCP< const Epetra_Operator > > &epetraOp, const Ptr< EOpTransp > &epetraOpTransp, const Ptr< EApplyEpetraOpAs > &epetraOpApplyAs, const Ptr< EAdjointEpetraOp > &epetraOpAdjointSupport, const Ptr< double > &epetraOpScalar) const =0
	Gat a smart pointer to a `const` `Epetra_Operator` view of a `Thyra::LinearOpBase` object and how the object is applied to implement the forward linear operator. More...

Additional Inherited Members
Public Member Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

virtual std::string	description () const

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

virtual	~Describable ()

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Detailed Description

Strategy interface for extracting an Epetra_Operator view out of a Thyra::LinearOpBase<double> object.

ToDo: Finish documentation!

Definition at line 27 of file Thyra_EpetraOperatorViewExtractorBase.hpp.

Member Function Documentation

virtual bool Thyra::EpetraOperatorViewExtractorBase::isCompatible ( const LinearOpBase< double > & fwdOp ) const

pure virtual

Check that a LinearOpBase object is compatible with *this factory object.

Implemented in Thyra::EpetraOperatorViewExtractorStd.

virtual void Thyra::EpetraOperatorViewExtractorBase::getNonconstEpetraOpView	(	const RCP< LinearOpBase< double > > &	fwdOp,
		const Ptr< RCP< Epetra_Operator > > &	epetraOp,
		const Ptr< EOpTransp > &	epetraOpTransp,
		const Ptr< EApplyEpetraOpAs > &	epetraOpApplyAs,
		const Ptr< EAdjointEpetraOp > &	epetraOpAdjointSupport,
		const Ptr< double > &	epetraOpScalar
	)		const

pure virtual

Gat a smart pointer to a non-const Epetra_Operator view of a Thyra::LinearOpBase object and how the object is applied to implement the forward linear operator.

Parameters

fwdOp	[in] The forward linear operator that the view will be extracted from. This object may be a wrapped scaled/adjoint operator on input. On output this object is "remembered" in the returned RCP for `epetraOp`.
epetraOp	[out] The non-`const` epetra operator view of `*this`.
epetraOpTransp	[out] Determines if the operator is applied as its transpose or its non-transpose. The Client should use this value and ignore the value in `(*epetraOp)->UseTranspose()` since it has been shown to be problematic and error prone.
epetraOpApplyAs	[out] Determines if the operator should be applied using `(epetraOp)->Apply(...)` or using `(epetraOp)->ApplyInverse(...)`.
epetraOpAdjointSupport	[out] Determines if the operator supports transposes or not.
epetraOpScalar	[out] The scalar from the wrapped scaled/adjoint linear operator

Preconditions: epetraOp!=NULL epetraOpOpTransp!=NULL epetraOpApplyAs!=NULL epetraOpAdjointSupport!=NULL

Posconditions: epetraOp->get() != NULL fwdOp.count() is greater on output than on input and hense fwdOp is "remembered"

The object accessed from *epetraOp is only guaranteed to be valid while the returned Teuchos::RCP object exits. This allows for some very specialized implementations where a Epetra_Operator view of *this can be acquired and released according to the lifetime of the returned Teuchos::RCP object.

The Epetra_Operator object may be dynamic casted to more specialized interfaces and therefore modified. Then, when the last RCP object ancestor returned from this function goes away, then *this will be updated to relect the change.

Implemented in Thyra::EpetraOperatorViewExtractorStd.

virtual void Thyra::EpetraOperatorViewExtractorBase::getEpetraOpView	(	const RCP< const LinearOpBase< double > > &	fwdOp,
		const Ptr< RCP< const Epetra_Operator > > &	epetraOp,
		const Ptr< EOpTransp > &	epetraOpTransp,
		const Ptr< EApplyEpetraOpAs > &	epetraOpApplyAs,
		const Ptr< EAdjointEpetraOp > &	epetraOpAdjointSupport,
		const Ptr< double > &	epetraOpScalar
	)		const

pure virtual

Gat a smart pointer to a const Epetra_Operator view of a Thyra::LinearOpBase object and how the object is applied to implement the forward linear operator.

Parameters

fwdOp	[in] The forward linear operator that the view will be extracted from. This object may be a wrapped scaled/adjoint operator on input. On output this object is "remembered" in the returned RCP for `epetraOp`.
epetraOp	[out] The `const` epetra operator view of `*this`.
epetraOpTransp	[out] Determines if the operator is applied as its transpose or its non-transpose. The Client should use this value and ignore the value in `(*epetraOp)->UseTranspose()` since it has been shown to be problematic and error prone.
epetraOpApplyAs	[out] Determines if the operator should be applied using `(epetraOp)->Apply(...)` or using `(epetraOp)->ApplyInverse(...)`.
epetraOpAdjointSupport	[out] Determines if the operator supports transposes or not.
epetraOpScalar	[out] The scalar from the wrapped scaled/adjoint linear operator.

Preconditions: epetraOp!=NULL epetraOpOpTransp!=NULL epetraOpApplyAs!=NULL epetraOpAdjointSupport!=NULL

Posconditions: epetraOp->get() != NULL fwdOp.count() is greater on output than on input and hense fwdOp is "remembered"

The object accessed from *return is only guaranteed to be valid while the returned Teuchos::RCP object exits. This allows for some very specialized implementations where a Epetra_Operator view of *this can be acquired and released according to the lifetime of the returned Teuchos::RCP object.

Note that if the client tries to constant cast the returned object and modify it that this returned view is not guaranteed to update *this. If the goal is to modify *this then the client should call the non-const version of this function.

Implemented in Thyra::EpetraOperatorViewExtractorStd.

The documentation for this class was generated from the following file:

Thyra_EpetraOperatorViewExtractorBase.hpp
