Teuchos::TwoDColDependencyXMLConverter< DependeeType, DependentType > Class Template Reference

A class for converting TwoDColDependencies to and from XML. More...

#include <Teuchos_StandardDependencyXMLConverters.hpp>

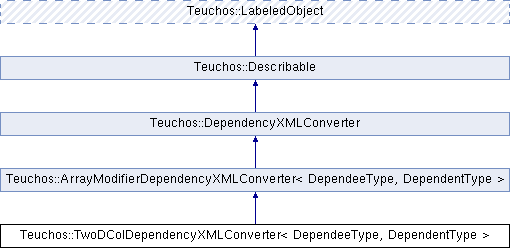

Inheritance diagram for Teuchos::TwoDColDependencyXMLConverter< DependeeType, DependentType >:

Protected Member Functions
Overridden from ArrayModifierDependency
virtual RCP < ArrayModifierDependency < DependeeType, DependentType > >	getConcreteDependency (RCP< const ParameterEntry > dependee, Dependency::ParameterEntryList dependents, RCP< const SimpleFunctionObject< DependeeType > > function) const
	Obtains a concrete ArrayModifierDependency given a dependee, dependtns, and a funciton object. More...

Additional Inherited Members
Public Member Functions inherited from Teuchos::ArrayModifierDependencyXMLConverter< DependeeType, DependentType >
RCP< Dependency >	convertXML (const XMLObject &xmlObj, const Dependency::ConstParameterEntryList dependees, const Dependency::ParameterEntryList dependets, const XMLParameterListReader::EntryIDsMap &entryIDsMap, const IDtoValidatorMap &validatorIDsMap) const
void	convertDependency (const RCP< const Dependency > dependency, XMLObject &xmlObj, const XMLParameterListWriter::EntryIDsMap &entryIDsMap, ValidatortoIDMap &validatorIDsMap) const
Public Member Functions inherited from Teuchos::DependencyXMLConverter
RCP< Dependency >	fromXMLtoDependency (const XMLObject &xmlObj, const XMLParameterListReader::EntryIDsMap &entryIDsMap, const IDtoValidatorMap &validatorIDsMap) const
	Converts a given XMLObject to a Dependency. More...
XMLObject	fromDependencytoXML (const RCP< const Dependency > dependency, const XMLParameterListWriter::EntryIDsMap &entryIDsMap, ValidatortoIDMap &validatorIDsMap) const
	Converters a given ParameterEntryValidator to XML. More...
Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const
	Return a simple one-line description of this object. More...
virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Print the object with some verbosity level to a FancyOStream. More...
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Version of describe() that takes an std::ostream instead of a FancyOStream. More...
virtual	~Describable ()
	Destructor (marked virtual for memory safety of derived classes). More...
Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()
	Construct with an empty label. More...
virtual	~LabeledObject ()
virtual void	setObjectLabel (const std::string &objectLabel)
	Set the object label (see LabeledObject). More...
virtual std::string	getObjectLabel () const
	Get the object label (see LabeledObject). More...
Static Public Member Functions inherited from Teuchos::DependencyXMLConverter
static const std::string &	getDependeeTagName ()
	Returns the string to be used for the dependee tag. More...
static const std::string &	getDependentTagName ()
	Returns the string to be used for the dependent tag. More...
static const std::string &	getParameterIdAttributeName ()
	Returns the string to be used for the ParameterID attribute. More...
static const std::string &	getTypeAttributeName ()
	Returns the string to be used for the type attribute. More...
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default = VERB_DEFAULT
	Default value for the verbLevel argument of describe(). More...
Related Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
	Describable output stream manipulator. More...
std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)
	Output stream operator for Describable manipulator. More...

Detailed Description

template<class DependeeType, class DependentType>
class Teuchos::TwoDColDependencyXMLConverter< DependeeType, DependentType >

A class for converting TwoDColDependencies to and from XML.

The valid XML representation of a TwoDColDependency is:

<Dependency
  type="TwoDColDependency(dependee_number_type, type_of_array_values)"
>
  <Dependee parameterId="Id of dependee parameter"/>
  <Dependent parameterId="Id of dependent parameter"/>
  ...Any other dependent parameters...
  ...Optional Function tag...
</Dependency>

Definition at line 950 of file Teuchos_StandardDependencyXMLConverters.hpp.

Member Function Documentation

template<class DependeeType , class DependentType >

RCP< ArrayModifierDependency< DependeeType, DependentType > > Teuchos::TwoDColDependencyXMLConverter< DependeeType, DependentType >::getConcreteDependency ( RCP< const ParameterEntry >  dependee, Dependency::ParameterEntryList  dependents, RCP< const SimpleFunctionObject< DependeeType > >  function  ) const

protectedvirtual

Obtains a concrete ArrayModifierDependency given a dependee, dependtns, and a funciton object.

Because ArrayModifierDependency is an abstact class with pure virtual methods we need to be able to get a concrete object to actually return. This is the reponsibility of any classes subclassing this one.

Parameters

dependee	The dependee to be used in the construction of the concrete dependency.
dependents	The dependts to be used in the construction of the concrete dependency.
function	The function object to be used in the construction of the concrete dependency.

Returns

A concrete dependency object.which subclasses ArrayModifierDependency.

Implements Teuchos::ArrayModifierDependencyXMLConverter< DependeeType, DependentType >.

Definition at line 969 of file Teuchos_StandardDependencyXMLConverters.hpp.

---

The documentation for this class was generated from the following file:

• Teuchos_StandardDependencyXMLConverters.hpp
