Teuchos::StringToIntegralValidatorXMLConverter< IntegralType > Class Template Reference

Convert a StringToIntegralParameterEntryValidator to and from XML. More...

#include <Teuchos_StandardValidatorXMLConverters.hpp>

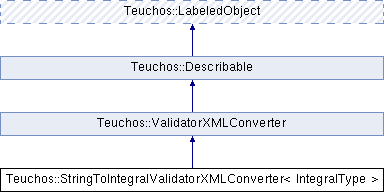

Inheritance diagram for Teuchos::StringToIntegralValidatorXMLConverter< IntegralType >:

Public Member Functions
Overridden from ValidatorXMLConverter
RCP< ParameterEntryValidator >	convertXML (const XMLObject &xmlObj, const IDtoValidatorMap &validatorIDsMap) const
void	convertValidator (const RCP< const ParameterEntryValidator > validator, XMLObject &xmlObj, const ValidatortoIDMap &validatorIDsMap) const
Public Member Functions inherited from Teuchos::ValidatorXMLConverter
RCP< ParameterEntryValidator >	fromXMLtoValidator (const XMLObject &xmlObj, const IDtoValidatorMap &validatorIDsMap) const
	Converts a given XMLObject to a ParameterEntryValidator. More...
XMLObject	fromValidatortoXML (const RCP< const ParameterEntryValidator > validator, const ValidatortoIDMap &validatorIDsMap, bool assignedID=true) const
	Converters a given ParameterEntryValidator to XML. More...
Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const
	Return a simple one-line description of this object. More...
virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Print the object with some verbosity level to a FancyOStream. More...
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Version of describe() that takes an std::ostream instead of a FancyOStream. More...
virtual	~Describable ()
	Destructor (marked virtual for memory safety of derived classes). More...
Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()
	Construct with an empty label. More...
virtual	~LabeledObject ()
virtual void	setObjectLabel (const std::string &objectLabel)
	Set the object label (see LabeledObject). More...
virtual std::string	getObjectLabel () const
	Get the object label (see LabeledObject). More...

Additional Inherited Members
Static Public Member Functions inherited from Teuchos::ValidatorXMLConverter
static const std::string &	getIdAttributeName ()
static const std::string &	getPrototypeIdAttributeName ()
static const std::string &	getTypeAttributeName ()
static const std::string &	getValidatorTagName ()
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default = VERB_DEFAULT
	Default value for the verbLevel argument of describe(). More...
Related Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
	Describable output stream manipulator. More...
std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)
	Output stream operator for Describable manipulator. More...

Detailed Description

template<class IntegralType>
class Teuchos::StringToIntegralValidatorXMLConverter< IntegralType >

Convert a StringToIntegralParameterEntryValidator to and from XML.

This class knows how to write a StringToIntegralParameterEntryValidator to XML, and create an StringToIntegralParameterEntryValidator from its XML representation.

Here is the XML representation of a StringToIntegralValidator:

<Validator
  type="StringToIntegralValidator(NumberType)"
  defaultParameterName="Name of default parameter"
  caseSensitive="[true|false]"
  validatorId="Validator id"
>
  <String
    stringValue="Value 1"
    integralValue="int value 1"
    stringDoc="Documentation for Value 1"
  />
  <String
    stringValue="Value 2"
    integralValue="int value 2"
    stringDoc="Documentation for Value 2"
  />
  ...More String Values...
</Validator>

Here, "[true|false]" means the XML string representation of either Boolean true, or Boolean false.

The "integralValue", "stringDoc", and "caseSensitive" XML attributes are optional. However, if one of the "String" tags includes an "integralValue" and/or a "stringDoc" XML attribute, all other "String" tags must do so as well.

Definition at line 66 of file Teuchos_StandardValidatorXMLConverters.hpp.

Member Function Documentation

template<class IntegralType >

RCP< ParameterEntryValidator > Teuchos::StringToIntegralValidatorXMLConverter< IntegralType >::convertXML ( const XMLObject &  xmlObj, const IDtoValidatorMap &  validatorIDsMap  ) const

virtual

Implements Teuchos::ValidatorXMLConverter.

Definition at line 152 of file Teuchos_StandardValidatorXMLConverters.hpp.

template<class IntegralType >

void Teuchos::StringToIntegralValidatorXMLConverter< IntegralType >::convertValidator ( const RCP< const ParameterEntryValidator >  validator, XMLObject &  xmlObj, const ValidatortoIDMap &  validatorIDsMap  ) const

virtual

Implements Teuchos::ValidatorXMLConverter.

Definition at line 198 of file Teuchos_StandardValidatorXMLConverters.hpp.

---

The documentation for this class was generated from the following file:

• Teuchos_StandardValidatorXMLConverters.hpp
