An xml converter for SimpleFunctionObjects. More...

#include <Teuchos_StandardFunctionObjectXMLConverters.hpp>

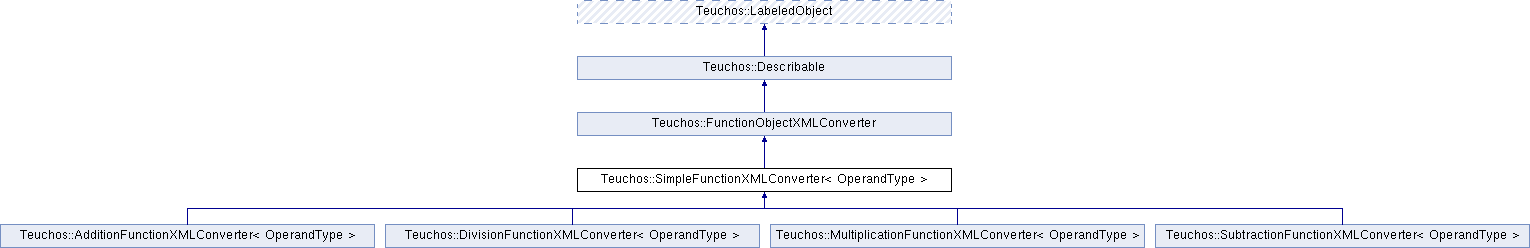

Inheritance diagram for Teuchos::SimpleFunctionXMLConverter< OperandType >:

Public Member Functions
Special Converter Functions
virtual RCP < SimpleFunctionObject < OperandType > >	getSpecificSimpleFunction (OperandType operand) const =0
	Gets the specific SimpleFunction to be returned by this converter when converting from XML. More...

virtual void	getSpecialSimpleFunctionXMLTraits (const RCP< const SimpleFunctionObject< OperandType > >, XMLObject &) const
	Add and extra XML traits that are specific to a certain FuncitonOjbect when converting that function object to xml. More...

Overridden from FunctionObjectXMLConverter
RCP< FunctionObject >	convertXML (const XMLObject &xmlObj) const

void	convertFunctionObject (const RCP< const FunctionObject > functionObject, XMLObject &xmlObj) const

Public Member Functions inherited from Teuchos::FunctionObjectXMLConverter
RCP< FunctionObject >	fromXMLtoFunctionObject (const XMLObject &xmlObj) const
	Converts a given XMLObject to a FunctionObject. More...

XMLObject	fromFunctionObjecttoXML (const RCP< const FunctionObject > function) const
	Converters a given FunctionObject to XML. More...

Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const
	Return a simple one-line description of this object. More...

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Print the object with some verbosity level to a FancyOStream. More...

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Version of describe() that takes an std::ostream instead of a FancyOStream. More...

virtual	~Describable ()
	Destructor (marked virtual for memory safety of derived classes). More...

Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()
	Construct with an empty label. More...

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)
	Set the object label (see LabeledObject). More...

virtual std::string	getObjectLabel () const
	Get the object label (see LabeledObject). More...

Static Public Member Functions
Constant Retrieving Functions
static std::string	getOperandAttributeName ()

Static Public Member Functions inherited from Teuchos::FunctionObjectXMLConverter
static const std::string &	getTypeAttributeName ()

Additional Inherited Members
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default = VERB_DEFAULT
	Default value for the `verbLevel` argument of describe(). More...

Related Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
	Describable output stream manipulator. More...

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)
	Output stream operator for Describable manipulator. More...

Detailed Description

template<class OperandType>
class Teuchos::SimpleFunctionXMLConverter< OperandType >

An xml converter for SimpleFunctionObjects.

Definition at line 27 of file Teuchos_StandardFunctionObjectXMLConverters.hpp.

Member Function Documentation

template<class OperandType >

virtual RCP<SimpleFunctionObject<OperandType> > Teuchos::SimpleFunctionXMLConverter< OperandType >::getSpecificSimpleFunction ( OperandType operand ) const

pure virtual

Gets the specific SimpleFunction to be returned by this converter when converting from XML.

operand The operand to be used with the SimpleFunction.

Implemented in Teuchos::DivisionFunctionXMLConverter< OperandType >, Teuchos::MultiplicationFunctionXMLConverter< OperandType >, Teuchos::AdditionFunctionXMLConverter< OperandType >, and Teuchos::SubtractionFunctionXMLConverter< OperandType >.

template<class OperandType >

virtual void Teuchos::SimpleFunctionXMLConverter< OperandType >::getSpecialSimpleFunctionXMLTraits	(	const RCP< const SimpleFunctionObject< OperandType > >	,
		XMLObject &
	)		const

inlinevirtual

Add and extra XML traits that are specific to a certain FuncitonOjbect when converting that function object to xml.

Parameters

functionObject	The function object being convertered.
xmlObj	The XMLObject to which any special traits should be added.

Definition at line 50 of file Teuchos_StandardFunctionObjectXMLConverters.hpp.

template<class OperandType >

RCP< FunctionObject > Teuchos::SimpleFunctionXMLConverter< OperandType >::convertXML ( const XMLObject & xmlObj ) const

virtual

Implements Teuchos::FunctionObjectXMLConverter.

Definition at line 84 of file Teuchos_StandardFunctionObjectXMLConverters.hpp.

template<class OperandType >

void Teuchos::SimpleFunctionXMLConverter< OperandType >::convertFunctionObject	(	const RCP< const FunctionObject >	functionObject,
		XMLObject &	xmlObj
	)		const

virtual

Implements Teuchos::FunctionObjectXMLConverter.

Definition at line 93 of file Teuchos_StandardFunctionObjectXMLConverters.hpp.

The documentation for this class was generated from the following file:

Teuchos_StandardFunctionObjectXMLConverters.hpp
