Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType > Class Template Reference

This class creates and provides basic support for TriDi matrix of templated type. More...

#include <Teuchos_SerialTriDiMatrix.hpp>

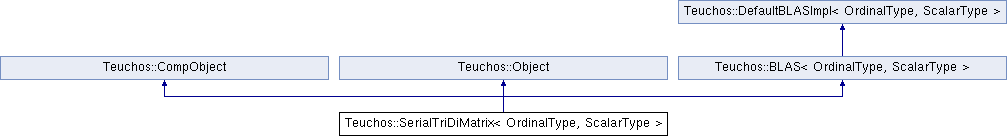

Inheritance diagram for Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >:

Public Types
typedef OrdinalType	ordinalType
	Typedef for ordinal type. More...
typedef ScalarType	scalarType
	Typedef for scalar type. More...
Public Types inherited from Teuchos::DefaultBLASImpl< OrdinalType, ScalarType >
typedef details::GivensRotator < ScalarType >::c_type	rotg_c_type
	The type used for c in ROTG. More...

Public Member Functions
Constructor/Destructor methods.
	SerialTriDiMatrix ()
	Default Constructor. More...
	SerialTriDiMatrix (OrdinalType numRows, OrdinalType numCols, bool zeroOut=true)
	Shaped Constructor. More...
	SerialTriDiMatrix (DataAccess CV, ScalarType *values, OrdinalType numRowsCols)
	Shaped Constructor with Values. More...
	SerialTriDiMatrix (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source, ETransp trans=Teuchos::NO_TRANS)
	Copy Constructor. More...
	SerialTriDiMatrix (DataAccess CV, const SerialTriDiMatrix< OrdinalType, ScalarType > &Source, OrdinalType numRowsCols, OrdinalType startRowCols=0)
	Submatrix Copy Constructor. More...
virtual	~SerialTriDiMatrix ()
	Destructor. More...
Shaping methods.
int	shape (OrdinalType numRows)
	Shape method for changing the size of a SerialTriDiMatrix, initializing entries to zero. More...
int	shapeUninitialized (OrdinalType numRows)
	Same as shape() except leaves uninitialized. More...
int	reshape (OrdinalType numRowsCols)
	Reshaping method for changing the size of a SerialTriDiMatrix, keeping the entries. More...
Set methods.
SerialTriDiMatrix< OrdinalType, ScalarType > &	operator= (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source)
	Copies values from one matrix to another. More...
SerialTriDiMatrix< OrdinalType, ScalarType > &	assign (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source)
	Copies values from one matrix to another. More...
SerialTriDiMatrix< OrdinalType, ScalarType > &	operator= (const ScalarType value)
	Set all values in the matrix to a constant value. More...
int	putScalar (const ScalarType value=Teuchos::ScalarTraits< ScalarType >::zero())
	Set all values in the matrix to a constant value. More...
Accessor methods.
Set all values in the matrix to be random numbers.
ScalarType &	operator() (OrdinalType rowIndex, OrdinalType colIndex)
	Element access method (non-const). More...
const ScalarType &	operator() (OrdinalType rowIndex, OrdinalType colIndex) const
	Element access method (const). More...
ScalarType *	values () const
	Column access method (non-const). More...
ScalarType *	D () const
ScalarType *	DL () const
ScalarType *	DU () const
ScalarType *	DU2 () const
Mathematical methods.
SerialTriDiMatrix< OrdinalType, ScalarType > &	operator+= (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source)
	Add another matrix to this matrix. More...
SerialTriDiMatrix< OrdinalType, ScalarType > &	operator-= (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source)
	Subtract another matrix from this matrix. More...
SerialTriDiMatrix< OrdinalType, ScalarType > &	operator*= (const ScalarType alpha)
	Scale this matrix by alpha; *this = alpha**this. More...
int	scale (const ScalarType alpha)
	Scale this matrix by alpha; *this = alpha**this. More...
int	scale (const SerialTriDiMatrix< OrdinalType, ScalarType > &A)
	Point-wise scale this matrix by A; i.e. *this(i,j) *= A(i,j) More...
Comparison methods.
Multiply A * B and add them to this; this = beta * this + alpha*A*B. Parameters transa - Use the transpose of A if transa = Teuchos::TRANS, else don't use the transpose if transa = Teuchos::NO_TRANS. transb - Use the transpose of B if transb = Teuchos::TRANS, else don't use the transpose if transb = Teuchos::NO_TRANS. alpha - The scaling factor for A * B. A - SerialTriDiMatrix B - SerialTriDiMatrix beta - The scaling factor for this. If the matrices A and B are not of the right dimension, consistent with this, then this matrix will not be altered and -1 will be returned. Returns Integer error code, set to 0 if successful.Multiply A and B and add them to this; this = beta * this + alpha*A*B or this = beta * this + alpha*B*A. Parameters sideA - Which side is A on for the multiplication to B, A*B (Teuchos::LEFT_SIDE) or B*A (Teuchos::RIGHT_SIDE). alpha - The scaling factor for A * B, or B * A. A - SerialSymTriDiMatrix (a serial SPD TriDi matrix) B - SerialTriDiMatrix (a serial TriDi matrix) beta - The scaling factor for this. If the matrices A and B are not of the right dimension, consistent with this, then this matrix will not be altered and -1 will be returned. Returns Integer error code, set to 0 if successful.
bool	operator== (const SerialTriDiMatrix< OrdinalType, ScalarType > &Operand) const
	Equality of two matrices. More...
bool	operator!= (const SerialTriDiMatrix< OrdinalType, ScalarType > &Operand) const
	Inequality of two matrices. More...
Attribute methods.
OrdinalType	numRowsCols () const
	Returns the row dimension of this matrix. More...
bool	empty () const
	Returns the column dimension of this matrix. More...
Norm methods.
ScalarTraits< ScalarType > ::magnitudeType	normOne () const
	Returns the 1-norm of the matrix. More...
ScalarTraits< ScalarType > ::magnitudeType	normInf () const
	Returns the Infinity-norm of the matrix. More...
ScalarTraits< ScalarType > ::magnitudeType	normFrobenius () const
	Returns the Frobenius-norm of the matrix. More...
I/O methods.
virtual void	print (std::ostream &os) const
	Print method. Defines the behavior of the std::ostream << operator inherited from the Object class. More...
Public Member Functions inherited from Teuchos::CompObject
	CompObject ()
	Default constructor. More...
	CompObject (const CompObject &source)
	Copy Constructor. More...
virtual	~CompObject ()
	Destructor. More...
void	setFlopCounter (const Flops &FlopCounter)
	Set the internal Teuchos::Flops() pointer. More...
void	setFlopCounter (const CompObject &compObject)
	Set the internal Teuchos::Flops() pointer to the flop counter of another Teuchos::CompObject. More...
void	unsetFlopCounter ()
	Set the internal Teuchos::Flops() pointer to 0 (no flops counted). More...
Flops *	getFlopCounter () const
	Get the pointer to the Teuchos::Flops() object associated with this object, returns 0 if none. More...
void	resetFlops () const
	Resets the number of floating point operations to zero for this multi-std::vector. More...
double	getFlops () const
	Returns the number of floating point operations with this multi-std::vector. More...
void	updateFlops (int addflops) const
	Increment Flop count for this object. More...
void	updateFlops (long int addflops) const
	Increment Flop count for this object. More...
void	updateFlops (double addflops) const
	Increment Flop count for this object. More...
void	updateFlops (float addflops) const
	Increment Flop count for this object. More...
Public Member Functions inherited from Teuchos::Object
	Object (int tracebackModeIn=-1)
	Default Constructor. More...
	Object (const char *label, int tracebackModeIn=-1)
	Labeling Constructor. More...
	Object (const std::string &label, int tracebackModeIn=-1)
	Create an Object with the given label, and optionally, with the given traceback mode. More...
virtual	~Object ()
	Destructor (virtual, for safety of derived classes). More...
virtual int	reportError (const std::string message, int errorCode) const
	Report an error with this Object. More...
virtual void	setLabel (const char *theLabel)
virtual const char *	label () const
	Access the object's label (LEGACY; return std::string instead). More...
Public Member Functions inherited from Teuchos::BLAS< OrdinalType, ScalarType >
	BLAS (void)
	Default constructor. More...
	BLAS (const BLAS< OrdinalType, ScalarType > &)
	Copy constructor. More...
virtual	~BLAS (void)
	Destructor. More...
Public Member Functions inherited from Teuchos::DefaultBLASImpl< OrdinalType, ScalarType >
	DefaultBLASImpl (void)
	Default constructor. More...
	DefaultBLASImpl (const DefaultBLASImpl< OrdinalType, ScalarType > &)
	Copy constructor. More...
virtual	~DefaultBLASImpl (void)
	Destructor. More...
template<typename alpha_type , typename A_type , typename x_type , typename beta_type >
void	GEMV (ETransp trans, const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const A_type *A, const OrdinalType &lda, const x_type *x, const OrdinalType &incx, const beta_type beta, ScalarType *y, const OrdinalType &incy) const
	Performs the matrix-vector operation: y <- alpha*A*x+beta*y or y <- alpha*A'*x+beta*y where A is a general m by n matrix. More...
template<typename A_type >
void	TRMV (EUplo uplo, ETransp trans, EDiag diag, const OrdinalType &n, const A_type *A, const OrdinalType &lda, ScalarType *x, const OrdinalType &incx) const
	Performs the matrix-vector operation: x <- A*x or x <- A'*x where A is a unit/non-unit n by n upper/lower triangular matrix. More...
template<typename alpha_type , typename x_type , typename y_type >
void	GER (const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const x_type *x, const OrdinalType &incx, const y_type *y, const OrdinalType &incy, ScalarType *A, const OrdinalType &lda) const
	Performs the rank 1 operation: A <- alpha*x*y'+A. More...
template<typename alpha_type , typename A_type , typename B_type , typename beta_type >
void	GEMM (ETransp transa, ETransp transb, const OrdinalType &m, const OrdinalType &n, const OrdinalType &k, const alpha_type alpha, const A_type *A, const OrdinalType &lda, const B_type *B, const OrdinalType &ldb, const beta_type beta, ScalarType *C, const OrdinalType &ldc) const
	General matrix-matrix multiply. More...
void	SWAP (const OrdinalType &n, ScalarType *const x, const OrdinalType &incx, ScalarType *const y, const OrdinalType &incy) const
	Swap the entries of x and y. More...
template<typename alpha_type , typename A_type , typename B_type , typename beta_type >
void	SYMM (ESide side, EUplo uplo, const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const A_type *A, const OrdinalType &lda, const B_type *B, const OrdinalType &ldb, const beta_type beta, ScalarType *C, const OrdinalType &ldc) const
	Performs the matrix-matrix operation: C <- alpha*A*B+beta*C or C <- alpha*B*A+beta*C where A is an m by m or n by n symmetric matrix and B is a general matrix. More...
template<typename alpha_type , typename A_type , typename beta_type >
void	SYRK (EUplo uplo, ETransp trans, const OrdinalType &n, const OrdinalType &k, const alpha_type alpha, const A_type *A, const OrdinalType &lda, const beta_type beta, ScalarType *C, const OrdinalType &ldc) const
	Performs the symmetric rank k operation: C <- alpha*A*A'+beta*C or C <- alpha*A'*A+beta*C, where alpha and beta are scalars, C is an n by n symmetric matrix and A is an n by k matrix in the first case or k by n matrix in the second case. More...
template<typename alpha_type , typename A_type >
void	TRMM (ESide side, EUplo uplo, ETransp transa, EDiag diag, const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const A_type *A, const OrdinalType &lda, ScalarType *B, const OrdinalType &ldb) const
	Performs the matrix-matrix operation: B <- alpha*op(A)*B or B <- alpha*B*op(A) where op(A) is an unit/non-unit, upper/lower triangular matrix and B is a general matrix. More...
template<typename alpha_type , typename A_type >
void	TRSM (ESide side, EUplo uplo, ETransp transa, EDiag diag, const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const A_type *A, const OrdinalType &lda, ScalarType *B, const OrdinalType &ldb) const
	Solves the matrix equations: op(A)*X=alpha*B or X*op(A)=alpha*B where X and B are m by n matrices, A is a unit/non-unit, upper/lower triangular matrix and op(A) is A or A'. The matrix X is overwritten on B. More...
void	ROTG (ScalarType *da, ScalarType *db, rotg_c_type *c, ScalarType *s) const
	Computes a Givens plane rotation. More...
void	ROT (const OrdinalType &n, ScalarType *dx, const OrdinalType &incx, ScalarType *dy, const OrdinalType &incy, MagnitudeType *c, ScalarType *s) const
	Applies a Givens plane rotation. More...
void	SCAL (const OrdinalType &n, const ScalarType &alpha, ScalarType *x, const OrdinalType &incx) const
	Scale the vector x by the constant alpha. More...
void	COPY (const OrdinalType &n, const ScalarType *x, const OrdinalType &incx, ScalarType *y, const OrdinalType &incy) const
	Copy the vector x to the vector y. More...
template<typename alpha_type , typename x_type >
void	AXPY (const OrdinalType &n, const alpha_type alpha, const x_type *x, const OrdinalType &incx, ScalarType *y, const OrdinalType &incy) const
	Perform the operation: y <- y+alpha*x. More...
ScalarTraits< ScalarType > ::magnitudeType	ASUM (const OrdinalType &n, const ScalarType *x, const OrdinalType &incx) const
	Sum the absolute values of the entries of x. More...
template<typename x_type , typename y_type >
ScalarType	DOT (const OrdinalType &n, const x_type *x, const OrdinalType &incx, const y_type *y, const OrdinalType &incy) const
	Form the dot product of the vectors x and y. More...
ScalarTraits< ScalarType > ::magnitudeType	NRM2 (const OrdinalType &n, const ScalarType *x, const OrdinalType &incx) const
	Compute the 2-norm of the vector x. More...
OrdinalType	IAMAX (const OrdinalType &n, const ScalarType *x, const OrdinalType &incx) const
	Return the index of the element of x with the maximum magnitude. More...

Additional Inherited Members
Static Public Member Functions inherited from Teuchos::Object
static void	setTracebackMode (int tracebackModeValue)
	Set the value of the Object error traceback report mode. More...
static int	getTracebackMode ()
	Get the value of the Object error traceback report mode. More...
Related Functions inherited from Teuchos::Object
std::ostream &	operator<< (std::ostream &os, const Teuchos::Object &obj)
	Print the given Object to the given output stream. More...

Detailed Description

template<typename OrdinalType, typename ScalarType>
class Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >

This class creates and provides basic support for TriDi matrix of templated type.

Definition at line 34 of file Teuchos_SerialTriDiMatrix.hpp.

Member Typedef Documentation

template<typename OrdinalType, typename ScalarType>

typedef OrdinalType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::ordinalType

Typedef for ordinal type.

Definition at line 38 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

typedef ScalarType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::scalarType

Typedef for scalar type.

Definition at line 40 of file Teuchos_SerialTriDiMatrix.hpp.

Constructor & Destructor Documentation

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix

(

)

Default Constructor.

Creates a empty matrix of no dimension. The Shaping methods should be used to size this matrix. Values of this matrix should be set using the [], (), or = operators.

Definition at line 363 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix	(	OrdinalType	numRows,
		OrdinalType	numCols,
		bool	zeroOut = true
	)

Shaped Constructor.

Parameters

numRows	- Number of rows in matrix.
numCols	- Number of columns in matrix.
zeroOut	- Initializes values to 0 if true (default)

Creates a shaped matrix with numRows rows and numCols cols. All values are initialized to 0 when zeroOut is true. Values of this matrix should be set using the [] or the () operators.

Definition at line 376 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix	(	DataAccess	CV,
		ScalarType *	values,
		OrdinalType	numRowsCols
	)

Shaped Constructor with Values.

Parameters

CV	- Enumerated type set to Teuchos::Copy or Teuchos::View.
values	- Pointer to an array of ScalarType.
numRowsCols	- Number of rows and columns in matrix.

Definition at line 392 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix	(	const SerialTriDiMatrix< OrdinalType, ScalarType > &	Source,
		ETransp	trans = Teuchos::NO_TRANS
	)

Copy Constructor.

Note

A deep copy of the Source transposed can be obtained if trans=Teuchos::TRANS, else a non-transposed copy of Source is made. There is no storage of the transpose state of the matrix within the SerialTriDiMatrix class, so this information will not propogate to any operation performed on a matrix that has been copy constructed in transpose.

Definition at line 417 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix	(	DataAccess	CV,
		const SerialTriDiMatrix< OrdinalType, ScalarType > &	Source,
		OrdinalType	numRowsCols,
		OrdinalType	startRowCols = 0
	)

Submatrix Copy Constructor.

Parameters

CV	- Enumerated type set to Teuchos::Copy or Teuchos::View.
Source	- Reference to another TriDi matrix from which values are to be copied.
numRowsCols	- The number of rows and columns in this matrix.
startRowCols	- The row and col of Source from which the submatrix copy should start.

Creates a shaped matrix with numRowsCols rows and columns, which is a submatrix of Source. If startRowCols, then the submatrix is the leading submatrix of Source. Otherwise, the (1,1) entry in the copied matrix is the (startRow, startCol) entry of Source.

Definition at line 476 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::~SerialTriDiMatrix ( )

virtual

Destructor.

Definition at line 496 of file Teuchos_SerialTriDiMatrix.hpp.

Member Function Documentation

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::shape

(

OrdinalType

numRows

)

Shape method for changing the size of a SerialTriDiMatrix, initializing entries to zero.

Parameters

numRowsCols

- The number of rows in this matrix.

This method allows the user to define the dimensions of a SerialTriDiMatrix at any point. This method can be called at any point after construction. Any values previously in this object will be destroyed and the resized matrix starts of with all zero values.

Returns

Integer error code, set to 0 if successful.

Definition at line 506 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::shapeUninitialized

(

OrdinalType

numRows

)

Same as shape() except leaves uninitialized.

Definition at line 519 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::reshape

(

OrdinalType

numRowsCols

)

Reshaping method for changing the size of a SerialTriDiMatrix, keeping the entries.

Parameters

numRowsCols

- The number of rows in this matrix.

This method allows the user to redefine the dimensions of a SerialTriDiMatrix at any point. This method can be called at any point after construction. Any values previously in this object will be copied into the reshaped matrix.

Returns

Integer error code, set 0 if successful.

Definition at line 530 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator=

(

const SerialTriDiMatrix< OrdinalType, ScalarType > &

Source

)

Copies values from one matrix to another.

The operator= copies the values from one existing SerialTriDiMatrix to another. If Source is a view (i.e. CV = Teuchos::View), then this method will return a view. Otherwise, it will return a copy of Source. this object will be resized if it is not large enough to copy Source into.

Definition at line 603 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::assign

(

const SerialTriDiMatrix< OrdinalType, ScalarType > &

Source

)

Copies values from one matrix to another.

The operator= copies the values from one existing SerialTriDiMatrix to another if the dimension of both matrices are the same. If not, this matrix will be returned unchanged.

Definition at line 694 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

SerialTriDiMatrix<OrdinalType, ScalarType>& Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator= ( const ScalarType  value )

inline

Set all values in the matrix to a constant value.

Parameters

value

- Value to use;

Definition at line 151 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::putScalar

(

const ScalarType

value = Teuchos::ScalarTraits<ScalarType>::zero()

)

Set all values in the matrix to a constant value.

Parameters

value

- Value to use; zero if none specified.

Returns

Integer error code, set to 0 if successful.

Definition at line 576 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

ScalarType & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator() ( OrdinalType  rowIndex, OrdinalType  colIndex  )

inline

Element access method (non-const).

Returns the element in the ith row and jth column if A(i,j) is specified, the expression A[j][i] will return the same element.

Returns

Element from the specified rowIndex row and colIndex column.

Warning

The validity of rowIndex and colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.

Definition at line 739 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

const ScalarType & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator() ( OrdinalType  rowIndex, OrdinalType  colIndex  ) const

inline

Element access method (const).

Returns the element in the ith row and jth column if A(i,j) is specified, the expression A[j][i] will return the same element.

Returns

Element from the specified rowIndex row and colIndex column.

Warning

The validity of rowIndex and colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.

Definition at line 715 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

ScalarType* Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::values ( ) const

inline

Column access method (non-const).

Returns the pointer to the ScalarType array at the jth column if A[j] is specified, the expression A[j][i] will return the same element as A(i,j).

Returns

Pointer to the ScalarType array at the colIndex column ( values_+colIndex*stride_ ).

Warning

The validity of colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.Column access method (const).

Returns the pointer to the ScalarType array at the jth column if A[j] is specified, the expression A[j][i] will return the same element as A(i,j).

Returns

Pointer to the ScalarType array at the colIndex column ( values_+colIndex*stride_ ).

Warning

The validity of colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.Data array access method.

Returns

Pointer to the ScalarType data array contained in the object.

Definition at line 210 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator+=

(

const SerialTriDiMatrix< OrdinalType, ScalarType > &

Source

)

Add another matrix to this matrix.

Add Source to this if the dimension of both matrices are the same. If not, this matrix will be returned unchanged.

Definition at line 670 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator-=

(

const SerialTriDiMatrix< OrdinalType, ScalarType > &

Source

)

Subtract another matrix from this matrix.

Subtract Source from this if the dimension of both matrices are the same. If not, this matrix will be returned unchanged.

Definition at line 682 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator*=

(

const ScalarType

alpha

)

Scale this matrix by alpha; *this = alpha**this.

Parameters

alpha

Scalar to multiply this by.

Definition at line 856 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::scale

(

const ScalarType

alpha

)

Scale this matrix by alpha; *this = alpha**this.

Parameters

alpha

Scalar to multiply this by.

Returns

Integer error code, set to 0 if successful.

Definition at line 863 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::scale

(

const SerialTriDiMatrix< OrdinalType, ScalarType > &

A

)

Point-wise scale this matrix by A; i.e. *this(i,j) *= A(i,j)

The values of *this matrix will be point-wise scaled by the values in A. If A and this matrix are not the same dimension this will be returned unchanged.

Parameters

B	Teuchos::SerialTriDiMatrix used to perform element-wise scaling of this.

Returns

Integer error code, set to 0 if successful.

Definition at line 874 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

bool Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator==

(

const SerialTriDiMatrix< OrdinalType, ScalarType > &

Operand

)

const

Equality of two matrices.

Returns

True if this matrix and Operand are of the same shape (rows and columns) and have the same entries, else False will be returned.

Definition at line 828 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

bool Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator!=

(

const SerialTriDiMatrix< OrdinalType, ScalarType > &

Operand

)

const

Inequality of two matrices.

Returns

True if this matrix and Operand of not of the same shape (rows and columns) or don't have the same entries, else False will be returned.

Definition at line 847 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

OrdinalType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::numRowsCols ( ) const

inline

Returns the row dimension of this matrix.

Definition at line 310 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>

bool Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::empty ( ) const

inline

Returns the column dimension of this matrix.

Returns the stride between the columns of this matrix in memory. Returns whether this matrix is empty.

Definition at line 319 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

ScalarTraits< ScalarType >::magnitudeType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::normOne

(

)

const

Returns the 1-norm of the matrix.

Definition at line 766 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

ScalarTraits< ScalarType >::magnitudeType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::normInf

(

)

const

Returns the Infinity-norm of the matrix.

Definition at line 791 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

ScalarTraits< ScalarType >::magnitudeType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::normFrobenius

(

)

const

Returns the Frobenius-norm of the matrix.

Definition at line 808 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >

void Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::print ( std::ostream &  os ) const

virtual

Print method. Defines the behavior of the std::ostream << operator inherited from the Object class.

Reimplemented from Teuchos::Object.

Definition at line 892 of file Teuchos_SerialTriDiMatrix.hpp.

---

The documentation for this class was generated from the following file:

• Teuchos_SerialTriDiMatrix.hpp
