Teuchos::TwoDArrayValidatorXMLConverter< ValidatorType, EntryType > Class Template Reference

Converts TwoDArrayValidators to and from XML. More...

#include <Teuchos_StandardValidatorXMLConverters.hpp>

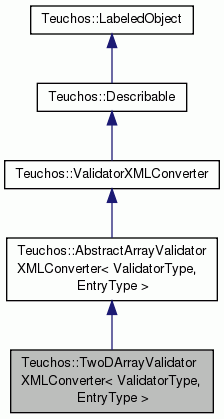

Inheritance diagram for Teuchos::TwoDArrayValidatorXMLConverter< ValidatorType, EntryType >:

Overridden from AbstractArrayValidatorXMLConverter
virtual RCP < AbstractArrayValidator < ValidatorType, EntryType > >	getConcreteValidator (RCP< ValidatorType > prototypeValidator) const
	Returns a concrete validator that has AbstractArrayValidator as it's parent class. More...

Additional Inherited Members
Public Member Functions inherited from Teuchos::AbstractArrayValidatorXMLConverter< ValidatorType, EntryType >
RCP< ParameterEntryValidator >	convertXML (const XMLObject &xmlObj, const IDtoValidatorMap &validatorIDsMap) const
void	convertValidator (const RCP< const ParameterEntryValidator > validator, XMLObject &xmlObj, const ValidatortoIDMap &validatorIDsMap) const
Public Member Functions inherited from Teuchos::ValidatorXMLConverter
RCP< ParameterEntryValidator >	fromXMLtoValidator (const XMLObject &xmlObj, const IDtoValidatorMap &validatorIDsMap) const
	Converts a given XMLObject to a ParameterEntryValidator. More...
XMLObject	fromValidatortoXML (const RCP< const ParameterEntryValidator > validator, const ValidatortoIDMap &validatorIDsMap, bool assignedID=true) const
	Converters a given ParameterEntryValidator to XML. More...
Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const
	Return a simple one-line description of this object. More...
virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Print the object with some verbosity level to a FancyOStream. More...
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Version of describe() that takes an std::ostream instead of a FancyOStream. More...
virtual	~Describable ()
	Destructor (marked virtual for memory safety of derived classes). More...
Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()
	Construct with an empty label. More...
virtual	~LabeledObject ()
virtual void	setObjectLabel (const std::string &objectLabel)
	Set the object label (see LabeledObject). More...
virtual std::string	getObjectLabel () const
	Get the object label (see LabeledObject). More...
Static Public Member Functions inherited from Teuchos::ValidatorXMLConverter
static const std::string &	getIdAttributeName ()
static const std::string &	getPrototypeIdAttributeName ()
static const std::string &	getTypeAttributeName ()
static const std::string &	getValidatorTagName ()
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default = VERB_DEFAULT
	Default value for the verbLevel argument of describe(). More...
Related Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
	Describable output stream manipulator. More...
std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)
	Output stream operator for Describable manipulator. More...

Detailed Description

template<class ValidatorType, class EntryType>
class Teuchos::TwoDArrayValidatorXMLConverter< ValidatorType, EntryType >

Converts TwoDArrayValidators to and from XML.

TwoDArrayValidators can be represented in XML one of two ways. The first just creates the prototype validator as a child of the ArrayValidator. In this case, the prototype validator does NOT use a validatorId.

<Validator
 type="TwoDArrayValidator(PrototypeValidatorType,ParameterArrayType)"
 validatorId="Validator id"
>
   ...Prototype Validator Goes Here...
</Validator>

The second way to define an TwoDArrayValidator in XML is to just use the "prototypeId" attribute to specify the prototype validator as some other validator you've already defined.

<Validator
  type="TwoDArrayValidator(PrototypeValidatorType,ParameterArrayType)"
  validatorId="Validator id"
  prototypeId="Prototype Validator Id"
/>

Definition at line 768 of file Teuchos_StandardValidatorXMLConverters.hpp.

Member Function Documentation

template<class ValidatorType , class EntryType >

virtual RCP<AbstractArrayValidator<ValidatorType, EntryType> > Teuchos::TwoDArrayValidatorXMLConverter< ValidatorType, EntryType >::getConcreteValidator ( RCP< ValidatorType >  prototypeValidator ) const

inlineprivatevirtual

Returns a concrete validator that has AbstractArrayValidator as it's parent class.

Implements Teuchos::AbstractArrayValidatorXMLConverter< ValidatorType, EntryType >.

Definition at line 774 of file Teuchos_StandardValidatorXMLConverters.hpp.

---

The documentation for this class was generated from the following file:

• Teuchos_StandardValidatorXMLConverters.hpp
