Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType > Class Template Reference

This class creates and provides basic support for TriDi matrix of templated type. More...

#include <Teuchos_SerialTriDiMatrix.hpp>

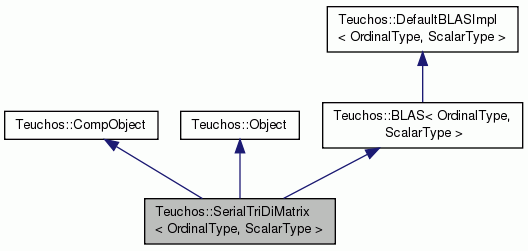

Inheritance diagram for Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >:
Inheritance graph
[legend]

Public Types

typedef OrdinalType ordinalType
 Typedef for ordinal type. More...

typedef ScalarType scalarType
 Typedef for scalar type. More...

- Public Types inherited from Teuchos::DefaultBLASImpl< OrdinalType, ScalarType >
typedef details::GivensRotator
< ScalarType >::c_type
rotg_c_type
 The type used for c in ROTG. More...


Protected Member Functions

void copyMat (SerialTriDiMatrix< OrdinalType, ScalarType > matrix, OrdinalType startCol, ScalarType alpha=ScalarTraits< ScalarType >::zero())

void deleteArrays ()

void checkIndex (OrdinalType rowIndex, OrdinalType colIndex=0) const


Protected Attributes

OrdinalType numRowsCols_

bool valuesCopied_

ScalarType * values_

ScalarType * DL_

ScalarType * D_

ScalarType * DU_

ScalarType * DU2_

- Protected Attributes inherited from Teuchos::CompObject
FlopsflopCounter_


Constructor/Destructor methods.

 SerialTriDiMatrix ()
 Default Constructor. More...

 SerialTriDiMatrix (OrdinalType numRows, OrdinalType numCols, bool zeroOut=true)
 Shaped Constructor. More...

 SerialTriDiMatrix (DataAccess CV, ScalarType *values, OrdinalType numRowsCols)
 Shaped Constructor with Values. More...

 SerialTriDiMatrix (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source, ETransp trans=Teuchos::NO_TRANS)
 Copy Constructor. More...

 SerialTriDiMatrix (DataAccess CV, const SerialTriDiMatrix< OrdinalType, ScalarType > &Source, OrdinalType numRowsCols, OrdinalType startRowCols=0)
 Submatrix Copy Constructor. More...

virtual ~SerialTriDiMatrix ()
 Destructor. More...


Shaping methods.

int shape (OrdinalType numRows)
 Shape method for changing the size of a SerialTriDiMatrix, initializing entries to zero. More...

int shapeUninitialized (OrdinalType numRows)
 Same as shape() except leaves uninitialized. More...

int reshape (OrdinalType numRowsCols)
 Reshaping method for changing the size of a SerialTriDiMatrix, keeping the entries. More...


Set methods.

SerialTriDiMatrix< OrdinalType,
ScalarType > &
operator= (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source)
 Copies values from one matrix to another. More...

SerialTriDiMatrix< OrdinalType,
ScalarType > &
assign (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source)
 Copies values from one matrix to another. More...

SerialTriDiMatrix< OrdinalType,
ScalarType > &
operator= (const ScalarType value)
 Set all values in the matrix to a constant value. More...

int putScalar (const ScalarType value=Teuchos::ScalarTraits< ScalarType >::zero())
 Set all values in the matrix to a constant value. More...


Accessor methods.

Set all values in the matrix to be random numbers.

ScalarType & operator() (OrdinalType rowIndex, OrdinalType colIndex)
 Element access method (non-const). More...

const ScalarType & operator() (OrdinalType rowIndex, OrdinalType colIndex) const
 Element access method (const). More...

ScalarType * values () const
 Column access method (non-const). More...

ScalarType * D () const

ScalarType * DL () const

ScalarType * DU () const

ScalarType * DU2 () const


Mathematical methods.

SerialTriDiMatrix< OrdinalType,
ScalarType > &
operator+= (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source)
 Add another matrix to this matrix. More...

SerialTriDiMatrix< OrdinalType,
ScalarType > &
operator-= (const SerialTriDiMatrix< OrdinalType, ScalarType > &Source)
 Subtract another matrix from this matrix. More...

SerialTriDiMatrix< OrdinalType,
ScalarType > &
operator*= (const ScalarType alpha)
 Scale this matrix by alpha; *this = alpha**this. More...

int scale (const ScalarType alpha)
 Scale this matrix by alpha; *this = alpha**this. More...

int scale (const SerialTriDiMatrix< OrdinalType, ScalarType > &A)
 Point-wise scale this matrix by A; i.e. *this(i,j) *= A(i,j) More...


Comparison methods.

Multiply A * B and add them to this; this = beta * this + alpha*A*B.

Parameters
transa- Use the transpose of A if transa = Teuchos::TRANS, else don't use the transpose if transa = Teuchos::NO_TRANS.
transb- Use the transpose of B if transb = Teuchos::TRANS, else don't use the transpose if transb = Teuchos::NO_TRANS.
alpha- The scaling factor for A * B.
A- SerialTriDiMatrix
B- SerialTriDiMatrix
beta- The scaling factor for this.

If the matrices A and B are not of the right dimension, consistent with this, then this matrix will not be altered and -1 will be returned.

Returns
Integer error code, set to 0 if successful.Multiply A and B and add them to this; this = beta * this + alpha*A*B or this = beta * this + alpha*B*A.
Parameters
sideA- Which side is A on for the multiplication to B, A*B (Teuchos::LEFT_SIDE) or B*A (Teuchos::RIGHT_SIDE).
alpha- The scaling factor for A * B, or B * A.
A- SerialSymTriDiMatrix (a serial SPD TriDi matrix)
B- SerialTriDiMatrix (a serial TriDi matrix)
beta- The scaling factor for this.

If the matrices A and B are not of the right dimension, consistent with this, then this matrix will not be altered and -1 will be returned.

Returns
Integer error code, set to 0 if successful.
bool operator== (const SerialTriDiMatrix< OrdinalType, ScalarType > &Operand) const
 Equality of two matrices. More...

bool operator!= (const SerialTriDiMatrix< OrdinalType, ScalarType > &Operand) const
 Inequality of two matrices. More...


Attribute methods.

OrdinalType numRowsCols () const
 Returns the row dimension of this matrix. More...

bool empty () const
 Returns the column dimension of this matrix. More...


Norm methods.

ScalarTraits< ScalarType >
::magnitudeType
normOne () const
 Returns the 1-norm of the matrix. More...

ScalarTraits< ScalarType >
::magnitudeType
normInf () const
 Returns the Infinity-norm of the matrix. More...

ScalarTraits< ScalarType >
::magnitudeType
normFrobenius () const
 Returns the Frobenius-norm of the matrix. More...


I/O methods.

virtual void print (std::ostream &os) const
 Print method. Defines the behavior of the std::ostream << operator inherited from the Object class. More...


Additional Inherited Members

- Public Member Functions inherited from Teuchos::CompObject
 CompObject ()
 Default constructor. More...

 CompObject (const CompObject &source)
 Copy Constructor. More...

virtual ~CompObject ()
 Destructor. More...

void setFlopCounter (const Flops &FlopCounter)
 Set the internal Teuchos::Flops() pointer. More...

void setFlopCounter (const CompObject &compObject)
 Set the internal Teuchos::Flops() pointer to the flop counter of another Teuchos::CompObject. More...

void unsetFlopCounter ()
 Set the internal Teuchos::Flops() pointer to 0 (no flops counted). More...

FlopsgetFlopCounter () const
 Get the pointer to the Teuchos::Flops() object associated with this object, returns 0 if none. More...

void resetFlops () const
 Resets the number of floating point operations to zero for this multi-std::vector. More...

double getFlops () const
 Returns the number of floating point operations with this multi-std::vector. More...

void updateFlops (int addflops) const
 Increment Flop count for this object. More...

void updateFlops (long int addflops) const
 Increment Flop count for this object. More...

void updateFlops (double addflops) const
 Increment Flop count for this object. More...

void updateFlops (float addflops) const
 Increment Flop count for this object. More...

- Public Member Functions inherited from Teuchos::Object
 Object (int tracebackModeIn=-1)
 Default Constructor. More...

 Object (const char *label, int tracebackModeIn=-1)
 Labeling Constructor. More...

 Object (const std::string &label, int tracebackModeIn=-1)
 Create an Object with the given label, and optionally, with the given traceback mode. More...

virtual ~Object ()
 Destructor (virtual, for safety of derived classes). More...

virtual void setLabel (const char *theLabel)

virtual const char * label () const
 Access the object's label (LEGACY; return std::string instead). More...

virtual int reportError (const std::string message, int errorCode) const
 Report an error with this Object. More...

- Public Member Functions inherited from Teuchos::BLAS< OrdinalType, ScalarType >
 BLAS (void)
 Default constructor. More...

 BLAS (const BLAS< OrdinalType, ScalarType > &)
 Copy constructor. More...

virtual ~BLAS (void)
 Destructor. More...

- Public Member Functions inherited from Teuchos::DefaultBLASImpl< OrdinalType, ScalarType >
 DefaultBLASImpl (void)
 Default constructor. More...

 DefaultBLASImpl (const DefaultBLASImpl< OrdinalType, ScalarType > &)
 Copy constructor. More...

virtual ~DefaultBLASImpl (void)
 Destructor. More...

void ROTG (ScalarType *da, ScalarType *db, rotg_c_type *c, ScalarType *s) const
 Computes a Givens plane rotation. More...

void ROT (const OrdinalType &n, ScalarType *dx, const OrdinalType &incx, ScalarType *dy, const OrdinalType &incy, MagnitudeType *c, ScalarType *s) const
 Applies a Givens plane rotation. More...

void SCAL (const OrdinalType &n, const ScalarType &alpha, ScalarType *x, const OrdinalType &incx) const
 Scale the vector x by the constant alpha. More...

void COPY (const OrdinalType &n, const ScalarType *x, const OrdinalType &incx, ScalarType *y, const OrdinalType &incy) const
 Copy the vector x to the vector y. More...

template<typename alpha_type , typename x_type >
void AXPY (const OrdinalType &n, const alpha_type alpha, const x_type *x, const OrdinalType &incx, ScalarType *y, const OrdinalType &incy) const
 Perform the operation: y <- y+alpha*x. More...

ScalarTraits< ScalarType >
::magnitudeType
ASUM (const OrdinalType &n, const ScalarType *x, const OrdinalType &incx) const
 Sum the absolute values of the entries of x. More...

template<typename x_type , typename y_type >
ScalarType DOT (const OrdinalType &n, const x_type *x, const OrdinalType &incx, const y_type *y, const OrdinalType &incy) const
 Form the dot product of the vectors x and y. More...

ScalarTraits< ScalarType >
::magnitudeType
NRM2 (const OrdinalType &n, const ScalarType *x, const OrdinalType &incx) const
 Compute the 2-norm of the vector x. More...

OrdinalType IAMAX (const OrdinalType &n, const ScalarType *x, const OrdinalType &incx) const
 Return the index of the element of x with the maximum magnitude. More...

template<typename alpha_type , typename A_type , typename x_type , typename beta_type >
void GEMV (ETransp trans, const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const A_type *A, const OrdinalType &lda, const x_type *x, const OrdinalType &incx, const beta_type beta, ScalarType *y, const OrdinalType &incy) const
 Performs the matrix-vector operation: y <- alpha*A*x+beta*y or y <- alpha*A'*x+beta*y where A is a general m by n matrix. More...

template<typename A_type >
void TRMV (EUplo uplo, ETransp trans, EDiag diag, const OrdinalType &n, const A_type *A, const OrdinalType &lda, ScalarType *x, const OrdinalType &incx) const
 Performs the matrix-vector operation: x <- A*x or x <- A'*x where A is a unit/non-unit n by n upper/lower triangular matrix. More...

template<typename alpha_type , typename x_type , typename y_type >
void GER (const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const x_type *x, const OrdinalType &incx, const y_type *y, const OrdinalType &incy, ScalarType *A, const OrdinalType &lda) const
 Performs the rank 1 operation: A <- alpha*x*y'+A. More...

template<typename alpha_type , typename A_type , typename B_type , typename beta_type >
void GEMM (ETransp transa, ETransp transb, const OrdinalType &m, const OrdinalType &n, const OrdinalType &k, const alpha_type alpha, const A_type *A, const OrdinalType &lda, const B_type *B, const OrdinalType &ldb, const beta_type beta, ScalarType *C, const OrdinalType &ldc) const
 General matrix-matrix multiply. More...

void SWAP (const OrdinalType &n, ScalarType *const x, const OrdinalType &incx, ScalarType *const y, const OrdinalType &incy) const
 Swap the entries of x and y. More...

template<typename alpha_type , typename A_type , typename B_type , typename beta_type >
void SYMM (ESide side, EUplo uplo, const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const A_type *A, const OrdinalType &lda, const B_type *B, const OrdinalType &ldb, const beta_type beta, ScalarType *C, const OrdinalType &ldc) const
 Performs the matrix-matrix operation: C <- alpha*A*B+beta*C or C <- alpha*B*A+beta*C where A is an m by m or n by n symmetric matrix and B is a general matrix. More...

template<typename alpha_type , typename A_type , typename beta_type >
void SYRK (EUplo uplo, ETransp trans, const OrdinalType &n, const OrdinalType &k, const alpha_type alpha, const A_type *A, const OrdinalType &lda, const beta_type beta, ScalarType *C, const OrdinalType &ldc) const
 Performs the symmetric rank k operation: C <- alpha*A*A'+beta*C or C <- alpha*A'*A+beta*C, where alpha and beta are scalars, C is an n by n symmetric matrix and A is an n by k matrix in the first case or k by n matrix in the second case. More...

template<typename alpha_type , typename A_type >
void TRMM (ESide side, EUplo uplo, ETransp transa, EDiag diag, const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const A_type *A, const OrdinalType &lda, ScalarType *B, const OrdinalType &ldb) const
 Performs the matrix-matrix operation: B <- alpha*op(A)*B or B <- alpha*B*op(A) where op(A) is an unit/non-unit, upper/lower triangular matrix and B is a general matrix. More...

template<typename alpha_type , typename A_type >
void TRSM (ESide side, EUplo uplo, ETransp transa, EDiag diag, const OrdinalType &m, const OrdinalType &n, const alpha_type alpha, const A_type *A, const OrdinalType &lda, ScalarType *B, const OrdinalType &ldb) const
 Solves the matrix equations: op(A)*X=alpha*B or X*op(A)=alpha*B where X and B are m by n matrices, A is a unit/non-unit, upper/lower triangular matrix and op(A) is A or A'. The matrix X is overwritten on B. More...

- Static Public Member Functions inherited from Teuchos::Object
static void setTracebackMode (int tracebackModeValue)
 Set the value of the Object error traceback report mode. More...

static int getTracebackMode ()
 Get the value of the Object error traceback report mode. More...

- Static Public Attributes inherited from Teuchos::Object
static int tracebackMode = -1


Detailed Description

template<typename OrdinalType, typename ScalarType>
class Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >

This class creates and provides basic support for TriDi matrix of templated type.

Definition at line 34 of file Teuchos_SerialTriDiMatrix.hpp.

Member Typedef Documentation

template<typename OrdinalType, typename ScalarType>
typedef OrdinalType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::ordinalType

Typedef for ordinal type.

Definition at line 38 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
typedef ScalarType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::scalarType

Typedef for scalar type.

Definition at line 40 of file Teuchos_SerialTriDiMatrix.hpp.

Constructor & Destructor Documentation

template<typename OrdinalType , typename ScalarType >
Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix ( )

Default Constructor.

Creates a empty matrix of no dimension. The Shaping methods should be used to size this matrix. Values of this matrix should be set using the [], (), or = operators.

Definition at line 363 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix ( OrdinalType  numRows,
OrdinalType  numCols,
bool  zeroOut = true
)

Shaped Constructor.

Parameters
numRows- Number of rows in matrix.
numCols- Number of columns in matrix.
zeroOut- Initializes values to 0 if true (default)

Creates a shaped matrix with numRows rows and numCols cols. All values are initialized to 0 when zeroOut is true. Values of this matrix should be set using the [] or the () operators.

Definition at line 376 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix ( DataAccess  CV,
ScalarType *  values,
OrdinalType  numRowsCols
)

Shaped Constructor with Values.

Parameters
CV- Enumerated type set to Teuchos::Copy or Teuchos::View.
values- Pointer to an array of ScalarType.
numRowsCols- Number of rows and columns in matrix.

Definition at line 392 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix ( const SerialTriDiMatrix< OrdinalType, ScalarType > &  Source,
ETransp  trans = Teuchos::NO_TRANS
)

Copy Constructor.

Note
A deep copy of the Source transposed can be obtained if trans=Teuchos::TRANS, else a non-transposed copy of Source is made. There is no storage of the transpose state of the matrix within the SerialTriDiMatrix class, so this information will not propogate to any operation performed on a matrix that has been copy constructed in transpose.

Definition at line 417 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::SerialTriDiMatrix ( DataAccess  CV,
const SerialTriDiMatrix< OrdinalType, ScalarType > &  Source,
OrdinalType  numRowsCols,
OrdinalType  startRowCols = 0
)

Submatrix Copy Constructor.

Parameters
CV- Enumerated type set to Teuchos::Copy or Teuchos::View.
Source- Reference to another TriDi matrix from which values are to be copied.
numRowsCols- The number of rows and columns in this matrix.
startRowCols- The row and col of Source from which the submatrix copy should start.

Creates a shaped matrix with numRowsCols rows and columns, which is a submatrix of Source. If startRowCols, then the submatrix is the leading submatrix of Source. Otherwise, the (1,1) entry in the copied matrix is the (startRow, startCol) entry of Source.

Definition at line 476 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::~SerialTriDiMatrix ( )
virtual

Destructor.

Definition at line 496 of file Teuchos_SerialTriDiMatrix.hpp.

Member Function Documentation

template<typename OrdinalType , typename ScalarType >
int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::shape ( OrdinalType  numRows)

Shape method for changing the size of a SerialTriDiMatrix, initializing entries to zero.

Parameters
numRowsCols- The number of rows in this matrix.

This method allows the user to define the dimensions of a SerialTriDiMatrix at any point. This method can be called at any point after construction. Any values previously in this object will be destroyed and the resized matrix starts of with all zero values.

Returns
Integer error code, set to 0 if successful.

Definition at line 506 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::shapeUninitialized ( OrdinalType  numRows)

Same as shape() except leaves uninitialized.

Definition at line 519 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::reshape ( OrdinalType  numRowsCols)

Reshaping method for changing the size of a SerialTriDiMatrix, keeping the entries.

Parameters
numRowsCols- The number of rows in this matrix.

This method allows the user to redefine the dimensions of a SerialTriDiMatrix at any point. This method can be called at any point after construction. Any values previously in this object will be copied into the reshaped matrix.

Returns
Integer error code, set 0 if successful.

Definition at line 530 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator= ( const SerialTriDiMatrix< OrdinalType, ScalarType > &  Source)

Copies values from one matrix to another.

The operator= copies the values from one existing SerialTriDiMatrix to another. If Source is a view (i.e. CV = Teuchos::View), then this method will return a view. Otherwise, it will return a copy of Source. this object will be resized if it is not large enough to copy Source into.

Definition at line 603 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::assign ( const SerialTriDiMatrix< OrdinalType, ScalarType > &  Source)

Copies values from one matrix to another.

The operator= copies the values from one existing SerialTriDiMatrix to another if the dimension of both matrices are the same. If not, this matrix will be returned unchanged.

Definition at line 694 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
SerialTriDiMatrix<OrdinalType, ScalarType>& Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator= ( const ScalarType  value)
inline

Set all values in the matrix to a constant value.

Parameters
value- Value to use;

Definition at line 151 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::putScalar ( const ScalarType  value = Teuchos::ScalarTraits<ScalarType>::zero())

Set all values in the matrix to a constant value.

Parameters
value- Value to use; zero if none specified.
Returns
Integer error code, set to 0 if successful.

Definition at line 576 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
ScalarType & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator() ( OrdinalType  rowIndex,
OrdinalType  colIndex
)
inline

Element access method (non-const).

Returns the element in the ith row and jth column if A(i,j) is specified, the expression A[j][i] will return the same element.

Returns
Element from the specified rowIndex row and colIndex column.
Warning
The validity of rowIndex and colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.

Definition at line 739 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
const ScalarType & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator() ( OrdinalType  rowIndex,
OrdinalType  colIndex
) const
inline

Element access method (const).

Returns the element in the ith row and jth column if A(i,j) is specified, the expression A[j][i] will return the same element.

Returns
Element from the specified rowIndex row and colIndex column.
Warning
The validity of rowIndex and colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.

Definition at line 715 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
ScalarType* Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::values ( ) const
inline

Column access method (non-const).

Returns the pointer to the ScalarType array at the jth column if A[j] is specified, the expression A[j][i] will return the same element as A(i,j).

Returns
Pointer to the ScalarType array at the colIndex column ( values_+colIndex*stride_ ).
Warning
The validity of colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.Column access method (const).

Returns the pointer to the ScalarType array at the jth column if A[j] is specified, the expression A[j][i] will return the same element as A(i,j).

Returns
Pointer to the ScalarType array at the colIndex column ( values_+colIndex*stride_ ).
Warning
The validity of colIndex will only be checked if Teuchos is configured with –enable-teuchos-abc.Data array access method.
Returns
Pointer to the ScalarType data array contained in the object.

Definition at line 210 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
ScalarType* Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::D ( ) const
inline

Definition at line 212 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
ScalarType* Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::DL ( ) const
inline

Definition at line 213 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
ScalarType* Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::DU ( ) const
inline

Definition at line 214 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
ScalarType* Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::DU2 ( ) const
inline

Definition at line 215 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator+= ( const SerialTriDiMatrix< OrdinalType, ScalarType > &  Source)

Add another matrix to this matrix.

Add Source to this if the dimension of both matrices are the same. If not, this matrix will be returned unchanged.

Definition at line 670 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator-= ( const SerialTriDiMatrix< OrdinalType, ScalarType > &  Source)

Subtract another matrix from this matrix.

Subtract Source from this if the dimension of both matrices are the same. If not, this matrix will be returned unchanged.

Definition at line 682 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
SerialTriDiMatrix< OrdinalType, ScalarType > & Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator*= ( const ScalarType  alpha)

Scale this matrix by alpha; *this = alpha**this.

Parameters
alphaScalar to multiply this by.

Definition at line 856 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::scale ( const ScalarType  alpha)

Scale this matrix by alpha; *this = alpha**this.

Parameters
alphaScalar to multiply this by.
Returns
Integer error code, set to 0 if successful.

Definition at line 863 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
int Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::scale ( const SerialTriDiMatrix< OrdinalType, ScalarType > &  A)

Point-wise scale this matrix by A; i.e. *this(i,j) *= A(i,j)

The values of *this matrix will be point-wise scaled by the values in A. If A and this matrix are not the same dimension this will be returned unchanged.

Parameters
BTeuchos::SerialTriDiMatrix used to perform element-wise scaling of this.
Returns
Integer error code, set to 0 if successful.

Definition at line 874 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
bool Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator== ( const SerialTriDiMatrix< OrdinalType, ScalarType > &  Operand) const

Equality of two matrices.

Returns
True if this matrix and Operand are of the same shape (rows and columns) and have the same entries, else False will be returned.

Definition at line 828 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
bool Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::operator!= ( const SerialTriDiMatrix< OrdinalType, ScalarType > &  Operand) const

Inequality of two matrices.

Returns
True if this matrix and Operand of not of the same shape (rows and columns) or don't have the same entries, else False will be returned.

Definition at line 847 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
OrdinalType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::numRowsCols ( ) const
inline

Returns the row dimension of this matrix.

Definition at line 310 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
bool Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::empty ( ) const
inline

Returns the column dimension of this matrix.

Returns the stride between the columns of this matrix in memory. Returns whether this matrix is empty.

Definition at line 319 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
ScalarTraits< ScalarType >::magnitudeType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::normOne ( ) const

Returns the 1-norm of the matrix.

Definition at line 766 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
ScalarTraits< ScalarType >::magnitudeType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::normInf ( ) const

Returns the Infinity-norm of the matrix.

Definition at line 791 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
ScalarTraits< ScalarType >::magnitudeType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::normFrobenius ( ) const

Returns the Frobenius-norm of the matrix.

Definition at line 808 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
void Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::print ( std::ostream &  os) const
virtual

Print method. Defines the behavior of the std::ostream << operator inherited from the Object class.

Reimplemented from Teuchos::Object.

Definition at line 892 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
void Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::copyMat ( SerialTriDiMatrix< OrdinalType, ScalarType >  matrix,
OrdinalType  startCol,
ScalarType  alpha = ScalarTraits<ScalarType>::zero()
)
protected

Definition at line 970 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
void Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::deleteArrays ( void  )
protected

Definition at line 959 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType , typename ScalarType >
void Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::checkIndex ( OrdinalType  rowIndex,
OrdinalType  colIndex = 0
) const
inlineprotected

Definition at line 943 of file Teuchos_SerialTriDiMatrix.hpp.

Member Data Documentation

template<typename OrdinalType, typename ScalarType>
OrdinalType Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::numRowsCols_
protected

Definition at line 347 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
bool Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::valuesCopied_
protected

Definition at line 349 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
ScalarType* Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::values_
protected

Definition at line 350 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
ScalarType* Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::DL_
protected

Definition at line 351 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
ScalarType* Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::D_
protected

Definition at line 352 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
ScalarType* Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::DU_
protected

Definition at line 353 of file Teuchos_SerialTriDiMatrix.hpp.

template<typename OrdinalType, typename ScalarType>
ScalarType* Teuchos::SerialTriDiMatrix< OrdinalType, ScalarType >::DU2_
protected

Definition at line 354 of file Teuchos_SerialTriDiMatrix.hpp.


The documentation for this class was generated from the following file:
