An xml converter for RangeValidatorDependencies. More...

#include <Teuchos_StandardDependencyXMLConverters.hpp>

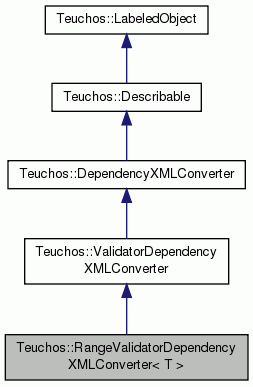

Inheritance diagram for Teuchos::RangeValidatorDependencyXMLConverter< T >:

Overridden from ValidatorDependencyConverter
void	convertSpecialValidatorAttributes (RCP< const ValidatorDependency > dependency, XMLObject &xmlObj, ValidatortoIDMap &validatorIDsMap) const

RCP< ValidatorDependency >	convertSpecialValidatorAttributes (const XMLObject &xmlObj, RCP< const ParameterEntry > dependee, const Dependency::ParameterEntryList dependents, const IDtoValidatorMap &validatorIDsMap) const

static const std::string &	getRangesAndValidatorsTag ()

Private Members
static const std::string &	getPairTag ()

static const std::string &	getMinAttributeName ()

static const std::string &	getMaxAttributeName ()

static const std::string &	getValidatorIdAttributeName ()

static const std::string &	getDefaultValidatorIdAttributeName ()

Additional Inherited Members
Public Member Functions inherited from Teuchos::ValidatorDependencyXMLConverter
RCP< Dependency >	convertXML (const XMLObject &xmlObj, const Dependency::ConstParameterEntryList dependees, const Dependency::ParameterEntryList dependets, const XMLParameterListReader::EntryIDsMap &entryIDsMap, const IDtoValidatorMap &validatorIDsMap) const

void	convertDependency (const RCP< const Dependency > dependency, XMLObject &xmlObj, const XMLParameterListWriter::EntryIDsMap &entryIDsMap, ValidatortoIDMap &validatorIDsMap) const

Public Member Functions inherited from Teuchos::DependencyXMLConverter
RCP< Dependency >	fromXMLtoDependency (const XMLObject &xmlObj, const XMLParameterListReader::EntryIDsMap &entryIDsMap, const IDtoValidatorMap &validatorIDsMap) const
	Converts a given XMLObject to a Dependency. More...

XMLObject	fromDependencytoXML (const RCP< const Dependency > dependency, const XMLParameterListWriter::EntryIDsMap &entryIDsMap, ValidatortoIDMap &validatorIDsMap) const
	Converters a given ParameterEntryValidator to XML. More...

Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const
	Return a simple one-line description of this object. More...

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Print the object with some verbosity level to a FancyOStream. More...

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Version of describe() that takes an std::ostream instead of a FancyOStream. More...

virtual	~Describable ()
	Destructor (marked virtual for memory safety of derived classes). More...

Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()
	Construct with an empty label. More...

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)
	Set the object label (see LabeledObject). More...

virtual std::string	getObjectLabel () const
	Get the object label (see LabeledObject). More...

Static Public Member Functions inherited from Teuchos::DependencyXMLConverter
static const std::string &	getDependeeTagName ()
	Returns the string to be used for the dependee tag. More...

static const std::string &	getDependentTagName ()
	Returns the string to be used for the dependent tag. More...

static const std::string &	getParameterIdAttributeName ()
	Returns the string to be used for the ParameterID attribute. More...

static const std::string &	getTypeAttributeName ()
	Returns the string to be used for the type attribute. More...

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default = VERB_DEFAULT
	Default value for the `verbLevel` argument of describe(). More...

Related Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
	Describable output stream manipulator. More...

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)
	Output stream operator for Describable manipulator. More...

Detailed Description

template<class T>
class Teuchos::RangeValidatorDependencyXMLConverter< T >

An xml converter for RangeValidatorDependencies.

The valid XML representation of a RangeValidatorDependency is:

<Dependency type="RangeValidatorDependency(number_type_of_dependee)"
  defaultValidatoId="id of default validator"
/>
  <Dependee parameterId="Id of dependee parameter"/>
  <Dependent parameterId="Id of dependent parameter"/>
  ...Any other dependent parameters...
  <RangesAndValidators>
    <Pair min="min value" max="max value"
      validatorId="Id of first mapped validator"/>
    <Pair min="min value" max="max value"
      validatorId="Id of second mapped validator"/>
    ...Other range-to-validator mappings...
  </RangesAndValidators>
  ...Optional function tag...
</Dependency>

The "defaultValidatorId" XML attribute is optional.

Definition at line 570 of file Teuchos_StandardDependencyXMLConverters.hpp.

Member Function Documentation

template<class T >

void Teuchos::RangeValidatorDependencyXMLConverter< T >::convertSpecialValidatorAttributes	(	RCP< const ValidatorDependency >	dependency,
		XMLObject &	xmlObj,
		ValidatortoIDMap &	validatorIDsMap
	)		const

virtual

Implements Teuchos::ValidatorDependencyXMLConverter.

Definition at line 642 of file Teuchos_StandardDependencyXMLConverters.hpp.

template<class T >

RCP< ValidatorDependency > Teuchos::RangeValidatorDependencyXMLConverter< T >::convertSpecialValidatorAttributes	(	const XMLObject &	xmlObj,
		RCP< const ParameterEntry >	dependee,
		const Dependency::ParameterEntryList	dependents,
		const IDtoValidatorMap &	validatorIDsMap
	)		const

virtual

Implements Teuchos::ValidatorDependencyXMLConverter.

Definition at line 687 of file Teuchos_StandardDependencyXMLConverters.hpp.

template<class T >

static const std::string& Teuchos::RangeValidatorDependencyXMLConverter< T >::getRangesAndValidatorsTag ( )

inlinestatic

Definition at line 592 of file Teuchos_StandardDependencyXMLConverters.hpp.

template<class T >

static const std::string& Teuchos::RangeValidatorDependencyXMLConverter< T >::getPairTag ( )

inlinestaticprivate

Definition at line 605 of file Teuchos_StandardDependencyXMLConverters.hpp.

template<class T >

static const std::string& Teuchos::RangeValidatorDependencyXMLConverter< T >::getMinAttributeName ( )

inlinestaticprivate

Definition at line 611 of file Teuchos_StandardDependencyXMLConverters.hpp.

template<class T >

static const std::string& Teuchos::RangeValidatorDependencyXMLConverter< T >::getMaxAttributeName ( )

inlinestaticprivate

Definition at line 617 of file Teuchos_StandardDependencyXMLConverters.hpp.

template<class T >

static const std::string& Teuchos::RangeValidatorDependencyXMLConverter< T >::getValidatorIdAttributeName ( )

inlinestaticprivate

Definition at line 624 of file Teuchos_StandardDependencyXMLConverters.hpp.

template<class T >

static const std::string& Teuchos::RangeValidatorDependencyXMLConverter< T >::getDefaultValidatorIdAttributeName ( )

inlinestaticprivate

Definition at line 630 of file Teuchos_StandardDependencyXMLConverters.hpp.

The documentation for this class was generated from the following file:

Teuchos_StandardDependencyXMLConverters.hpp
