Teuchos::ParameterEntryXMLConverter Class Reference

A class used to convert parameter entries to xml and vice versa. More...

#include <Teuchos_ParameterEntryXMLConverter.hpp>

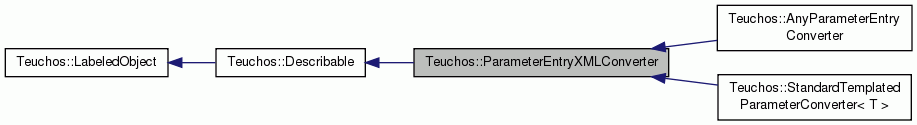

Inheritance diagram for Teuchos::ParameterEntryXMLConverter:

Converter Functions
ParameterEntry	fromXMLtoParameterEntry (const XMLObject &xmlObj) const
	Converts the given xml into a parameter entry. More...
XMLObject	fromParameterEntrytoXML (RCP< const ParameterEntry > entry, const std::string &name, const ParameterEntry::ParameterEntryID &id, const ValidatortoIDMap &validatorIDsMap) const
	Converts the given parameter entry to xml. More...
virtual any	getAny (const XMLObject &xmlObj) const =0

Attribute/Query Methods
virtual const std::string	getTypeAttributeValue () const =0
	Gets a string representing the value that should be assigned to the "type" attribute when converting a parameter entry to xml. More...
virtual const std::string	getValueAttributeValue (RCP< const ParameterEntry > entry) const =0
	Gets the value to be assigned to the "value" attribute when converting the paramter entry to xml. More...
static const std::string &	getTypeAttributeName ()
static const std::string &	getIdAttributeName ()
static const std::string &	getValueAttributeName ()

Private Members
static const std::string &	getDefaultAttributeName ()
static const std::string &	getUsedAttributeName ()
static const std::string &	getDocStringAttributeName ()

Additional Inherited Members
Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const
	Return a simple one-line description of this object. More...
virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Print the object with some verbosity level to a FancyOStream. More...
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Version of describe() that takes an std::ostream instead of a FancyOStream. More...
virtual	~Describable ()
	Destructor (marked virtual for memory safety of derived classes). More...
Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()
	Construct with an empty label. More...
virtual	~LabeledObject ()
virtual void	setObjectLabel (const std::string &objectLabel)
	Set the object label (see LabeledObject). More...
virtual std::string	getObjectLabel () const
	Get the object label (see LabeledObject). More...
Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default = VERB_DEFAULT
	Default value for the verbLevel argument of describe(). More...
Related Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
	Describable output stream manipulator. More...
std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)
	Output stream operator for Describable manipulator. More...

Detailed Description

A class used to convert parameter entries to xml and vice versa.

Definition at line 29 of file Teuchos_ParameterEntryXMLConverter.hpp.

Member Function Documentation

ParameterEntry Teuchos::ParameterEntryXMLConverter::fromXMLtoParameterEntry

(

const XMLObject &

xmlObj

)

const

Converts the given xml into a parameter entry.

Parameters

xmlObj

The xml to be converted to a parameter entry.

Returns

A ParameterEntry with the aspects specified by the xml.

Definition at line 20 of file Teuchos_ParameterEntryXMLConverter.cpp.

XMLObject Teuchos::ParameterEntryXMLConverter::fromParameterEntrytoXML	(	RCP< const ParameterEntry >	entry,
		const std::string &	name,
		const ParameterEntry::ParameterEntryID &	id,
		const ValidatortoIDMap &	validatorIDsMap
	)		const

Converts the given parameter entry to xml.

Parameters

entry	The parameter entry to convert to xml.
name	The name associated with the parameter entry.

Returns

An XMLObject representing the parameter entry.

Definition at line 76 of file Teuchos_ParameterEntryXMLConverter.cpp.

virtual any Teuchos::ParameterEntryXMLConverter::getAny ( const XMLObject &  xmlObj ) const

pure virtual

Implemented in Teuchos::StandardTemplatedParameterConverter< T >, and Teuchos::AnyParameterEntryConverter.

virtual const std::string Teuchos::ParameterEntryXMLConverter::getTypeAttributeValue ( ) const

pure virtual

Gets a string representing the value that should be assigned to the "type" attribute when converting a parameter entry to xml.

Returns

The value to be assigned to the "type" attribute when converting a parameter entry to xml.

Implemented in Teuchos::StandardTemplatedParameterConverter< T >, and Teuchos::AnyParameterEntryConverter.

virtual const std::string Teuchos::ParameterEntryXMLConverter::getValueAttributeValue ( RCP< const ParameterEntry >  entry ) const

pure virtual

Gets the value to be assigned to the "value" attribute when converting the paramter entry to xml.

Parameters

entry

The entry being converted.

Returns

The value to be assigned to the "value" attribute when converting the parameter entry to xml.

Implemented in Teuchos::StandardTemplatedParameterConverter< T >, and Teuchos::AnyParameterEntryConverter.

static const std::string& Teuchos::ParameterEntryXMLConverter::getTypeAttributeName ( )

inlinestatic

Definition at line 82 of file Teuchos_ParameterEntryXMLConverter.hpp.

static const std::string& Teuchos::ParameterEntryXMLConverter::getIdAttributeName ( )

inlinestatic

Definition at line 88 of file Teuchos_ParameterEntryXMLConverter.hpp.

static const std::string& Teuchos::ParameterEntryXMLConverter::getValueAttributeName ( )

inlinestatic

Definition at line 94 of file Teuchos_ParameterEntryXMLConverter.hpp.

static const std::string& Teuchos::ParameterEntryXMLConverter::getDefaultAttributeName ( )

inlinestaticprivate

Definition at line 107 of file Teuchos_ParameterEntryXMLConverter.hpp.

static const std::string& Teuchos::ParameterEntryXMLConverter::getUsedAttributeName ( )

inlinestaticprivate

Definition at line 113 of file Teuchos_ParameterEntryXMLConverter.hpp.

static const std::string& Teuchos::ParameterEntryXMLConverter::getDocStringAttributeName ( )

inlinestaticprivate

Definition at line 119 of file Teuchos_ParameterEntryXMLConverter.hpp.

---

The documentation for this class was generated from the following files:

• Teuchos_ParameterEntryXMLConverter.hpp
• Teuchos_ParameterEntryXMLConverter.cpp
