An abstract base class for converting Dependencies to and from XML. More...

#include <Teuchos_ConditionXMLConverter.hpp>

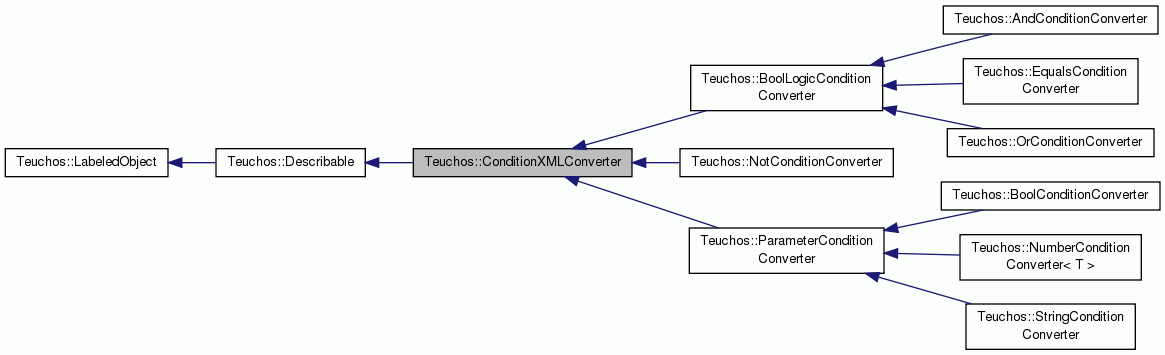

Inheritance diagram for Teuchos::ConditionXMLConverter:

Converter Functions
RCP< Condition >	fromXMLtoCondition (const XMLObject &xmlObj, const XMLParameterListReader::EntryIDsMap &entryIDsMap) const
	Converts a given XMLObject to a Condition. More...

virtual RCP< Condition >	convertXML (const XMLObject &xmlObj, const XMLParameterListReader::EntryIDsMap &entryIDsMap) const =0
	Preforms any and all special xml conversion that is specific to a particular Condition. More...

XMLObject	fromConditiontoXML (const RCP< const Condition > condition, const XMLParameterListWriter::EntryIDsMap &entryIDsMap) const
	Converters a given ParameterEntryValidator to XML. More...

virtual void	convertCondition (const RCP< const Condition > condition, XMLObject &xmlObj, const XMLParameterListWriter::EntryIDsMap &entryIDsMap) const =0
	Preforms any and all special condition conversion that is specific to a particlar Condition. More...

Attribute/Query Functions
static const std::string &	getTypeAttributeName ()
	Returns the string to be used for the type attribute. More...

Additional Inherited Members
Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const
	Return a simple one-line description of this object. More...

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Print the object with some verbosity level to a FancyOStream. More...

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Version of describe() that takes an std::ostream instead of a FancyOStream. More...

virtual	~Describable ()
	Destructor (marked virtual for memory safety of derived classes). More...

Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()
	Construct with an empty label. More...

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)
	Set the object label (see LabeledObject). More...

virtual std::string	getObjectLabel () const
	Get the object label (see LabeledObject). More...

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default = VERB_DEFAULT
	Default value for the `verbLevel` argument of describe(). More...

Related Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
	Describable output stream manipulator. More...

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)
	Output stream operator for Describable manipulator. More...

Detailed Description

An abstract base class for converting Dependencies to and from XML.

Definition at line 31 of file Teuchos_ConditionXMLConverter.hpp.

Member Function Documentation

RCP< Condition > Teuchos::ConditionXMLConverter::fromXMLtoCondition	(	const XMLObject &	xmlObj,
		const XMLParameterListReader::EntryIDsMap &	entryIDsMap
	)		const

Converts a given XMLObject to a Condition.

Parameters

xmlObj	The XMLObject to convert to a Condition.
entryIDsMap	A map containing ParameterEntrys and their assocaited

Returns: The converted Condition.

Definition at line 17 of file Teuchos_ConditionXMLConverter.cpp.

virtual RCP<Condition> Teuchos::ConditionXMLConverter::convertXML	(	const XMLObject &	xmlObj,
		const XMLParameterListReader::EntryIDsMap &	entryIDsMap
	)		const

pure virtual

Preforms any and all special xml conversion that is specific to a particular Condition.

Parameters

xmlObj	The xml to be converted. in which this resulting condition will be inserted.
entryIDsMap	A map containing ParameterEntrys and their assocaited

Returns: The converted Condition.

Implemented in Teuchos::ParameterConditionConverter, Teuchos::NotConditionConverter, and Teuchos::BoolLogicConditionConverter.

XMLObject Teuchos::ConditionXMLConverter::fromConditiontoXML	(	const RCP< const Condition >	condition,
		const XMLParameterListWriter::EntryIDsMap &	entryIDsMap
	)		const

Converters a given ParameterEntryValidator to XML.

Parameters

condition	The Condition to be converted to XML.
entryIDsMap	A map containing ParameterEntrys and their assocaited

Returns: An XML representation of the given Condition.

Definition at line 24 of file Teuchos_ConditionXMLConverter.cpp.

virtual void Teuchos::ConditionXMLConverter::convertCondition	(	const RCP< const Condition >	condition,
		XMLObject &	xmlObj,
		const XMLParameterListWriter::EntryIDsMap &	entryIDsMap
	)		const

pure virtual

Preforms any and all special condition conversion that is specific to a particlar Condition.

Parameters

condition	The Condition to be converted.
xmlObj	The xml representation of the condition on to which all children should be attached and attributes added.
entryIDsMap	A map containing ParameterEntrys and their assocaited

Returns: An XML representation of the given Condition.

Implemented in Teuchos::ParameterConditionConverter, Teuchos::NotConditionConverter, and Teuchos::BoolLogicConditionConverter.

static const std::string& Teuchos::ConditionXMLConverter::getTypeAttributeName ( )

inlinestatic

Returns the string to be used for the type attribute.

Definition at line 95 of file Teuchos_ConditionXMLConverter.hpp.
