An xml converter for ConditionVisualDependencies. More...

#include <Teuchos_StandardDependencyXMLConverters.hpp>

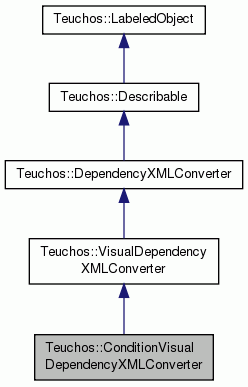

Inheritance diagram for Teuchos::ConditionVisualDependencyXMLConverter:

Overridden from VisualDependencyConverter
void	convertSpecialVisualAttributes (RCP< const VisualDependency > dependency, XMLObject &xmlObj, const XMLParameterListWriter::EntryIDsMap &entryIDsMap) const

RCP< VisualDependency >	convertSpecialVisualAttributes (const XMLObject &xmlObj, const Dependency::ConstParameterEntryList dependees, const Dependency::ParameterEntryList dependets, bool showIf, const XMLParameterListReader::EntryIDsMap &entryIDsMap) const

Additional Inherited Members
Public Member Functions inherited from Teuchos::VisualDependencyXMLConverter
RCP< Dependency >	convertXML (const XMLObject &xmlObj, const Dependency::ConstParameterEntryList dependees, const Dependency::ParameterEntryList dependets, const XMLParameterListReader::EntryIDsMap &entryIDsMap, const IDtoValidatorMap &validatorIDsMap) const

void	convertDependency (const RCP< const Dependency > dependency, XMLObject &xmlObj, const XMLParameterListWriter::EntryIDsMap &entryIDsMap, ValidatortoIDMap &validatorIDsMap) const

Public Member Functions inherited from Teuchos::DependencyXMLConverter
RCP< Dependency >	fromXMLtoDependency (const XMLObject &xmlObj, const XMLParameterListReader::EntryIDsMap &entryIDsMap, const IDtoValidatorMap &validatorIDsMap) const
	Converts a given XMLObject to a Dependency. More...

XMLObject	fromDependencytoXML (const RCP< const Dependency > dependency, const XMLParameterListWriter::EntryIDsMap &entryIDsMap, ValidatortoIDMap &validatorIDsMap) const
	Converters a given ParameterEntryValidator to XML. More...

Public Member Functions inherited from Teuchos::Describable
virtual std::string	description () const
	Return a simple one-line description of this object. More...

virtual void	describe (FancyOStream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Print the object with some verbosity level to a FancyOStream. More...

void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const
	Version of describe() that takes an std::ostream instead of a FancyOStream. More...

virtual	~Describable ()
	Destructor (marked virtual for memory safety of derived classes). More...

Public Member Functions inherited from Teuchos::LabeledObject
	LabeledObject ()
	Construct with an empty label. More...

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)
	Set the object label (see LabeledObject). More...

virtual std::string	getObjectLabel () const
	Get the object label (see LabeledObject). More...

Static Public Member Functions inherited from Teuchos::DependencyXMLConverter
static const std::string &	getDependeeTagName ()
	Returns the string to be used for the dependee tag. More...

static const std::string &	getDependentTagName ()
	Returns the string to be used for the dependent tag. More...

static const std::string &	getParameterIdAttributeName ()
	Returns the string to be used for the ParameterID attribute. More...

static const std::string &	getTypeAttributeName ()
	Returns the string to be used for the type attribute. More...

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default = VERB_DEFAULT
	Default value for the `verbLevel` argument of describe(). More...

Related Functions inherited from Teuchos::Describable
DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)
	Describable output stream manipulator. More...

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)
	Output stream operator for Describable manipulator. More...

Detailed Description

An xml converter for ConditionVisualDependencies.

The valid XML representation of a ConditionVisualDependency is:

<Dependency showIf="showIf value" type="ConditionVisualDependency">
  <Dependee parameterId="Id of first dependee parameter"/>
  <Dependee parameterId="id of second dependee parameter"/>
  ...Any additional dependees...
  <Dependent parameterId="Id of dependent"/>
  ...Any additional dependents...
  ...Condition Tag and it's children...
</Dependency>

The "showIf" XML attribute is optional and if not present will be considered true.

Definition at line 377 of file Teuchos_StandardDependencyXMLConverters.hpp.

Member Function Documentation

void Teuchos::ConditionVisualDependencyXMLConverter::convertSpecialVisualAttributes	(	RCP< const VisualDependency >	dependency,
		XMLObject &	xmlObj,
		const XMLParameterListWriter::EntryIDsMap &	entryIDsMap
	)		const

virtual

Implements Teuchos::VisualDependencyXMLConverter.

Definition at line 153 of file Teuchos_StandardDependencyXMLConverters.cpp.

RCP< VisualDependency > Teuchos::ConditionVisualDependencyXMLConverter::convertSpecialVisualAttributes	(	const XMLObject &	xmlObj,
		const Dependency::ConstParameterEntryList	dependees,
		const Dependency::ParameterEntryList	dependets,
		bool	showIf,
		const XMLParameterListReader::EntryIDsMap &	entryIDsMap
	)		const

virtual

Implements Teuchos::VisualDependencyXMLConverter.

Definition at line 166 of file Teuchos_StandardDependencyXMLConverters.cpp.

The documentation for this class was generated from the following files:
