A virtual class that simplifies the construction of custom operators. More...

#include <Teko_ImplicitLinearOp.hpp>

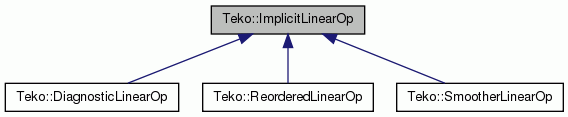

Inheritance diagram for Teko::ImplicitLinearOp:

Public Member Functions
virtual VectorSpace	range () const =0
	Range space of this operator. More...

virtual VectorSpace	domain () const =0
	Domain space of this operator. More...

virtual void	implicitApply (const MultiVector &x, MultiVector &y, const double alpha=1.0, const double beta=0.0) const =0
	Perform a matrix vector multiply with this implicitly defined blocked operator. More...

Protected Member Functions

virtual bool	opSupportedImpl (const Thyra::EOpTransp M_trans) const
	Functions required by Thyra::LinearOpBase. More...

Detailed Description

A virtual class that simplifies the construction of custom operators.

Definition at line 23 of file Teko_ImplicitLinearOp.hpp.

Member Function Documentation

virtual VectorSpace Teko::ImplicitLinearOp::range ( ) const

pure virtual

Range space of this operator.

Implemented in Teko::DiagnosticLinearOp, Teko::ReorderedLinearOp, and Teko::SmootherLinearOp.

virtual VectorSpace Teko::ImplicitLinearOp::domain ( ) const

pure virtual

Domain space of this operator.

Implemented in Teko::DiagnosticLinearOp, Teko::ReorderedLinearOp, and Teko::SmootherLinearOp.

virtual void Teko::ImplicitLinearOp::implicitApply	(	const MultiVector &	x,
		MultiVector &	y,
		const double	alpha = `1.0`,
		const double	beta = `0.0`
	)		const

pure virtual

Perform a matrix vector multiply with this implicitly defined blocked operator.

The apply function takes one vector as input and applies a linear operator. The result is returned in $y$ . If this operator is reprsented as $M$ then $y = \alpha M x + \beta y$

Parameters

[in]	x
[in,out]	y
[in]	alpha	(default=1)
[in]	beta	(default=0)

Implemented in Teko::DiagnosticLinearOp, Teko::ReorderedLinearOp, and Teko::SmootherLinearOp.

bool Teko::ImplicitLinearOp::opSupportedImpl ( const Thyra::EOpTransp M_trans ) const

protectedvirtual

Functions required by Thyra::LinearOpBase.

Definition at line 21 of file Teko_ImplicitLinearOp.cpp.

The documentation for this class was generated from the following files:
