An Epetra operator representing the block stochastic Galerkin operator generated by fully assembling the matrix. The ordering of this operator is interlaced. That means that all stochastic degrees of freedom associated with a deterministic degree of freedom are interlaced. The result is a large sparse matrix that is composed of small (relatively) dense blocks. More...

#include <Stokhos_InterlacedOperator.hpp>

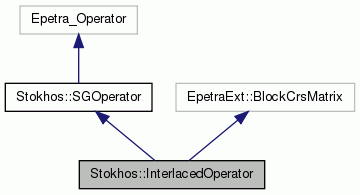

Inheritance diagram for Stokhos::InterlacedOperator:

[legend]

Collaboration diagram for Stokhos::InterlacedOperator:

[legend]

Public Member Functions
	InterlacedOperator (const Teuchos::RCP< const EpetraExt::MultiComm > &sg_comm, const Teuchos::RCP< const Stokhos::OrthogPolyBasis< int, double > > &sg_basis, const Teuchos::RCP< const Stokhos::EpetraSparse3Tensor > &epetraCijk, const Teuchos::RCP< const Epetra_CrsGraph > &base_graph, const Teuchos::RCP< Teuchos::ParameterList > &params)
	Constructor.

virtual	~InterlacedOperator ()
	Destructor.

void	SumIntoGlobalBlock_Deterministic (double alpha, const Epetra_RowMatrix &determBlock, int Row, int Col)
	Sum into global matrix.

Stokhos::SGOperator methods
virtual void	setupOperator (const Teuchos::RCP< Stokhos::EpetraOperatorOrthogPoly > &poly)
	Setup operator.

virtual Teuchos::RCP < Stokhos::EpetraOperatorOrthogPoly >	getSGPolynomial ()
	Get SG polynomial.

virtual Teuchos::RCP< const Stokhos::EpetraOperatorOrthogPoly >	getSGPolynomial () const
	Get SG polynomial.

Public Member Functions inherited from Stokhos::SGOperator
	SGOperator ()
	Constructor.

virtual	~SGOperator ()
	Destructor.

Protected Types
typedef Stokhos::Sparse3Tensor < int, double >	Cijk_type
	Short-hand for Cijk.

Protected Attributes
Teuchos::RCP< const EpetraExt::MultiComm >	sg_comm
	Stores SG parallel communicator.

Teuchos::RCP< const Stokhos::OrthogPolyBasis< int, double > >	sg_basis
	Stochastic Galerking basis.

Teuchos::RCP< const Stokhos::EpetraSparse3Tensor >	epetraCijk
	Stores Epetra Cijk tensor.

Teuchos::RCP< const Cijk_type >	Cijk
	Stores triple product tensor.

Teuchos::RCP < Stokhos::EpetraOperatorOrthogPoly >	block_ops
	Stores operators.

bool	scale_op
	Flag indicating whether operator be scaled with <^2>

bool	include_mean
	Flag indicating whether to include mean term.

bool	only_use_linear
	Flag indicating whether to only use linear terms.

int	determOffset_

Detailed Description

An Epetra operator representing the block stochastic Galerkin operator generated by fully assembling the matrix. The ordering of this operator is interlaced. That means that all stochastic degrees of freedom associated with a deterministic degree of freedom are interlaced. The result is a large sparse matrix that is composed of small (relatively) dense blocks.

The documentation for this class was generated from the following files:

Stokhos_InterlacedOperator.hpp
Stokhos_InterlacedOperator.cpp
