Abstract base class for 1-D orthogonal polynomials. More...

#include <Stokhos_OneDOrthogPolyBasis.hpp>

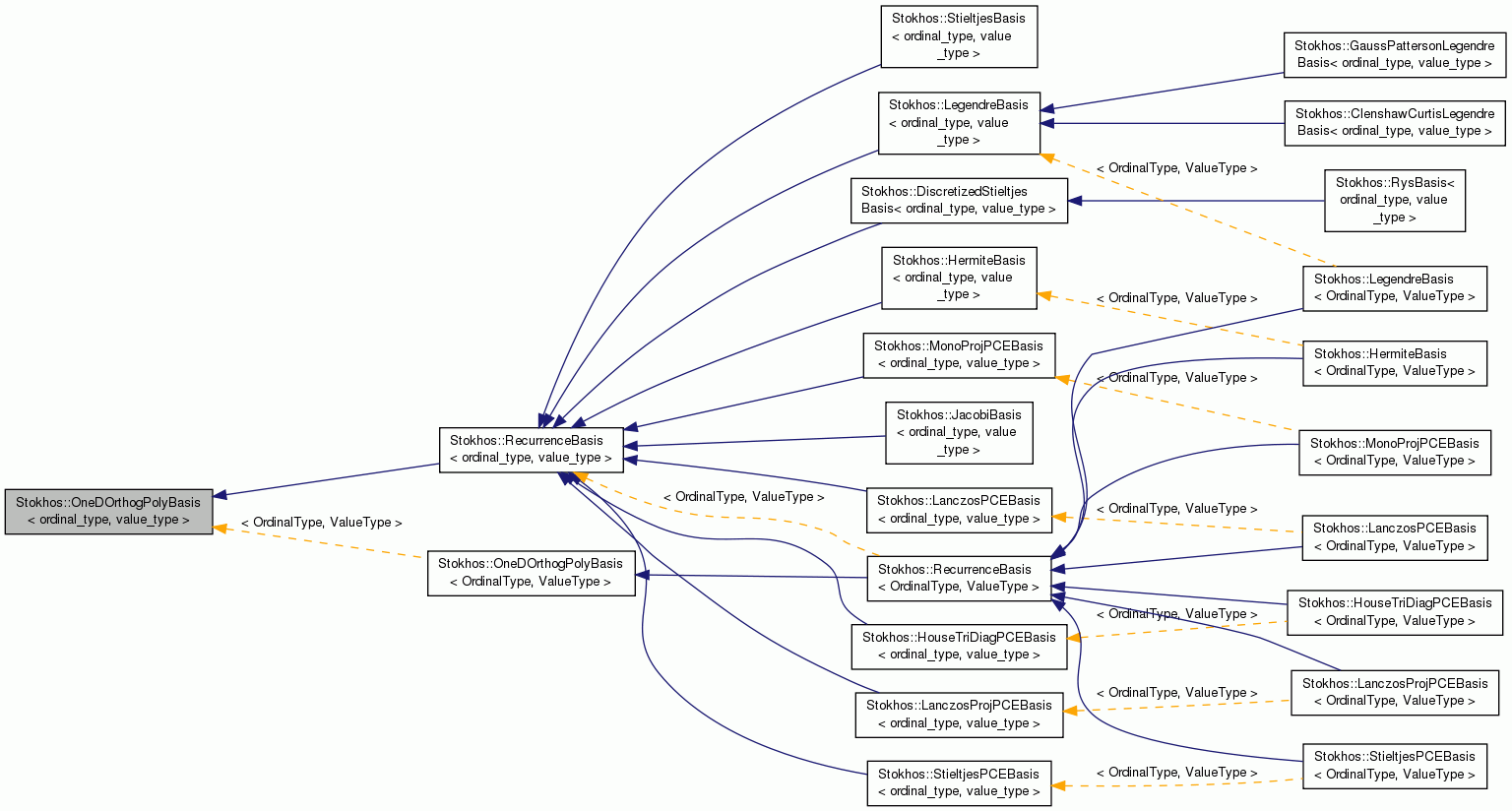

Inheritance diagram for Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >:

Public Types
typedef int(*	LevelToOrderFnPtr )(int level, int growth)
	Function pointer needed for level_to_order mappings. More...

Public Member Functions
	OneDOrthogPolyBasis ()
	Default constructor. More...

virtual	~OneDOrthogPolyBasis ()
	Destructor. More...

virtual ordinal_type	order () const =0
	Return order of basis (largest monomial degree ). More...

virtual ordinal_type	size () const =0
	Return total size of basis (given by order() + 1). More...

virtual const Teuchos::Array < value_type > &	norm_squared () const =0
	Return array storing norm-squared of each basis polynomial. More...

virtual const value_type &	norm_squared (ordinal_type i) const =0
	Return norm squared of basis polynomial `i`. More...

virtual Teuchos::RCP < Stokhos::Dense3Tensor < ordinal_type, value_type > >	computeTripleProductTensor () const =0
	Compute triple product tensor. More...

virtual Teuchos::RCP < Stokhos::Sparse3Tensor < ordinal_type, value_type > >	computeSparseTripleProductTensor (ordinal_type order) const =0
	Compute triple product tensor. More...

virtual Teuchos::RCP < Teuchos::SerialDenseMatrix < ordinal_type, value_type > >	computeDerivDoubleProductTensor () const =0
	Compute derivative double product tensor. More...

virtual void	evaluateBases (const value_type &point, Teuchos::Array< value_type > &basis_pts) const =0
	Evaluate each basis polynomial at given point `point`. More...

virtual value_type	evaluate (const value_type &point, ordinal_type order) const =0
	Evaluate basis polynomial given by order `order` at given point `point`. More...

virtual void	print (std::ostream &os) const
	Print basis to stream `os`. More...

virtual const std::string &	getName () const =0
	Return string name of basis. More...

virtual void	getQuadPoints (ordinal_type quad_order, Teuchos::Array< value_type > &points, Teuchos::Array< value_type > &weights, Teuchos::Array< Teuchos::Array< value_type > > &values) const =0
	Compute quadrature points, weights, and values of basis polynomials at given set of points `points`. More...

virtual ordinal_type	quadDegreeOfExactness (ordinal_type n) const =0

virtual Teuchos::RCP < OneDOrthogPolyBasis < ordinal_type, value_type > >	cloneWithOrder (ordinal_type p) const =0
	Clone this object with the option of building a higher order basis. More...

virtual ordinal_type	coefficientGrowth (ordinal_type n) const =0
	Evaluate coefficient growth rule for Smolyak-type bases. More...

virtual ordinal_type	pointGrowth (ordinal_type n) const =0
	Evaluate point growth rule for Smolyak-type bases. More...

virtual LevelToOrderFnPtr	getSparseGridGrowthRule () const =0
	Get sparse grid level_to_order mapping function. More...

virtual void	setSparseGridGrowthRule (LevelToOrderFnPtr ptr)=0
	Set sparse grid rule. More...

Private Member Functions
	OneDOrthogPolyBasis (const OneDOrthogPolyBasis &)

OneDOrthogPolyBasis &	operator= (const OneDOrthogPolyBasis &b)

Detailed Description

template<typename ordinal_type, typename value_type>
class Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >

Abstract base class for 1-D orthogonal polynomials.

This class provides an abstract interface for univariate orthogonal polynomials. Orthogonality is defined by the inner product

$(f,g) = \langle fg \rangle = \int_{-\infty}^{\infty} f(x)g(x) \rho(x) dx$

where $\rho$ is the density function of the measure associated with the orthogonal polynomials. See Stokhos::RecurrenceBasis for a general implementation of this interface based on the three-term recurrence satisfied by these polynomials. Multivariate polynomials can be formed from a collection of univariate polynomials through tensor products (see Stokhos::CompletePolynomialBasis).

Like most classes in Stokhos, the class is templated on the ordinal and value types. Typically ordinal_type = int and value_type = double.

Definition at line 49 of file Stokhos_OneDOrthogPolyBasis.hpp.

Member Typedef Documentation

template<typename ordinal_type, typename value_type>

typedef int( * Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::LevelToOrderFnPtr)(int level, int growth)

Function pointer needed for level_to_order mappings.

Definition at line 172 of file Stokhos_OneDOrthogPolyBasis.hpp.

Constructor & Destructor Documentation

template<typename ordinal_type, typename value_type>

Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::OneDOrthogPolyBasis ( )

inline

Default constructor.

Definition at line 53 of file Stokhos_OneDOrthogPolyBasis.hpp.

template<typename ordinal_type, typename value_type>

virtual Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::~OneDOrthogPolyBasis ( )

inlinevirtual

Destructor.

Definition at line 56 of file Stokhos_OneDOrthogPolyBasis.hpp.

template<typename ordinal_type, typename value_type>

Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::OneDOrthogPolyBasis ( const OneDOrthogPolyBasis< ordinal_type, value_type > & )

private

Member Function Documentation

template<typename ordinal_type, typename value_type>

virtual ordinal_type Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::order ( ) const

pure virtual

Return order of basis (largest monomial degree $P$ ).

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, and Stokhos::RecurrenceBasis< OrdinalType, ValueType >.

template<typename ordinal_type, typename value_type>

virtual ordinal_type Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::size ( ) const

pure virtual

Return total size of basis (given by order() + 1).

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, and Stokhos::RecurrenceBasis< OrdinalType, ValueType >.

template<typename ordinal_type, typename value_type>

virtual const Teuchos::Array<value_type>& Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::norm_squared ( ) const

pure virtual

Return array storing norm-squared of each basis polynomial.

Entry $l$ of returned array is given by $\langle\psi_l^2\rangle$ for $l=0,\dots,P$ where $P$ is given by order().

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, and Stokhos::RecurrenceBasis< OrdinalType, ValueType >.

template<typename ordinal_type, typename value_type>

virtual const value_type& Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::norm_squared ( ordinal_type i ) const

pure virtual

Return norm squared of basis polynomial i.

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, and Stokhos::RecurrenceBasis< OrdinalType, ValueType >.

template<typename ordinal_type, typename value_type>

virtual Teuchos::RCP< Stokhos::Dense3Tensor<ordinal_type, value_type> > Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::computeTripleProductTensor ( ) const

pure virtual

Compute triple product tensor.

The $(i,j,k)$ entry of the tensor $C_{ijk}$ is given by $C_{ijk} = \langle\Psi_i\Psi_j\Psi_k\rangle$ where $\Psi_l$ represents basis polynomial $l$ and $i,j=0,\dots,P$ where $P$ is size()-1 and $k=0,\dots,p$ where $p$ is the supplied order.

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, and Stokhos::RecurrenceBasis< OrdinalType, ValueType >.

template<typename ordinal_type, typename value_type>

virtual Teuchos::RCP< Stokhos::Sparse3Tensor<ordinal_type, value_type> > Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::computeSparseTripleProductTensor ( ordinal_type order ) const

pure virtual

Compute triple product tensor.

The $(i,j,k)$ entry of the tensor $C_{ijk}$ is given by $C_{ijk} = \langle\Psi_i\Psi_j\Psi_k\rangle$ where $\Psi_l$ represents basis polynomial $l$ and $i,j=0,\dots,P$ where $P$ is size()-1 and $k=0,\dots,p$ where $p$ is the supplied order.

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, and Stokhos::RecurrenceBasis< OrdinalType, ValueType >.

template<typename ordinal_type, typename value_type>

virtual Teuchos::RCP< Teuchos::SerialDenseMatrix<ordinal_type, value_type> > Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::computeDerivDoubleProductTensor ( ) const

pure virtual

Compute derivative double product tensor.

The $(i,j)$ entry of the tensor $B_{ij}$ is given by $B_{ij} = \langle\psi_i'\psi_j\rangle$ where $\psi_l$ represents basis polynomial $l$ and $i,j=0,\dots,P$ where $P$ is the order of the basis.

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, and Stokhos::RecurrenceBasis< OrdinalType, ValueType >.

template<typename ordinal_type, typename value_type>

virtual void Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::evaluateBases	(	const value_type &	point,
		Teuchos::Array< value_type > &	basis_pts
	)		const

pure virtual

Evaluate each basis polynomial at given point point.

Size of returned array is given by size(), and coefficients are ordered from order 0 up to order order().

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, and Stokhos::RecurrenceBasis< OrdinalType, ValueType >.

template<typename ordinal_type, typename value_type>

virtual value_type Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::evaluate	(	const value_type &	point,
		ordinal_type	order
	)		const

pure virtual

Evaluate basis polynomial given by order order at given point point.

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, and Stokhos::RecurrenceBasis< OrdinalType, ValueType >.

template<typename ordinal_type, typename value_type>

virtual void Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::print ( std::ostream & os ) const

inlinevirtual

Print basis to stream os.

Reimplemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, and Stokhos::RecurrenceBasis< OrdinalType, ValueType >.

Definition at line 125 of file Stokhos_OneDOrthogPolyBasis.hpp.

template<typename ordinal_type, typename value_type>

virtual const std::string& Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::getName ( ) const

pure virtual

Return string name of basis.

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, and Stokhos::RecurrenceBasis< OrdinalType, ValueType >.

template<typename ordinal_type, typename value_type>

virtual void Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::getQuadPoints	(	ordinal_type	quad_order,
		Teuchos::Array< value_type > &	points,
		Teuchos::Array< value_type > &	weights,
		Teuchos::Array< Teuchos::Array< value_type > > &	values
	)		const

pure virtual

Compute quadrature points, weights, and values of basis polynomials at given set of points points.

quad_order specifies the order to which the quadrature should be accurate, not the number of quadrature points. The number of points is given by (quad_order + 1) / 2. Note however the passed arrays do NOT need to be sized correctly on input as they will be resized appropriately.

template<typename ordinal_type, typename value_type>

virtual ordinal_type Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::quadDegreeOfExactness ( ordinal_type n ) const

pure virtual

Return polynomial degree of exactness for a given number of quadrature points.

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, Stokhos::RecurrenceBasis< OrdinalType, ValueType >, Stokhos::ClenshawCurtisLegendreBasis< ordinal_type, value_type >, and Stokhos::GaussPattersonLegendreBasis< ordinal_type, value_type >.

template<typename ordinal_type, typename value_type>

virtual Teuchos::RCP<OneDOrthogPolyBasis<ordinal_type,value_type> > Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::cloneWithOrder ( ordinal_type p ) const

pure virtual

Clone this object with the option of building a higher order basis.

This method is following the Prototype pattern (see Design Pattern's textbook). The slight variation is that it allows the order of the polynomial to be modified, otherwise an exact copy is formed. The use case for this is creating basis functions for column indices in a spatially varying adaptive refinement context.

template<typename ordinal_type, typename value_type>

virtual ordinal_type Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::coefficientGrowth ( ordinal_type n ) const

pure virtual

Evaluate coefficient growth rule for Smolyak-type bases.

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, Stokhos::RecurrenceBasis< OrdinalType, ValueType >, Stokhos::ClenshawCurtisLegendreBasis< ordinal_type, value_type >, and Stokhos::GaussPattersonLegendreBasis< ordinal_type, value_type >.

template<typename ordinal_type, typename value_type>

virtual ordinal_type Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::pointGrowth ( ordinal_type n ) const

pure virtual

Evaluate point growth rule for Smolyak-type bases.

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, Stokhos::RecurrenceBasis< OrdinalType, ValueType >, Stokhos::ClenshawCurtisLegendreBasis< ordinal_type, value_type >, and Stokhos::GaussPattersonLegendreBasis< ordinal_type, value_type >.

template<typename ordinal_type, typename value_type>

virtual LevelToOrderFnPtr Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::getSparseGridGrowthRule ( ) const

pure virtual

Get sparse grid level_to_order mapping function.

Predefined functions are: webbur::level_to_order_linear_wn Symmetric Gaussian linear growth webbur::level_to_order_linear_nn Asymmetric Gaussian linear growth webbur::level_to_order_exp_cc Clenshaw-Curtis exponential growth webbur::level_to_order_exp_gp Gauss-Patterson exponential growth webbur::level_to_order_exp_hgk Genz-Keister exponential growth webbur::level_to_order_exp_f2 Fejer-2 exponential growth

Implemented in Stokhos::RecurrenceBasis< ordinal_type, value_type >, and Stokhos::RecurrenceBasis< OrdinalType, ValueType >.

template<typename ordinal_type, typename value_type>

virtual void Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::setSparseGridGrowthRule ( LevelToOrderFnPtr ptr )

pure virtual

Set sparse grid rule.

template<typename ordinal_type, typename value_type>

OneDOrthogPolyBasis& Stokhos::OneDOrthogPolyBasis< ordinal_type, value_type >::operator= ( const OneDOrthogPolyBasis< ordinal_type, value_type > & b )

private

The documentation for this class was generated from the following file:

Stokhos_OneDOrthogPolyBasis.hpp
