#include <Panzer_STK_CubeTetMeshFactory.hpp>

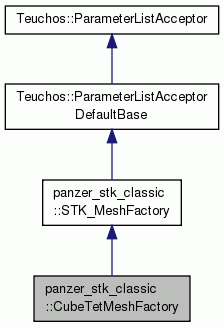

Inheritance diagram for panzer_stk_classic::CubeTetMeshFactory:

Public Member Functions
	CubeTetMeshFactory ()
	Constructor. More...

virtual	~CubeTetMeshFactory ()
	Destructor. More...

Teuchos::RCP< STK_Interface >	buildMesh (stk_classic::ParallelMachine parallelMach) const
	Build the mesh object. More...

virtual Teuchos::RCP < STK_Interface >	buildUncommitedMesh (stk_classic::ParallelMachine parallelMach) const

virtual void	completeMeshConstruction (STK_Interface &mesh, stk_classic::ParallelMachine parallelMach) const

void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &paramList)
	From ParameterListAcceptor. More...

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const
	From ParameterListAcceptor. More...

Teuchos::Tuple< std::size_t, 3 >	procRankToProcTuple (std::size_t procRank) const
	what is the 3D tuple describe this processor distribution More...

Public Member Functions inherited from panzer_stk_classic::STK_MeshFactory
	STK_MeshFactory ()

void	enableRebalance (bool enable, const Teuchos::RCP< const Teuchos::ParameterList > &rebalanceList=Teuchos::null)

void	rebalance (STK_Interface &mesh) const

Public Member Functions inherited from Teuchos::ParameterListAcceptorDefaultBase
RCP< ParameterList >	getNonconstParameterList ()

RCP< ParameterList >	unsetParameterList ()

RCP< const ParameterList >	getParameterList () const

Protected Member Functions
void	initializeWithDefaults ()

void	buildMetaData (stk_classic::ParallelMachine parallelMach, STK_Interface &mesh) const

void	buildElements (stk_classic::ParallelMachine parallelMach, STK_Interface &mesh) const

void	buildBlock (stk_classic::ParallelMachine machRank, int xBlock, int yBlock, int zBlock, STK_Interface &mesh) const

std::pair< int, int >	determineXElemSizeAndStart (int xBlock, unsigned int size, unsigned int rank) const

std::pair< int, int >	determineYElemSizeAndStart (int yBlock, unsigned int size, unsigned int rank) const

std::pair< int, int >	determineZElemSizeAndStart (int zBlock, unsigned int size, unsigned int rank) const

void	addSideSets (STK_Interface &mesh) const

void	buildTetsOnHex (const Teuchos::Tuple< int, 3 > &meshDesc, const Teuchos::Tuple< int, 3 > &element, stk_classic::mesh::Part *block, const std::vector< stk_classic::mesh::EntityId > &h_nodes, STK_Interface &mesh) const

const stk_classic::mesh::Relation *	getRelationByID (unsigned ID, stk_classic::mesh::PairIterRelation edges) const

Protected Member Functions inherited from Teuchos::ParameterListAcceptorDefaultBase
void	setMyParamList (const RCP< ParameterList > &paramList)

RCP< ParameterList >	getMyNonconstParamList ()

RCP< const ParameterList >	getMyParamList () const

Protected Attributes
double	x0_

double	y0_

double	z0_

double	xf_

double	yf_

double	zf_

int	xBlocks_

int	yBlocks_

int	zBlocks_

int	nXElems_

int	nYElems_

int	nZElems_

int	xProcs_

int	yProcs_

int	zProcs_

unsigned int	machRank_

unsigned int	machSize_

Teuchos::Tuple< std::size_t, 3 >	procTuple_

Protected Attributes inherited from panzer_stk_classic::STK_MeshFactory
std::vector< Teuchos::RCP < const PeriodicBC_MatcherBase > >	periodicBCVec_

bool	enableRebalance_

Teuchos::RCP< const Teuchos::ParameterList >	rebalanceList_

Additional Inherited Members
Static Public Member Functions inherited from panzer_stk_classic::STK_MeshFactory
static void	parsePeriodicBCList (const Teuchos::RCP< Teuchos::ParameterList > &pl, std::vector< Teuchos::RCP< const PeriodicBC_MatcherBase > > &periodicBC)

Detailed Description

This builds a parallel mesh object. Note that the local IDs are ordered by going up the z, then y axis and across the X-axis (in that order). See the SquareQuad mesh factory for more information.

Definition at line 58 of file Panzer_STK_CubeTetMeshFactory.hpp.

Constructor & Destructor Documentation

panzer_stk_classic::CubeTetMeshFactory::CubeTetMeshFactory ( )

Constructor.

Definition at line 52 of file Panzer_STK_CubeTetMeshFactory.cpp.

panzer_stk_classic::CubeTetMeshFactory::~CubeTetMeshFactory ( )

virtual

Destructor.

Definition at line 58 of file Panzer_STK_CubeTetMeshFactory.cpp.

Member Function Documentation

Teuchos::RCP< STK_Interface > panzer_stk_classic::CubeTetMeshFactory::buildMesh ( stk_classic::ParallelMachine parallelMach ) const

virtual

Build the mesh object.

Implements panzer_stk_classic::STK_MeshFactory.

Definition at line 63 of file Panzer_STK_CubeTetMeshFactory.cpp.

Teuchos::RCP< STK_Interface > panzer_stk_classic::CubeTetMeshFactory::buildUncommitedMesh ( stk_classic::ParallelMachine parallelMach ) const

virtual

This builds all the meta data of the mesh. Does not call metaData->commit. Allows user to add solution fields and other pieces. The mesh can be "completed" by calling completeMeshConstruction.

Implements panzer_stk_classic::STK_MeshFactory.

Definition at line 79 of file Panzer_STK_CubeTetMeshFactory.cpp.

void panzer_stk_classic::CubeTetMeshFactory::completeMeshConstruction	(	STK_Interface &	mesh,
		stk_classic::ParallelMachine	parallelMach
	)		const

virtual

Finishes building a mesh object started by buildUncommitedMesh.

Implements panzer_stk_classic::STK_MeshFactory.

Definition at line 107 of file Panzer_STK_CubeTetMeshFactory.cpp.

void panzer_stk_classic::CubeTetMeshFactory::setParameterList ( const Teuchos::RCP< Teuchos::ParameterList > & paramList )

virtual

From ParameterListAcceptor.

Implements Teuchos::ParameterListAcceptor.

Definition at line 129 of file Panzer_STK_CubeTetMeshFactory.cpp.

Teuchos::RCP< const Teuchos::ParameterList > panzer_stk_classic::CubeTetMeshFactory::getValidParameters ( ) const

virtual

From ParameterListAcceptor.

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 160 of file Panzer_STK_CubeTetMeshFactory.cpp.

Teuchos::Tuple< std::size_t, 3 > panzer_stk_classic::CubeTetMeshFactory::procRankToProcTuple ( std::size_t procRank ) const

what is the 3D tuple describe this processor distribution

Convert processor rank to a tuple.

Definition at line 547 of file Panzer_STK_CubeTetMeshFactory.cpp.

void panzer_stk_classic::CubeTetMeshFactory::initializeWithDefaults ( )

protected

Definition at line 195 of file Panzer_STK_CubeTetMeshFactory.cpp.

void panzer_stk_classic::CubeTetMeshFactory::buildMetaData	(	stk_classic::ParallelMachine	parallelMach,
		STK_Interface &	mesh
	)		const

protected

Definition at line 204 of file Panzer_STK_CubeTetMeshFactory.cpp.

void panzer_stk_classic::CubeTetMeshFactory::buildElements	(	stk_classic::ParallelMachine	parallelMach,
		STK_Interface &	mesh
	)		const

protected

Definition at line 234 of file Panzer_STK_CubeTetMeshFactory.cpp.

void panzer_stk_classic::CubeTetMeshFactory::buildBlock	(	stk_classic::ParallelMachine	machRank,
		int	xBlock,
		int	yBlock,
		int	zBlock,
		STK_Interface &	mesh
	)		const

protected

Definition at line 248 of file Panzer_STK_CubeTetMeshFactory.cpp.

std::pair< int, int > panzer_stk_classic::CubeTetMeshFactory::determineXElemSizeAndStart	(	int	xBlock,
		unsigned int	size,
		unsigned int	rank
	)		const

protected

Definition at line 375 of file Panzer_STK_CubeTetMeshFactory.cpp.

std::pair< int, int > panzer_stk_classic::CubeTetMeshFactory::determineYElemSizeAndStart	(	int	yBlock,
		unsigned int	size,
		unsigned int	rank
	)		const

protected

Definition at line 398 of file Panzer_STK_CubeTetMeshFactory.cpp.

std::pair< int, int > panzer_stk_classic::CubeTetMeshFactory::determineZElemSizeAndStart	(	int	zBlock,
		unsigned int	size,
		unsigned int	rank
	)		const

protected

Definition at line 424 of file Panzer_STK_CubeTetMeshFactory.cpp.

void panzer_stk_classic::CubeTetMeshFactory::addSideSets ( STK_Interface & mesh ) const

protected

Definition at line 459 of file Panzer_STK_CubeTetMeshFactory.cpp.

void panzer_stk_classic::CubeTetMeshFactory::buildTetsOnHex	(	const Teuchos::Tuple< int, 3 > &	meshDesc,
		const Teuchos::Tuple< int, 3 > &	element,
		stk_classic::mesh::Part *	block,
		const std::vector< stk_classic::mesh::EntityId > &	h_nodes,
		STK_Interface &	mesh
	)		const

protected

Definition at line 312 of file Panzer_STK_CubeTetMeshFactory.cpp.

const stk_classic::mesh::Relation * panzer_stk_classic::CubeTetMeshFactory::getRelationByID	(	unsigned	ID,
		stk_classic::mesh::PairIterRelation	edges
	)		const
