panzer::WriteVector_GlobalEvaluationData Class Reference

#include <Panzer_WriteVector_GlobalEvaluationData.hpp>

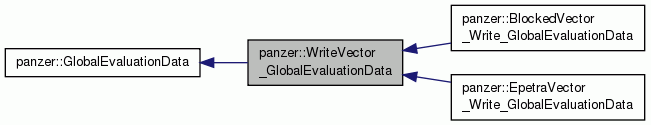

Inheritance diagram for panzer::WriteVector_GlobalEvaluationData:

Public Types
enum	CombineMode { CM_Sum, CM_Max, CM_Min, CM_Insert }
	when you gho from ghost to global, combine with a particular mode More...

Public Member Functions
	WriteVector_GlobalEvaluationData ()
	Default constructor, set combine mode to sum right away. More...
virtual	~WriteVector_GlobalEvaluationData ()
	Virtual d. More...
void	setCombineMode (CombineMode cm)
	Allow the user to set the combine mode (at any time) More...
CombineMode	getCombineMode () const
	Get the combine mode, to be used by sub classes. More...
virtual bool	isInitialized () const =0
	Is this object initialized. More...
virtual void	globalToGhost (int)
virtual void	ghostToGlobal (int mem)=0
virtual void	setOwnedVector (const Teuchos::RCP< Thyra::VectorBase< double > > &ownedVector)=0
	Set the owned vector. More...
virtual Teuchos::RCP < Thyra::VectorBase< double > >	getOwnedVector () const =0
	Get the owned vector. More...
virtual Teuchos::RCP < Thyra::VectorBase< double > >	getGhostedVector () const =0
	Get the ghosted vector. More...
Public Member Functions inherited from panzer::GlobalEvaluationData
virtual	~GlobalEvaluationData ()=0
virtual bool	requiresDirichletAdjustment () const =0
virtual void	initializeData ()=0
virtual void	print (std::ostream &os) const
	Diagnostic function for determinning what's in this object. More...

Private Attributes
CombineMode	combineMode_

Detailed Description

This class encapsulates the needs of a gather operation to do a halo exchange.

Definition at line 33 of file Panzer_WriteVector_GlobalEvaluationData.hpp.

Member Enumeration Documentation

enum panzer::WriteVector_GlobalEvaluationData::CombineMode

when you gho from ghost to global, combine with a particular mode

Enumerator
CM_Sum
CM_Max
CM_Min
CM_Insert

Definition at line 37 of file Panzer_WriteVector_GlobalEvaluationData.hpp.

Constructor & Destructor Documentation

panzer::WriteVector_GlobalEvaluationData::WriteVector_GlobalEvaluationData ( )

inline

Default constructor, set combine mode to sum right away.

Definition at line 40 of file Panzer_WriteVector_GlobalEvaluationData.hpp.

virtual panzer::WriteVector_GlobalEvaluationData::~WriteVector_GlobalEvaluationData ( )

inlinevirtual

Virtual d.

Definition at line 43 of file Panzer_WriteVector_GlobalEvaluationData.hpp.

Member Function Documentation

void panzer::WriteVector_GlobalEvaluationData::setCombineMode ( CombineMode  cm )

inline

Allow the user to set the combine mode (at any time)

Definition at line 46 of file Panzer_WriteVector_GlobalEvaluationData.hpp.

CombineMode panzer::WriteVector_GlobalEvaluationData::getCombineMode ( ) const

inline

Get the combine mode, to be used by sub classes.

Definition at line 49 of file Panzer_WriteVector_GlobalEvaluationData.hpp.

virtual bool panzer::WriteVector_GlobalEvaluationData::isInitialized ( ) const

pure virtual

Is this object initialized.

Implemented in panzer::EpetraVector_Write_GlobalEvaluationData, and panzer::BlockedVector_Write_GlobalEvaluationData.

virtual void panzer::WriteVector_GlobalEvaluationData::globalToGhost ( int  )

inlinevirtual

For this class, this method does nothing.

Implements panzer::GlobalEvaluationData.

Definition at line 57 of file Panzer_WriteVector_GlobalEvaluationData.hpp.

virtual void panzer::WriteVector_GlobalEvaluationData::ghostToGlobal ( int  mem )

pure virtual

For this class, this method does the halo exchange for the vector.

Implements panzer::GlobalEvaluationData.

Implemented in panzer::BlockedVector_Write_GlobalEvaluationData, and panzer::EpetraVector_Write_GlobalEvaluationData.

virtual void panzer::WriteVector_GlobalEvaluationData::setOwnedVector ( const Teuchos::RCP< Thyra::VectorBase< double > > &  ownedVector )

pure virtual

Set the owned vector.

virtual Teuchos::RCP<Thyra::VectorBase<double> > panzer::WriteVector_GlobalEvaluationData::getOwnedVector ( ) const

pure virtual

Get the owned vector.

Implemented in panzer::EpetraVector_Write_GlobalEvaluationData, and panzer::BlockedVector_Write_GlobalEvaluationData.

virtual Teuchos::RCP<Thyra::VectorBase<double> > panzer::WriteVector_GlobalEvaluationData::getGhostedVector ( ) const

pure virtual

Get the ghosted vector.

Implemented in panzer::EpetraVector_Write_GlobalEvaluationData, and panzer::BlockedVector_Write_GlobalEvaluationData.

Member Data Documentation

CombineMode panzer::WriteVector_GlobalEvaluationData::combineMode_

private

Definition at line 113 of file Panzer_WriteVector_GlobalEvaluationData.hpp.

---

The documentation for this class was generated from the following file:

• Panzer_WriteVector_GlobalEvaluationData.hpp
