panzer::ScatterDirichletResidual_BlockedTpetra< EvalT, TRAITS, LO, GO, NodeT > Class Template Reference

Pushes residual values into the residual vector for a Newton-based solve. More...

#include <Panzer_ScatterDirichletResidual_BlockedTpetra.hpp>

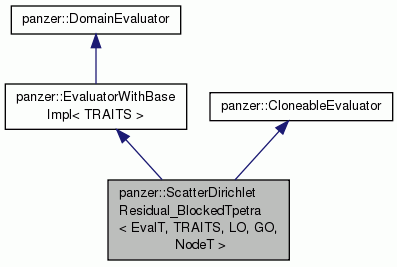

Inheritance diagram for panzer::ScatterDirichletResidual_BlockedTpetra< EvalT, TRAITS, LO, GO, NodeT >:

Public Types
typedef EvalT::ScalarT	ScalarT
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,   EXTERNAL =4, ALL =5 }
	Domain types supported by worksets. More...

Public Member Functions
	ScatterDirichletResidual_BlockedTpetra (const Teuchos::RCP< const BlockedDOFManager > &)
	ScatterDirichletResidual_BlockedTpetra (const Teuchos::RCP< const BlockedDOFManager > &gidProviders, const Teuchos::ParameterList &p)
virtual Teuchos::RCP < CloneableEvaluator >	clone (const Teuchos::ParameterList &pl) const
void	postRegistrationSetup (typename TRAITS::SetupData, PHX::FieldManager< TRAITS > &)
void	evaluateFields (typename TRAITS::EvalData)
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< TRAITS >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...
Public Member Functions inherited from PHX::EvaluatorWithBaseImpl< TRAITS >
virtual void	evaluateFields (typename Traits::EvalData d) override=0
Public Member Functions inherited from PHX::Evaluator< Traits >
	Evaluator ()
virtual	~Evaluator ()
virtual void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)=0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	evaluatedFields () const =0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	contributedFields () const =0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	dependentFields () const =0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	unsharedFields () const =0
virtual void	preEvaluate (typename Traits::PreEvalData d)=0
virtual void	postEvaluate (typename Traits::PostEvalData d)=0
virtual const std::string &	getName () const =0
virtual void	bindField (const PHX::FieldTag &ft, const std::any &f)=0
virtual PHX::DeviceEvaluator < Traits > *	createDeviceEvaluator () const =0
virtual void	rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0
virtual void	deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0
virtual void	printFieldValues (std::ostream &os) const =0
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...
virtual	~DomainEvaluator ()=default
	Default destructor. More...
void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...
DomainType	getDomain ()
	Get the domain for the evaluator. More...
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...
Public Member Functions inherited from panzer::CloneableEvaluator
	CloneableEvaluator ()
virtual	~CloneableEvaluator ()

Additional Inherited Members
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< TRAITS >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename TRAITS, typename LO, typename GO, typename NodeT = panzer::TpetraNodeType>
class panzer::ScatterDirichletResidual_BlockedTpetra< EvalT, TRAITS, LO, GO, NodeT >

Pushes residual values into the residual vector for a Newton-based solve.

Currently makes an assumption that the stride is constant for dofs and that the number of dofs is equal to the size of the solution names vector.

Definition at line 46 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

Member Typedef Documentation

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

typedef EvalT::ScalarT panzer::ScatterDirichletResidual_BlockedTpetra< EvalT, TRAITS, LO, GO, NodeT >::ScalarT

Definition at line 51 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

panzer::ScatterDirichletResidual_BlockedTpetra< EvalT, TRAITS, LO, GO, NodeT >::ScatterDirichletResidual_BlockedTpetra ( const Teuchos::RCP< const BlockedDOFManager > &  )

inline

Definition at line 52 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT >

panzer::ScatterDirichletResidual_BlockedTpetra< EvalT, TRAITS, LO, GO, NodeT >::ScatterDirichletResidual_BlockedTpetra	(	const Teuchos::RCP< const BlockedDOFManager > &	gidProviders,
		const Teuchos::ParameterList &	p
	)

Definition at line 42 of file Panzer_ScatterDirichletResidual_BlockedTpetra_impl.hpp.

Member Function Documentation

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

virtual Teuchos::RCP<CloneableEvaluator> panzer::ScatterDirichletResidual_BlockedTpetra< EvalT, TRAITS, LO, GO, NodeT >::clone ( const Teuchos::ParameterList &  pl ) const

inlinevirtual

Implements panzer::CloneableEvaluator.

Definition at line 58 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

void panzer::ScatterDirichletResidual_BlockedTpetra< EvalT, TRAITS, LO, GO, NodeT >::postRegistrationSetup ( typename TRAITS::SetupData  , PHX::FieldManager< TRAITS > &    )

inline

Definition at line 61 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

void panzer::ScatterDirichletResidual_BlockedTpetra< EvalT, TRAITS, LO, GO, NodeT >::evaluateFields ( typename TRAITS::EvalData  )

inline

Definition at line 63 of file Panzer_ScatterDirichletResidual_BlockedTpetra.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_ScatterDirichletResidual_BlockedTpetra.hpp
• Panzer_ScatterDirichletResidual_BlockedTpetra_impl.hpp
