#include <Panzer_ResponseScatterEvaluator_Functional.hpp>

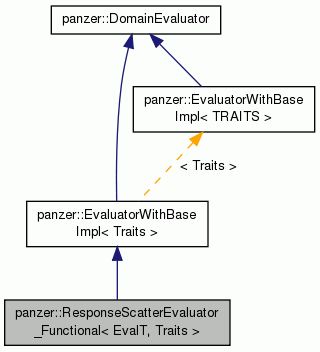

Inheritance diagram for panzer::ResponseScatterEvaluator_Functional< EvalT, Traits >:

Public Member Functions
	ResponseScatterEvaluator_Functional (const std::string &name, const CellData &cd, const Teuchos::RCP< FunctionalScatterBase > &functionalScatter)
	A constructor with concrete arguments instead of a parameter list. More...

	ResponseScatterEvaluator_Functional (const std::string &integrandName, const std::string &responseName, const CellData &cd, const Teuchos::RCP< FunctionalScatterBase > &functionalScatter)

void	evaluateFields (typename Traits::EvalData d)

void	preEvaluate (typename Traits::PreEvalData d)

template<>
void	evaluateFields (panzer::Traits::EvalData d)

template<>
void	evaluateFields (panzer::Traits::EvalData d)

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...

Public Member Functions inherited from PHX::EvaluatorWithBaseImpl< Traits >
virtual void	evaluateFields (typename Traits::EvalData d) override=0

Public Member Functions inherited from PHX::Evaluator< Traits >
	Evaluator ()

virtual	~Evaluator ()

virtual void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)=0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	evaluatedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	contributedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	dependentFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	unsharedFields () const =0

virtual void	preEvaluate (typename Traits::PreEvalData d)=0

virtual void	postEvaluate (typename Traits::PostEvalData d)=0

virtual const std::string &	getName () const =0

virtual void	bindField (const PHX::FieldTag &ft, const PHX::any &f)=0

virtual PHX::DeviceEvaluator < Traits > *	createDeviceEvaluator () const =0

virtual void	rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	printFieldValues (std::ostream &os) const =0

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...

virtual	~DomainEvaluator ()=default
	Default destructor. More...

void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...

DomainType	getDomain ()
	Get the domain for the evaluator. More...

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
typedef EvalT::ScalarT	ScalarT

Private Attributes
std::string	responseName_

Teuchos::RCP < Response_Functional< EvalT > >	responseObj_

Teuchos::RCP< PHX::FieldTag >	scatterHolder_

PHX::MDField< const ScalarT, panzer::Cell >	cellIntegral_

Teuchos::RCP < FunctionalScatterBase >	scatterObj_

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0, GHOST =1, REAL =2, VIRTUAL =3, EXTERNAL =4, ALL =5 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::ResponseScatterEvaluator_Functional< EvalT, Traits >

This class handles responses with values aggregated on each finite element cell.

Definition at line 113 of file Panzer_ResponseScatterEvaluator_Functional.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >

typedef EvalT::ScalarT panzer::ResponseScatterEvaluator_Functional< EvalT, Traits >::ScalarT

private

Definition at line 128 of file Panzer_ResponseScatterEvaluator_Functional.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >

panzer::ResponseScatterEvaluator_Functional< EvalT, Traits >::ResponseScatterEvaluator_Functional	(	const std::string &	name,
		const CellData &	cd,
		const Teuchos::RCP< FunctionalScatterBase > &	functionalScatter
	)

A constructor with concrete arguments instead of a parameter list.

This class handles responses with values aggregated on each finite element cell.

Definition at line 72 of file Panzer_ResponseScatterEvaluator_Functional_impl.hpp.

template<typename EvalT , typename Traits >

panzer::ResponseScatterEvaluator_Functional< EvalT, Traits >::ResponseScatterEvaluator_Functional	(	const std::string &	integrandName,
		const std::string &	responseName,
		const CellData &	cd,
		const Teuchos::RCP< FunctionalScatterBase > &	functionalScatter
	)
