panzer::ResponseEvaluatorFactory_IPCoordinates< EvalT > Class Template Reference

#include <Panzer_ResponseEvaluatorFactory_IPCoordinates.hpp>

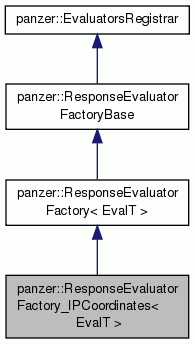

Inheritance diagram for panzer::ResponseEvaluatorFactory_IPCoordinates< EvalT >:

Public Member Functions
	ResponseEvaluatorFactory_IPCoordinates (int cubatureDegree)
virtual	~ResponseEvaluatorFactory_IPCoordinates ()
virtual Teuchos::RCP < ResponseBase >	buildResponseObject (const std::string &responseName, const std::vector< WorksetDescriptor > &eBlocks) const
virtual void	buildAndRegisterEvaluators (const std::string &responseName, PHX::FieldManager< panzer::Traits > &fm, const panzer::PhysicsBlock &physicsBlock, const Teuchos::ParameterList &user_data) const
virtual bool	typeSupported () const
template<>
bool	typeSupported () const
Public Member Functions inherited from panzer::ResponseEvaluatorFactory< EvalT >
	ResponseEvaluatorFactory ()
virtual	~ResponseEvaluatorFactory ()
Public Member Functions inherited from panzer::ResponseEvaluatorFactoryBase
	ResponseEvaluatorFactoryBase ()
virtual	~ResponseEvaluatorFactoryBase ()
Public Member Functions inherited from panzer::EvaluatorsRegistrar
int	setDetailsIndex (const int details_index)
int	getDetailsIndex () const
	Get the WorksetDetails index. More...

Protected Member Functions
int	getCubatureDegree () const
	Accessor method for Cubature degree (can be used by sub classes) More...
Protected Member Functions inherited from panzer::EvaluatorsRegistrar
	EvaluatorsRegistrar ()
	Default ctor initializes WorksetDetails index to 0. More...
virtual	~EvaluatorsRegistrar ()
template<typename EvalT >
void	registerEvaluator (PHX::FieldManager< panzer::Traits > &fm, const Teuchos::RCP< PHX::Evaluator< panzer::Traits > > &op) const

Private Attributes
int	cubatureDegree_

Detailed Description

template<typename EvalT>
class panzer::ResponseEvaluatorFactory_IPCoordinates< EvalT >

This class defines a response based on a functional.

Definition at line 29 of file Panzer_ResponseEvaluatorFactory_IPCoordinates.hpp.

Constructor & Destructor Documentation

template<typename EvalT >

panzer::ResponseEvaluatorFactory_IPCoordinates< EvalT >::ResponseEvaluatorFactory_IPCoordinates ( int  cubatureDegree )

inline

Definition at line 32 of file Panzer_ResponseEvaluatorFactory_IPCoordinates.hpp.

template<typename EvalT >

virtual panzer::ResponseEvaluatorFactory_IPCoordinates< EvalT >::~ResponseEvaluatorFactory_IPCoordinates ( )

inlinevirtual

Definition at line 35 of file Panzer_ResponseEvaluatorFactory_IPCoordinates.hpp.

Member Function Documentation

template<typename EvalT >

Teuchos::RCP< ResponseBase > panzer::ResponseEvaluatorFactory_IPCoordinates< EvalT >::buildResponseObject ( const std::string &  responseName, const std::vector< WorksetDescriptor > &  eBlocks  ) const

virtual

Build the response object used by this factory. This object assumes the role of the scatter target and will be accessible by all the evaluators in the field managers.

Parameters

[in]

responseName

Name of response to be built. This name will be used for looking up the response in the GlobalEvaluationDataContainer object.

Implements panzer::ResponseEvaluatorFactory< EvalT >.

Definition at line 29 of file Panzer_ResponseEvaluatorFactory_IPCoordinates_impl.hpp.

template<typename EvalT >

void panzer::ResponseEvaluatorFactory_IPCoordinates< EvalT >::buildAndRegisterEvaluators ( const std::string &  responseName, PHX::FieldManager< panzer::Traits > &  fm, const panzer::PhysicsBlock &  physicsBlock, const Teuchos::ParameterList &  user_data  ) const

virtual

Build and register evaluators for a response on a particular physics block.

Parameters

[in]	responseName	The name of the response to be constructed by these evaluators.
[in,out]	fm	Field manager to be fuild with the evaluators.
[in]	physicsBlock	What physics block is being used for constructing the evaluators
[in]	user_data	The user data parameter list, this stores things that the user may find useful.

Implements panzer::ResponseEvaluatorFactory< EvalT >.

Definition at line 47 of file Panzer_ResponseEvaluatorFactory_IPCoordinates_impl.hpp.

template<typename EvalT >

bool panzer::ResponseEvaluatorFactory_IPCoordinates< EvalT >::typeSupported ( ) const

virtual

Is this evaluation type supported by the factory. This is used to determine cases where a response may support a particular evaluation type, however at runtime the user decides not to enable the (say) Jacobian evaluation of this response.

Note that use of this mechanism is complementary to having the builder return Teuchos::null for a particular evaluation type.

Implements panzer::ResponseEvaluatorFactory< EvalT >.

Definition at line 70 of file Panzer_ResponseEvaluatorFactory_IPCoordinates_impl.hpp.

template<typename EvalT >

int panzer::ResponseEvaluatorFactory_IPCoordinates< EvalT >::getCubatureDegree ( ) const

inlineprotected

Accessor method for Cubature degree (can be used by sub classes)

Definition at line 76 of file Panzer_ResponseEvaluatorFactory_IPCoordinates.hpp.

template<>

bool panzer::ResponseEvaluatorFactory_IPCoordinates< panzer::Traits::Residual >::typeSupported ( ) const

virtual

Is this evaluation type supported by the factory. This is used to determine cases where a response may support a particular evaluation type, however at runtime the user decides not to enable the (say) Jacobian evaluation of this response.

Note that use of this mechanism is complementary to having the builder return Teuchos::null for a particular evaluation type.

Implements panzer::ResponseEvaluatorFactory< EvalT >.

Definition at line 77 of file Panzer_ResponseEvaluatorFactory_IPCoordinates_impl.hpp.

Member Data Documentation

template<typename EvalT >

int panzer::ResponseEvaluatorFactory_IPCoordinates< EvalT >::cubatureDegree_

private

Definition at line 79 of file Panzer_ResponseEvaluatorFactory_IPCoordinates.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_ResponseEvaluatorFactory_IPCoordinates.hpp
• Panzer_ResponseEvaluatorFactory_IPCoordinates_impl.hpp
