Interpolates basis DOF values to IP DOF values. More...

#include <Panzer_PointValues_Evaluator_decl.hpp>

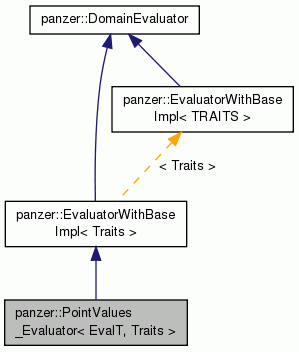

Inheritance diagram for panzer::PointValues_Evaluator< EvalT, Traits >:

Public Member Functions
	PointValues_Evaluator (const Teuchos::ParameterList &p)

void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &fm)

void	evaluateFields (typename Traits::EvalData d)

	PointValues_Evaluator (const Teuchos::RCP< const panzer::PointRule > &pointRule, const Kokkos::DynRankView< double, PHX::Device > &userArray)

	PointValues_Evaluator (const Teuchos::RCP< const panzer::PointRule > &pointRule, const PHX::MDField< double, panzer::IP, panzer::Dim > &userArray)

	PointValues_Evaluator (const Teuchos::RCP< const panzer::PointRule > &pointRule, const Teuchos::RCP< const panzer::PureBasis > &pureBasis)
	This builds a point rule from the basis function reference points in the workset. More...

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< Traits >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...

Public Member Functions inherited from PHX::EvaluatorWithBaseImpl< Traits >
virtual void	evaluateFields (typename Traits::EvalData d) override=0

Public Member Functions inherited from PHX::Evaluator< Traits >
	Evaluator ()

virtual	~Evaluator ()

virtual void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)=0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	evaluatedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	contributedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	dependentFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	unsharedFields () const =0

virtual void	preEvaluate (typename Traits::PreEvalData d)=0

virtual void	postEvaluate (typename Traits::PostEvalData d)=0

virtual const std::string &	getName () const =0

virtual void	bindField (const PHX::FieldTag &ft, const PHX::any &f)=0

virtual PHX::DeviceEvaluator < Traits > *	createDeviceEvaluator () const =0

virtual void	rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	printFieldValues (std::ostream &os) const =0

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...

virtual	~DomainEvaluator ()=default
	Default destructor. More...

void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...

DomainType	getDomain ()
	Get the domain for the evaluator. More...

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
using	ScalarT = typename EvalT::ScalarT

Private Member Functions
template<typename ArrayT >
void	initialize (const Teuchos::RCP< const panzer::PointRule > &pointRule, const Teuchos::Ptr< const ArrayT > &userArray, const Teuchos::RCP< const panzer::PureBasis > &pureBasis)
	Initialization method to unify the constructors. More...

Private Attributes
PointValues2< double >	pointValues

PHX::MDField< double, NODE, Dim >	refPointArray

bool	useBasisValuesRefArray

Teuchos::RCP< const panzer::PureBasis >	basis

std::size_t	basis_index

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0, GHOST =1, REAL =2, VIRTUAL =3, EXTERNAL =4, ALL =5 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< Traits >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename Traits>
class panzer::PointValues_Evaluator< EvalT, Traits >

Interpolates basis DOF values to IP DOF values.

Definition at line 56 of file Panzer_PointValues_Evaluator_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename Traits >

using panzer::PointValues_Evaluator< EvalT, Traits >::ScalarT = typename EvalT::ScalarT

private

Definition at line 77 of file Panzer_PointValues_Evaluator_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename Traits >

panzer::PointValues_Evaluator< EvalT, Traits >::PointValues_Evaluator ( const Teuchos::ParameterList & p )

Definition at line 56 of file Panzer_PointValues_Evaluator_impl.hpp.

template<typename EvalT , typename TRAITST >

panzer::PointValues_Evaluator< EvalT, TRAITST >::PointValues_Evaluator	(	const Teuchos::RCP< const panzer::PointRule > &	pointRule,
		const Kokkos::DynRankView< double, PHX::Device > &	userArray
	)

Definition at line 71 of file Panzer_PointValues_Evaluator_impl.hpp.

template<typename EvalT , typename TRAITST >

panzer::PointValues_Evaluator< EvalT, TRAITST >::PointValues_Evaluator	(	const Teuchos::RCP< const panzer::PointRule > &	pointRule,
		const PHX::MDField< double, panzer::IP, panzer::Dim > &	userArray
	)

Definition at line 81 of file Panzer_PointValues_Evaluator_impl.hpp.

template<typename EvalT , typename TRAITST >

panzer::PointValues_Evaluator< EvalT, TRAITST >::PointValues_Evaluator	(	const Teuchos::RCP< const panzer::PointRule > &	pointRule,
		const Teuchos::RCP< const panzer::PureBasis > &	pureBasis
	)

This builds a point rule from the basis function reference points in the workset.

Definition at line 91 of file Panzer_PointValues_Evaluator_impl.hpp.

Member Function Documentation

template<typename EvalT , typename Traits >

void panzer::PointValues_Evaluator< EvalT, Traits >::postRegistrationSetup	(	typename Traits::SetupData	d,
		PHX::FieldManager< Traits > &	fm
	)

Definition at line 148 of file Panzer_PointValues_Evaluator_impl.hpp.

template<typename EvalT , typename Traits >

void panzer::PointValues_Evaluator< EvalT, Traits >::evaluateFields ( typename Traits::EvalData d )

Definition at line 173 of file Panzer_PointValues_Evaluator_impl.hpp.

template<typename EvalT , typename TRAITST >

template<typename ArrayT >

void panzer::PointValues_Evaluator< EvalT, TRAITST >::initialize	(	const Teuchos::RCP< const panzer::PointRule > &	pointRule,
		const Teuchos::Ptr< const ArrayT > &	userArray,
		const Teuchos::RCP< const panzer::PureBasis > &	pureBasis
	)
