panzer::GlobalIndexerFactory Class Reference

#include <Panzer_GlobalIndexerFactory.hpp>

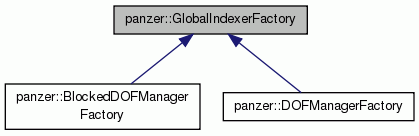

Inheritance diagram for panzer::GlobalIndexerFactory:

Public Member Functions
virtual	~GlobalIndexerFactory ()
virtual Teuchos::RCP < panzer::GlobalIndexer >	buildGlobalIndexer (const Teuchos::RCP< const Teuchos::OpaqueWrapper< MPI_Comm > > &mpiComm, const std::vector< Teuchos::RCP< panzer::PhysicsBlock > > &physicsBlocks, const Teuchos::RCP< ConnManager > &connMngr, const std::string &fieldOrder="") const =0

Detailed Description

A factory for building GlobalIndexer objects. This is basically a single function that takes an MPI_Comm object, a vector of PhysicsBlocks and a connection manager. The Connection manager can have different local and global index types. The use case for this is the block assembly functionality.

Definition at line 34 of file Panzer_GlobalIndexerFactory.hpp.

Constructor & Destructor Documentation

virtual panzer::GlobalIndexerFactory::~GlobalIndexerFactory ( )

inlinevirtual

Definition at line 37 of file Panzer_GlobalIndexerFactory.hpp.

Member Function Documentation

virtual Teuchos::RCP<panzer::GlobalIndexer> panzer::GlobalIndexerFactory::buildGlobalIndexer ( const Teuchos::RCP< const Teuchos::OpaqueWrapper< MPI_Comm > > &  mpiComm, const std::vector< Teuchos::RCP< panzer::PhysicsBlock > > &  physicsBlocks, const Teuchos::RCP< ConnManager > &  connMngr, const std::string &  fieldOrder = ""  ) const

pure virtual

Use the physics block to construct a unique global indexer object.

Parameters

[in]	mpiComm	MPI communicator to use in the construction
[in]	physicsBlocks	A vector of physics block objects that contain unknown field information.
[in]	connMngr	Connection manager that contains the mesh topology
[in]	fieldOrder	Specifies the local ordering of the degrees of freedom. This is relevant when degrees of freedom are shared on the same geometric entity. The default is an alphabetical ordering.

Returns

A GlobalIndexer object. If buildGlobalUnknowns is true, the object is fully constructed. If it is false, the caller must finalize it.

Implemented in panzer::BlockedDOFManagerFactory, and panzer::DOFManagerFactory.

---

The documentation for this class was generated from the following file:

• Panzer_GlobalIndexerFactory.hpp
