panzer::GlobalEvaluationData_BCAdjustment Class Reference

#include <Panzer_GlobalEvaluationData.hpp>

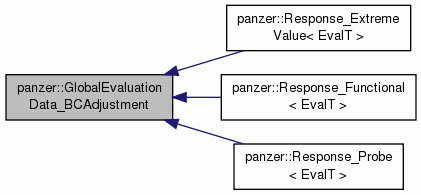

Inheritance diagram for panzer::GlobalEvaluationData_BCAdjustment:

Public Member Functions
virtual void	adjustForDirichletConditions (const GlobalEvaluationData &localBCRows, const GlobalEvaluationData &globalBCRows)=0

Detailed Description

This mixin gives an access point for doing the dirichlet adjustment through the container.

Definition at line 96 of file Panzer_GlobalEvaluationData.hpp.

Member Function Documentation

virtual void panzer::GlobalEvaluationData_BCAdjustment::adjustForDirichletConditions ( const GlobalEvaluationData &  localBCRows, const GlobalEvaluationData &  globalBCRows  )

pure virtual

Adjust the container for applied dirichlet conditions. The adjustment considers if a boundary condition was set globally and locally and based on that result adjusts the container so that when the ghost to global operation is correct across processors.

Parameters

[in]	localBCRows	Linear object container uses the X vector to indicate locally set dirichlet conditions. The format is if an entry of the vector is nonzero then it was set as a dirichlet condition.
[in]	globalBCRows	Linear object container uses the X vector to indicate globally set dirichlet conditions. The format is if an entry of the vector is nonzero then it was set as a dirichlet condition.

Implemented in panzer::Response_Probe< EvalT >, panzer::Response_Probe< EvalT >, panzer::Response_ExtremeValue< EvalT >, panzer::Response_Functional< EvalT >, panzer::Response_ExtremeValue< EvalT >, panzer::Response_Functional< EvalT >, panzer::Response_ExtremeValue< EvalT >, panzer::Response_Functional< EvalT >, and panzer::Response_Probe< EvalT >.

---

The documentation for this class was generated from the following file:

• Panzer_GlobalEvaluationData.hpp
