Gathers tangent vectors dx/dp for computing df/dx*dx/dp + df/dp into the nodal fields of the field manager. More...

#include <Panzer_GatherTangent_BlockedTpetra.hpp>

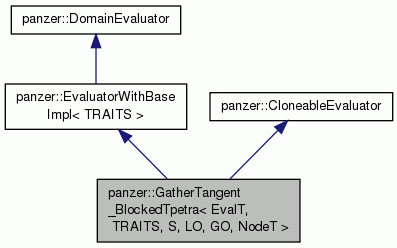

Inheritance diagram for panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >:

Public Member Functions
	GatherTangent_BlockedTpetra (const Teuchos::RCP< const BlockedDOFManager > &indexer)

	GatherTangent_BlockedTpetra (const Teuchos::RCP< const BlockedDOFManager > &indexer, const Teuchos::ParameterList &p)

void	postRegistrationSetup (typename TRAITS::SetupData d, PHX::FieldManager< TRAITS > &vm)

void	preEvaluate (typename TRAITS::PreEvalData d)

void	evaluateFields (typename TRAITS::EvalData d)

virtual Teuchos::RCP < CloneableEvaluator >	clone (const Teuchos::ParameterList &pl) const

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< TRAITS >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...

Public Member Functions inherited from PHX::EvaluatorWithBaseImpl< TRAITS >
virtual void	evaluateFields (typename Traits::EvalData d) override=0

Public Member Functions inherited from PHX::Evaluator< Traits >
	Evaluator ()

virtual	~Evaluator ()

virtual void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)=0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	evaluatedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	contributedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	dependentFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	unsharedFields () const =0

virtual void	preEvaluate (typename Traits::PreEvalData d)=0

virtual void	postEvaluate (typename Traits::PostEvalData d)=0

virtual const std::string &	getName () const =0

virtual void	bindField (const PHX::FieldTag &ft, const std::any &f)=0

virtual PHX::DeviceEvaluator < Traits > *	createDeviceEvaluator () const =0

virtual void	rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	printFieldValues (std::ostream &os) const =0

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...

virtual	~DomainEvaluator ()=default
	Default destructor. More...

void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...

DomainType	getDomain ()
	Get the domain for the evaluator. More...

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Public Member Functions inherited from panzer::CloneableEvaluator
	CloneableEvaluator ()

virtual	~CloneableEvaluator ()

Private Types
typedef panzer::Traits::RealType	ScalarT

typedef BlockedTpetraLinearObjContainer < S, LO, GO, NodeT >	ContainerType

typedef Tpetra::Vector< S, LO, GO, NodeT >	VectorType

typedef Tpetra::CrsMatrix< S, LO, GO, NodeT >	CrsMatrixType

typedef Tpetra::CrsGraph< LO, GO, NodeT >	CrsGraphType

typedef Tpetra::Map< LO, GO, NodeT >	MapType

typedef Tpetra::Import< LO, GO, NodeT >	ImportType

typedef Tpetra::Export< LO, GO, NodeT >	ExportType

Private Member Functions
	GatherTangent_BlockedTpetra ()

Private Attributes
Teuchos::RCP< const BlockedDOFManager >	globalIndexer_

std::vector< int >	fieldIds_

std::vector< Teuchos::RCP < const panzer::GlobalIndexer > >	fieldGlobalIndexers_
	Vector of global indexers, one for each field to gather, respectively. More...

std::vector< int >	productVectorBlockIndex_

std::vector< PHX::MDField < ScalarT, Cell, NODE > >	gatherFields_

Teuchos::RCP< std::vector < std::string > >	indexerNames_

bool	useTimeDerivativeSolutionVector_

std::string	globalDataKey_

Teuchos::RCP< const BlockedTpetraLinearObjContainer < S, LO, GO, NodeT > >	blockedContainer_

PHX::View< LO ** >	worksetLIDs_
	Local indices for unknowns. More...

std::vector< PHX::View< int * > >	fieldOffsets_
	Offset into the cell lids for each field. More...

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0, GHOST =1, REAL =2, VIRTUAL =3, EXTERNAL =4, ALL =5 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< TRAITS >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename TRAITS, typename S, typename LO, typename GO, typename NodeT = panzer::TpetraNodeType>
class panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >

Gathers tangent vectors dx/dp for computing df/dx*dx/dp + df/dp into the nodal fields of the field manager.

This evaluator is very similar to GatherSolution, however it always gathers into fields of type double, and it is a no-op if the global evaluation data container does not exist (which is an error for GatherSolution).

Currently makes an assumption that the stride is constant for dofs and that the nmber of dofs is equal to the size of the solution names vector.

Definition at line 47 of file Panzer_GatherTangent_BlockedTpetra.hpp.

Member Typedef Documentation

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

typedef panzer::Traits::RealType panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::ScalarT

private

Definition at line 72 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

typedef BlockedTpetraLinearObjContainer<S,LO,GO,NodeT> panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::ContainerType

private

Definition at line 75 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Vector<S,LO,GO,NodeT> panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::VectorType

private

Definition at line 76 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::CrsMatrix<S,LO,GO,NodeT> panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::CrsMatrixType

private

Definition at line 77 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::CrsGraph<LO,GO,NodeT> panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::CrsGraphType

private

Definition at line 78 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Map<LO,GO,NodeT> panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::MapType

private

Definition at line 79 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Import<LO,GO,NodeT> panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::ImportType

private

Definition at line 80 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

typedef Tpetra::Export<LO,GO,NodeT> panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::ExportType

private

Definition at line 81 of file Panzer_GatherTangent_BlockedTpetra.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::GatherTangent_BlockedTpetra ( const Teuchos::RCP< const BlockedDOFManager > & indexer )

inline

Definition at line 53 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT >

panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::GatherTangent_BlockedTpetra	(	const Teuchos::RCP< const BlockedDOFManager > &	indexer,
		const Teuchos::ParameterList &	p
	)

Definition at line 34 of file Panzer_GatherTangent_BlockedTpetra_impl.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::GatherTangent_BlockedTpetra ( )

private

Member Function Documentation

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT >

void panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::postRegistrationSetup	(	typename TRAITS::SetupData	d,
		PHX::FieldManager< TRAITS > &	vm
	)

Definition at line 72 of file Panzer_GatherTangent_BlockedTpetra_impl.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT >

void panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::preEvaluate ( typename TRAITS::PreEvalData d )

Definition at line 116 of file Panzer_GatherTangent_BlockedTpetra_impl.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT >

void panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::evaluateFields ( typename TRAITS::EvalData d )

Definition at line 138 of file Panzer_GatherTangent_BlockedTpetra_impl.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

virtual Teuchos::RCP<CloneableEvaluator> panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::clone ( const Teuchos::ParameterList & pl ) const

inlinevirtual

Implements panzer::CloneableEvaluator.

Definition at line 66 of file Panzer_GatherTangent_BlockedTpetra.hpp.

Member Data Documentation

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const BlockedDOFManager> panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::globalIndexer_

private

Definition at line 85 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

std::vector<int> panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::fieldIds_

private

Definition at line 87 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

std::vector<Teuchos::RCP<const panzer::GlobalIndexer> > panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::fieldGlobalIndexers_

private

Vector of global indexers, one for each field to gather, respectively.

Definition at line 90 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

std::vector<int> panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::productVectorBlockIndex_

private

Returns the index to the Thyra ProductVector sub-block. Size of number of fields to gather

Definition at line 94 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

std::vector< PHX::MDField<ScalarT,Cell,NODE> > panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::gatherFields_

private

Definition at line 96 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<std::vector<std::string> > panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::indexerNames_

private

Definition at line 98 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

bool panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::useTimeDerivativeSolutionVector_

private

Definition at line 99 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

std::string panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::globalDataKey_

private

Definition at line 100 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

Teuchos::RCP<const BlockedTpetraLinearObjContainer<S,LO,GO,NodeT> > panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::blockedContainer_

private

Definition at line 102 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

PHX::View<LO**> panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::worksetLIDs_

private

Local indices for unknowns.

Definition at line 105 of file Panzer_GatherTangent_BlockedTpetra.hpp.

template<typename EvalT , typename TRAITS , typename S , typename LO , typename GO , typename NodeT = panzer::TpetraNodeType>

std::vector<PHX::View<int*> > panzer::GatherTangent_BlockedTpetra< EvalT, TRAITS, S, LO, GO, NodeT >::fieldOffsets_

private

Offset into the cell lids for each field.

Definition at line 108 of file Panzer_GatherTangent_BlockedTpetra.hpp.

The documentation for this class was generated from the following files:
