panzer::GatherSolution_BlockedEpetra< EvalT, TRAITS, LO, GO > Class Template Reference

Gathers solution values from the Newton solution vector into the nodal fields of the field manager. More...

#include <Panzer_GatherSolution_BlockedEpetra_decl.hpp>

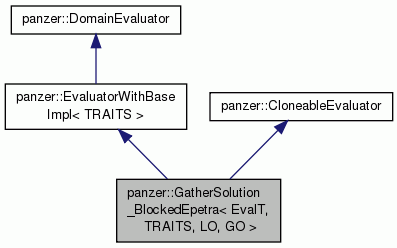

Inheritance diagram for panzer::GatherSolution_BlockedEpetra< EvalT, TRAITS, LO, GO >:

Public Types
typedef EvalT::ScalarT	ScalarT
	The scalar type. More...
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,   EXTERNAL =4, ALL =5 }
	Domain types supported by worksets. More...

Public Member Functions
	GatherSolution_BlockedEpetra (const Teuchos::ParameterList &p)
	Constructor. More...
virtual Teuchos::RCP < CloneableEvaluator >	clone (const Teuchos::ParameterList &pl) const
	Create a copy. More...
void	postRegistrationSetup (typename TRAITS::SetupData d, PHX::FieldManager< TRAITS > &fm)
	Post-Registration Setup. More...
void	evaluateFields (typename TRAITS::EvalData d)
	Evaluate Fields. More...
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< TRAITS >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...
Public Member Functions inherited from PHX::EvaluatorWithBaseImpl< TRAITS >
virtual void	evaluateFields (typename Traits::EvalData d) override=0
Public Member Functions inherited from PHX::Evaluator< Traits >
	Evaluator ()
virtual	~Evaluator ()
virtual void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)=0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	evaluatedFields () const =0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	contributedFields () const =0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	dependentFields () const =0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	unsharedFields () const =0
virtual void	preEvaluate (typename Traits::PreEvalData d)=0
virtual void	postEvaluate (typename Traits::PostEvalData d)=0
virtual const std::string &	getName () const =0
virtual void	bindField (const PHX::FieldTag &ft, const PHX::any &f)=0
virtual PHX::DeviceEvaluator < Traits > *	createDeviceEvaluator () const =0
virtual void	rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0
virtual void	deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0
virtual void	printFieldValues (std::ostream &os) const =0
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...
virtual	~DomainEvaluator ()=default
	Default destructor. More...
void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...
DomainType	getDomain ()
	Get the domain for the evaluator. More...
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...
Public Member Functions inherited from panzer::CloneableEvaluator
	CloneableEvaluator ()
virtual	~CloneableEvaluator ()

Additional Inherited Members
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< TRAITS >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename TRAITS, typename LO, typename GO>
class panzer::GatherSolution_BlockedEpetra< EvalT, TRAITS, LO, GO >

Gathers solution values from the Newton solution vector into the nodal fields of the field manager.

Currently makes an assumption that the stride is constant for degrees of freedom (DOFs) and that the nmber of DOFs is equal to the size of the solution names vector.

Definition at line 94 of file Panzer_GatherSolution_BlockedEpetra_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename TRAITS , typename LO , typename GO >

typedef EvalT::ScalarT panzer::GatherSolution_BlockedEpetra< EvalT, TRAITS, LO, GO >::ScalarT

The scalar type.

Definition at line 105 of file Panzer_GatherSolution_BlockedEpetra_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename TRAITS , typename LO , typename GO >

panzer::GatherSolution_BlockedEpetra< EvalT, TRAITS, LO, GO >::GatherSolution_BlockedEpetra ( const Teuchos::ParameterList &  p )

inline

Constructor.

For this unspecialized class, this constructor is empty; that is, it doesn't do anything with the input ParameterList.

Parameters

[in]

p

A ParameterList that isn't used.

Definition at line 115 of file Panzer_GatherSolution_BlockedEpetra_decl.hpp.

Member Function Documentation

template<typename EvalT , typename TRAITS , typename LO , typename GO >

virtual Teuchos::RCP<CloneableEvaluator> panzer::GatherSolution_BlockedEpetra< EvalT, TRAITS, LO, GO >::clone ( const Teuchos::ParameterList &  pl ) const

inlinevirtual

Create a copy.

For this unspecialized class, this actually just calls the Default Constructor and doesn't copy anything.

Parameters

[in]

pl

A ParameterList, which is passed to the Default Constructor.

Returns

A GatherSolution_BlockedEpetra created by the Default Constructor.

Implements panzer::CloneableEvaluator.

Definition at line 133 of file Panzer_GatherSolution_BlockedEpetra_decl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO >

void panzer::GatherSolution_BlockedEpetra< EvalT, TRAITS, LO, GO >::postRegistrationSetup ( typename TRAITS::SetupData  d, PHX::FieldManager< TRAITS > &  fm  )

inline

Post-Registration Setup.

For this unspecialized class, this routine does nothing.

Parameters

[in]	d	Unused.
[in]	fm	Unused.

Definition at line 149 of file Panzer_GatherSolution_BlockedEpetra_decl.hpp.

template<typename EvalT , typename TRAITS , typename LO , typename GO >

void panzer::GatherSolution_BlockedEpetra< EvalT, TRAITS, LO, GO >::evaluateFields ( typename TRAITS::EvalData  d )

inline

Evaluate Fields.

For this unspecialized class, this routine does nothing, other than tell you that you can't use it.

Parameters

[in]

d

Unused.

Definition at line 164 of file Panzer_GatherSolution_BlockedEpetra_decl.hpp.

---

The documentation for this class was generated from the following file:

• Panzer_GatherSolution_BlockedEpetra_decl.hpp
