Interpolates basis DOF using reference coordinates defined by a field. More...

#include <Panzer_DOF_PointField_decl.hpp>

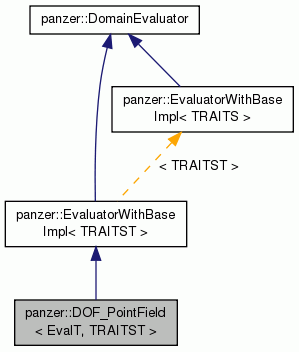

Inheritance diagram for panzer::DOF_PointField< EvalT, TRAITST >:

Public Member Functions
	DOF_PointField (const std::string &postfixFieldName, const std::string &fieldName, const PureBasis &fieldBasis, const std::string &coordinateName, const Teuchos::RCP< PHX::DataLayout > &coordLayout, const Teuchos::RCP< PHX::DataLayout > &quadLayout)

	DOF_PointField (const std::string &fieldName, const PureBasis &fieldBasis, const std::string &coordinateName, const Teuchos::RCP< PHX::DataLayout > &coordLayout, const Teuchos::RCP< PHX::DataLayout > &quadLayout, bool useCoordPostfix)

void	evaluateFields (typename TRAITST::EvalData workset)

Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< TRAITST >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...

Public Member Functions inherited from PHX::EvaluatorWithBaseImpl< TRAITST >
virtual void	evaluateFields (typename Traits::EvalData d) override=0

Public Member Functions inherited from PHX::Evaluator< Traits >
	Evaluator ()

virtual	~Evaluator ()

virtual void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)=0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	evaluatedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	contributedFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	dependentFields () const =0

virtual const std::vector < Teuchos::RCP< FieldTag > > &	unsharedFields () const =0

virtual void	preEvaluate (typename Traits::PreEvalData d)=0

virtual void	postEvaluate (typename Traits::PostEvalData d)=0

virtual const std::string &	getName () const =0

virtual void	bindField (const PHX::FieldTag &ft, const PHX::any &f)=0

virtual PHX::DeviceEvaluator < Traits > *	createDeviceEvaluator () const =0

virtual void	rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0

virtual void	printFieldValues (std::ostream &os) const =0

Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...

virtual	~DomainEvaluator ()=default
	Default destructor. More...

void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...

DomainType	getDomain ()
	Get the domain for the evaluator. More...

virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...

virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
typedef EvalT::ScalarT	ScalarT

Private Member Functions
void	initialize (const std::string &fieldName, const PureBasis &fieldBasis, const std::string &coordinateName, const Teuchos::RCP< PHX::DataLayout > &coordLayout, const Teuchos::RCP< PHX::DataLayout > &quadLayout, const std::string &postfixFieldName)
	Convenience initialization routine, see constructor above. More...

Private Attributes
PHX::MDField< const ScalarT, Point, Dim >	coordinates

PHX::MDField< const ScalarT >	dof_coeff

PHX::MDField< ScalarT >	dof_field

Teuchos::RCP< Intrepid2::Basis < PHX::exec_space, double, double > >	intrepidBasis

Kokkos::DynRankView< double, PHX::Device >	intrpCoords

Kokkos::DynRankView< double, PHX::Device >	basisRef

Kokkos::DynRankView< double, PHX::Device >	basis

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int { OWNED =0, GHOST =1, REAL =2, VIRTUAL =3, EXTERNAL =4, ALL =5 }
	Domain types supported by worksets. More...

Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< TRAITST >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename TRAITST>
class panzer::DOF_PointField< EvalT, TRAITST >

Interpolates basis DOF using reference coordinates defined by a field.

Definition at line 60 of file Panzer_DOF_PointField_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename TRAITST >

typedef EvalT::ScalarT panzer::DOF_PointField< EvalT, TRAITST >::ScalarT

private

Definition at line 115 of file Panzer_DOF_PointField_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename TRAITST >

panzer::DOF_PointField< EvalT, TRAITST >::DOF_PointField	(	const std::string &	postfixFieldName,
		const std::string &	fieldName,
		const PureBasis &	fieldBasis,
		const std::string &	coordinateName,
		const Teuchos::RCP< PHX::DataLayout > &	coordLayout,
		const Teuchos::RCP< PHX::DataLayout > &	quadLayout
	)

inline

Constructor that allows user to specify a postfix for the field.

This constructor builds an evaluator from coordinates defined on the reference element. The name of the evaluated field is flexible, the name being fieldName+postfixFieldName.

Parameters

[in]	postfixFieldName	Postfix string to modify field name
[in]	fieldName	Name of DOF field (dimensioned number cells by number of basis functions)
[in]	fieldBasis	Datalayout describing DOF field
[in]	coordinateName	Name of reference coordinates (sized number of points by dimension)
[in]	coordLayout	Layout for coordinates

Definition at line 80 of file Panzer_DOF_PointField_decl.hpp.

template<typename EvalT , typename TRAITST >

panzer::DOF_PointField< EvalT, TRAITST >::DOF_PointField	(	const std::string &	fieldName,
		const PureBasis &	fieldBasis,
		const std::string &	coordinateName,
		const Teuchos::RCP< PHX::DataLayout > &	coordLayout,
		const Teuchos::RCP< PHX::DataLayout > &	quadLayout,
		bool	useCoordPostfix
	)

inline

Constructor that appends (or not) the coordinate name to the field.

This constructor builds an evaluator from coordinates defined on the reference element. The name of the evaluated field is either fieldName+coordinateName or simply fieldName.

Parameters

[in]	fieldName	Name of DOF field (dimensioned number cells by number of basis functions)
[in]	fieldBasis	Datalayout describing DOF field
[in]	coordinateName	Name of reference coordinates (sized number of points by dimension)
[in]	coordLayout	Layout for coordinates
[in]	useCoordPostfix	Postfix field name with coordinate name.

Definition at line 103 of file Panzer_DOF_PointField_decl.hpp.

Member Function Documentation

template<typename EvalT , typename TRAITST >

void panzer::DOF_PointField< EvalT, TRAITST >::evaluateFields ( typename TRAITST::EvalData workset )

Definition at line 92 of file Panzer_DOF_PointField_impl.hpp.

template<typename EvalT , typename TRAITST >

void panzer::DOF_PointField< EvalT, TRAITST >::initialize	(	const std::string &	fieldName,
		const PureBasis &	fieldBasis,
		const std::string &	coordinateName,
		const Teuchos::RCP< PHX::DataLayout > &	coordLayout,
		const Teuchos::RCP< PHX::DataLayout > &	quadLayout,
		const std::string &	postfixFieldName
	)

private

Convenience initialization routine, see constructor above.

Definition at line 57 of file Panzer_DOF_PointField_impl.hpp.

Member Data Documentation

template<typename EvalT , typename TRAITST >

PHX::MDField<const ScalarT,Point,Dim> panzer::DOF_PointField< EvalT, TRAITST >::coordinates

private

Definition at line 125 of file Panzer_DOF_PointField_decl.hpp.

template<typename EvalT , typename TRAITST >

PHX::MDField<const ScalarT> panzer::DOF_PointField< EvalT, TRAITST >::dof_coeff

private

Definition at line 126 of file Panzer_DOF_PointField_decl.hpp.

template<typename EvalT , typename TRAITST >

PHX::MDField<ScalarT> panzer::DOF_PointField< EvalT, TRAITST >::dof_field

private

Definition at line 127 of file Panzer_DOF_PointField_decl.hpp.

template<typename EvalT , typename TRAITST >

Teuchos::RCP<Intrepid2::Basis<PHX::exec_space,double,double> > panzer::DOF_PointField< EvalT, TRAITST >::intrepidBasis

private

Definition at line 129 of file Panzer_DOF_PointField_decl.hpp.

template<typename EvalT , typename TRAITST >

Kokkos::DynRankView<double,PHX::Device> panzer::DOF_PointField< EvalT, TRAITST >::intrpCoords

private

Definition at line 130 of file Panzer_DOF_PointField_decl.hpp.

template<typename EvalT , typename TRAITST >

Kokkos::DynRankView<double,PHX::Device> panzer::DOF_PointField< EvalT, TRAITST >::basisRef

private

Definition at line 130 of file Panzer_DOF_PointField_decl.hpp.

template<typename EvalT , typename TRAITST >

Kokkos::DynRankView<double,PHX::Device> panzer::DOF_PointField< EvalT, TRAITST >::basis

private

Definition at line 130 of file Panzer_DOF_PointField_decl.hpp.

The documentation for this class was generated from the following files:
