panzer::DOF_BasisToBasis< EvalT, TRAITST > Class Template Reference

Interpolates DOF coefficients on one basis to points on another basis. This is used with nodal bases to map DOF coefficient values from one nodal basis to dof coefficients on another basis. More...

#include <Panzer_DOF_BasisToBasis_decl.hpp>

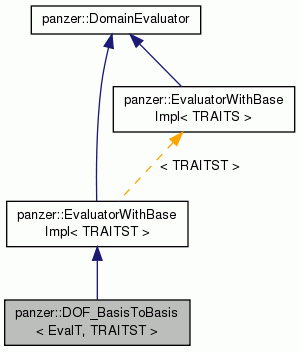

Inheritance diagram for panzer::DOF_BasisToBasis< EvalT, TRAITST >:

Public Member Functions
	DOF_BasisToBasis (const std::string &fieldName, const PureBasis &sourceBasis, const PureBasis &targetBasis)
	Ctor. More...
void	evaluateFields (typename TRAITST::EvalData workset)
Public Member Functions inherited from panzer::EvaluatorWithBaseImpl< TRAITST >
void	setDetailsIndex (const int di)
	An evaluator builder sets the details index. More...
Public Member Functions inherited from PHX::EvaluatorWithBaseImpl< TRAITST >
virtual void	evaluateFields (typename Traits::EvalData d) override=0
Public Member Functions inherited from PHX::Evaluator< Traits >
	Evaluator ()
virtual	~Evaluator ()
virtual void	postRegistrationSetup (typename Traits::SetupData d, PHX::FieldManager< Traits > &vm)=0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	evaluatedFields () const =0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	contributedFields () const =0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	dependentFields () const =0
virtual const std::vector < Teuchos::RCP< FieldTag > > &	unsharedFields () const =0
virtual void	preEvaluate (typename Traits::PreEvalData d)=0
virtual void	postEvaluate (typename Traits::PostEvalData d)=0
virtual const std::string &	getName () const =0
virtual void	bindField (const PHX::FieldTag &ft, const PHX::any &f)=0
virtual PHX::DeviceEvaluator < Traits > *	createDeviceEvaluator () const =0
virtual void	rebuildDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0
virtual void	deleteDeviceEvaluator (PHX::DeviceEvaluator< Traits > *e) const =0
virtual void	printFieldValues (std::ostream &os) const =0
Public Member Functions inherited from panzer::DomainEvaluator
	DomainEvaluator (DomainType domain=ALL)
	Constructor. More...
virtual	~DomainEvaluator ()=default
	Default destructor. More...
void	setDomain (const DomainType domain)
	Set the domain for the evaluator. More...
DomainType	getDomain ()
	Get the domain for the evaluator. More...
virtual int	cellStartIndex (const panzer::Workset &workset) const
	Returns the starting cell for the specified domain for a given workset. More...
virtual int	cellEndIndex (const panzer::Workset &workset) const
	Returns the non-inclusive end cell for the specified domain for a given workset. More...

Private Types
typedef EvalT::ScalarT	ScalarT

Private Attributes
PHX::MDField< const ScalarT >	dof_source_coeff
	Dependent field: DOF coefficient values at source basis. More...
PHX::MDField< ScalarT >	dof_target_coeff
	Evaluated field: DOF coefficient values at target basis. More...
Kokkos::DynRankView< double, PHX::Device >	basis
	Reference cell basis values at target points, replicated for each cell in workset. More...

Additional Inherited Members
Public Types inherited from panzer::DomainEvaluator
enum	DomainType : int {   OWNED =0, GHOST =1, REAL =2, VIRTUAL =3,   EXTERNAL =4, ALL =5 }
	Domain types supported by worksets. More...
Protected Attributes inherited from panzer::EvaluatorWithBaseImpl< TRAITST >
WorksetDetailsAccessor	wda

Detailed Description

template<typename EvalT, typename TRAITST>
class panzer::DOF_BasisToBasis< EvalT, TRAITST >

Interpolates DOF coefficients on one basis to points on another basis. This is used with nodal bases to map DOF coefficient values from one nodal basis to dof coefficients on another basis.

Definition at line 60 of file Panzer_DOF_BasisToBasis_decl.hpp.

Member Typedef Documentation

template<typename EvalT , typename TRAITST >

typedef EvalT::ScalarT panzer::DOF_BasisToBasis< EvalT, TRAITST >::ScalarT

private

Definition at line 78 of file Panzer_DOF_BasisToBasis_decl.hpp.

Constructor & Destructor Documentation

template<typename EvalT , typename TRAITST >

panzer::DOF_BasisToBasis< EvalT, TRAITST >::DOF_BasisToBasis	(	const std::string &	fieldName,
		const PureBasis &	sourceBasis,
		const PureBasis &	targetBasis
	)

Ctor.

Parameters

[in]	fieldName	Name of the field in the field manager (used for both source and target fields
[in]	sourceBasis	Basis that the source DOF coefficients are defined on
[in]	targetBasis	Basis that provides the target coordinate points for the field to be interpolated to

Definition at line 58 of file Panzer_DOF_BasisToBasis_impl.hpp.

Member Function Documentation

template<typename EvalT , typename TRAITST >

void panzer::DOF_BasisToBasis< EvalT, TRAITST >::evaluateFields

(

typename TRAITST::EvalData

workset

)

Definition at line 101 of file Panzer_DOF_BasisToBasis_impl.hpp.

Member Data Documentation

template<typename EvalT , typename TRAITST >

PHX::MDField<const ScalarT> panzer::DOF_BasisToBasis< EvalT, TRAITST >::dof_source_coeff

private

Dependent field: DOF coefficient values at source basis.

Definition at line 81 of file Panzer_DOF_BasisToBasis_decl.hpp.

template<typename EvalT , typename TRAITST >

PHX::MDField<ScalarT> panzer::DOF_BasisToBasis< EvalT, TRAITST >::dof_target_coeff

private

Evaluated field: DOF coefficient values at target basis.

Definition at line 84 of file Panzer_DOF_BasisToBasis_decl.hpp.

template<typename EvalT , typename TRAITST >

Kokkos::DynRankView<double,PHX::Device> panzer::DOF_BasisToBasis< EvalT, TRAITST >::basis

private

Reference cell basis values at target points, replicated for each cell in workset.

Definition at line 87 of file Panzer_DOF_BasisToBasis_decl.hpp.

---

The documentation for this class was generated from the following files:

• Panzer_DOF_BasisToBasis_decl.hpp
• Panzer_DOF_BasisToBasis_impl.hpp
