OptiPack::UnconstrainedOptMeritFunc1D< Scalar > Class Template Reference

Concreate subclass for unconstrained optimization objective function. More...

#include <OptiPack_UnconstrainedOptMeritFunc1D_decl.hpp>

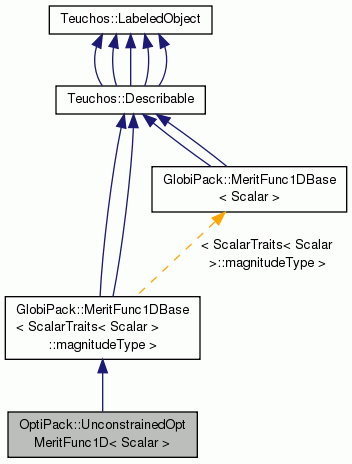

Inheritance diagram for OptiPack::UnconstrainedOptMeritFunc1D< Scalar >:

Public Types
typedef ScalarTraits< Scalar > ::magnitudeType	ScalarMag

Related Functions
(Note that these are not member functions.)
template<typename Scalar >
const RCP < UnconstrainedOptMeritFunc1D < Scalar > >	unconstrainedOptMeritFunc1D (const RCP< const Thyra::ModelEvaluator< Scalar > > &model, const int paramIndex, const int responseIndex)
	Nonmember constructor. More...

Constructor/Initializers/Accessors
	UnconstrainedOptMeritFunc1D ()
	Construct with default parameters. More...
void	setModel (const RCP< const Thyra::ModelEvaluator< Scalar > > &model, const int paramIndex, const int responseIndex)
	Set the model. More...
void	setEvaluationQuantities (const RCP< const LineSearchPointEvaluatorBase< Scalar > > &pointEvaluator, const RCP< Thyra::VectorBase< Scalar > > &p, const RCP< Thyra::VectorBase< Scalar > > &g_vec, const RCP< Thyra::VectorBase< Scalar > > &g_grad_vec)
	Set the evaluation qualities. More...

Overridden from MeritFunc1DBase.
virtual bool	supportsDerivEvals () const
virtual void	eval (const ScalarMag &alpha, const Ptr< ScalarMag > &phi, const Ptr< ScalarMag > &Dphi) const

Detailed Description

template<typename Scalar>
class OptiPack::UnconstrainedOptMeritFunc1D< Scalar >

Concreate subclass for unconstrained optimization objective function.

This subclass turns a response-only ModelEvaluator for an unconstrained optimization problem g(p) into a 1D merit function.

ToDo: Finish Documentation!

Definition at line 66 of file OptiPack_UnconstrainedOptMeritFunc1D_decl.hpp.

Member Typedef Documentation

template<typename Scalar >

typedef ScalarTraits<Scalar>::magnitudeType OptiPack::UnconstrainedOptMeritFunc1D< Scalar >::ScalarMag

Definition at line 72 of file OptiPack_UnconstrainedOptMeritFunc1D_decl.hpp.

Constructor & Destructor Documentation

template<typename Scalar >

OptiPack::UnconstrainedOptMeritFunc1D< Scalar >::UnconstrainedOptMeritFunc1D

(

)

Construct with default parameters.

Definition at line 63 of file OptiPack_UnconstrainedOptMeritFunc1D_def.hpp.

Member Function Documentation

template<typename Scalar >

void OptiPack::UnconstrainedOptMeritFunc1D< Scalar >::setModel	(	const RCP< const Thyra::ModelEvaluator< Scalar > > &	model,
		const int	paramIndex,
		const int	responseIndex
	)

Set the model.

Definition at line 70 of file OptiPack_UnconstrainedOptMeritFunc1D_def.hpp.

template<typename Scalar >

void OptiPack::UnconstrainedOptMeritFunc1D< Scalar >::setEvaluationQuantities	(	const RCP< const LineSearchPointEvaluatorBase< Scalar > > &	pointEvaluator,
		const RCP< Thyra::VectorBase< Scalar > > &	p,
		const RCP< Thyra::VectorBase< Scalar > > &	g_vec,
		const RCP< Thyra::VectorBase< Scalar > > &	g_grad_vec
	)

Set the evaluation qualities.

Parameters

pointEvaluator	[persisting non-modified] Evaluates p = p(alpha).
p	[persisting modified] Point that is updated with every call to eval(...).
g_vec	[persisting modified] The 1D vector used to store the objective value computed by model.
g_grad_vec	[persisting modified] If !is_null(g_grad_vec), then this will be updated when eval(...) is called.
baseDeriv	[in] If !is_null(baseDeriv), then gives the value to be returned in this->baseDeriv().

Postconditions:

• [!is_null(g_grad_vec)] this->supportsDerivEvals()==true

• [!is_null(baseDeriv)] this->supportsBaseDeriv()==true

Definition at line 88 of file OptiPack_UnconstrainedOptMeritFunc1D_def.hpp.

template<typename Scalar >

bool OptiPack::UnconstrainedOptMeritFunc1D< Scalar >::supportsDerivEvals ( ) const

virtual

Implements GlobiPack::MeritFunc1DBase< ScalarTraits< Scalar >::magnitudeType >.

Definition at line 112 of file OptiPack_UnconstrainedOptMeritFunc1D_def.hpp.

template<typename Scalar >

void OptiPack::UnconstrainedOptMeritFunc1D< Scalar >::eval ( const ScalarMag &  alpha, const Ptr< ScalarMag > &  phi, const Ptr< ScalarMag > &  Dphi  ) const

virtual

Definition at line 119 of file OptiPack_UnconstrainedOptMeritFunc1D_def.hpp.

Friends And Related Function Documentation

template<typename Scalar >

const RCP< UnconstrainedOptMeritFunc1D< Scalar > > unconstrainedOptMeritFunc1D ( const RCP< const Thyra::ModelEvaluator< Scalar > > &  model, const int  paramIndex, const int  responseIndex  )

related

Nonmember constructor.

Definition at line 156 of file OptiPack_UnconstrainedOptMeritFunc1D_decl.hpp.

---

The documentation for this class was generated from the following files:

• OptiPack_UnconstrainedOptMeritFunc1D_decl.hpp
• OptiPack_UnconstrainedOptMeritFunc1D_def.hpp
