OptiPack::NonlinearCG< Scalar > Class Template Reference

Concrete class implementing several nonlinear CG algorithms. More...

#include <OptiPack_NonlinearCG_decl.hpp>

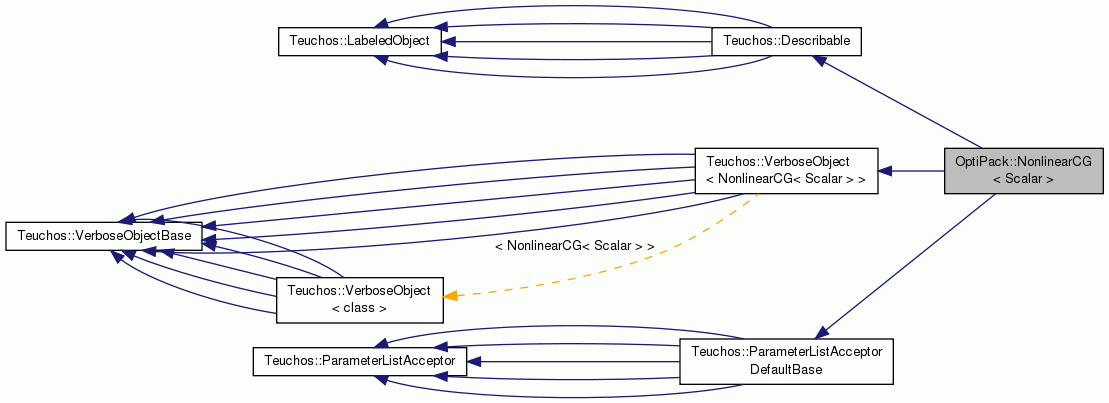

Inheritance diagram for OptiPack::NonlinearCG< Scalar >:

Public Types
typedef ScalarTraits< Scalar > ::magnitudeType	ScalarMag

Related Functions
(Note that these are not member functions.)
template<typename Scalar >
const RCP< NonlinearCG< Scalar > >	nonlinearCG ()
	Nonmember constructor. More...
template<typename Scalar >
const RCP< NonlinearCG< Scalar > >	nonlinearCG (const RCP< const Thyra::ModelEvaluator< Scalar > > &model, const int paramIndex, const int responseIndex, const RCP< GlobiPack::LineSearchBase< Scalar > > &linesearch)
	Nonmember constructor. More...

Constructor/Initializers/Accessors
	NonlinearCG ()
	Construct with default parameters. More...
void	initialize (const RCP< const Thyra::ModelEvaluator< Scalar > > &model, const int paramIndex, const int responseIndex, const RCP< GlobiPack::LineSearchBase< Scalar > > &linesearch)
	Initialize. More...
NonlinearCGUtils::ESolverTypes	get_solverType () const
ScalarMag	get_alpha_init () const
bool	get_alpha_reinit () const
bool	get_and_conv_tests () const
int	get_minIters () const
int	get_maxIters () const
ScalarMag	get_g_reduct_tol () const
ScalarMag	get_g_grad_tol () const
ScalarMag	get_g_mag () const

Overridden from ParameterListAcceptor (simple forwarding functions)
void	setParameterList (RCP< ParameterList > const &paramList)
RCP< const ParameterList >	getValidParameters () const

Solve.
NonlinearCGUtils::ESolveReturn	doSolve (const Ptr< Thyra::VectorBase< Scalar > > &p, const Ptr< ScalarMag > &g_opt, const Ptr< const ScalarMag > &g_reduct_tol=Teuchos::null, const Ptr< const ScalarMag > &g_grad_tol=Teuchos::null, const Ptr< const ScalarMag > &alpha_init=Teuchos::null, const Ptr< int > &numIters=Teuchos::null)
	Perform a solve. More...

Detailed Description

template<typename Scalar>
class OptiPack::NonlinearCG< Scalar >

Concrete class implementing several nonlinear CG algorithms.

ToDo: Finish Documentation!

Definition at line 88 of file OptiPack_NonlinearCG_decl.hpp.

Member Typedef Documentation

template<typename Scalar>

typedef ScalarTraits<Scalar>::magnitudeType OptiPack::NonlinearCG< Scalar >::ScalarMag

Definition at line 96 of file OptiPack_NonlinearCG_decl.hpp.

Constructor & Destructor Documentation

template<typename Scalar >

OptiPack::NonlinearCG< Scalar >::NonlinearCG

(

)

Construct with default parameters.

Definition at line 70 of file OptiPack_NonlinearCG_def.hpp.

Member Function Documentation

template<typename Scalar>

void OptiPack::NonlinearCG< Scalar >::initialize	(	const RCP< const Thyra::ModelEvaluator< Scalar > > &	model,
		const int	paramIndex,
		const int	responseIndex,
		const RCP< GlobiPack::LineSearchBase< Scalar > > &	linesearch
	)

Initialize.

Definition at line 87 of file OptiPack_NonlinearCG_def.hpp.

template<typename Scalar >

NonlinearCGUtils::ESolverTypes OptiPack::NonlinearCG< Scalar >::get_solverType

(

)

const

Definition at line 103 of file OptiPack_NonlinearCG_def.hpp.

template<typename Scalar >

NonlinearCG< Scalar >::ScalarMag OptiPack::NonlinearCG< Scalar >::get_alpha_init

(

)

const

Definition at line 111 of file OptiPack_NonlinearCG_def.hpp.

template<typename Scalar >

bool OptiPack::NonlinearCG< Scalar >::get_alpha_reinit

(

)

const

Definition at line 118 of file OptiPack_NonlinearCG_def.hpp.

template<typename Scalar >

bool OptiPack::NonlinearCG< Scalar >::get_and_conv_tests

(

)

const

Definition at line 125 of file OptiPack_NonlinearCG_def.hpp.

template<typename Scalar >

int OptiPack::NonlinearCG< Scalar >::get_minIters

(

)

const

Definition at line 132 of file OptiPack_NonlinearCG_def.hpp.

template<typename Scalar >

int OptiPack::NonlinearCG< Scalar >::get_maxIters

(

)

const

Definition at line 139 of file OptiPack_NonlinearCG_def.hpp.

template<typename Scalar >

NonlinearCG< Scalar >::ScalarMag OptiPack::NonlinearCG< Scalar >::get_g_reduct_tol

(

)

const

Definition at line 147 of file OptiPack_NonlinearCG_def.hpp.

template<typename Scalar >

NonlinearCG< Scalar >::ScalarMag OptiPack::NonlinearCG< Scalar >::get_g_grad_tol

(

)

const

Definition at line 155 of file OptiPack_NonlinearCG_def.hpp.

template<typename Scalar >

NonlinearCG< Scalar >::ScalarMag OptiPack::NonlinearCG< Scalar >::get_g_mag

(

)

const

Definition at line 163 of file OptiPack_NonlinearCG_def.hpp.

template<typename Scalar >

void OptiPack::NonlinearCG< Scalar >::setParameterList ( RCP< ParameterList > const &  paramList )

virtual

Implements Teuchos::ParameterListAcceptor.

Definition at line 173 of file OptiPack_NonlinearCG_def.hpp.

template<typename Scalar >

RCP< const ParameterList > OptiPack::NonlinearCG< Scalar >::getValidParameters ( ) const

virtual

Reimplemented from Teuchos::ParameterListAcceptor.

Definition at line 203 of file OptiPack_NonlinearCG_def.hpp.

template<typename Scalar>

NonlinearCGUtils::ESolveReturn OptiPack::NonlinearCG< Scalar >::doSolve	(	const Ptr< Thyra::VectorBase< Scalar > > &	p,
		const Ptr< ScalarMag > &	g_opt,
		const Ptr< const ScalarMag > &	g_reduct_tol = Teuchos::null,
		const Ptr< const ScalarMag > &	g_grad_tol = Teuchos::null,
		const Ptr< const ScalarMag > &	alpha_init = Teuchos::null,
		const Ptr< int > &	numIters = Teuchos::null
	)

Perform a solve.

Parameters

p	[in/out] On input p is the initial guess for the solution. On output, will be the final estimate for the solution.
g_opt	[out] On output, *g_opt will be set to the final value of the objective function.
tol	[in] If !is_null(tol), then *tol will be the tolerance used to determine the convergence of the algorithm by comparing to norm(g_grad) (where norm(...) is the natural norm defined by the vector spaces scalar product). If is_null(tol), then the tolerance will be determined in some other way.
alpha_init	[in] If !is_null(alpha_init), then *alpha_init will be the initial line search step length on the very first nonlinear CG iteration. If is_null(alpha_init), the initial step length will be determined automatically.
numIters	[out] If nonnull(numIters), then on output *numIters gives the number of iterations taken by the algorithm.

Returns

Returns true if the solution was found. Returns false if a line search failure is encountered.

Definition at line 257 of file OptiPack_NonlinearCG_def.hpp.

Friends And Related Function Documentation

template<typename Scalar >

const RCP< NonlinearCG< Scalar > > nonlinearCG ( )

related

Nonmember constructor.

Definition at line 218 of file OptiPack_NonlinearCG_decl.hpp.

template<typename Scalar >

const RCP< NonlinearCG< Scalar > > nonlinearCG ( const RCP< const Thyra::ModelEvaluator< Scalar > > &  model, const int  paramIndex, const int  responseIndex, const RCP< GlobiPack::LineSearchBase< Scalar > > &  linesearch  )

related

Nonmember constructor.

Definition at line 230 of file OptiPack_NonlinearCG_decl.hpp.

---

The documentation for this class was generated from the following files:

• OptiPack_NonlinearCG_decl.hpp
• OptiPack_NonlinearCG_def.hpp
