An abstract base class for all 2D Array Widets. More...

#include <Optika_ArrayWidget.hpp>

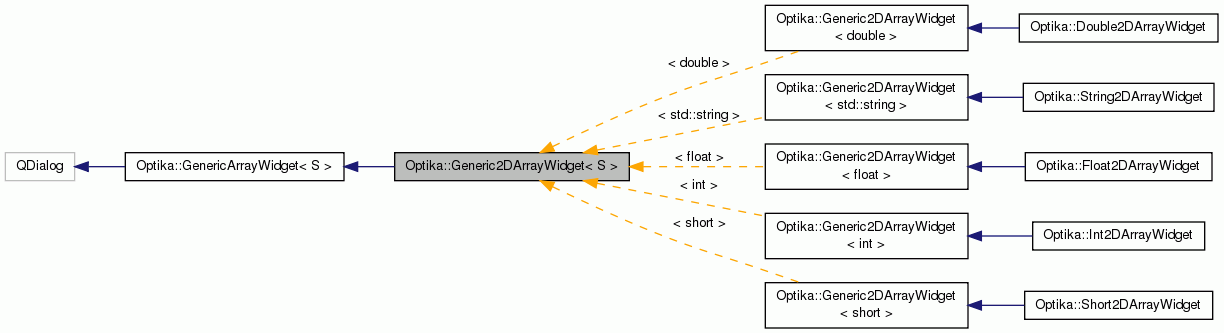

Inheritance diagram for Optika::Generic2DArrayWidget< S >:

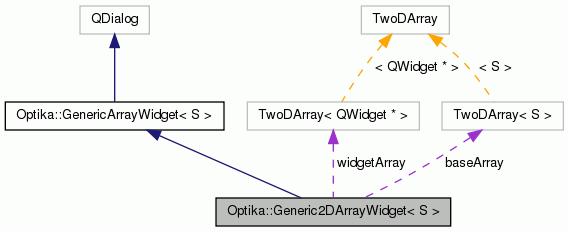

Collaboration diagram for Optika::Generic2DArrayWidget< S >:

Public Member Functions
Constructors
	Generic2DArrayWidget (QString name, QString type, const RCP< const ParameterEntryValidator > validator, QWidget *parent=0)
	Constructs a Generic2DArrayWidget. More...

Getters and Setters
void	initData (TwoDArray< S > array)
	Initializes all of the data in the array widget so when it pops up, the individual widgets are populate with their current values in the array. Also, sets the `baseArray` to `array`. More...

TwoDArray< S >	getArrayFromWidgets ()
	Retrieves all the data currently entered in each of the individual widgets and compiles it into a TwoDArray. More...

virtual S	getWidgetValue (int row, int col)=0
	Gets the current value entred in the widget located at row,col. More...

TwoDArray< S >	getData () const
	gets the data currently stored in baseArray.

Public Member Functions inherited from Optika::GenericArrayWidget< S >
const QString	getType () const
	Gets the type of array being edited. More...

const QString	getName () const
	Returns the name of the parameter being edits.

const RCP< const ParameterEntryValidator >	getEntryValidator () const
	Returns the validator being used on the array.

virtual void	accept ()=0
	called when the user is done entering data into the widget. MUST BE IMPLEMENTED AS A SLOT IN CONCRETE SUBCLASSES!

	GenericArrayWidget (QString name, QString type, const RCP< const ParameterEntryValidator > validator, QWidget *parent=0)
	Constructs a GenericArrayWidget. More...

Protected Member Functions
Protected Functions
void	doAcceptWork ()
	Do all the things that need to be done when accept is called. More...

virtual QWidget *	getEditorWidget (int row, int col)=0

Protected Member Functions inherited from Optika::GenericArrayWidget< S >
virtual void	setupArrayLayout ()
	Sets up the layout for the arrayContainer, including adding what ever editing widget should be used for the particual type of array.

Protected Attributes
Protected members
TwoDArray< QWidget * >	widgetArray
	An array containing the individual widgets which make up the array widget editor. The widget at row,col is the widget which will edit the value at row,col in the baseArray.

TwoDArray< S >	baseArray
	The actual array data that the widget is editing. When the user is finished editing, this TwoDArray is then populated with the values they entered.

Protected Attributes inherited from Optika::GenericArrayWidget< S >
QWidget *	arrayContainer
	The widget containing all of the editing widgets (e.g. QLineEdits, and QSpinBoxes) that comprise the array editor.

Detailed Description

template<class S>
class Optika::Generic2DArrayWidget< S >

An abstract base class for all 2D Array Widets.

TwoDArray

Constructor & Destructor Documentation

template<class S >

Optika::Generic2DArrayWidget< S >::Generic2DArrayWidget	(	QString	name,
		QString	type,
		const RCP< const ParameterEntryValidator >	validator,
		QWidget *	parent = `0`
	)

Constructs a Generic2DArrayWidget.

Parameters

name	The name of the parameter beting edited.
type	The arrays template type.
validator	The validator to be used on the Array.
parent	The parent widget.

Member Function Documentation

template<class S>

void Optika::Generic2DArrayWidget< S >::doAcceptWork ( )

inlineprotectedvirtual

Do all the things that need to be done when accept is called.

Namely, set the base array to what is currently entered in the individual widgets and call done.

Implements Optika::GenericArrayWidget< S >.

template<class S>

TwoDArray<S> Optika::Generic2DArrayWidget< S >::getArrayFromWidgets ( )

inline

Retrieves all the data currently entered in each of the individual widgets and compiles it into a TwoDArray.

Returns: A TwoDArray representing the current values in the idividual widgets.

Referenced by Optika::Generic2DArrayWidget< short >::doAcceptWork().

template<class S>

virtual QWidget* Optika::Generic2DArrayWidget< S >::getEditorWidget	(	int	row,
		int	col
	)

protectedpure virtual

Get a widget used for editing the value located at row,col in the baseArray.

Parameters

row	The row of the value for which an editor widget is desired.
col	The column of the value for which and editor widget is desired.

Returns: An editor widget used to edit the value at row,co. in the baseArray.

Implemented in Optika::String2DArrayWidget, Optika::Float2DArrayWidget, Optika::Double2DArrayWidget, Optika::Short2DArrayWidget, and Optika::Int2DArrayWidget.

template<class S>

virtual S Optika::Generic2DArrayWidget< S >::getWidgetValue	(	int	row,
		int	col
	)

pure virtual

Gets the current value entred in the widget located at row,col.

Returns: The value entered in the widget at row,col.

Implemented in Optika::String2DArrayWidget, Optika::Float2DArrayWidget, Optika::Double2DArrayWidget, Optika::Short2DArrayWidget, and Optika::Int2DArrayWidget.

Referenced by Optika::Generic2DArrayWidget< short >::getArrayFromWidgets().

template<class S>

void Optika::Generic2DArrayWidget< S >::initData ( TwoDArray< S > array )

inline

Initializes all of the data in the array widget so when it pops up, the individual widgets are populate with their current values in the array. Also, sets the baseArray to array.

Parameters

array The array that should be used to populate the individual widgets making up the ArrayWidget.

The documentation for this class was generated from the following file:

Optika_ArrayWidget.hpp
