Pseudo-transient solver. More...

#include <NOX_Solver_PseudoTransient.hpp>

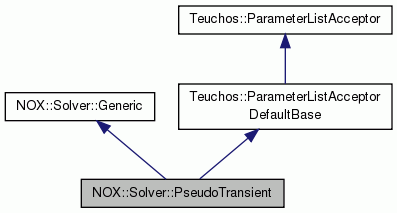

Inheritance diagram for NOX::Solver::PseudoTransient:

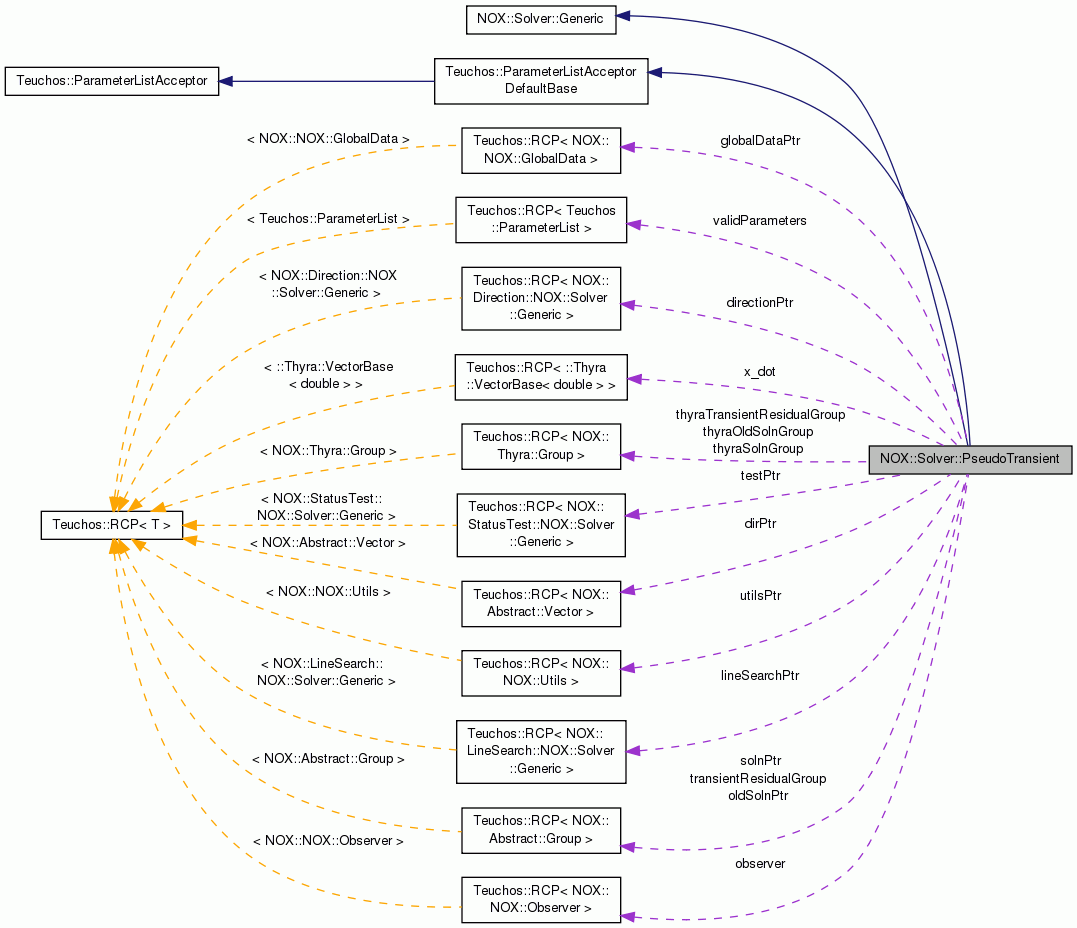

Collaboration diagram for NOX::Solver::PseudoTransient:

Public Member Functions
	PseudoTransient (const Teuchos::RCP< NOX::Abstract::Group > &xGrp, const Teuchos::RCP< NOX::StatusTest::Generic > &tests, const Teuchos::RCP< Teuchos::ParameterList > &params)

void	setParameterList (const Teuchos::RCP< Teuchos::ParameterList > &paramList)

Teuchos::RCP< const Teuchos::ParameterList >	getValidParameters () const

void	reset (const NOX::Abstract::Vector &initialGuess, const Teuchos::RCP< NOX::StatusTest::Generic > &tests)
	Resets the solver, sets a new status test, and sets a new initial guess.

void	reset (const NOX::Abstract::Vector &initialGuess)
	Resets the solver and sets a new initial guess.

void	reset ()
	Resets the solver for another solve. This resets the counters and status only. Uses the final solution from the last solve as the initial guess for the next solve. More...

NOX::StatusTest::StatusType	step ()
	Do one nonlinear step in the iteration sequence and return status.

NOX::StatusTest::StatusType	solve ()
	Solve the nonlinear problem and return final status. More...

const NOX::Abstract::Group &	getSolutionGroup () const
	Return a reference to the current solution group.

const NOX::Abstract::Group &	getPreviousSolutionGroup () const
	Return a reference to the previous solution group.

NOX::StatusTest::StatusType	getStatus () const
	Returns the current status of the solver.

int	getNumIterations () const
	Get number of iterations.

const Teuchos::ParameterList &	getList () const
	Return a reference to the solver parameters.

double	getStepSize () const

Teuchos::RCP< const NOX::Abstract::Group >	getSolutionGroupPtr () const
	Return a RCP to the solution group.

Teuchos::RCP< const NOX::Abstract::Group >	getPreviousSolutionGroupPtr () const
	Return a RCP to the previous solution group.

Teuchos::RCP< const Teuchos::ParameterList >	getListPtr () const
	Return a RCP to the solver parameters.

Teuchos::RCP< const NOX::SolverStats >	getSolverStatistics () const
	Return a RCP to the solver statistics.

Public Member Functions inherited from NOX::Solver::Generic
	Generic ()
	Constructor (does nothing)

virtual	~Generic ()
	Destructor (does nothing)

Public Member Functions inherited from Teuchos::ParameterListAcceptorDefaultBase
RCP< ParameterList >	getNonconstParameterList ()

RCP< ParameterList >	unsetParameterList ()

RCP< const ParameterList >	getParameterList () const

Protected Member Functions
virtual void	init ()

virtual void	printUpdate ()

Protected Member Functions inherited from Teuchos::ParameterListAcceptorDefaultBase
void	setMyParamList (const RCP< ParameterList > &paramList)

RCP< ParameterList >	getMyNonconstParamList ()

RCP< const ParameterList >	getMyParamList () const

Protected Attributes
Teuchos::RCP< NOX::GlobalData >	globalDataPtr
	Pointer to the global data object.

Teuchos::RCP< NOX::Utils >	utilsPtr
	Utils.

Teuchos::RCP < NOX::Abstract::Group >	solnPtr
	Current solution.

Teuchos::RCP < NOX::Abstract::Group >	oldSolnPtr
	Previous solution pointer.

Teuchos::RCP < NOX::Abstract::Group >	transientResidualGroup
	Group used to evaluate a transient residual.

Teuchos::RCP < NOX::Abstract::Vector >	dirPtr
	Current search direction pointer.

Teuchos::RCP < NOX::StatusTest::Generic >	testPtr
	Stopping test.

Teuchos::RCP < NOX::LineSearch::Generic >	lineSearchPtr
	Input parameters. More...

Teuchos::RCP < NOX::Direction::Generic >	directionPtr
	Search Direction.

double	stepSize
	Current step.

int	nIter
	Number of nonlinear iterations.

NOX::StatusTest::StatusType	status
	Status of nonlinear solver.

NOX::StatusTest::CheckType	checkType
	Type of check to use for status tests. See NOX::StatusTest for more details.

Teuchos::RCP< NOX::Observer >	observer
	Pointer to a user defined NOX::Observer object.

Teuchos::RCP< NOX::Thyra::Group >	thyraSolnGroup
	Pointer to solnPtr casted back to a thyra group.

Teuchos::RCP< NOX::Thyra::Group >	thyraOldSolnGroup
	Pointer to oldSolnPtr casted back to a thyra group.

Teuchos::RCP< NOX::Thyra::Group >	thyraTransientResidualGroup
	Group used to evaluate a transient residual.

double	delta
	Step size for pseudo-transient stepping.

double	inv_delta
	Inverse step size for pseudo-transient stepping.

double	deltaInit
	Initial step size.

double	deltaMax
	Maximum step size.

double	deltaMin
	Minimum step size.

double	deltaOld
	Step size from previous iteration.

double	time
	Pseudo-transient time.

Teuchos::RCP < ::Thyra::VectorBase< double > >	x_dot
	solution time derivative used for scaling operator V in pseudo-transient paper

bool	use_transient_residual
	If set to true, the candidate direction will use the transient residual instead of the steady-state residual. This is a modification of the Kelley-Keyes paper.

int	max_pseudo_transient_iterations
	Maximum number of iterations before pseudo-transient is disabled and the algorithm switches to a line search-based direct to steady state solve.

Teuchos::RCP < Teuchos::ParameterList >	validParameters
	Parameters that are valid for this solver.

Detailed Description

Pseudo-transient solver.

Requires that the Thyra::ModelEvaluator implement transient support (uses alpha, beta, Jacobian evaluation and optionally x_dot in residual).

Based on the 1998 Kelley Keyes paper, with minor modifications.

Member Function Documentation

void NOX::Solver::PseudoTransient::reset ( )

virtual

Resets the solver for another solve. This resets the counters and status only. Uses the final solution from the last solve as the initial guess for the next solve.

NOTE: All NOX solvers will call reset() automatically at teh beginning of the solve() method. We add the reset() method to the solver interface for the application to call in case the application needs to reset counters and status manually before the next call to solve() is made.

Implements NOX::Solver::Generic.

References NOX::StatusTest::Unconverged.

NOX::StatusTest::StatusType NOX::Solver::PseudoTransient::solve ( )

virtual

Solve the nonlinear problem and return final status.

By "solve", we call iterate() until the NOX::StatusTest value is either NOX::StatusTest::Converged or NOX::StatusTest::Failed.

Implements NOX::Solver::Generic.

References Teuchos::ParameterList::set(), Teuchos::ParameterList::sublist(), and NOX::StatusTest::Unconverged.
