Factory for building a thresholded operator. More...

#include <MueLu_SubBlockAFactory_decl.hpp>

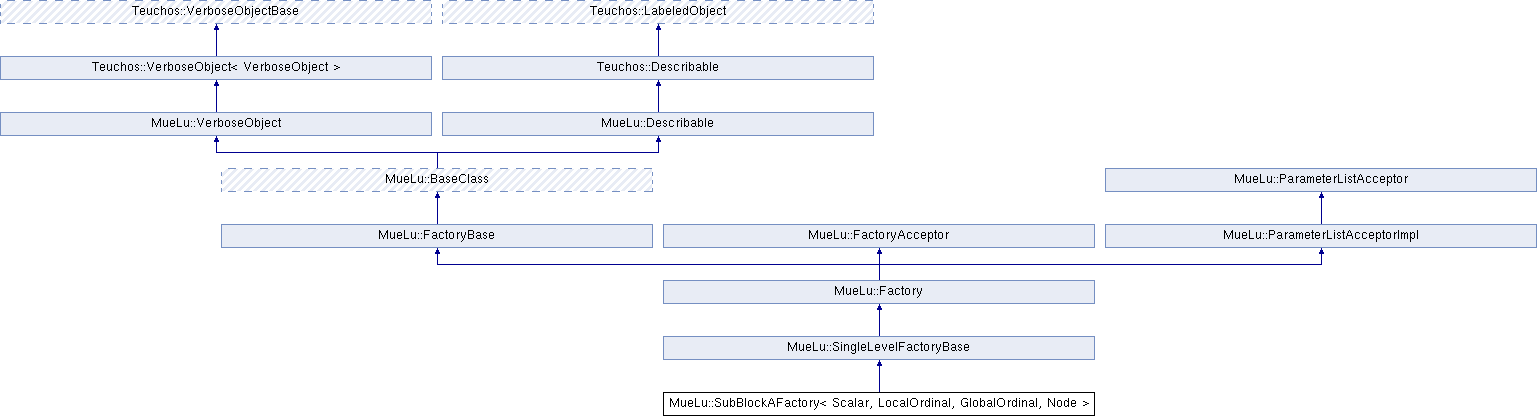

Inheritance diagram for MueLu::SubBlockAFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >:

Private Member Functions
bool	CheckForUserSpecifiedBlockInfo (bool bRange, std::vector< size_t > &stridingInfo, LocalOrdinal &stridedBlockId) const

Constructors/Destructors.
	SubBlockAFactory ()=default
	Constructor. More...

virtual	~SubBlockAFactory ()=default
	Destructor. More...

RCP< const ParameterList >	GetValidParameterList () const override
	Input. More...

void	DeclareInput (Level &currentLevel) const override
	Specifies the data that this class needs, and the factories that generate that data. More...

Build methods.
void	Build (Level &currentLevel) const override
	Build an object with this factory. More...

Additional Inherited Members
Public Member Functions inherited from MueLu::SingleLevelFactoryBase
	SingleLevelFactoryBase ()
	Constructor. More...

virtual	~SingleLevelFactoryBase ()
	Destructor. More...

virtual void	CallBuild (Level &requestedLevel) const

virtual void	CallDeclareInput (Level &requestedLevel) const

Public Member Functions inherited from MueLu::Factory
void	EnableMultipleCallCheck () const

void	DisableMultipleCallCheck () const

void	ResetDebugData () const

	Factory ()
	Constructor. More...

virtual	~Factory ()
	Destructor. More...

virtual void	SetFactory (const std::string &varName, const RCP< const FactoryBase > &factory)
	Configuration. More...

const RCP< const FactoryBase >	GetFactory (const std::string &varName) const
	Default implementation of FactoryAcceptor::GetFactory() More...

RCP< ParameterList >	RemoveFactoriesFromList (const ParameterList &list) const

Public Member Functions inherited from MueLu::FactoryBase
	FactoryBase ()
	Constructor. More...

virtual	~FactoryBase ()
	Destructor. More...

int	GetID () const
	return unique factory id More...

Public Member Functions inherited from MueLu::BaseClass
virtual	~BaseClass ()
	Destructor. More...

Public Member Functions inherited from MueLu::VerboseObject
VerbLevel	GetVerbLevel () const
	Get the verbosity level. More...

void	SetVerbLevel (const VerbLevel verbLevel)
	Set the verbosity level of this object. More...

int	GetProcRankVerbose () const
	Get proc rank used for printing. Do not use this information for any other purpose. More...

int	SetProcRankVerbose (int procRank) const
	Set proc rank used for printing. More...

bool	IsPrint (MsgType type, int thisProcRankOnly=-1) const
	Find out whether we need to print out information for a specific message type. More...

Teuchos::FancyOStream &	GetOStream (MsgType type, int thisProcRankOnly=0) const
	Get an output stream for outputting the input message type. More...

Teuchos::FancyOStream &	GetBlackHole () const

	VerboseObject ()

virtual	~VerboseObject ()
	Destructor. More...

Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
	VerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObject &	setVerbLevel (const EVerbosityLevel verbLevel) const

virtual const VerboseObject &	setOverridingVerbLevel (const EVerbosityLevel verbLevel) const

virtual EVerbosityLevel	getVerbLevel () const

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT RCP< const ParameterList >	getValidVerboseObjectSublist ()

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	setupVerboseObjectSublist (ParameterList *paramList)

TEUCHOSPARAMETERLIST_LIB_DLL_EXPORT void	readVerboseObjectSublist (ParameterList paramList, RCP< FancyOStream > oStream, EVerbosityLevel *verbLevel)

void	readVerboseObjectSublist (ParameterList paramList, VerboseObject< ObjectType > verboseObject)

Public Member Functions inherited from Teuchos::VerboseObjectBase
virtual	~VerboseObjectBase ()

	VerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual const VerboseObjectBase &	setOStream (const RCP< FancyOStream > &oStream) const

virtual const VerboseObjectBase &	setOverridingOStream (const RCP< FancyOStream > &oStream) const

virtual VerboseObjectBase &	setLinePrefix (const std::string &linePrefix)

virtual RCP< FancyOStream >	getOStream () const

virtual RCP< FancyOStream >	getOverridingOStream () const

virtual std::string	getLinePrefix () const

virtual OSTab	getOSTab (const int tabs=1, const std::string &linePrefix="") const

Public Member Functions inherited from MueLu::Describable
virtual	~Describable ()
	Destructor. More...

virtual std::string	ShortClassName () const
	Return the class name of the object, without template parameters and without namespace. More...

virtual void	describe (Teuchos::FancyOStream &out_arg, const VerbLevel verbLevel=Default) const

virtual std::string	description () const
	Return a simple one-line description of this object. More...

void	describe (Teuchos::FancyOStream &out, const Teuchos::EVerbosityLevel verbLevel=Teuchos::Describable::verbLevel_default) const
	Print the object with some verbosity level to an FancyOStream object. More...

Public Member Functions inherited from Teuchos::Describable
void	describe (std::ostream &out, const EVerbosityLevel verbLevel=verbLevel_default) const

	LabeledObject ()

virtual	~LabeledObject ()

virtual void	setObjectLabel (const std::string &objectLabel)

virtual std::string	getObjectLabel () const

DescribableStreamManipulatorState	describe (const Describable &describable, const EVerbosityLevel verbLevel=Describable::verbLevel_default)

std::ostream &	operator<< (std::ostream &os, const DescribableStreamManipulatorState &d)

Public Member Functions inherited from MueLu::FactoryAcceptor
virtual	~FactoryAcceptor ()

Public Member Functions inherited from MueLu::ParameterListAcceptorImpl
	ParameterListAcceptorImpl ()

virtual	~ParameterListAcceptorImpl ()=default

virtual void	SetParameterList (const Teuchos::ParameterList &paramList)
	Set parameters from a parameter list and return with default values. More...

virtual const Teuchos::ParameterList &	GetParameterList () const

void	SetParameter (const std::string &name, const ParameterEntry &entry)
	Set a parameter directly as a ParameterEntry. More...

const ParameterEntry &	GetParameter (const std::string &name) const
	Retrieves a const entry with the name name. More...

virtual void	GetDocumentation (std::ostream &os) const

Public Member Functions inherited from MueLu::ParameterListAcceptor
	ParameterListAcceptor ()

virtual	~ParameterListAcceptor ()=default

Static Public Member Functions inherited from MueLu::Factory
static void	EnableTimerSync ()

static void	DisableTimerSync ()

static void	EnableMultipleCheckGlobally ()

static void	DisableMultipleCheckGlobally ()

Static Public Member Functions inherited from MueLu::VerboseObject
static void	SetMueLuOStream (const Teuchos::RCP< Teuchos::FancyOStream > &mueluOStream)

static void	SetMueLuOFileStream (const std::string &filename)

static Teuchos::RCP < Teuchos::FancyOStream >	GetMueLuOStream ()

static void	SetDefaultVerbLevel (const VerbLevel defaultVerbLevel)
	Set the default (global) verbosity level. More...

static VerbLevel	GetDefaultVerbLevel ()
	Get the default (global) verbosity level. More...

Static Public Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
static void	setDefaultVerbLevel (const EVerbosityLevel defaultVerbLevel)

static EVerbosityLevel	getDefaultVerbLevel ()

Static Public Member Functions inherited from Teuchos::VerboseObjectBase
static void	setDefaultOStream (const RCP< FancyOStream > &defaultOStream)

static RCP< FancyOStream >	getDefaultOStream ()

Static Public Attributes inherited from Teuchos::Describable
static const EVerbosityLevel	verbLevel_default

Protected Member Functions inherited from MueLu::Factory
void	Input (Level &level, const std::string &varName) const

void	Input (Level &level, const std::string &varName, const std::string &varParamName) const

template<class T >
T	Get (Level &level, const std::string &varName) const

template<class T >
T	Get (Level &level, const std::string &varName, const std::string &varParamName) const

template<class T >
void	Set (Level &level, const std::string &varName, const T &data) const

template<class T >
bool	IsType (Level &level, const std::string &varName) const

bool	IsAvailable (Level &level, const std::string &varName) const

Protected Member Functions inherited from Teuchos::VerboseObject< VerboseObject >
void	initializeVerboseObject (const EVerbosityLevel verbLevel=VERB_DEFAULT, const RCP< FancyOStream > &oStream=Teuchos::null)

Protected Member Functions inherited from Teuchos::VerboseObjectBase
void	initializeVerboseObjectBase (const RCP< FancyOStream > &oStream=Teuchos::null)

virtual void	informUpdatedVerbosityState () const

Static Protected Attributes inherited from MueLu::Factory
static bool	timerSync_ = false

Detailed Description

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
class MueLu::SubBlockAFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Factory for building a thresholded operator.

This is a very simple class to access a single matrix block in a blocked operator A.

Example

Teuchos::RCP<Xpetra::BlockedCrsMatrix<Scalar,LO,GO,Node> > bOp = Teuchos::rcp(new Xpetra::BlockedCrsMatrix<Scalar,LO,GO>(mapExtractor,mapExtractor,10));
// ... let bOp be a 2x2 blocked operator ...
bOp->fillComplete();
// define factory for accessing block (0,0) in blocked operator A (assuming that the blocked operator is stored in Level class with NoFactory as generating factory)
RCP<SubBlockAFactory> A11Fact = Teuchos::rcp(new SubBlockAFactory());
A11Fact->SetFactory("A", MueLu::NoFactory::getRCP());
A11Fact->SetParameter("block row", 0);
A11Fact->SetParameter("block col", 0);
// define factory for accessing block (1,1) in blocked operator A
RCP<SubBlockAFactory> A22Fact = Teuchos::rcp(new SubBlockAFactory());
A22Fact->SetFactory("A", MueLu::NoFactory::getRCP());
A22Fact->SetParameter("block row", 1);
A22Fact->SetParameter("block col", 1);
RCP<Matrix> A11 = level.Get<RCP<Matrix> >("A", A11Fact); // extract (0,0) block from blocked operator A
RCP<Matrix> A22 = level.Get<RCP<Matrix> >("A", A22Fact); // extract (1,1) block from blocked operator A

Definition at line 57 of file MueLu_SubBlockAFactory_decl.hpp.

Constructor & Destructor Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

MueLu::SubBlockAFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::SubBlockAFactory ( )

default

Constructor.

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>

virtual MueLu::SubBlockAFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::~SubBlockAFactory ( )

virtualdefault

Destructor.

Member Function Documentation

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

RCP< const ParameterList > MueLu::SubBlockAFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::GetValidParameterList ( ) const

overridevirtual

Input.

Reimplemented from MueLu::Factory.

Definition at line 26 of file MueLu_SubBlockAFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::SubBlockAFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::DeclareInput ( Level & currentLevel ) const

overridevirtual

Specifies the data that this class needs, and the factories that generate that data.

If the Build method of this class requires some data, but the generating factory is not specified in DeclareInput, then this class will fall back to the settings in FactoryManager.

Implements MueLu::SingleLevelFactoryBase.

Definition at line 43 of file MueLu_SubBlockAFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

void MueLu::SubBlockAFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::Build ( Level & currentLevel ) const

overridevirtual

Build an object with this factory.

Extract sub block matrix from a given blocked crs operator. Strided or block information is extracted in the following way: 1) first check whether the corresponding sub maps are strided If yes, use the fixed block size and strided block id 2) If no, get the full map of the map extractors. Check whether the full map is strided. If yes, use the strided information of the full map and build partial (strided) maps with it If no, throw an exception

For blocked operators with block maps one should use the striding information from the sub maps. For strided operators, the striding information of the full map is the best choice.

Implements MueLu::SingleLevelFactoryBase.

Definition at line 48 of file MueLu_SubBlockAFactory_def.hpp.

template<class Scalar , class LocalOrdinal , class GlobalOrdinal , class Node >

bool MueLu::SubBlockAFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >::CheckForUserSpecifiedBlockInfo	(	bool	bRange,
		std::vector< size_t > &	stridingInfo,
		LocalOrdinal &	stridedBlockId
	)		const

private

Definition at line 192 of file MueLu_SubBlockAFactory_def.hpp.

The documentation for this class was generated from the following files:

Private Member Functions

Constructors/Destructors.

Build methods.

Additional Inherited Members

Detailed Description

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode> class MueLu::SubBlockAFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >

Constructor & Destructor Documentation

Member Function Documentation

template<class Scalar = DefaultScalar, class LocalOrdinal = DefaultLocalOrdinal, class GlobalOrdinal = DefaultGlobalOrdinal, class Node = DefaultNode>
class MueLu::SubBlockAFactory< Scalar, LocalOrdinal, GlobalOrdinal, Node >
