Implements the base NLP interface using a Thyra::ModelEvaluator object. More...

#include <NLPInterfacePack_NLPThyraModelEvaluatorBase.hpp>

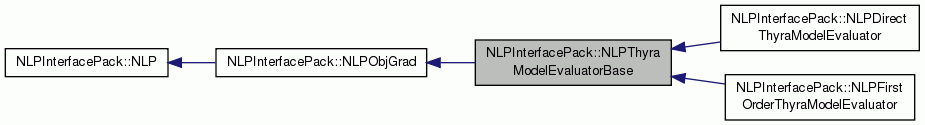

Inheritance diagram for NLPInterfacePack::NLPThyraModelEvaluatorBase:

Public Member Functions
	STANDARD_MEMBER_COMPOSITION_MEMBERS (bool, showModelEvaluatorTrace)
	Set if a trace of the model evaluations is shown or not. More...

Protected Member Functions
void	evalModel (const Vector &x, bool newx, const ZeroOrderInfo zero_order_info, const ObjGradInfo obj_grad_info) const

Overridden public members from NLP
void	initialize (bool test_setup)

bool	is_initialized () const

vec_space_ptr_t	space_x () const

vec_space_ptr_t	space_c () const

size_type	num_bounded_x () const

void	force_xinit_in_bounds (bool force_xinit_in_bounds)

bool	force_xinit_in_bounds () const

const Vector &	xinit () const

const Vector &	xl () const

const Vector &	xu () const

value_type	max_var_bounds_viol () const

void	set_f (value_type *f)

void	set_c (VectorMutable *c)

void	unset_quantities ()

void	scale_f (value_type scale_f)

value_type	scale_f () const

void	report_final_solution (const Vector &x, const Vector lambda, const Vector nu, bool optimal)

Overridden public members from NLPObjGrad
void	set_Gf (VectorMutable *Gf)

Overridden protected members from NLP
void	imp_calc_f (const Vector &x, bool newx, const ZeroOrderInfo &zero_order_info) const

void	imp_calc_c (const Vector &x, bool newx, const ZeroOrderInfo &zero_order_info) const

Overridden protected members from NLPObjGrad
void	imp_calc_Gf (const Vector &x, bool newx, const ObjGradInfo &obj_grad_info) const

Protected functions to be used by subclasses
	NLPThyraModelEvaluatorBase ()

void	initializeBase (const Teuchos::RCP< Thyra::ModelEvaluator< value_type > > &model, const int p_idx, const int g_idx)
	Initialize given a `Thyra::ModelEvaluator` and a description of how to interpret it. More...

void	updateInitialGuessAndBounds () const
	Update the initial guess and bounds . More...

void	assert_is_initialized () const

void	copy_from_model_x (const Thyra::VectorBase< value_type > model_x, VectorMutable x_D) const

void	copy_from_model_p (const Thyra::VectorBase< value_type > model_p, VectorMutable x_I) const

void	set_x (const Vector &x, Thyra::ModelEvaluatorBase::InArgs< value_type > *model_inArgs_inout) const

void	preprocessBaseInOutArgs (const Vector &x, bool newx, const ZeroOrderInfo zero_order_info, const ObjGradInfo obj_grad_info, const NLPFirstOrder::FirstOrderInfo first_order_info, Thyra::ModelEvaluatorBase::InArgs< value_type > model_inArgs_inout, Thyra::ModelEvaluatorBase::OutArgs< value_type > model_outArgs_inout, MatrixOp Gc_out, VectorMutable Gf_out, value_type f_out, VectorMutable *c_out) const

void	postprocessBaseOutArgs (Thyra::ModelEvaluatorBase::OutArgs< value_type > model_outArgs_inout, VectorMutable Gf, value_type f, VectorMutable c) const

Detailed Description

Implements the base NLP interface using a Thyra::ModelEvaluator object.

The nonlinear program is mapped as follows:

   min     f(x)
   s.t.    c(x) = 0
           xL <= x <= xu

   where:

       x = [ model.x        ]
           [ model.p(p_idx) ]

       f(x) = model.g(g_idx)

       c(x) = model.f()

where p_idx > 0 and g_idx > 0 are some indexes that specificy the indepenent variables and the objective function.

In addition, the client can also override the bounds on model.x and model.p(p_idx) defined in the object model.

The current implementation of this class does not allow the use of any of the auxiliary functions model.g() as undecomposed equality constraints or extra general inequality constraints. This type of functionality can be added when it is needed (just ask for it).

ToDo: Finish documentation!

Definition at line 92 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.hpp.

Constructor & Destructor Documentation

NLPInterfacePack::NLPThyraModelEvaluatorBase::NLPThyraModelEvaluatorBase ( )

protected

Initialize to uninitialized

Definition at line 233 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

Member Function Documentation

NLPInterfacePack::NLPThyraModelEvaluatorBase::STANDARD_MEMBER_COMPOSITION_MEMBERS	(	bool	,
		showModelEvaluatorTrace
	)

Set if a trace of the model evaluations is shown or not.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::initialize ( bool test_setup )

virtual

Reimplemented from NLPInterfacePack::NLP.

Definition at line 68 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

bool NLPInterfacePack::NLPThyraModelEvaluatorBase::is_initialized ( ) const

virtual

Implements NLPInterfacePack::NLP.

Definition at line 82 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

NLP::vec_space_ptr_t NLPInterfacePack::NLPThyraModelEvaluatorBase::space_x ( ) const

virtual

Implements NLPInterfacePack::NLP.

Definition at line 88 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

NLP::vec_space_ptr_t NLPInterfacePack::NLPThyraModelEvaluatorBase::space_c ( ) const

virtual

Implements NLPInterfacePack::NLP.

Definition at line 94 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

size_type NLPInterfacePack::NLPThyraModelEvaluatorBase::num_bounded_x ( ) const

virtual

Implements NLPInterfacePack::NLP.

Definition at line 99 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::force_xinit_in_bounds ( bool force_xinit_in_bounds )

virtual

Implements NLPInterfacePack::NLP.

Definition at line 104 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

bool NLPInterfacePack::NLPThyraModelEvaluatorBase::force_xinit_in_bounds ( ) const

virtual

Implements NLPInterfacePack::NLP.

Definition at line 109 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

const Vector & NLPInterfacePack::NLPThyraModelEvaluatorBase::xinit ( ) const

virtual

Implements NLPInterfacePack::NLP.

Definition at line 114 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

const Vector & NLPInterfacePack::NLPThyraModelEvaluatorBase::xl ( ) const

virtual

Implements NLPInterfacePack::NLP.

Definition at line 120 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

const Vector & NLPInterfacePack::NLPThyraModelEvaluatorBase::xu ( ) const

virtual

Implements NLPInterfacePack::NLP.

Definition at line 126 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

value_type NLPInterfacePack::NLPThyraModelEvaluatorBase::max_var_bounds_viol ( ) const

virtual

Implements NLPInterfacePack::NLP.

Definition at line 132 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::set_f ( value_type * f )

virtual

Reimplemented from NLPInterfacePack::NLP.

Definition at line 137 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::set_c ( VectorMutable * c )

virtual

Reimplemented from NLPInterfacePack::NLP.

Definition at line 143 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::unset_quantities ( )

virtual

Reimplemented from NLPInterfacePack::NLP.

Definition at line 149 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::scale_f ( value_type scale_f )

virtual

Implements NLPInterfacePack::NLP.

Definition at line 154 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

value_type NLPInterfacePack::NLPThyraModelEvaluatorBase::scale_f ( ) const

virtual

Implements NLPInterfacePack::NLP.

Definition at line 159 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::report_final_solution	(	const Vector &	x,
		const Vector *	lambda,
		const Vector *	nu,
		bool	optimal
	)

virtual

Reimplemented from NLPInterfacePack::NLP.

Definition at line 164 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::set_Gf ( VectorMutable * Gf )

Definition at line 197 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::imp_calc_f	(	const Vector &	x,
		bool	newx,
		const ZeroOrderInfo &	zero_order_info
	)		const

protectedvirtual

Implements NLPInterfacePack::NLP.

Definition at line 205 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::imp_calc_c	(	const Vector &	x,
		bool	newx,
		const ZeroOrderInfo &	zero_order_info
	)		const

protectedvirtual

Implements NLPInterfacePack::NLP.

Definition at line 213 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::imp_calc_Gf	(	const Vector &	x,
		bool	newx,
		const ObjGradInfo &	obj_grad_info
	)		const

protected

Definition at line 223 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::initializeBase	(	const Teuchos::RCP< Thyra::ModelEvaluator< value_type > > &	model,
		const int	p_idx,
		const int	g_idx
	)

protected

Initialize given a Thyra::ModelEvaluator and a description of how to interpret it.

Parameters

model	[in] NonlinearProblem that defines all of the functions and variables.
p_idx	[in] Index of the subset of parameter vectors to use as the independent variables. If `p_idx < 0`, then no extra parameters are added.
g_idx	[in] Index of the subset of auxiliary response functions to use as the objective function. Note, only the first element `model.g(g_idx)(1)` will be used as the objective function value.
model_xL	[in] Pointer to upper bounds for the state variables `model.x`. If NULL then the default supplied in `model->get_x_lower_bounds()` will be used.
model_xU	[in] Pointer to upper bounds for the state variables `x`. If NULL then the default supplied in `model->get_x_upper_bounds()` will be used.
model_x0	[in] Pointer to initial guess for the state variables `x`. If NULL the the default supplied in `model->get_x_init()` will be used.

ToDo: Finish documentation!

Todo: Add arguments for auxiliary inequalites and equalities

Definition at line 240 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::updateInitialGuessAndBounds ( ) const

protected

Update the initial guess and bounds .

Definition at line 357 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::assert_is_initialized ( ) const

protected

Definition at line 408 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::copy_from_model_x	(	const Thyra::VectorBase< value_type > *	model_x,
		VectorMutable *	x_D
	)		const

protected

Definition at line 417 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::copy_from_model_p	(	const Thyra::VectorBase< value_type > *	model_p,
		VectorMutable *	x_I
	)		const

protected

Definition at line 423 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::set_x	(	const Vector &	x,
		Thyra::ModelEvaluatorBase::InArgs< value_type > *	model_inArgs_inout
	)		const

protected

Definition at line 429 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::preprocessBaseInOutArgs	(	const Vector &	x,
		bool	newx,
		const ZeroOrderInfo *	zero_order_info,
		const ObjGradInfo *	obj_grad_info,
		const NLPFirstOrder::FirstOrderInfo *	first_order_info,
		Thyra::ModelEvaluatorBase::InArgs< value_type > *	model_inArgs_inout,
		Thyra::ModelEvaluatorBase::OutArgs< value_type > *	model_outArgs_inout,
		MatrixOp **	Gc_out,
		VectorMutable **	Gf_out,
		value_type **	f_out,
		VectorMutable **	c_out
	)		const

protected

Definition at line 460 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::postprocessBaseOutArgs	(	Thyra::ModelEvaluatorBase::OutArgs< value_type > *	model_outArgs_inout,
		VectorMutable *	Gf,
		value_type *	f,
		VectorMutable *	c
	)		const

protected

Definition at line 562 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

void NLPInterfacePack::NLPThyraModelEvaluatorBase::evalModel	(	const Vector &	x,
		bool	newx,
		const ZeroOrderInfo *	zero_order_info,
		const ObjGradInfo *	obj_grad_info
	)		const

protected

Definition at line 608 of file NLPInterfacePack_NLPThyraModelEvaluatorBase.cpp.

The documentation for this class was generated from the following files:
