ConstrainedOptPack: C++ Tools for Constrained (and Unconstrained) Optimization  Version of the Day
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Groups Pages
Public Types | List of all members
ConstrainedOptPack::MatrixSymHessianRelaxNonSing Class Reference

Matrix class for non-singular Hessian matrix augmented with a terms for "Big M" relaxation variables. More...

#include <ConstrainedOptPack_MatrixSymHessianRelaxNonSing.hpp>

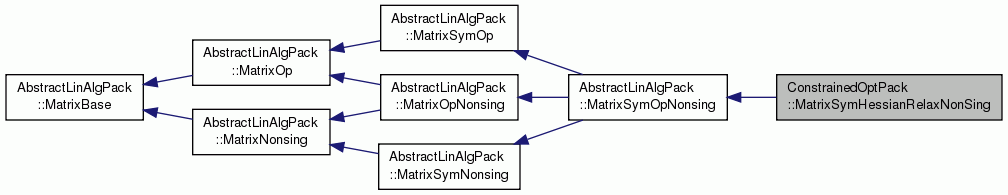

Inheritance diagram for ConstrainedOptPack::MatrixSymHessianRelaxNonSing:
Inheritance graph
[legend]

Public Types

typedef Teuchos::RCP< const
MatrixSymOpNonsing > 		G_ptr_t

typedef Teuchos::RCP
< VectorMutable > 		vec_mut_ptr_t

typedef Teuchos::RCP< const
VectorSpace > 		space_ptr_t


Constructors/initializers

 MatrixSymHessianRelaxNonSing ()
 Construct uninitialized. More...

 MatrixSymHessianRelaxNonSing (const G_ptr_t &G_ptr, const vec_mut_ptr_t &M_diag_ptr, const space_ptr_t &space=Teuchos::null)
 Constructor (calls initialize()). More...

void initialize (const G_ptr_t &G_ptr, const vec_mut_ptr_t &M_diag_ptr, const space_ptr_t &space=Teuchos::null)
 Initialize the Hessian and the relaxation terms. More...

void set_uninitialized ()
 Set uninitalized. More...

const G_ptr_t & G_ptr () const

const vec_mut_ptr_t & M_diag_ptr () const

const MatrixSymOpNonsing & G () const

const
AbstractLinAlgPack::MatrixSymDiagStd & 		M () const


Overridden from MatrixOp

const VectorSpace & space_cols () const

bool Mp_StM (MatrixOp *mwo_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs) const

void Vp_StMtV (VectorMutable *v_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const Vector &v_rhs2, value_type beta) const

void Vp_StMtV (VectorMutable *v_lhs, value_type alpha, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2, value_type beta) const

void Vp_StPtMtV (VectorMutable *v_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_rhs2_trans, const Vector &v_rhs3, value_type beta) const

void Vp_StPtMtV (VectorMutable *v_lhs, value_type alpha, const GenPermMatrixSlice &P_rhs1, BLAS_Cpp::Transp P_rhs1_trans, BLAS_Cpp::Transp M_rhs2_trans, const SpVectorSlice &sv_rhs3, value_type beta) const


Overridden form MatrixSymOp

void Mp_StPtMtP (MatrixSymOp *sym_lhs, value_type alpha, EMatRhsPlaceHolder dummy_place_holder, const GenPermMatrixSlice &gpms_rhs, BLAS_Cpp::Transp gpms_rhs_trans, value_type beta) const


Overridden from MatrixNonsing

void V_InvMtV (VectorMutable *v_lhs, BLAS_Cpp::Transp trans_rhs1, const Vector &v_rhs2) const

void V_InvMtV (VectorMutable *v_lhs, BLAS_Cpp::Transp trans_rhs1, const SpVectorSlice &sv_rhs2) const


Detailed Description

Matrix class for non-singular Hessian matrix augmented with a terms for "Big M" relaxation variables.

The matrix that is formed is: {verbatim}

H = [ G ] [ M ] {verbatim} where M is a diagonal matrix made up of entries M_diag.

Definition at line 62 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.hpp.

Member Typedef Documentation

typedef Teuchos::RCP<const MatrixSymOpNonsing> ConstrainedOptPack::MatrixSymHessianRelaxNonSing::G_ptr_t

Definition at line 68 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.hpp.

typedef Teuchos::RCP<VectorMutable> ConstrainedOptPack::MatrixSymHessianRelaxNonSing::vec_mut_ptr_t

Definition at line 70 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.hpp.

typedef Teuchos::RCP<const VectorSpace> ConstrainedOptPack::MatrixSymHessianRelaxNonSing::space_ptr_t

Definition at line 72 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.hpp.

Constructor & Destructor Documentation

ConstrainedOptPack::MatrixSymHessianRelaxNonSing::MatrixSymHessianRelaxNonSing ( )

Construct uninitialized.

Postconditions:

Definition at line 149 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.cpp.

ConstrainedOptPack::MatrixSymHessianRelaxNonSing::MatrixSymHessianRelaxNonSing ( const G_ptr_t &  G_ptr,
const vec_mut_ptr_t &  M_diag_ptr,
const space_ptr_t &  space = Teuchos::null
)

Constructor (calls initialize()).

Definition at line 153 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.cpp.

Member Function Documentation

void ConstrainedOptPack::MatrixSymHessianRelaxNonSing::initialize ( const G_ptr_t &  G_ptr,
const vec_mut_ptr_t &  M_diag_ptr,
const space_ptr_t &  space = Teuchos::null
)

Initialize the Hessian and the relaxation terms.

Preconditions:

  • G_ptr.get() != NULL (throw std::invalid_argument)
  • G_ptr->rows() > 0 (throw std::invalid_argument)
  • M_diag_ptr.get() != NULL (throw std::invalid_argument)
  • M_diag_ptr->dim() > 0 (throw std::invalid_argument)

Postconditions:

  • this->rows() == G_ptr->rows() + M_diag->dim()
  • &this->G() == G_ptr.get()
  • &this->M().diag() == M_diag_ptr.get()
Parameters
G_ptr[in] Smart pointer to matrix that this object will represent. The underlying matrix object *G_ptr.get() should not be modified without calling this->initialize() again.
M_diag_ptr[in] Smart pointer to the diagonal for M. All of the elements in this vector must be nonzero! This vector is used to initalize the diagonal matrix M and this vector should not be modified externally without calling this->initialize() again.
space[in] Smart pointer to the space used for this->space_cols() and this->space_rows(). If space.get() == NULL then VectorSpaceCompoisteStd will be used which is constructed from the spaces G_ptr->space_cols() and M_diag_ptr->space().

Definition at line 163 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.cpp.

void ConstrainedOptPack::MatrixSymHessianRelaxNonSing::set_uninitialized ( )

Set uninitalized.

const MatrixSymHessianRelaxNonSing::G_ptr_t & ConstrainedOptPack::MatrixSymHessianRelaxNonSing::G_ptr ( ) const
inline

Definition at line 229 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.hpp.

const MatrixSymHessianRelaxNonSing::vec_mut_ptr_t & ConstrainedOptPack::MatrixSymHessianRelaxNonSing::M_diag_ptr ( ) const
inline

Definition at line 236 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.hpp.

const MatrixSymOpNonsing & ConstrainedOptPack::MatrixSymHessianRelaxNonSing::G ( ) const
inline

Definition at line 243 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.hpp.

const MatrixSymDiagStd & ConstrainedOptPack::MatrixSymHessianRelaxNonSing::M ( ) const
inline

Definition at line 251 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.hpp.

const VectorSpace & ConstrainedOptPack::MatrixSymHessianRelaxNonSing::space_cols ( ) const
virtual

Implements AbstractLinAlgPack::MatrixBase.

Definition at line 196 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.cpp.

bool ConstrainedOptPack::MatrixSymHessianRelaxNonSing::Mp_StM ( MatrixOp *  mwo_lhs,
value_type  alpha,
BLAS_Cpp::Transp  trans_rhs
) const

Definition at line 202 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.cpp.

void ConstrainedOptPack::MatrixSymHessianRelaxNonSing::Vp_StMtV ( VectorMutable *  v_lhs,
value_type  alpha,
BLAS_Cpp::Transp  trans_rhs1,
const Vector &  v_rhs2,
value_type  beta
) const

Definition at line 220 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.cpp.

void ConstrainedOptPack::MatrixSymHessianRelaxNonSing::Vp_StMtV ( VectorMutable *  v_lhs,
value_type  alpha,
BLAS_Cpp::Transp  trans_rhs1,
const SpVectorSlice &  sv_rhs2,
value_type  beta
) const

Definition at line 237 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.cpp.

void ConstrainedOptPack::MatrixSymHessianRelaxNonSing::Vp_StPtMtV ( VectorMutable *  v_lhs,
value_type  alpha,
const GenPermMatrixSlice &  P_rhs1,
BLAS_Cpp::Transp  P_rhs1_trans,
BLAS_Cpp::Transp  M_rhs2_trans,
const Vector &  v_rhs3,
value_type  beta
) const

Definition at line 254 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.cpp.

void ConstrainedOptPack::MatrixSymHessianRelaxNonSing::Vp_StPtMtV ( VectorMutable *  v_lhs,
value_type  alpha,
const GenPermMatrixSlice &  P_rhs1,
BLAS_Cpp::Transp  P_rhs1_trans,
BLAS_Cpp::Transp  M_rhs2_trans,
const SpVectorSlice &  sv_rhs3,
value_type  beta
) const

Definition at line 269 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.cpp.

void ConstrainedOptPack::MatrixSymHessianRelaxNonSing::Mp_StPtMtP ( MatrixSymOp *  sym_lhs,
value_type  alpha,
EMatRhsPlaceHolder  dummy_place_holder,
const GenPermMatrixSlice &  gpms_rhs,
BLAS_Cpp::Transp  gpms_rhs_trans,
value_type  beta
) const

Definition at line 285 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.cpp.

void ConstrainedOptPack::MatrixSymHessianRelaxNonSing::V_InvMtV ( VectorMutable *  v_lhs,
BLAS_Cpp::Transp  trans_rhs1,
const Vector &  v_rhs2
) const

Definition at line 372 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.cpp.

void ConstrainedOptPack::MatrixSymHessianRelaxNonSing::V_InvMtV ( VectorMutable *  v_lhs,
BLAS_Cpp::Transp  trans_rhs1,
const SpVectorSlice &  sv_rhs2
) const

Definition at line 387 of file ConstrainedOptPack_MatrixSymHessianRelaxNonSing.cpp.

The documentation for this class was generated from the following files:
