Orthogonal variable reduction subclass. More...

#include <ConstrainedOptPack_DecompositionSystemOrthogonal.hpp>

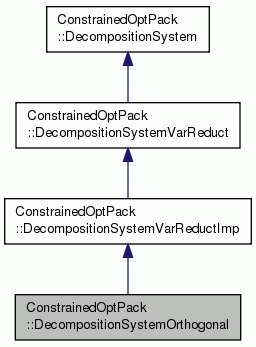

Inheritance diagram for ConstrainedOptPack::DecompositionSystemOrthogonal:

Constructors / initializers
	DecompositionSystemOrthogonal (const VectorSpace::space_ptr_t &space_x=Teuchos::null, const VectorSpace::space_ptr_t &space_c=Teuchos::null, const basis_sys_ptr_t &basis_sys=Teuchos::null, const basis_sys_tester_ptr_t &basis_sys_tester=Teuchos::null, EExplicitImplicit D_imp=MAT_IMP_EXPLICIT, EExplicitImplicit Uz_imp=MAT_IMP_EXPLICIT)

Overridden from DecompositionSystem
const mat_fcty_ptr_t	factory_Y () const

const mat_nonsing_fcty_ptr_t	factory_R () const

const mat_fcty_ptr_t	factory_Uy () const

Overridden from DecompositionSystemVarReductImp
void	update_D_imp_used (EExplicitImplicit *D_imp_used) const

mat_nonsing_fcty_ptr_t::element_type::obj_ptr_t	uninitialize_matrices (std::ostream out, EOutputLevel olevel, MatrixOp Y, MatrixOpNonsing R, MatrixOp Uy) const

void	initialize_matrices (std::ostream out, EOutputLevel olevel, const mat_nonsing_fcty_ptr_t::element_type::obj_ptr_t &C, const mat_fcty_ptr_t::element_type::obj_ptr_t &D, MatrixOp Y, MatrixOpNonsing R, MatrixOp Uy, EMatRelations mat_rel) const

void	print_update_matrices (std::ostream &out, const std::string &leading_str) const

Additional Inherited Members
Public Types inherited from ConstrainedOptPack::DecompositionSystemVarReductImp
typedef DecompositionSystem	inherited

typedef Teuchos::RCP< const BasisSystem >	basis_sys_ptr_t

Public Types inherited from ConstrainedOptPack::DecompositionSystemVarReduct
enum	EExplicitImplicit

Public Types inherited from ConstrainedOptPack::DecompositionSystem
enum	EOutputLevel
	Enumeration for the amount of output to create from `update_decomp()`. More...

enum	ERunTests
	Enumeration for if to run internal tests or not. More...

enum	EMatRelations

typedef Teuchos::RCP< const Teuchos::AbstractFactory < MatrixOpNonsing > >	mat_nonsing_fcty_ptr_t

typedef Teuchos::RCP< const Teuchos::AbstractFactory < MatrixOp > >	mat_fcty_ptr_t

Public Member Functions inherited from ConstrainedOptPack::DecompositionSystemVarReductImp
void	initialize (const VectorSpace::space_ptr_t &space_x, const VectorSpace::space_ptr_t &space_c, const basis_sys_ptr_t &basis_sys)
	Initialize. More...

	STANDARD_COMPOSITION_MEMBERS (BasisSystemTester, basis_sys_tester)
	Set the BasisSystem tester object. More...

	DecompositionSystemVarReductImp (const VectorSpace::space_ptr_t &space_x, const VectorSpace::space_ptr_t &space_c, const basis_sys_ptr_t &basis_sys, const basis_sys_tester_ptr_t &basis_sys_tester, EExplicitImplicit D_imp, EExplicitImplicit Uz_imp)
	Construct a variable reduction decomposition. More...

const VectorSpace::space_ptr_t &	space_x () const

const VectorSpace::space_ptr_t &	space_c () const

const basis_sys_ptr_t &	basis_sys () const

void	get_basis_matrices (std::ostream out, EOutputLevel olevel, ERunTests test_what, MatrixOp Z, MatrixOp Y, MatrixOpNonsing R, MatrixOp Uz, MatrixOp Uy, Teuchos::RCP< MatrixOpNonsing > C_ptr, Teuchos::RCP< MatrixOp > D_ptr)
	Called by client to uninitialize decomposition matrices in prepairation for selecting a different basis. More...

void	set_basis_matrices (std::ostream out, EOutputLevel olevel, ERunTests test_what, const Teuchos::RCP< MatrixOpNonsing > &C_ptr, const Teuchos::RCP< MatrixOp > &D_ptr, MatrixOp Uz, const basis_sys_ptr_t &basis_sys=Teuchos::null)
	Set updated basis matrices along with a possibly updated basis system object. More...

EExplicitImplicit	D_imp_used () const
	Get the type of D matrix to be used or is being used (returns MAT_IMP_EXPLICIT or MAT_IMP_IMPLICIT only). More...

size_type	n () const
	Returns `this->space_x()->dim()`. More...

size_type	m () const
	Returns `this->space_c()->dim()`. More...

size_type	r () const
	Returns `this->basis_sys()->equ_decomp().size()`. More...

const VectorSpace::space_ptr_t	space_range () const
	Returns `this->space_x()->sub_space(var_dep)` More...

const VectorSpace::space_ptr_t	space_null () const
	Returns `this->space_x()->sub_space(var_indep)` More...

const mat_fcty_ptr_t	factory_Z () const

const mat_fcty_ptr_t	factory_Uz () const

void	update_decomp (std::ostream out, EOutputLevel olevel, ERunTests test_what, const MatrixOp &Gc, MatrixOp Z, MatrixOp Y, MatrixOpNonsing R, MatrixOp Uz, MatrixOp Uy, EMatRelations mat_rel) const
	Preconditions: More...

void	print_update_decomp (std::ostream &out, const std::string &leading_str) const

Range1D	var_indep () const

Range1D	var_dep () const

Public Member Functions inherited from ConstrainedOptPack::DecompositionSystemVarReduct
	STANDARD_MEMBER_COMPOSITION_MEMBERS (EExplicitImplicit, D_imp)
	Set whether to use explicit or implicit `D = -inv(C)*N` matrix. More...

	STANDARD_MEMBER_COMPOSITION_MEMBERS (EExplicitImplicit, Uz_imp)
	Set whether to use explicit or implicit `Uz = F + E * D` matrix. More...

	DecompositionSystemVarReduct (EExplicitImplicit D_imp=MAT_IMP_AUTO, EExplicitImplicit Uz_imp=MAT_IMP_AUTO)

Public Member Functions inherited from ConstrainedOptPack::DecompositionSystem
virtual	~DecompositionSystem ()

virtual Range1D	equ_decomp () const
	Returns the range of the decomposed equalities. More...

virtual Range1D	equ_undecomp () const
	Returns the range of the undecomposed equalities. More...

Detailed Description

Orthogonal variable reduction subclass.

This is the interface for the coordinate variable reduction decomposition where:

 Y = [      I     ] = [  I  ]  (class MatrixIdentConcatStd)
     [ N'*inv(C') ]   [ -D' ]

 R = Gc(:,con_decomp)'*Y = [ C   N ] * [     I      ] = (C + N*N'*inv(C'))
                                       [ N'*inv(C') ]
   = C*(I + inv(C)*N*N'*inv(C'))
   = C*(I + D*D')

 Uy = Gc(:,con_undecomp)'*Y = [ E  F ] * [  I  ]
                                         [ -D' ]
     = E - F*D'

See the matrix subclass MatrixDecompRangeOrthog for details on how linear systems with R are solved for.

For now the copy constructor and the assignment operator are not defined.

Definition at line 74 of file ConstrainedOptPack_DecompositionSystemOrthogonal.hpp.

Constructor & Destructor Documentation

ConstrainedOptPack::DecompositionSystemOrthogonal::DecompositionSystemOrthogonal	(	const VectorSpace::space_ptr_t &	space_x = `Teuchos::null`,
		const VectorSpace::space_ptr_t &	space_c = `Teuchos::null`,
		const basis_sys_ptr_t &	basis_sys = `Teuchos::null`,
		const basis_sys_tester_ptr_t &	basis_sys_tester = `Teuchos::null`,
		EExplicitImplicit	D_imp = `MAT_IMP_EXPLICIT`,
		EExplicitImplicit	Uz_imp = `MAT_IMP_EXPLICIT`
	)

Definition at line 60 of file ConstrainedOptPack_DecompositionSystemOrthogonal.cpp.

Member Function Documentation

const DecompositionSystem::mat_fcty_ptr_t ConstrainedOptPack::DecompositionSystemOrthogonal::factory_Y ( ) const

virtual

Implements ConstrainedOptPack::DecompositionSystem.

Definition at line 76 of file ConstrainedOptPack_DecompositionSystemOrthogonal.cpp.

const DecompositionSystem::mat_nonsing_fcty_ptr_t ConstrainedOptPack::DecompositionSystemOrthogonal::factory_R ( ) const

virtual

Implements ConstrainedOptPack::DecompositionSystem.

Definition at line 85 of file ConstrainedOptPack_DecompositionSystemOrthogonal.cpp.

const DecompositionSystem::mat_fcty_ptr_t ConstrainedOptPack::DecompositionSystemOrthogonal::factory_Uy ( ) const

virtual

Implements ConstrainedOptPack::DecompositionSystem.

Definition at line 94 of file ConstrainedOptPack_DecompositionSystemOrthogonal.cpp.

void ConstrainedOptPack::DecompositionSystemOrthogonal::update_D_imp_used ( EExplicitImplicit * D_imp_used ) const

protectedvirtual

Reimplemented from ConstrainedOptPack::DecompositionSystemVarReductImp.

Definition at line 101 of file ConstrainedOptPack_DecompositionSystemOrthogonal.cpp.

DecompositionSystem::mat_nonsing_fcty_ptr_t::element_type::obj_ptr_t ConstrainedOptPack::DecompositionSystemOrthogonal::uninitialize_matrices	(	std::ostream *	out,
		EOutputLevel	olevel,
		MatrixOp *	Y,
		MatrixOpNonsing *	R,
		MatrixOp *	Uy
	)		const

protectedvirtual

Implements ConstrainedOptPack::DecompositionSystemVarReductImp.

Definition at line 107 of file ConstrainedOptPack_DecompositionSystemOrthogonal.cpp.

void ConstrainedOptPack::DecompositionSystemOrthogonal::initialize_matrices	(	std::ostream *	out,
		EOutputLevel	olevel,
		const mat_nonsing_fcty_ptr_t::element_type::obj_ptr_t &	C,
		const mat_fcty_ptr_t::element_type::obj_ptr_t &	D,
		MatrixOp *	Y,
		MatrixOpNonsing *	R,
		MatrixOp *	Uy,
		EMatRelations	mat_rel
	)		const

protectedvirtual

Implements ConstrainedOptPack::DecompositionSystemVarReductImp.

Definition at line 161 of file ConstrainedOptPack_DecompositionSystemOrthogonal.cpp.

void ConstrainedOptPack::DecompositionSystemOrthogonal::print_update_matrices	(	std::ostream &	out,
		const std::string &	leading_str
	)		const

protectedvirtual

Implements ConstrainedOptPack::DecompositionSystemVarReductImp.

Definition at line 259 of file ConstrainedOptPack_DecompositionSystemOrthogonal.cpp.
